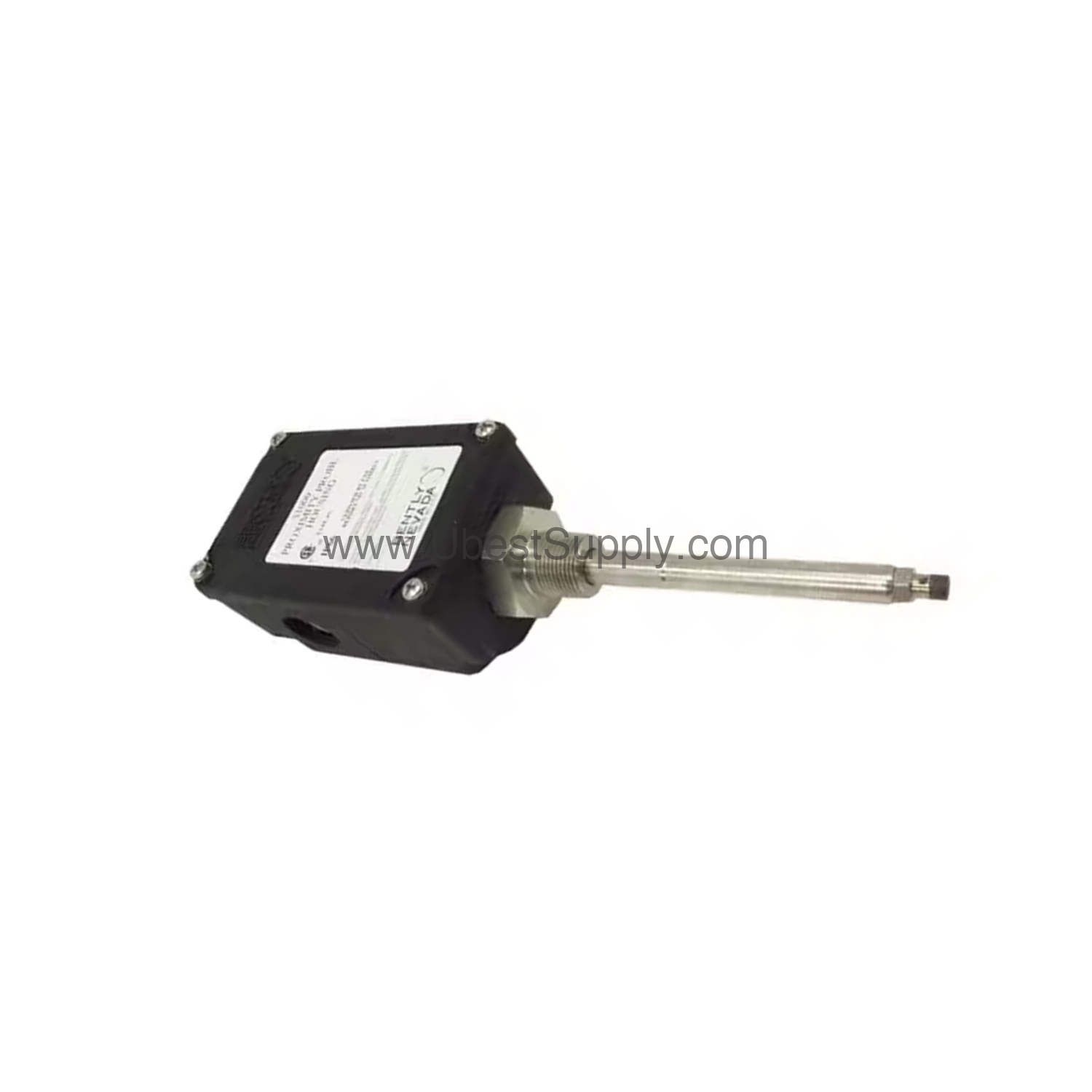

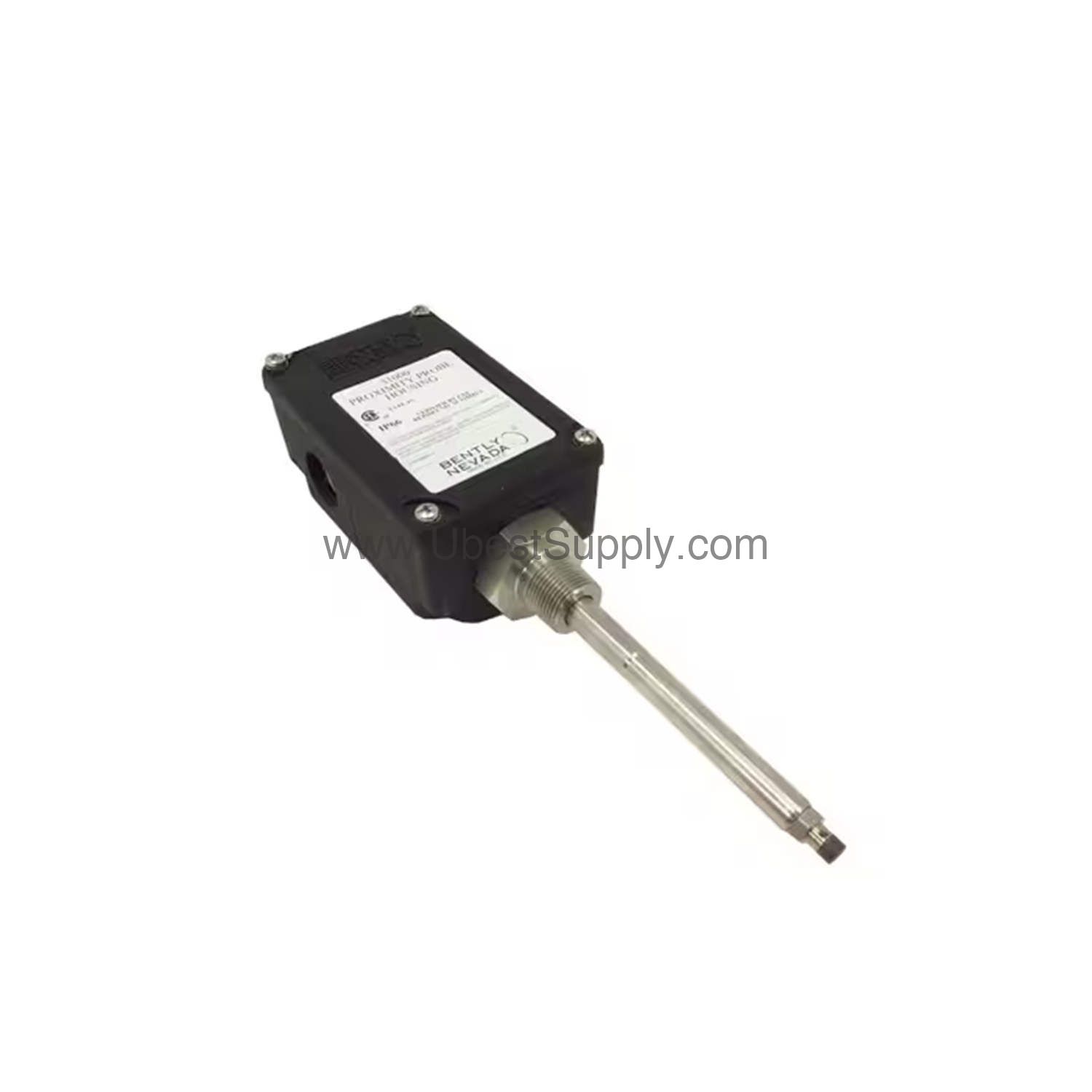

32000-28-10-00-085-03-02 | Bently Nevada 85mm Probe Housing

Introduction to the Bently Nevada 32000-28-10-00-085-03-02

In the demanding world of industrial rotating machinery, accurate vibration monitoring is critical for preventing unplanned downtime and ensuring operational safety. The 32000-28-10-00-085-03-02 from Bently Nevada is a precision-engineered proximity probe housing that provides a secure, protected mounting solution for 3300 XL 8 mm probes. This housing is built to withstand the harshest conditions, offering reliable performance for years of continuous service.

With a robust design and a temperature rating of -51°C to +105°C, this housing is suitable for a wide range of applications, from extreme cold to high-heat environments. Its glass-reinforced PPS thermoplastic construction, combined with stainless steel components, ensures long-term durability and resistance to corrosion and impact.

Key Features and Technical Specifications

• Probe Compatibility: Designed for the 3300 XL 8 mm probe with multiple approvals (option 28).
• Cable Length: Includes a 1.0 m (39 in) probe cable (option 10).
• Probe Penetration: 85 mm penetration depth (option 085).
• Fittings: Two plugs and one M20 fitting (option 03), plus a cable seal grip with grommets for armored probe cable.
• Mounting Thread: 3/4-14 NPT (option 02), required for standoff adapter.
• Protection Ratings: Type 4X rating certified by CSA, IP66 rating verified, and CENELEC EN50014 rating for electrostatic dissipation in hazardous areas.
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers.
• Metallic Components: AISI 304 stainless steel sleeve and retaining chain; AISI 303 stainless steel outer sleeve and exterior screws.
• O-Ring Material: Neoprene® for effective sealing.
• Temperature Range: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

One of the most distinctive features of this housing is its high impact strength. It is certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at extreme temperatures of -39°C and 115°C, and verified by CSA to withstand a 7 Joule (5.2 ft·lb) impact at room temperature. This ensures the housing can endure physical abuse in demanding industrial settings.

Applications and Use Cases

The 32000-28-10-00-085-03-02 is ideal for vibration monitoring on rotating machinery such as turbines, compressors, pumps, and motors. Its rugged construction and high protection ratings make it suitable for use in oil and gas, power generation, and heavy manufacturing facilities. The housing is designed to protect the probe from environmental contaminants, moisture, and impact, ensuring accurate and reliable measurements.

For example, in a petrochemical plant, this housing can be installed on a critical pump to continuously monitor shaft vibration, providing early warning of potential bearing wear or misalignment. This proactive approach helps maintenance teams schedule repairs before a catastrophic failure occurs, reducing downtime and maintenance costs.

Installation and Setup

Proper installation is essential for optimal performance. The housing features a 3/4-14 NPT mounting thread, which is required when ordering a standoff adapter. Ensure the mounting surface is clean and free of debris before installation. The included cable seal grip with grommets provides a secure entry point for armored probe cables, protecting the connection from strain and environmental factors.

When installing, verify that the probe penetration depth of 85 mm is correctly set to achieve the desired measurement gap. Refer to the Bently Nevada installation manual for detailed guidance on probe gap setting and calibration. Always follow the manufacturer's instructions to ensure accurate readings and safe operation.

Maintenance and Reliability

Routine inspection of the housing is recommended to ensure continued reliability. Check for any signs of physical damage, corrosion, or loosening of fittings. The Neoprene® O-ring should be inspected periodically for wear or deterioration, and replaced if necessary to maintain the IP66 seal.

Given its robust construction and high-quality materials, the housing requires minimal maintenance. However, regular checks help identify potential issues early, preventing unexpected failures. This proactive approach contributes to lower lifecycle costs and reduced downtime, making it a cost-effective choice for long-term operations.

Compatibility and Integration

The 32000-28-10-00-085-03-02 is specifically designed for use with Bently Nevada 3300 XL 8 mm proximity probes. It is compatible with Bently Nevada monitoring systems that accept these probes, such as the 3300 and 3500 series monitors. The housing's design ensures proper alignment and protection for the probe, enabling accurate vibration and position measurements.

For integration into new or existing systems, consult the Bently Nevada product documentation to confirm compatibility with your specific monitoring equipment. The housing is a critical component in the measurement chain, and proper selection and installation are essential for reliable data.

Troubleshooting and Common Issues

If you encounter measurement inaccuracies, first verify that the probe is correctly positioned and the gap is within the specified range. Check the cable connections for any signs of damage or loose connections. Ensure that the housing is securely mounted and that the O-ring is intact to prevent moisture ingress.

If the housing is exposed to extreme temperatures, verify that it is within the rated range of -51°C to +105°C. In case of physical impact, inspect the housing for cracks or deformation that could compromise its protective function. If any damage is found, replace the housing promptly to maintain system integrity.

FAQs about the 32000-28-10-00-085-03-02

Q: What is the temperature rating of this housing?

A: The housing is rated for operation from -51°C to +105°C (-60°F to +221°F).

Q: What is the probe penetration depth?

A: The probe penetration option is 85 mm (option 085).

Q: What mounting thread is used?

A: The mounting thread is 3/4-14 NPT (option 02).

Q: What protection ratings does the housing have?

A: It has a Type 4X rating (CSA certified), IP66 rating, and CENELEC EN50014 rating for electrostatic dissipation.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg.

Product Support and Availability

The 32000-28-10-00-085-03-02 is available from Petro Auto Tech. Please contact Petro Auto Tech for current availability and lead times. Our team can assist with product selection and provide technical support to ensure you get the right solution for your application.
