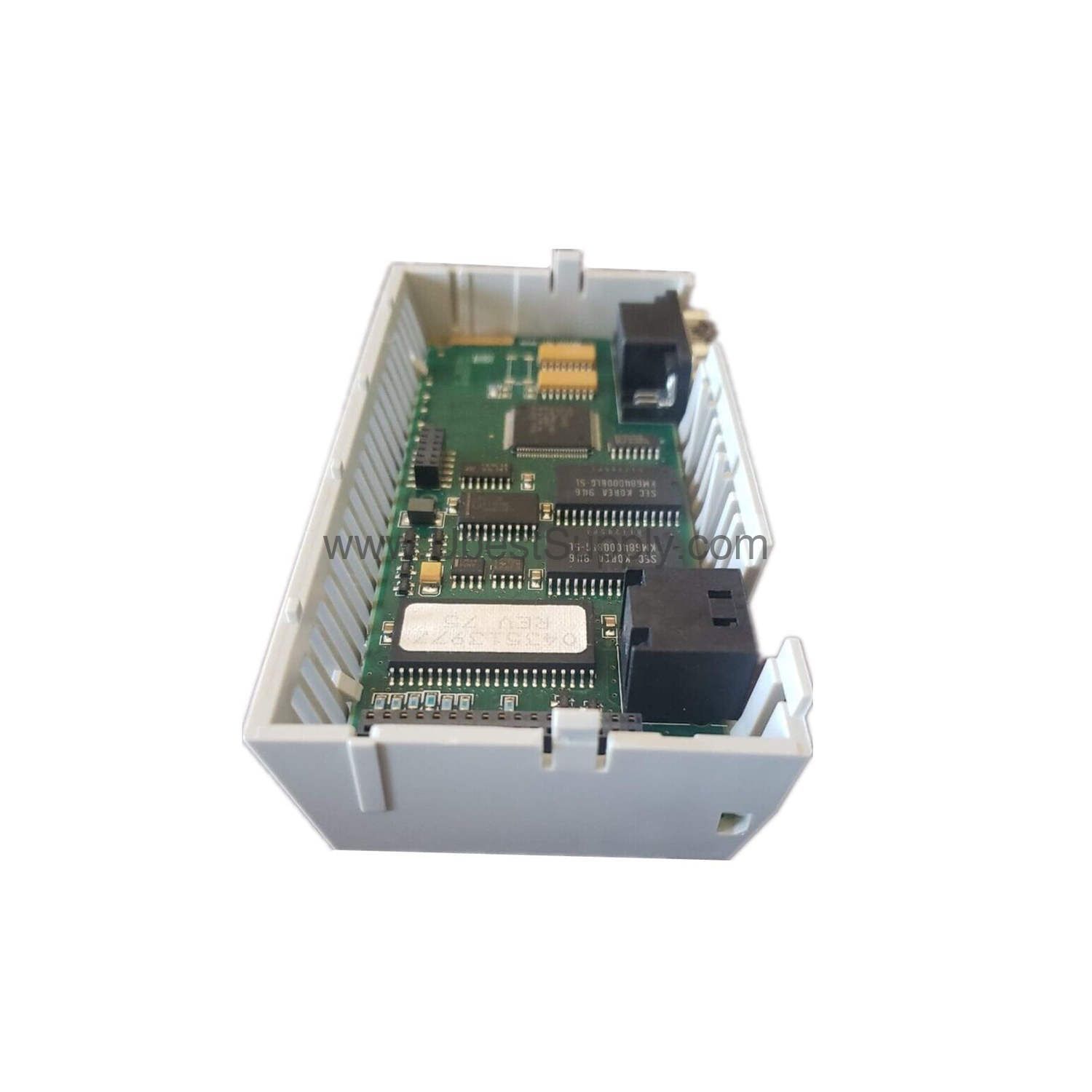

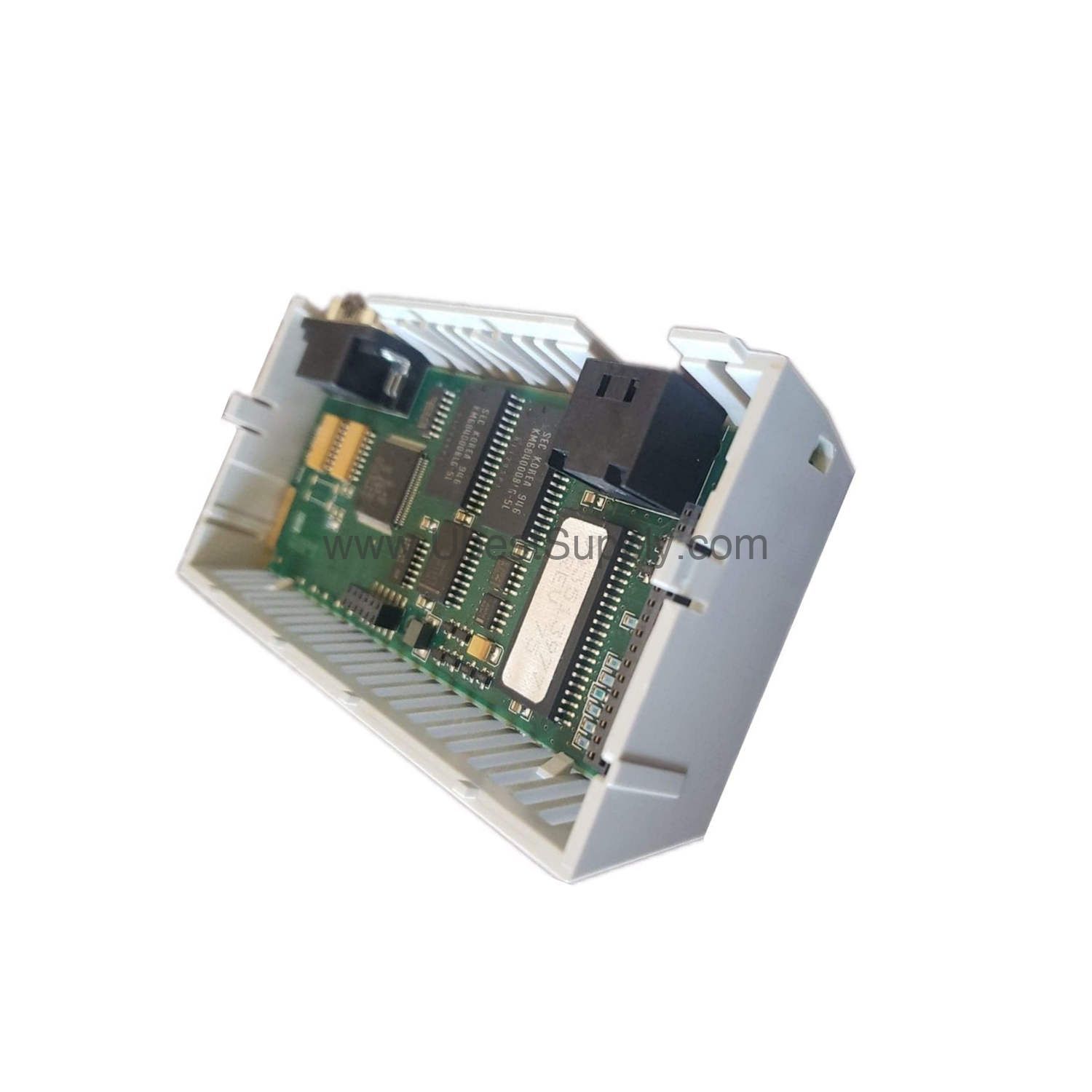

171CCC76010 | Schneider Modbus M1/M1E Processor Adapter Module

Introduction to the Schneider 171CCC76010

When your control system demands reliable processing and seamless communication, the 171CCC76010 from Schneider Electric delivers. This M1/M1E processor adapter module is part of the Modicon Momentum family, engineered for real-time applications. With a 32 MHz clock frequency and 1 ms execution time for 1,000 instructions, it handles demanding tasks efficiently. Moreover, its compact design and lightweight construction simplify integration into existing setups.

Key Features and Technical Specifications

• Rated supply voltage: 5 VDC ±5%.
• Clock frequency: 32 MHz.
• Program memory: 18 kB (LL984) or 240 kB (IEC).
• Data memory: 24 kB.
• Total flash and RAM: 512 kB each.
• Word length: 16 bits.
• Discrete I/O capacity: 8192 inputs and 8192 outputs.
• Register I/O capacity: 26048 inputs and 26048 outputs.
• Communication: one non-isolated RS-232C port and one I/O bus port.
• Protocol: Modbus.

Notably, the 171CCC76010 supports both LL984 and IEC programming, offering flexibility for various applications. Its 16-bit word length ensures compatibility with standard data handling. Additionally, the module's 512 kB flash and RAM provide ample space for complex logic and data storage.

Applications and Use Cases

In manufacturing environments, the 171CCC76010 excels at controlling discrete and register-based I/O. For instance, it can manage up to 8192 discrete I/O points, making it suitable for large-scale machine control. Furthermore, its Modbus communication enables easy integration with SCADA systems and HMIs. Consequently, this module proves valuable in industries like automotive, food and beverage, and material handling. Its fast execution time also supports high-speed sorting and packaging lines.

Installation and Setup

Mounting the 171CCC76010 is straightforward. The module is powered by the Momentum I/O base, eliminating the need for separate power wiring. Ensure the ambient temperature stays within 0 to 60°C and relative humidity between 5% and 96% without condensation. For optimal performance, verify that the base provides stable 5 VDC. Additionally, connect the RS-232C port for programming or HMI communication, and use the I/O bus port for expansion. Always refer to the Schneider manual for detailed wiring diagrams.

Maintenance and Reliability

Regular inspection of the 171CCC76010 ensures long-term reliability. Because it uses flash memory, firmware updates are simple and reduce downtime. The module's shock resistance (up to 15 gn peak) and vibration resistance (0.75 mm displacement, 1 gn) make it robust for industrial environments. Moreover, its operating altitude rating of 2000 meters allows use in elevated facilities. To minimize costs, periodically check for dust accumulation and ensure proper ventilation. Following these practices extends the module's service life and reduces replacement expenses.

Compatibility and Integration

The 171CCC76010 is designed for the Modicon Momentum platform. It works with software such as Concept V2.6, Modsoft ≥ V2.5, ProWORX NxT V2.0, and ProWORX 32. This compatibility simplifies programming and configuration. Additionally, the Modbus protocol ensures interoperability with a wide range of industrial devices. For system expansion, the I/O bus port allows connection to additional Momentum I/O modules. Consequently, this module fits seamlessly into existing Schneider architectures.

Troubleshooting and Common Issues

If the module fails to communicate, verify the RS-232C connection and ensure the Modbus address is correctly set. Also, check that the supply voltage from the I/O base is 5 VDC ±5%. In case of memory errors, re-download the program and confirm the memory size does not exceed 240 kB for IEC or 18 kB for LL984. Should issues persist, consult the Schneider documentation or contact Petro Auto Tech for technical support.

FAQ about 171CCC76010

Q: What is the maximum discrete I/O capacity of the 171CCC76010?

A: The module supports up to 8192 inputs and 8192 outputs, totaling 8192 bits maximum.

Q: Does the 171CCC76010 support Modbus communication?

A: Yes, it uses the Modbus protocol via one non-isolated RS-232C port.

Q: What is the program memory size for the 171CCC76010?

A: It offers 18 kB for LL984 and 240 kB for IEC programming.

Q: What is the execution time for 1,000 instructions?

A: It executes 1,000 instructions in 1 millisecond.

Q: What are the operating temperature limits?

A: It operates from 0 to 60°C in non-condensing conditions.

Product Support and Availability

The 171CCC76010 is available from Petro Auto Tech. We stock this module and can ship promptly. Contact our team for pricing and delivery details. We are here to support your automation needs.
