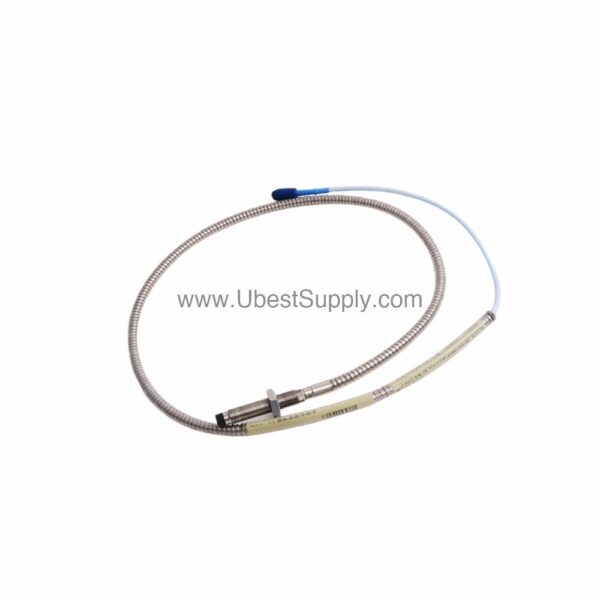

30104-00-09-10-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probe

Introduction: Evolution of Machine Protection

For decades, industrial facilities have relied on proximity probes to safeguard critical rotating equipment. The 30104-00-09-10-02-00 from Bently Nevada represents a mature evolution in this technology, combining proven eddy-current sensing with rugged mechanical design. As plants push for higher uptime and predictive maintenance, the 3300 XL series remains a trusted choice for engineers worldwide.

This article explores the key specifications, applications, and best practices for the 30104-00-09-10-02-00, helping you understand its role in modern condition monitoring.

Key Features & Technical Specifications

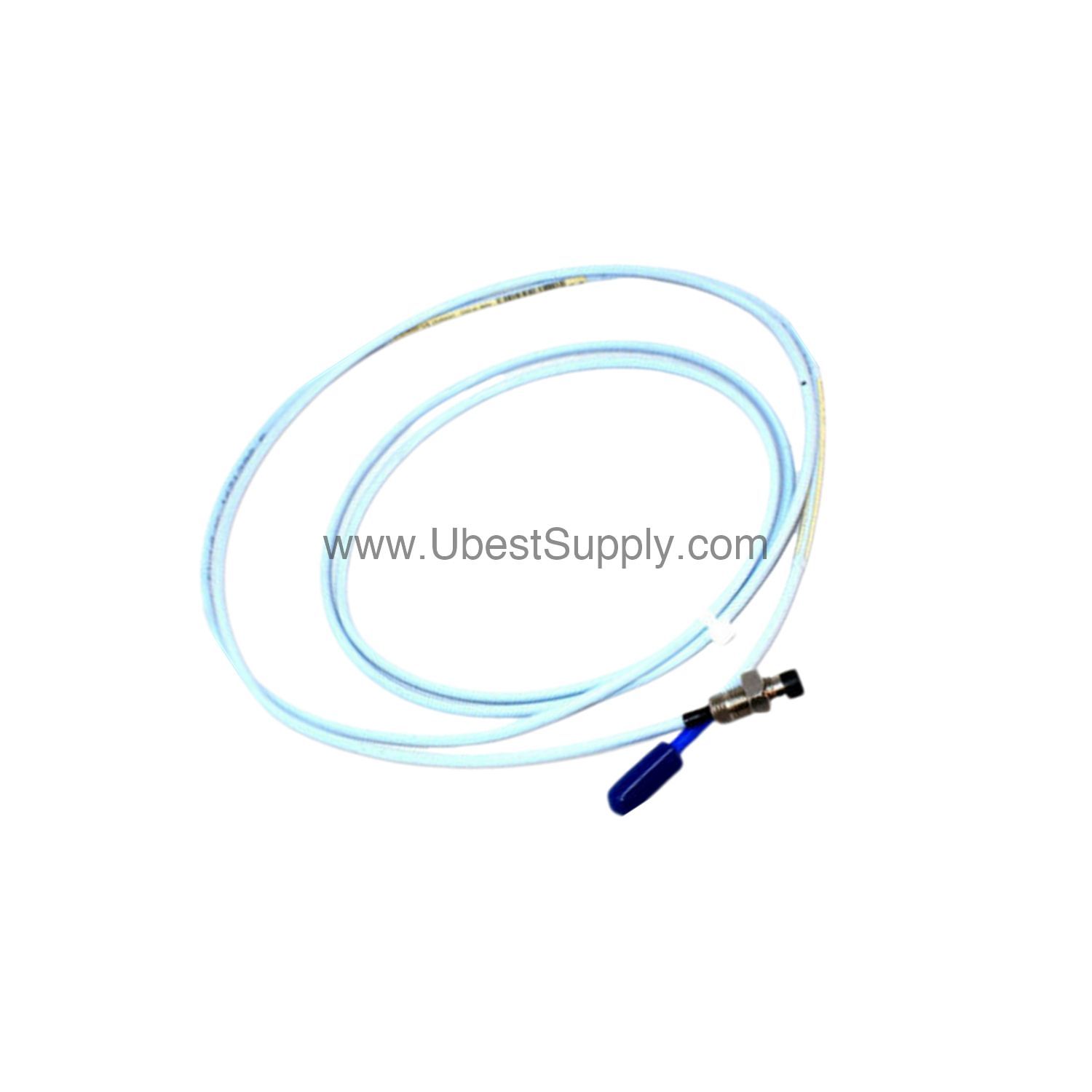

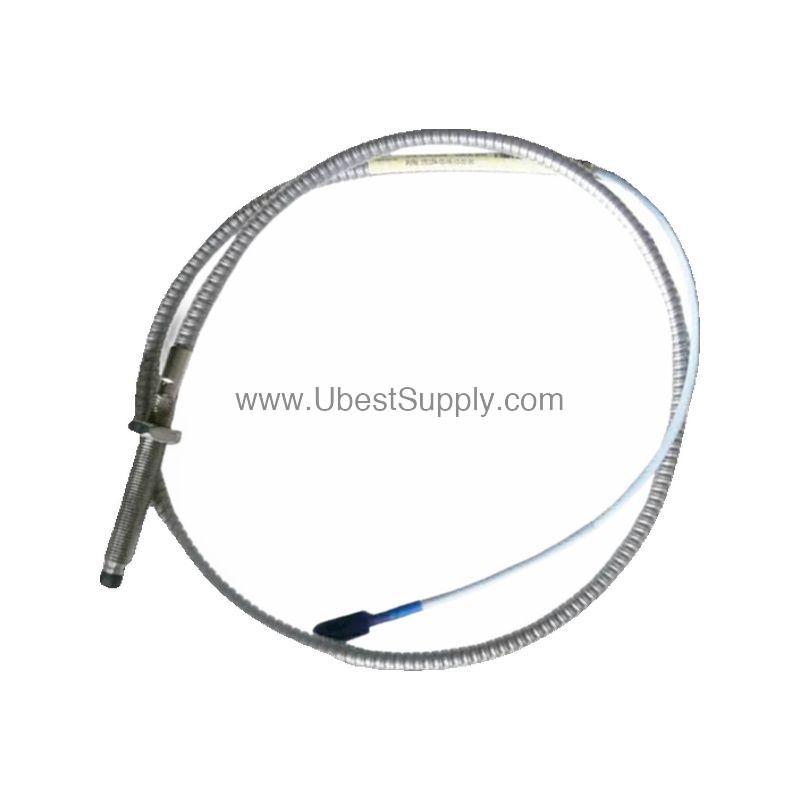

The 30104-00-09-10-02-00 is a 3300 XL 8 mm proximity probe, designed for non-contact measurement of shaft vibration and position. Its construction emphasizes durability and accuracy in harsh industrial environments.

• Manufacturer: Bently Nevada
• Product type: 3300 XL 8 mm Proximity Probe
• Unthreaded length: 00 mm
• Overall case length: 90 mm
• Total length: 1.0 meter (3.3 feet)
• Connector: Miniature coaxial ClickLoc, standard cable
• Agency approval: Not required
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 303 or 304 stainless steel (SST)

The probe's PPS tip offers excellent chemical resistance, while the stainless steel case ensures structural integrity. The ClickLoc connector simplifies installation and provides a secure, repeatable connection.

Industry Applications & Use Cases

Proximity probes like the 30104-00-09-10-02-00 are commonly used in turbomachinery, pumps, compressors, and electric motors. They measure shaft vibration and axial position, enabling early detection of issues such as unbalance, misalignment, and bearing wear.

In a typical scenario, the probe is mounted through a casing to observe the rotating shaft. Its output feeds a vibration monitor, which triggers alarms or trips when thresholds are exceeded. This proactive approach helps prevent catastrophic failures and reduces unplanned downtime.

Additionally, the 3300 XL series is often integrated with Bently Nevada monitoring systems, providing a complete solution for machinery protection.

Installation & Setup

Proper installation is critical for accurate readings. The 30104-00-09-10-02-00 features an M10 x 1 thread, allowing secure mounting. Ensure the probe tip is gapped correctly according to the manufacturer's specifications—typically around 1.27 mm (50 mils) for standard targets.

When routing the cable, avoid sharp bends and excessive strain. The ClickLoc connector should be tightened firmly to maintain a reliable electrical connection. Always follow the installation drawing provided by Bently Nevada for your specific application.

For best results, verify that the target material matches AISI 4140 steel, as system accuracy is calibrated to this reference.

Maintenance & Reliability

Routine inspection of the probe and cable is recommended to ensure long-term reliability. Check for physical damage, such as cracks in the PPS tip or corrosion on the stainless steel case. Periodically verify the cable and connector integrity, as wear can affect signal quality.

Because the probe is designed to seal differential pressure between the tip and case, ensure the O-ring remains intact. If the probe is exposed to harsh chemicals or extreme temperatures, consult the datasheet for environmental limits.

By following these simple steps, you can extend the service life of your 30104-00-09-10-02-00 and maintain accurate monitoring.

Compatibility & Integration

The 30104-00-09-10-02-00 is compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables. It accepts a single non-contacting 3300-series probe and extension cable, making it easy to integrate into existing systems.

For power, the system requires -17.5 Vdc to -26 Vdc when installed with a nonincendive circuit, with a maximum consumption of 12 mA. The output resistance is 50 Ω, and the nominal probe DC resistance is 7.59 ± 0.50 Ω for a 1.0-meter probe.

These specifications ensure seamless integration with standard Bently Nevada monitoring platforms.

Troubleshooting & Common Issues

If you encounter erratic readings, first check the probe gap and target material. A gap that is too large or too small can cause nonlinear output. Also, verify that the target is AISI 4140 steel; other materials may require recalibration.

Signal noise can result from loose connections or damaged cables. Inspect the ClickLoc connector and the entire cable run for signs of wear. Ensure the power supply meets the required voltage range, as operation below -23.5 Vdc may reduce the linear range.

If problems persist, refer to the official Bently Nevada documentation or contact Petro Auto Tech for technical support.

FAQ about 30104-00-09-10-02-00

Q: What is the total length of the 30104-00-09-10-02-00?

A: The total length is 1.0 meter (3.3 feet).

Q: What type of connector does this probe use?

A: It uses a miniature coaxial ClickLoc connector with standard cable.

Q: What is the probe tip material?

A: The probe tip is made of polyphenylene sulfide (PPS).

Q: What is the probe case material?

A: The case is made of AISI 303 or 304 stainless steel.

Q: What is the unthreaded length?

A: The unthreaded length is 00 mm.
