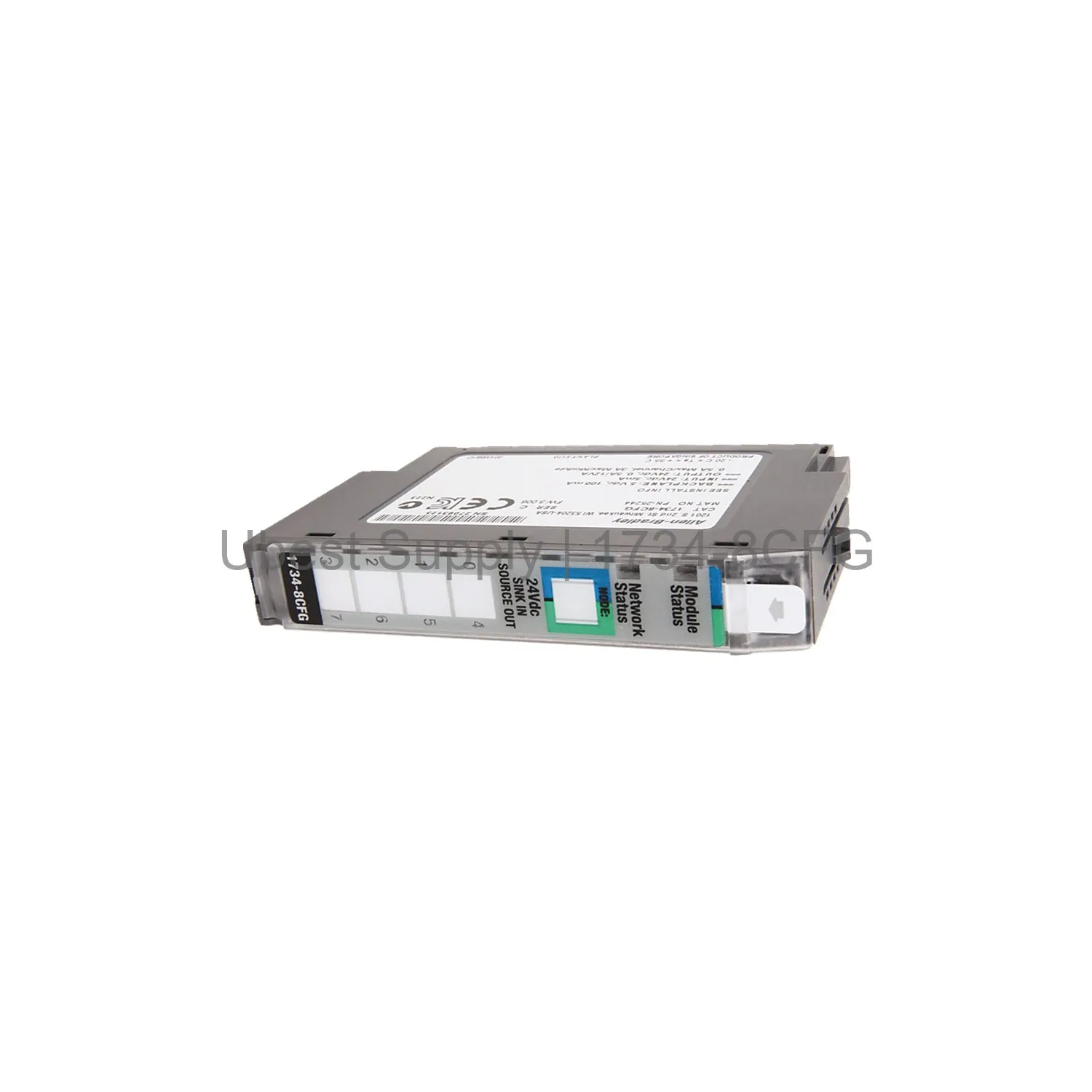

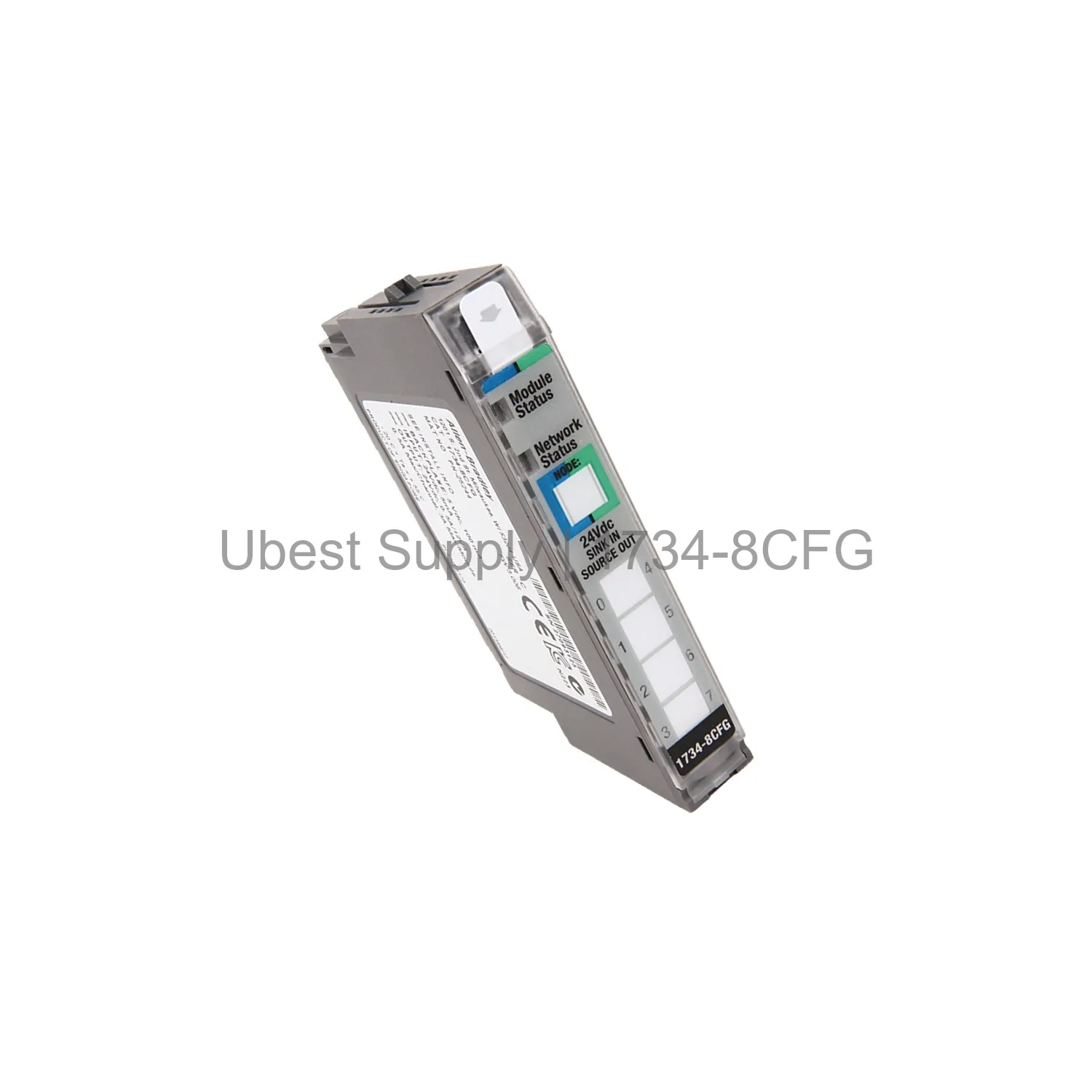

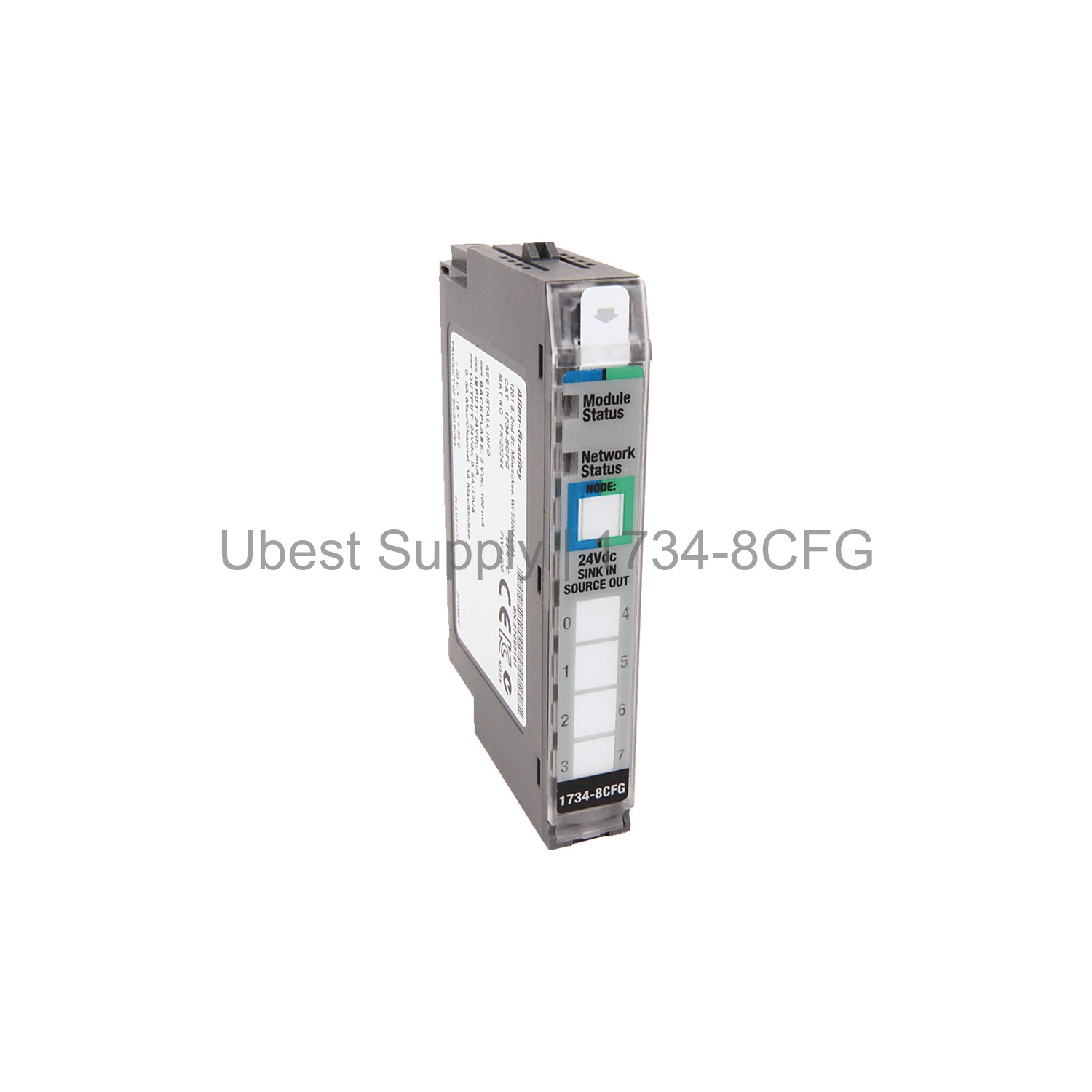

1734-8CFG Allen-Bradley DC Configurable I/O Module 8 Points

Product Overview

The Allen-Bradley 1734-8CFG is a POINT I/O module. It has 8 configurable I/O points. Each point works as input or output. The module self-configures based on wiring. This flexibility simplifies system design. Use it with 1734-TOPS, 1734-TOP, 1734-TBS, or 1734-TB bases. The module supports hot swapping. It communicates via POINTBus backplane. The key switch position is 1. Ensure correct keying before installation. The input voltage range starts at 11 V DC. Input current is 2 to 5 mA. Output voltage ranges from 10 to 28.8 V DC. Power dissipation is 2.6 W at maximum output. Thermal dissipation is 8.9 BTU/hour. The module draws 100 mA at 5 V DC from the backplane. Operating temperature is -20 to 55 °C. The open enclosure design allows easy integration. It mounts on a DIN rail. Reverse polarity protection safeguards the module. All connected I/Os need SELV or PELV power sources. This module reduces inventory by replacing separate input and output modules.

Application Scenarios

This module fits many industrial applications. Use it in manufacturing lines. It works for machine control systems. It handles discrete signals. It is ideal for flexible I/O needs. The configurable points reduce inventory. You can change I/O types without replacing hardware. It works in automation cells. It supports packaging, assembly, and material handling. It can be used in conveyor systems. It also works in robotic workcells. The module suits both new installations and retrofits. Its small footprint saves panel space. The 1734-8CFG integrates with Rockwell controllers. It works with CompactLogix and ControlLogix systems. It can also connect to other POINT I/O modules. This modular approach scales easily. You can add or remove modules as needed. The backplane supports auto-addressing. This simplifies configuration. The module is suitable for harsh environments. Its open enclosure meets standard industrial requirements.

Technical Specifications

• Input/Outputs: 8
• Input Voltage Min: 11 V DC
• Input Current: 2-5 mA
• On-state output voltage: 10-28.8 V DC
• Power dissipation: 2.6 W
• Thermal dissipation: 8.9 BTU/hour
• POINTBus current: 100 mA at 5 V DC
• Operating temperature: -20 to 55 °C
• Enclosure: Open
• Mounting: DIN rail
• Key switch position: 1
• Compatible wiring bases: 1734-TOPS, 1734-TOP, 1734-TBS, 1734-TB
• Field power: SELV or PELV

Installation & Maintenance Guide

Install the module on a DIN rail. First mount the terminal base. Key the base correctly. Insert the module. Use only compatible wiring bases. The module has reverse polarity protection. No special maintenance is needed. Keep the enclosure clean. Follow SELV/PELV power requirements. Do not exceed voltage ratings. The module supports auto-baud and auto-address. You can remove or insert it under power. This reduces downtime. Always disconnect power before changing wiring. Check connections for tightness. The operating temperature range is -20 to 55 °C. Avoid condensation. Store in a dry environment. The module is a solid-state device. It has no moving parts. It requires no regular calibration. If a fault occurs, replace the module. Keep spare modules for quick replacement. Use proper electrostatic discharge precautions. Handle the module by the edges. Do not touch the connector pins.

Packing List

The package includes one 1734-8CFG module. It also includes a mounting instruction sheet. No additional accessories are included. Ensure you have the correct wiring base separately. The module ships in anti-static packaging. Shipping is via FedEx, UPS, or DHL. Check the package for damage upon receipt. If damaged, contact support immediately.
