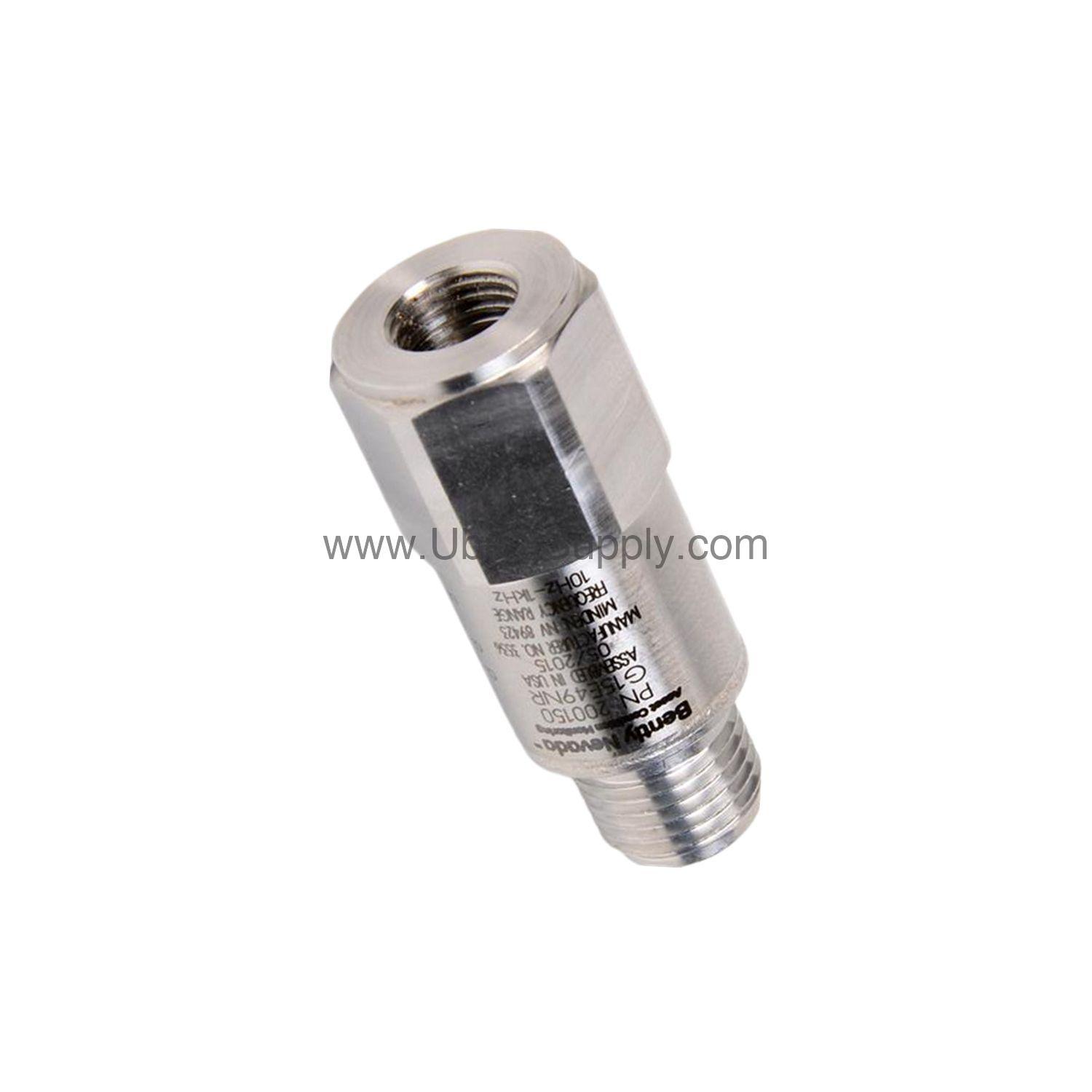

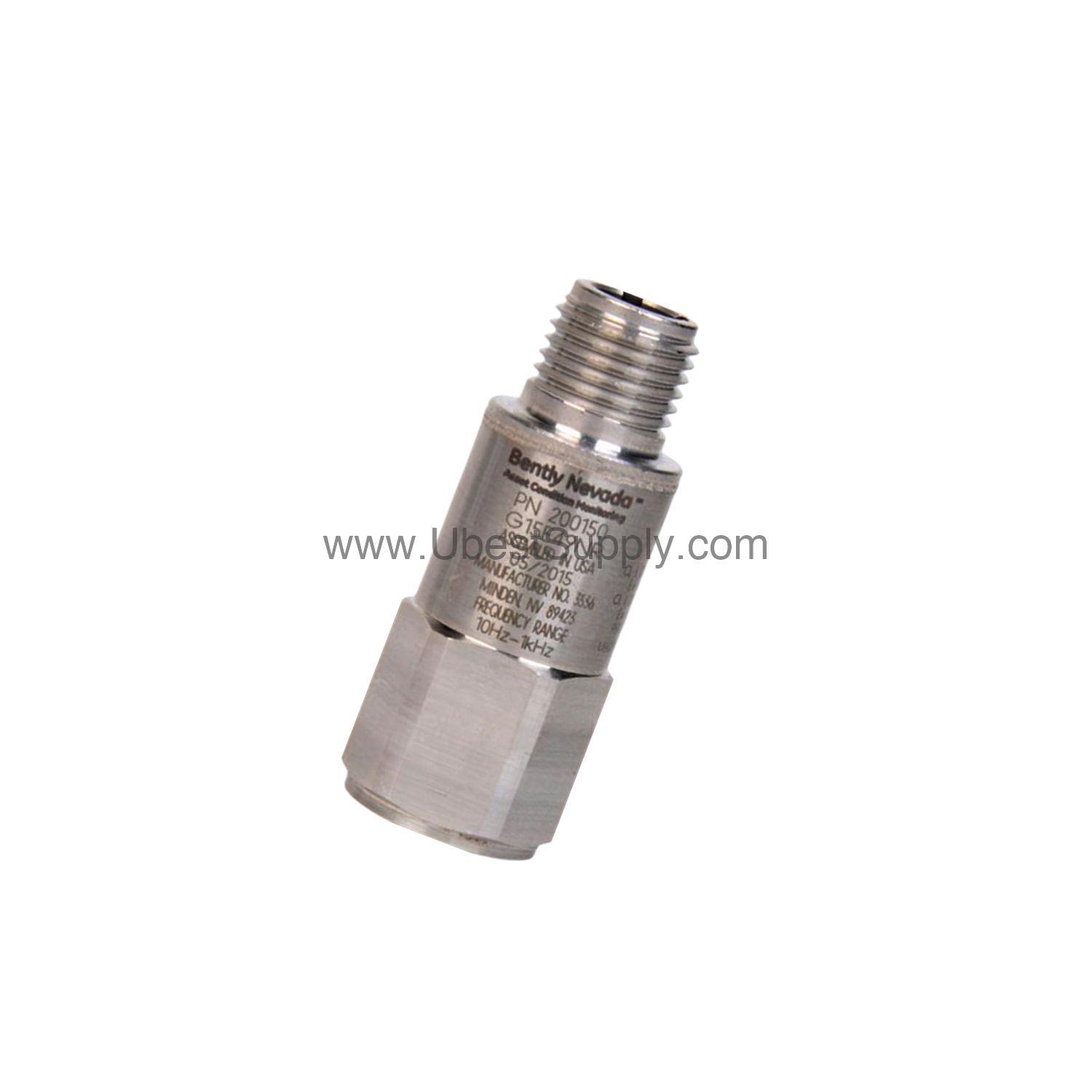

200150-20-05 | Bently Nevada 100 mV/g Accelerometer Trendmaster

What Makes the Bently Nevada 200150-20-05 Essential for Vibration Monitoring?

When unplanned machinery downtime threatens production targets, the 200150-20-05 from Bently Nevada provides precise vibration data. This general purpose accelerometer is part of the Trendmaster 2000 or Trendmaster Pro family. It offers a sensitivity of 10.2 mV/(m/s²) (100 mV/g) at 80 Hz. With a measurement range of ±245 m/s² (±25 g), it suits many industrial rotating assets.

Key Features and Technical Specs of the 200150-20-05

• Sensitivity: 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, ±12%.
• Measurement range: ±245 m/s² (±25 g).
• Frequency range: 10 to 1000 Hz (600 to 60,000 cpm) referenced to 80 Hz.
• Mounted resonant frequency: >20 kHz (>1200 kcpm).
• Amplitude linearity: ±2% (1 to 10 g pk).
• Transverse sensitivity: ≤7%.
• Settling time: ≤300 ms (within 5% of bias).
• Excitation voltage: 4.7 to 5.5 Vdc.
• Quiescent current: <800 µA.
• Output bias voltage: +2.5 ± 0.23 Vdc.
• Axial shock limit: 49,050 m/s² pk (5,000 g pk).
• Temperature range: -40 °C to +105 °C (-40 °F to +221 °F).
• Hermetic sealing: 5×10⁻⁸ atm•cc/s max.
• Relative humidity: 100% condensing, non-submerged.
• Size: 17.5 mm hex × 45.7 mm height (11/16 in × 1.8 in).
• Weight: 58 g (2.0 oz), typical.
• Mounting thread: 3/8-24 female.
• Mounting torque: 2.7 to 6.8 N•m (2 to 5 ft•lbf).
• Sensing element: ceramic shear design.
• Housing: 316L stainless steel.

Real-World Applications for the 200150-20-05

In general industrial applications, this accelerometer monitors vibration on pumps, fans, compressors, and motors. Its 100 mV/g sensitivity captures both low- and high-frequency signals. The multiple approvals (CSA, ATEX, IECEx) allow use in hazardous environments. For example, a petrochemical plant can rely on the 200150-20-05 to detect early bearing wear and prevent catastrophic failure.

Installation and Setup Guide

Mount the accelerometer using the 3/8-24 female thread. Apply a mounting torque between 2.7 and 6.8 N•m (2 to 5 ft•lbf) for proper coupling. The 3/8-24 thread, 1 magnetic mount base option (stud option 20) simplifies temporary installations. Ensure the mounting surface is clean and flat to achieve the specified frequency response. After mounting, allow 24 hours cure time if using adhesive. Connect the excitation voltage between 4.7 and 5.5 Vdc. Verify the output bias voltage is +2.5 ± 0.23 Vdc before operation.

Maintenance and Reliability Tips

Regularly inspect the accelerometer cable and connector for damage. The hermetically sealed 316L stainless steel housing protects against moisture and corrosive atmospheres. Because the unit operates in 100% condensing humidity, verify the sealing integrity annually. Replace the unit if the output bias voltage drifts outside the specified range. This proactive approach extends service life and reduces unexpected downtime.

Compatibility and Integration

The 200150-20-05 works with Bently Nevada ProTIM option standard acceleration-to-velocity channel type (-01). It integrates into Trendmaster 2000 and Trendmaster Pro systems. The accelerometer outputs a positive signal (SIG+ positive with respect to SIG-) for acceleration from base to connector. For system-specific wiring details, consult the official Bently Nevada documentation.

Frequently Asked Questions about the 200150-20-05

What is the sensitivity of the 200150-20-05?

The sensitivity is 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, with a tolerance of ±12%.

What is the operating temperature range?

The accelerometer operates from -40 °C to +105 °C (-40 °F to +221 °F).

What approvals does the 200150-20-05 carry?

It carries multiple approvals: CSA, ATEX, and IECEx (option 05).

What is the mounting thread size?

The mounting thread is 3/8-24 female. The stud option 20 provides a 3/8-24 thread with one magnetic mount base.

What is the measurement range of the accelerometer?

The measurement range is ±245 m/s² (±25 g) for the 200150 model.

Product Support and Availability

The Bently Nevada 200150-20-05 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing, lead times, and technical support. We are your trusted source for industrial automation parts.
