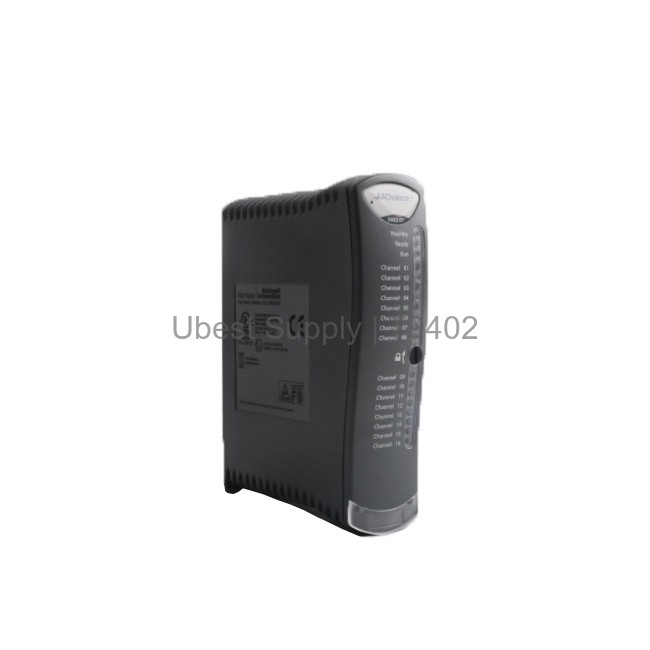

ICS Triplex T9402 24 Vdc Digital Input Module 16 Channel

Product Overview

The ICS Triplex T9402 is a digital input module. It operates at 24 Vdc. This module has 16 isolated channels. It handles simplex, dual, and triple configurations. Scan times are fast and reliable. Simplex mode runs at 0.924 ms. Dual mode runs at 1.676 ms. Triple mode runs at 2.453 ms. The module fits into the T9402 back-plane. It uses minimal power. It is built for industrial automation.

Application Scenarios

Use the T9402 in safety-critical systems. It works in process control plants. It is ideal for oil and gas facilities. Use it in power generation sites. It supports chemical manufacturing lines. The module works with ICS Triplex systems. It is good for high-availability setups. It handles discrete input signals. It is perfect for remote I/O applications.

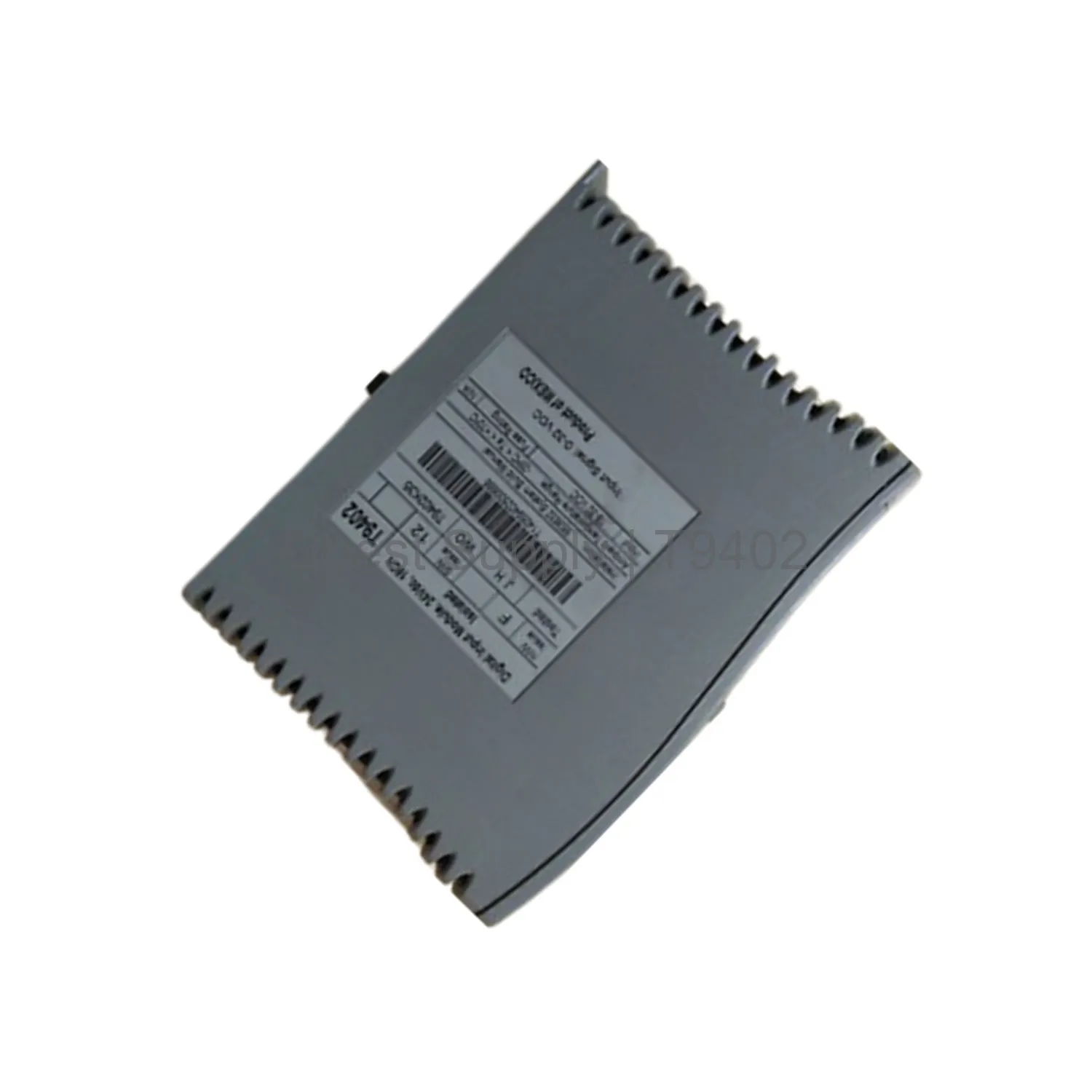

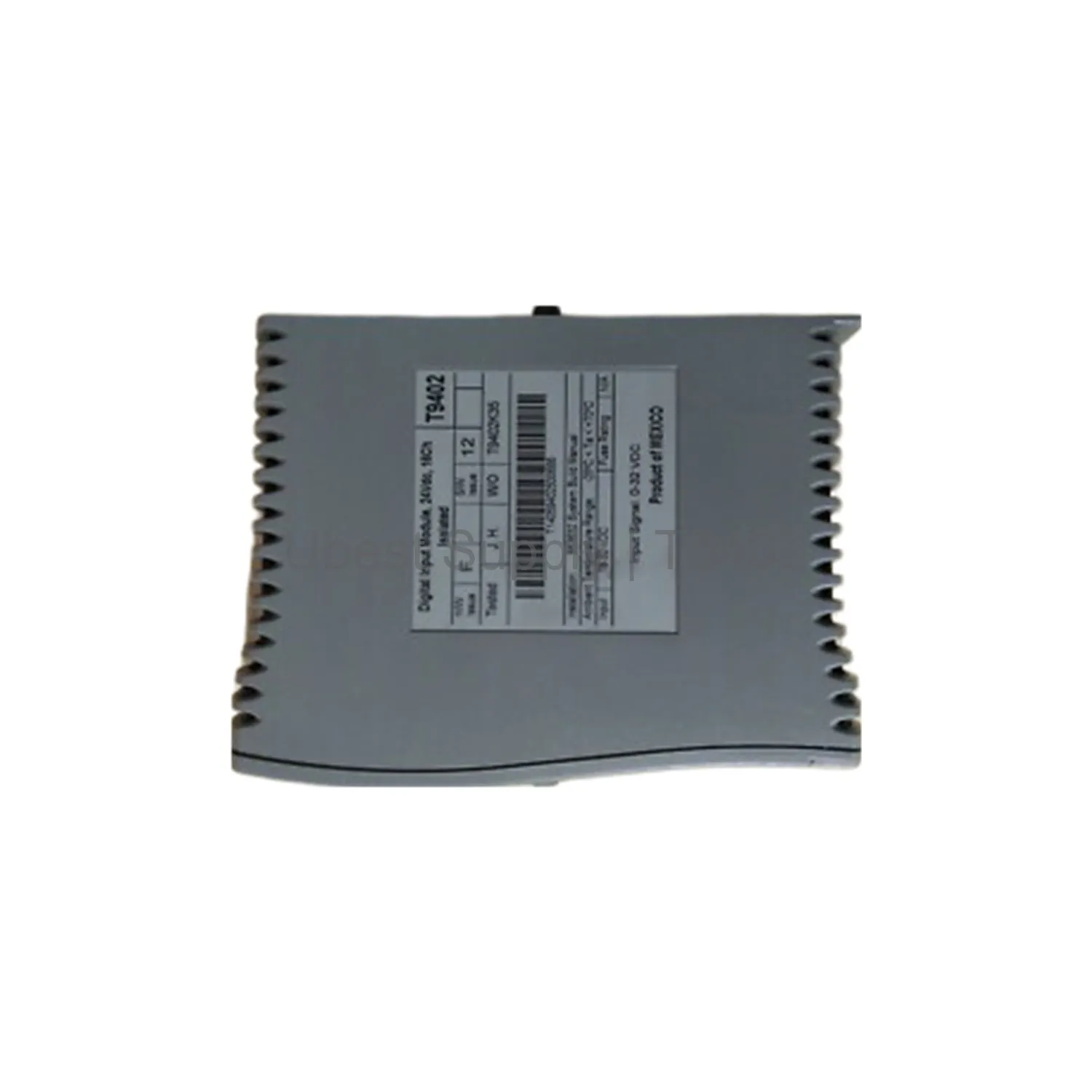

Technical Specifications

The module has a voltage range of 18-32 Vdc. Maximum current draw is 260 mA. Input electrical ratings are 0-32 Vdc at 6.5 mA. Power consumption is 4.0 W. Heat dissipation is 4.0 W (13.6 BTU/hr.). The weight is 340 g (12 oz.). Scan times vary by configuration. Simplex is 0.924 ms. Dual is 1.676 ms. Triple is 2.453 ms. All channels are isolated. It is a robust digital input module.

Installation & Maintenance Guide

Install the T9402 into a compatible back-plane. Ensure power is off before installation. Connect input wires to the terminal block. Use 24 Vdc supply within the 18-32 Vdc range. Secure the module with mounting screws. Check all connections for tightness. Perform a scan time test after setup. Clean the module with a dry cloth. Avoid using solvents. Store in a dry, static-free environment.

Packing List

1 x ICS Triplex T9402 Digital Input Module
1 x Installation Manual
1 x Terminal Block Connector
1 x Mounting Screws Kit
1 x Product Warranty Card
