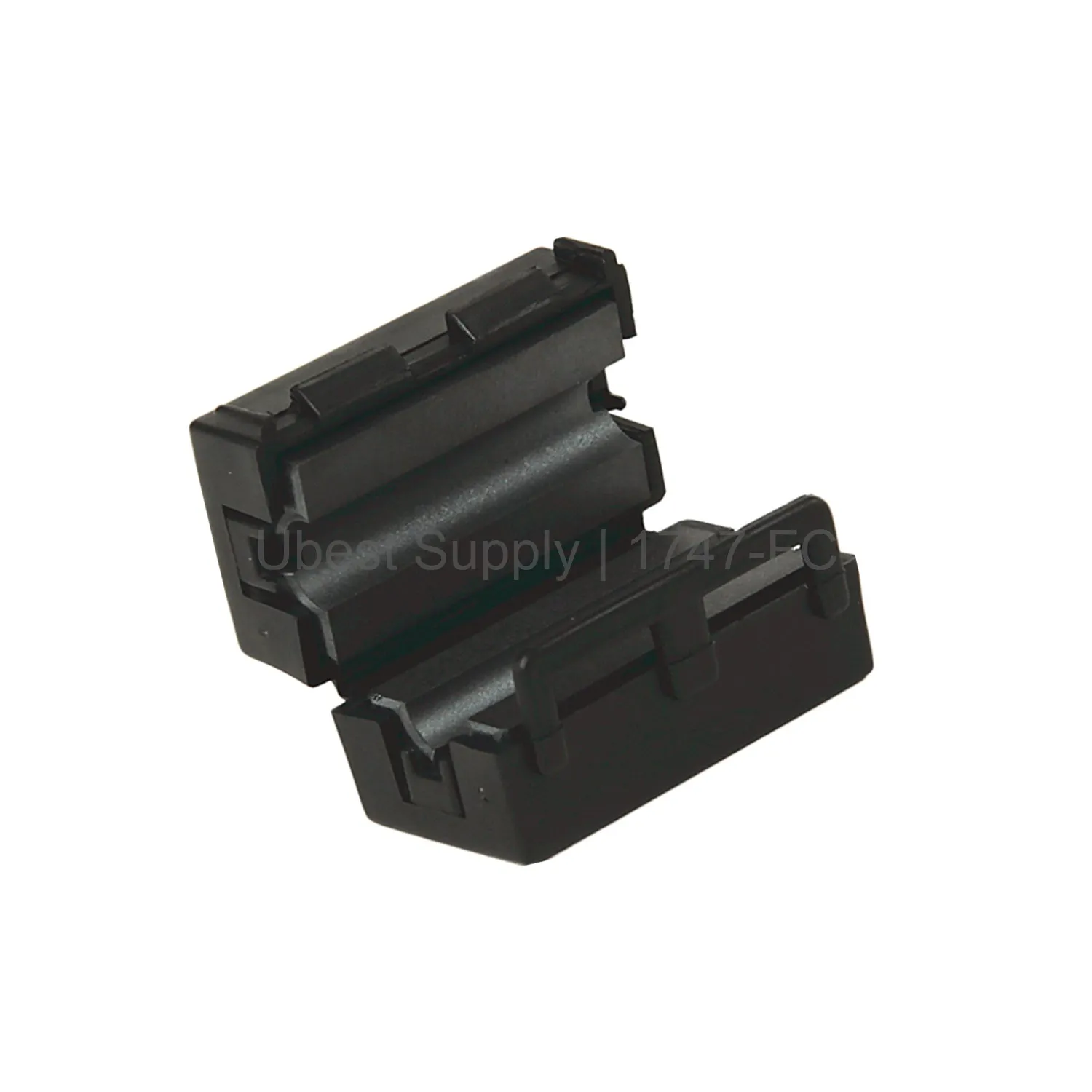

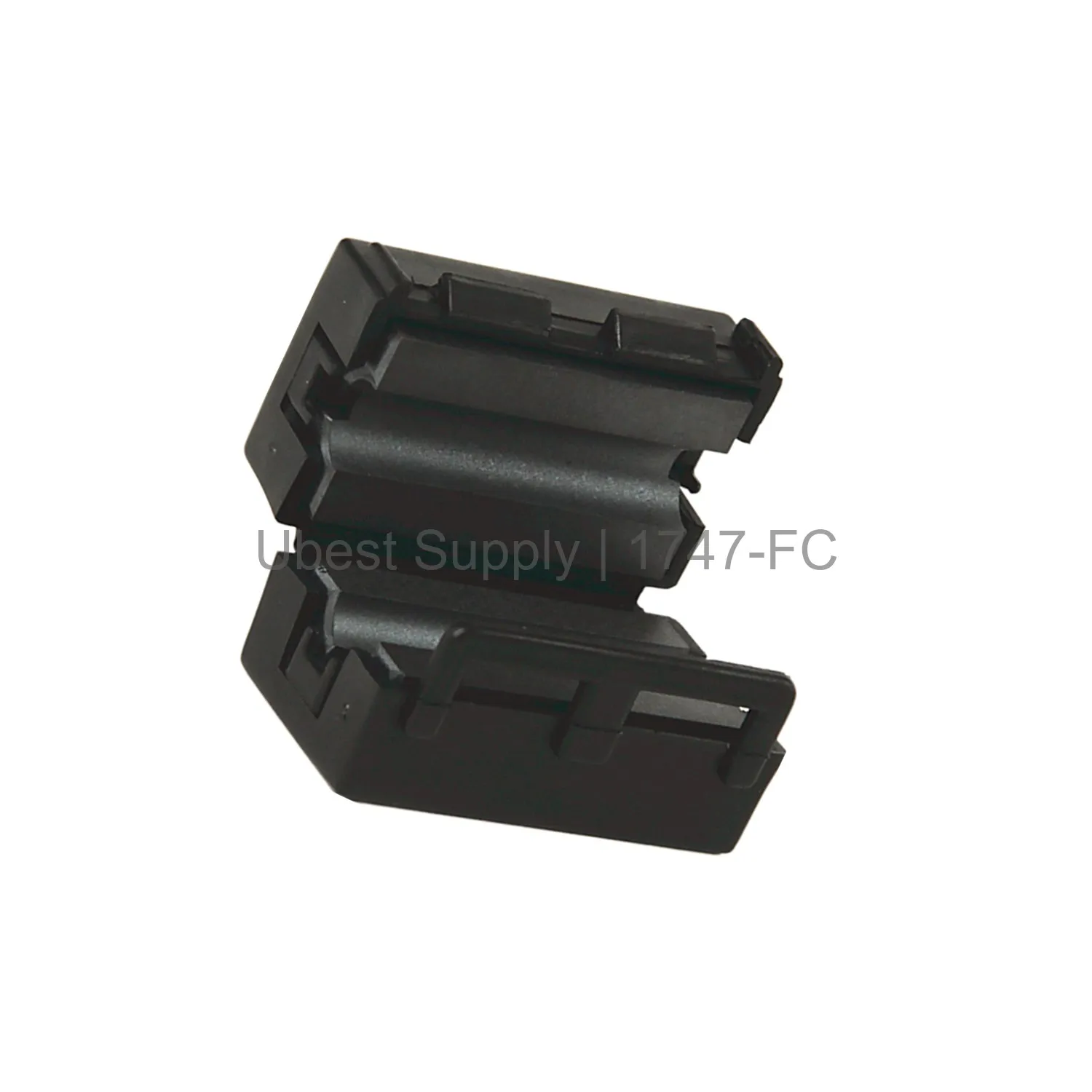

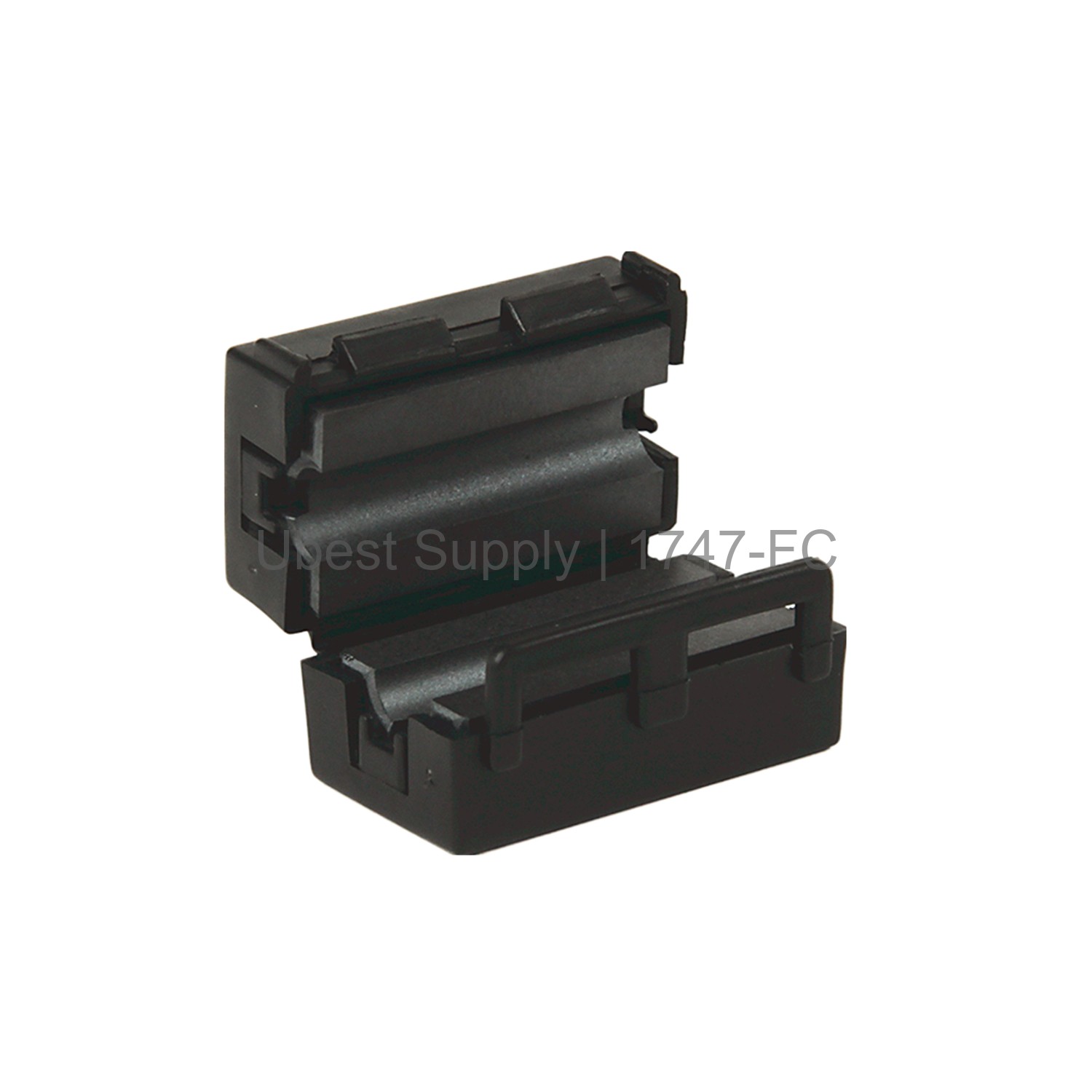

1747-FC Ferrite Collar for SLC 500 EMI/RFI Suppression

Product Overview

The 1747-FC ferrite collar helps suppress electromagnetic interference (EMI) and radio frequency interference (RFI). It works with RS-232 cables. This accessory fits SLC 500 controllers like 1747-L541, 1747-L542, and 1747-L543. Snap it onto the cable where it exits the module. The collar reduces noise that can cause errors. It ensures stable communication in automation systems. The collar uses ferrite material for effective attenuation. The plastic housing provides durability. Installation is simple and quick. No tools are required.

Application Scenarios

Use the 1747-FC in industrial environments with high electrical noise. Motors, drives, and welding equipment can create interference. The collar protects SLC 500 processors from false signals. It supports RS-232 connections to HMI or SCADA systems. Apply it in manufacturing plants, assembly lines, and process control. The collar helps maintain data integrity. It works in compliance with the European EMC Directive. Use it where cable exits the controller module. It is ideal for retrofitting existing systems.

Technical Specifications

Manufacturer: Allen Bradley. Series: SLC 500. Part number: 1747-FC. Product type: Ferrite collar. Compatible cable: RS-232. Controller compatibility: 1747-L541, 1747-L542, 1747-L543. Primary function: EMI/RFI suppression. Compliance: European EMC Directive. Material: Ferrite. Housing material: Plastic. Installation complexity: Low. The collar weighs very little. It does not require any power supply.

Installation & Maintenance Guide

To install the 1747-FC, open the collar and place it around the RS-232 cable. Position it where the cable leaves the module. Snap the collar shut until it locks. Ensure a snug fit. No tools are needed. The collar does not need regular maintenance. Keep it clean from dust and debris. Avoid exposing it to extreme temperatures. The collar operates reliably in 0 to 60 degrees Celsius. It does not interfere with cable movement.

Packing List

Each package contains one 1747-FC ferrite collar. It may include a quick installation guide. The collar arrives in a protective plastic bag. Check for any damage before installation. For shipping, we use FedEx, UPS, or DHL. We pack the item securely to prevent damage.
