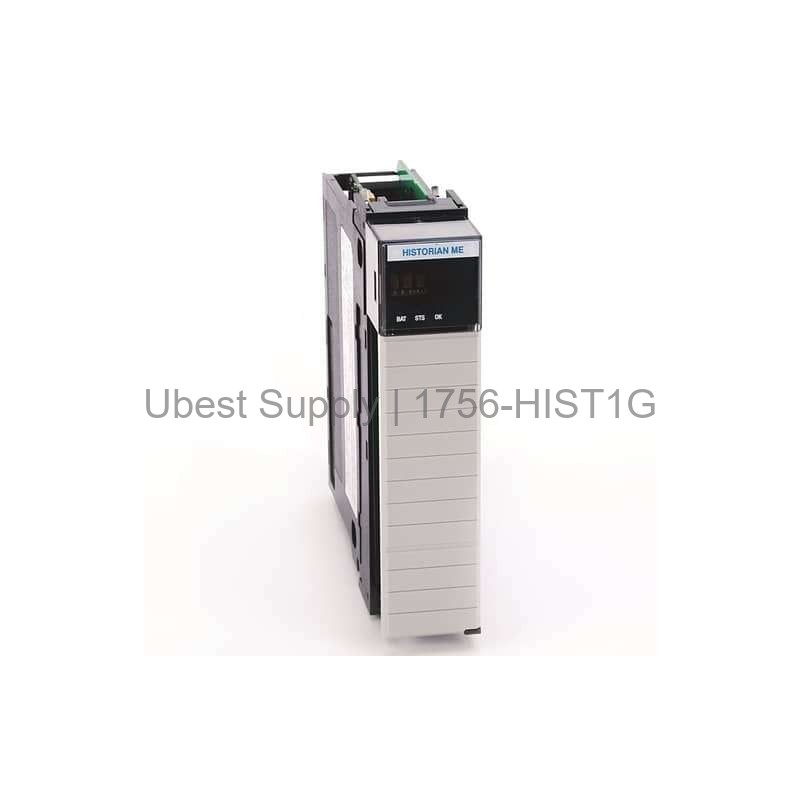

1756-HIST1G ControlLogix FactoryTalk Historian ME Module

Product Overview

The Allen-Bradley 1756-HIST1G is a ControlLogix module. It runs FactoryTalk Historian Machine Edition (ME). This module stores process data locally. It uses a 1GB compact flash memory. You can log years of production data. The module fits a single slot. It connects via one Ethernet port. This module helps with data analysis. It improves plant floor visibility.

Application Scenarios

Use this module for data collection. It works in manufacturing plants. It tracks machine performance. It monitors production lines. You can store batch data. It is good for quality control. It helps with regulatory compliance. Use it for energy monitoring. It works in discrete and process industries. It supports continuous improvement projects.

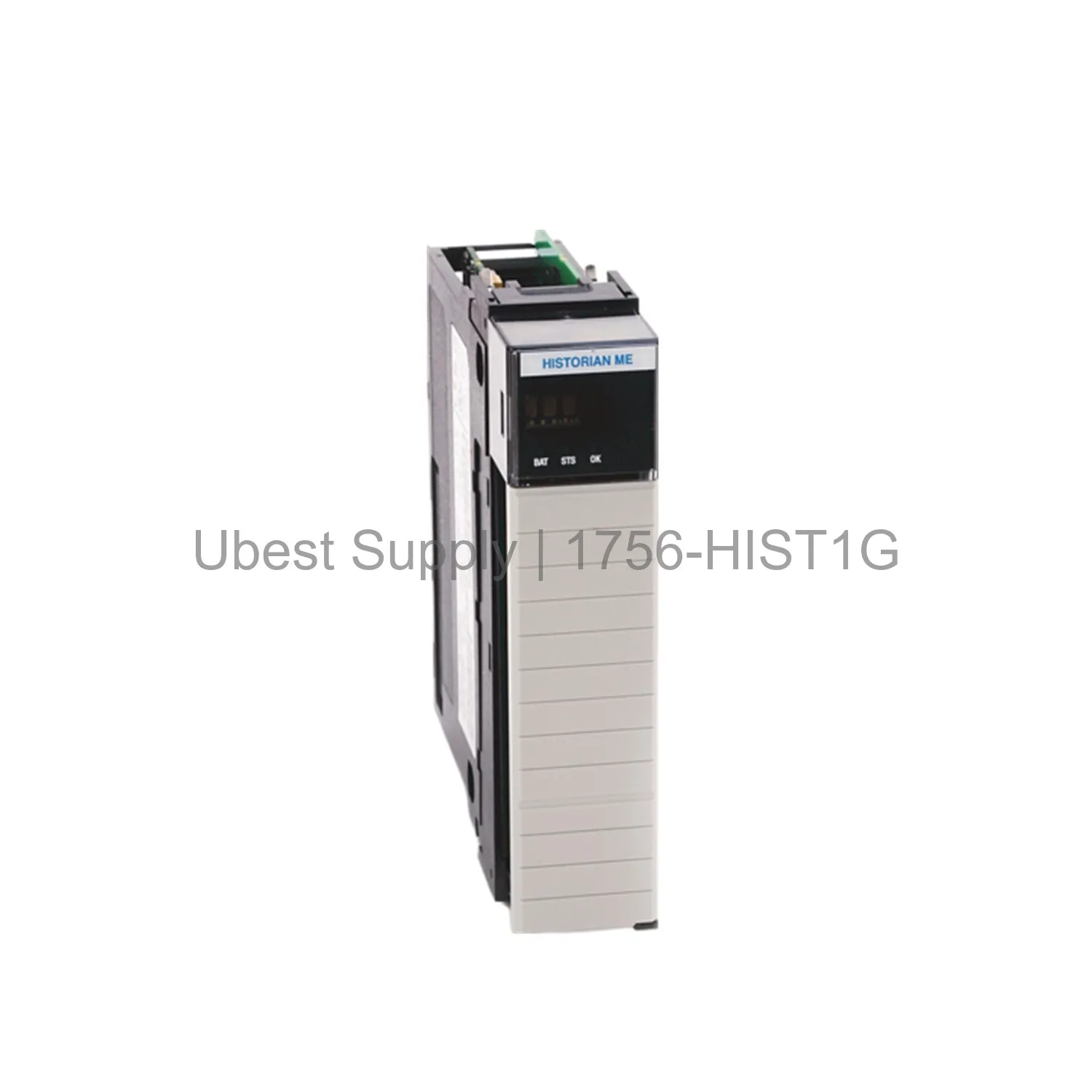

Technical Specifications

The 1756-HIST1G has an AMD LX800 processor. It runs at 500 MHz. It has 512 Kbytes of battery-backed SRAM. It includes 128 K L1 and 128 K L2 cache. Power consumption is 5 Watts typical. It needs 5.1V DC at 800 mA. It also needs 24V DC at 3 mA. The module has a precision real-time clock. It uses a rechargeable lithium battery. The battery is non-removable. It has status LEDs and a 4-character display. The operating temperature is 32 to 140 °F. Dimensions are 5.6 x 1.4 x 5.5 inches.

Installation & Maintenance Guide

Install the module into a ControlLogix chassis. Ensure power is off before insertion. Use the single-slot form factor. Connect the Ethernet cable to your network. Configure the module using FactoryTalk software. The battery maintains the clock. No routine maintenance is needed. Keep the module within the temperature range. Avoid dust and moisture. Check the status LEDs for errors.

Packing List

One Allen-Bradley 1756-HIST1G module. One product documentation sheet. No cables are included. No software media is included. The module is packed in an anti-static bag. It is shipped in a secure box. We ship via FedEx, UPS, or DHL. Contact us for bulk orders.
