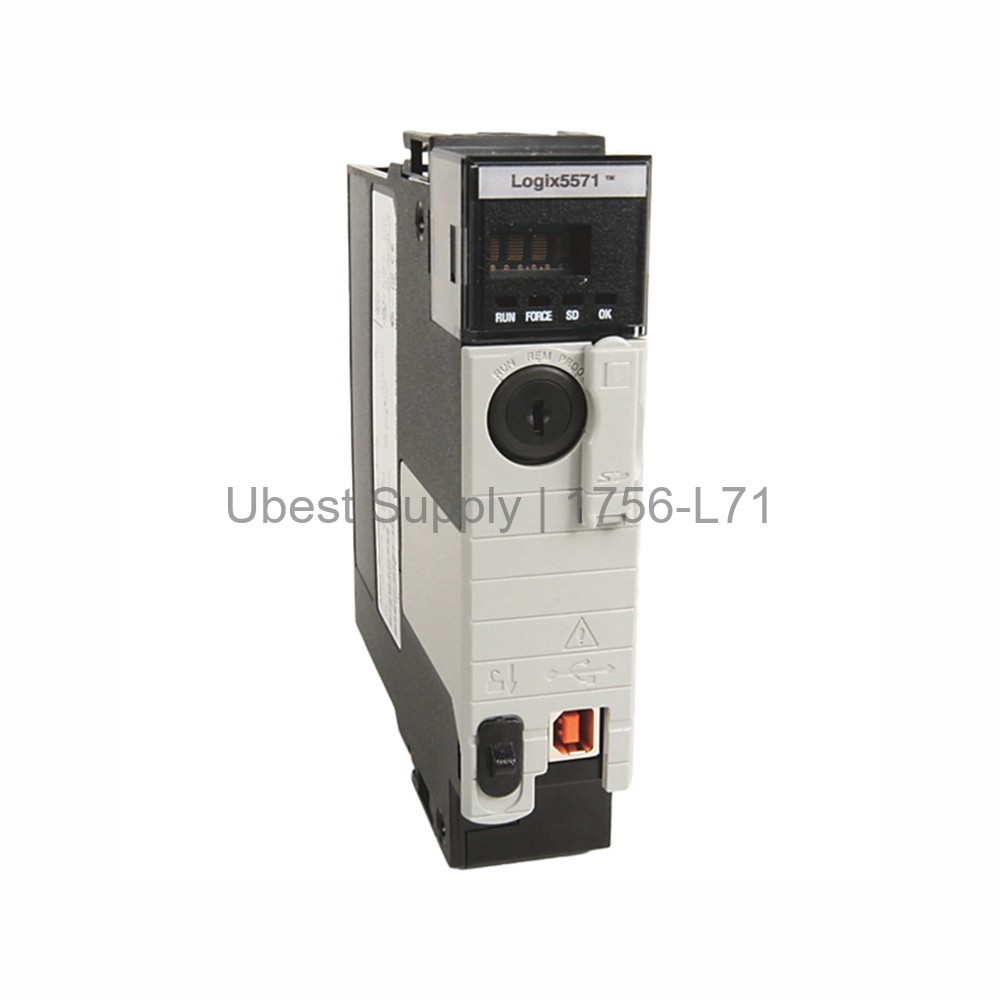

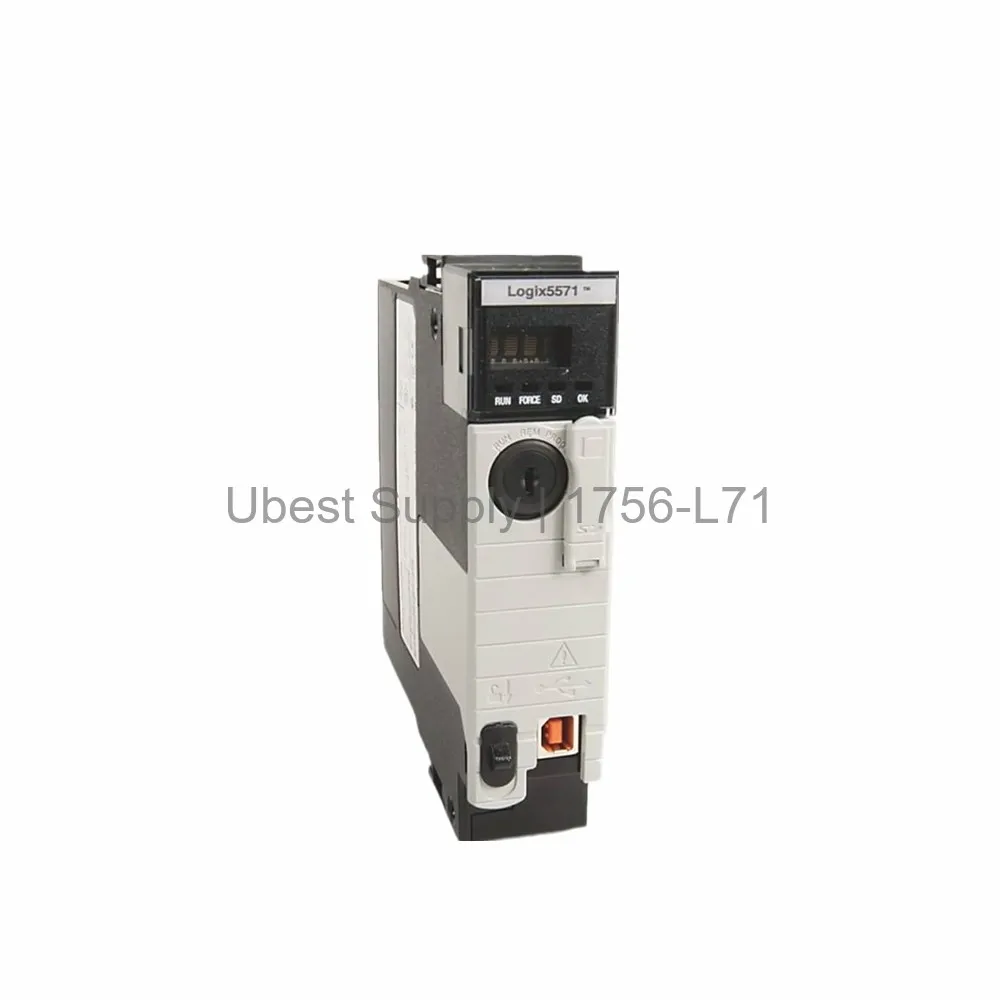

1756-L71 Allen-Bradley ControlLogix Logix5571 Processor

Product Overview

The Allen-Bradley 1756-L71 is a powerful processor module from the ControlLogix series. It acts as the central controller for complex automation systems. This unit offers 2 MB of user memory and 0.98 MB of I/O memory. It handles up to 128,000 digital I/O points and 4,000 analog I/O points. The module includes a built-in USB 2.0 port for programming and download. It ships with a 1 GB non-volatile memory card. This processor supports full redundancy for critical applications. It also supports integrated motion control via SERCOS or EtherNet/IP. The 1756-L71 is ideal for large-scale industrial operations.

Application Scenarios

This processor fits into many demanding industrial environments. Use it in manufacturing assembly lines for precise control. It works well in material handling and packaging systems. The module also suits oil and gas processing plants. It manages complex batch processes in chemical industries. Its high I/O capacity supports large water treatment facilities. The redundancy feature makes it perfect for critical infrastructure. It also controls robotic cells and automated warehouses. The 1756-L71 excels in any application needing high reliability.

Technical Specifications

The 1756-L71 has a user memory of 2 MB. Its I/O memory is 0.98 MB. The module draws 5 mA at 1.2V DC and 800 mA at 5.1V DC. Power dissipation is 2.5 Watts. Thermal dissipation equals 8.5 BTU per hour. It has a continuous isolation voltage of 30 Volts. The operating temperature ranges from 0 to 60 degrees Celsius. Storage temperature ranges from -40 to 85 degrees Celsius. It supports multiple communication networks. These include EtherNet/IP, ControlNet, DeviceNet, and Remote I/O. The module also supports Data Highway Plus and SynchLink. It has a 4-character alphanumeric display for diagnostics.

Installation & Maintenance Guide

Install the 1756-L71 into a ControlLogix chassis. Ensure the chassis is properly grounded. Insert the module into an available slot. Secure it with the locking mechanism. Connect the communication cables as needed. Use the USB port for initial programming. Always install the SD card for non-volatile storage. Keep the module in a clean, dry environment. Ensure proper airflow for cooling. Check the alphanumeric display for error codes. Regularly update the firmware for best performance. Follow Rockwell Automation guidelines for maintenance.

Packing List

The package includes one Allen-Bradley 1756-L71 processor module. It comes with three capacitor energy storage modules. Two of these storage modules are removable. The package also includes a 1 GB non-volatile SD card. Documentation and installation guides are provided. Shipping is handled by Fedex, UPS, or DHL.
