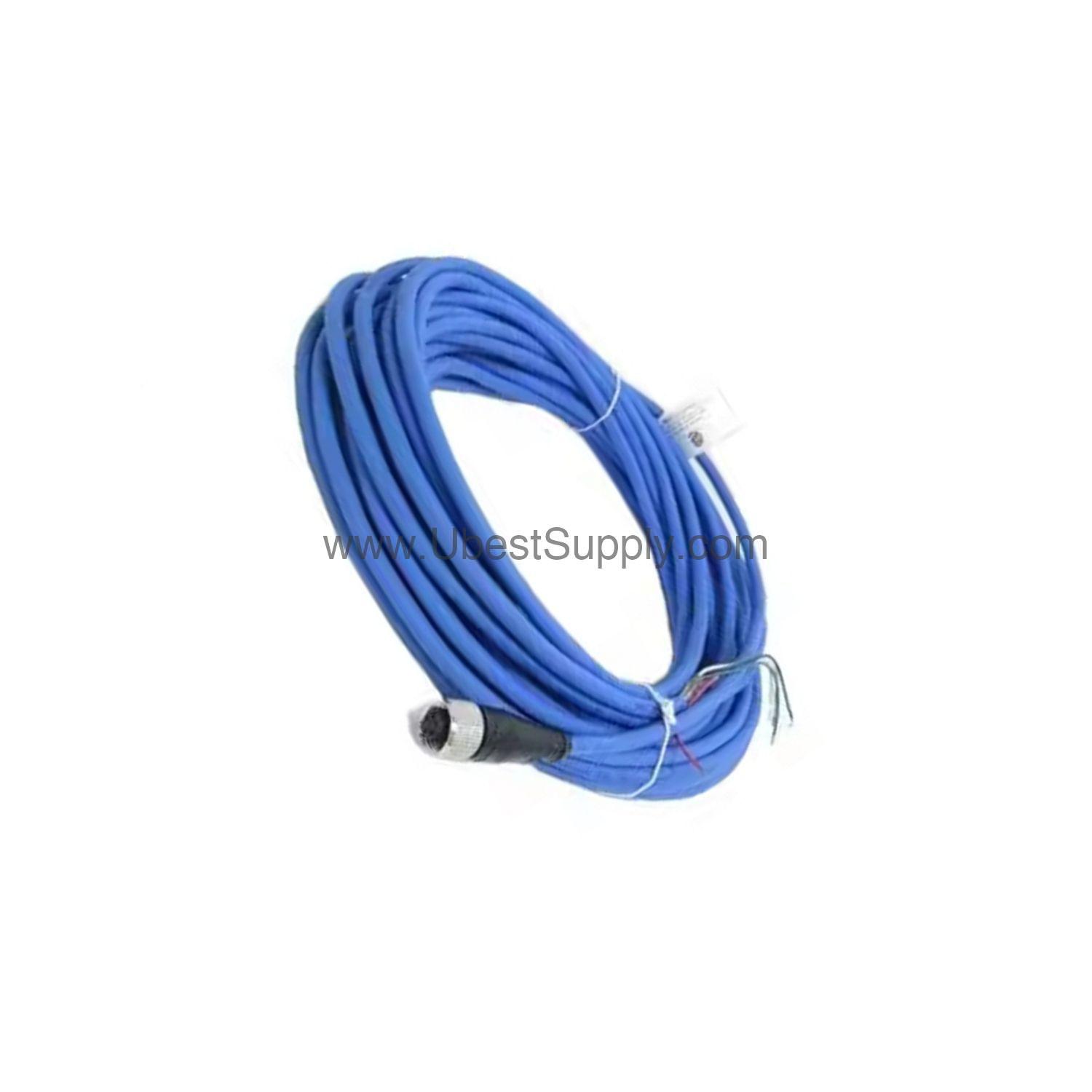

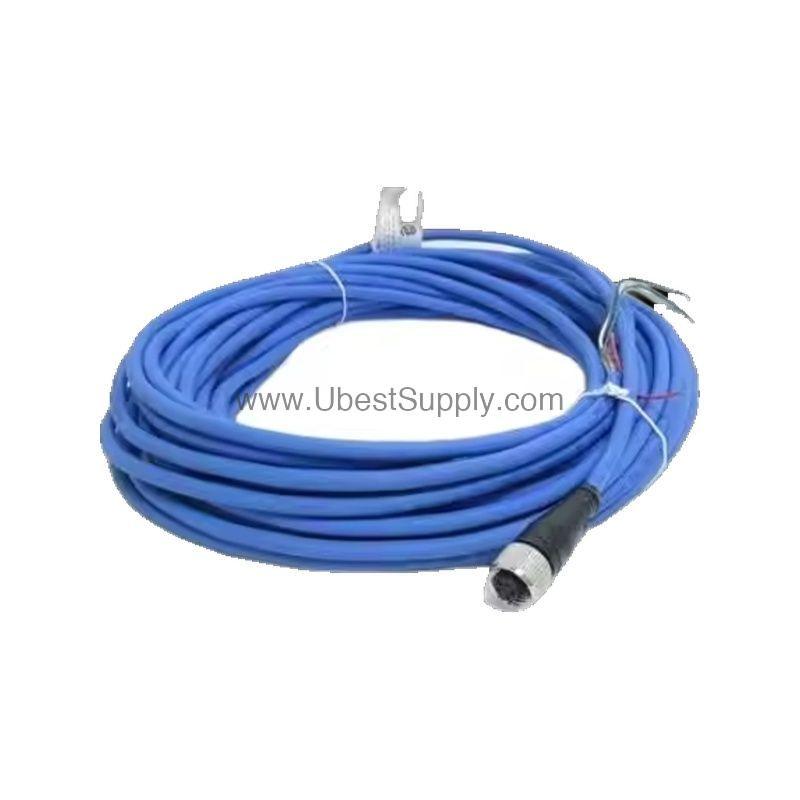

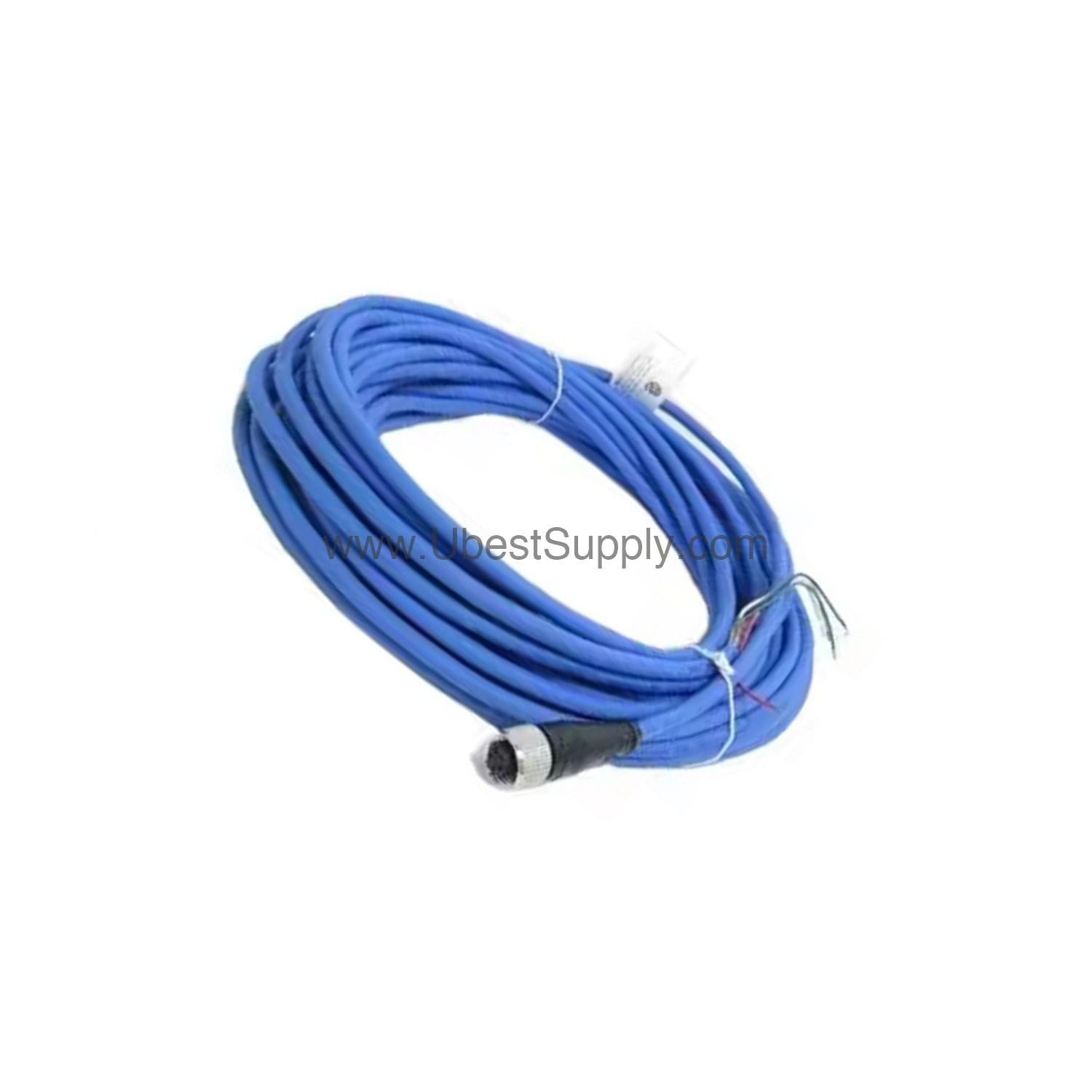

200152-15-CN | Bently Nevada 15m Accelerometer Interface Cable

Introduction to the 200152-15-CN

When harsh industrial environments demand reliable vibration data, the 200152-15-CN from Bently Nevada provides a robust connection between accelerometers and monitoring systems. This standard interface cable, with a connector on the accelerometer end only, is engineered for durability and signal integrity. Its 15-meter length offers flexibility in installation while maintaining performance across extreme temperatures.

Key Features and Technical Specs

• Cable Length: 15 meters (model code -15)
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage minimum)
• Outer Jacket: PVC with nickel-plated coupling nuts
• Operating Temperature Range: -20 ºC to +100 ºC (-4 ºF to +212 ºF)
• Minimum Bend Radius: 73.7 mm (2.9 in)
• Seal: IP67 rated connectors for moisture and dust protection
• Coupling Nut: Country-specific (-CN) for local compatibility

A distinctive spec is the IP67 seal, which prevents moisture ingress during thermal shock when combined with DC4 insulating compound. This extends cable life in wet or condensing environments, reducing replacement costs and downtime.

Applications and Use Cases

In rotating machinery monitoring, the 200152-15-CN connects accelerometers to data collectors or protection systems. Its 15-meter reach suits large equipment like turbines, compressors, and pumps. The wide temperature range supports outdoor installations or near hot surfaces. For example, in a refinery, the cable's IP67 rating withstands washdowns, while the braided shield minimizes electrical noise for accurate vibration readings—directly improving predictive maintenance ROI.

Installation Guide

Install the 200152-15-CN by first verifying the accelerometer connector matches the cable's molded end. Route the cable with a bend radius no tighter than 73.7 mm to avoid internal damage. Secure the cable using appropriate clamps, ensuring the coupling nut is hand-tightened to maintain the IP67 seal. Avoid flexing the cable below -20 ºC, as low-temperature bending may cause permanent damage. For permanent installations, consider using the DC4 insulating compound in the connector for added moisture protection.

Maintenance and Reliability

Regularly inspect the cable jacket for cuts or abrasion, especially near connection points. Verify the coupling nut remains tight to preserve the IP67 seal. The PVC outer jacket resists many industrial chemicals, but periodic cleaning with a dry cloth prevents contaminant buildup. By maintaining the cable, you avoid signal degradation and unplanned replacements—key to minimizing total cost of ownership.

Compatibility and Integration

The 200152-15-CN is designed for Bently Nevada accelerometers with a standard interface. It works with monitoring systems that accept 4-conductor, 22 AWG shielded cables. The country-specific coupling nut ensures compatibility with local transducer hardware. For integration, refer to the accelerometer and monitoring system manuals to confirm connector types and wiring schemes.

Troubleshooting and Common Issues

If signal noise appears, check the braided shield connection at both ends. A loose coupling nut can break the IP67 seal, allowing moisture to cause intermittent readings. For no signal, verify continuity through all four conductors using a multimeter. If the cable was flexed below -20 ºC, internal wire breakage may occur—replace the cable and avoid such conditions in the future.

FAQ about 200152-15-CN

Q: What is the maximum operating temperature of the 200152-15-CN?

A: The cable operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF).

Q: Can the 200152-15-CN be used in wet environments?

A: Yes, the connectors provide an IP67 seal, and adding DC4 insulating compound offers extra moisture protection during thermal shock.

Q: What is the minimum bend radius for this cable?

A: The minimum bend radius is 73.7 mm (2.9 in) to prevent damage.

Q: Is the 200152-15-CN compatible with all Bently Nevada accelerometers?

A: It is designed for accelerometers with a standard interface and connector on the accelerometer end only. Verify compatibility with your specific transducer model.

Q: What is the cable construction?

A: It uses 4-conductor, 22 AWG wire with a braided shield (85% coverage minimum) and a PVC outer jacket with nickel-plated coupling nuts.

Product Support and Availability

The 200152-15-CN is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing, lead times, or technical assistance. We ensure fast delivery to keep your operations running.
