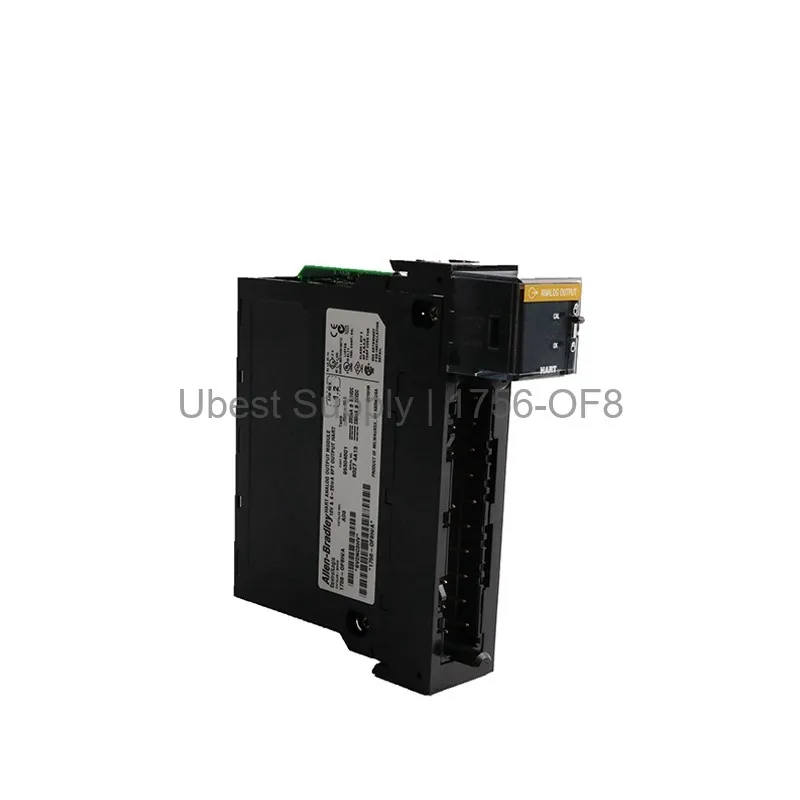

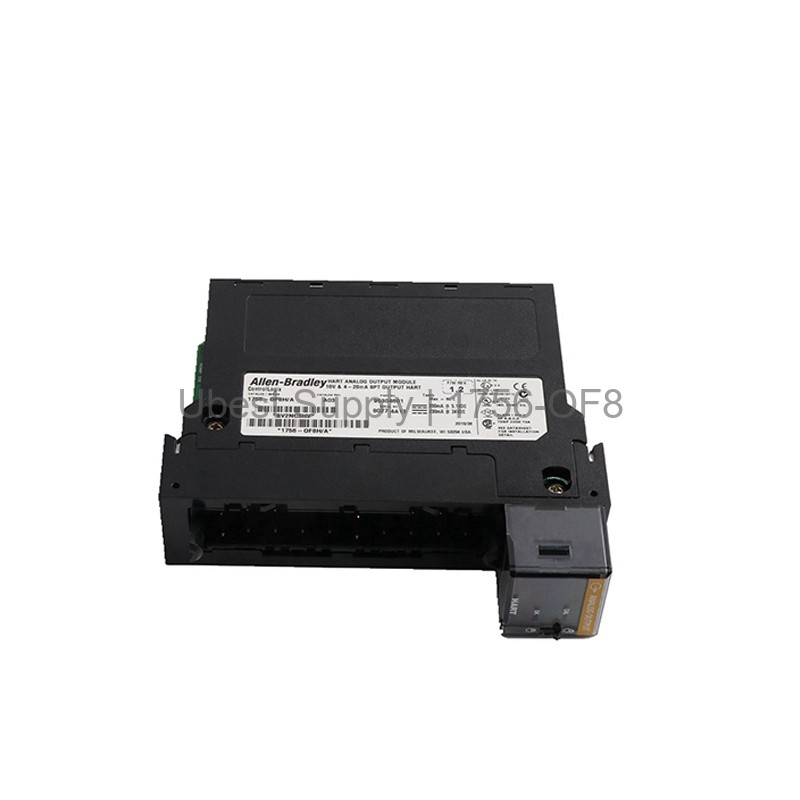

1756-OF8 ControlLogix Analog Output Module | Allen-Bradley

Product Overview

The Allen-Bradley 1756-OF8 is a reliable analog output module from the ControlLogix family. It provides eight output channels for precise control. You can configure each channel for +/-10VDC voltage or 0-20 mA current signals. This module uses a 15-bit resolution for accurate output. It includes open circuit, short circuit, and overvoltage protection. The 1756-OF8 works as a local or distributed I/O module. It offers a scan time of 12 ms for floating point and 8 ms for integer formats. This module supports Integer mode and IEEE 32-bit floating point data formats.

Application Scenarios

This module controls and modulates field devices. It transmits or re-transmits signals for measuring and recording instruments. Use it in industrial automation for process control. It fits well in manufacturing plants and production lines. Engineers use it for precise valve or actuator control. It also works for signal conditioning in complex systems. The 1756-OF8 is ideal for applications needing multiple analog outputs.

Technical Specifications

The module has eight output channels. It supports a current range of 0-20 mA and a voltage range of +/-10VDC. Resolution is 15 bits across 21 mA and 10.4V. Backplane current draw is 140 mA at 5V and 210 mA at 24V. Maximum power dissipation is 4.9 Watts at 60 Celsius. Isolation voltage is 50 Volts continuous. The module uses R-Ladder DAC conversion with monotonicity. It has an offset drift of 50 ppm/degrees Celsius. Gain drift is 25 ppm/degrees Celsius for voltage and 50 ppm/degrees Celsius for current. Overall module error is 0.15% in voltage mode and 0.3% in current mode. Operating temperature ranges from 0 to 60 degrees Celsius. It withstands 30G shock and 2G vibration at 10 to 500 Hertz.

Installation & Maintenance Guide

Install the module in a ControlLogix chassis. Use the appropriate removable terminal blocks. Compatible blocks include the 1756-TBNH and 1756-TBSH. For the 1756-TBNH, use wire sizes 0.33 to 2.1 mm2 for single wires. For double wires, use 0.33 to 1.3 mm2. For the 1756-TBSH, use shielded copper wire of 0.33 to 2.1 mm2. Ensure wires are rated at 105 degrees Celsius or greater. Connect output signals to the terminal block securely. Power the module via the backplane. No special maintenance is required beyond periodic inspection of connections.

Packing List

1 x Allen-Bradley 1756-OF8 Analog Output Module
1 x Removable Terminal Block (if ordered separately)
1 x Installation Instructions
