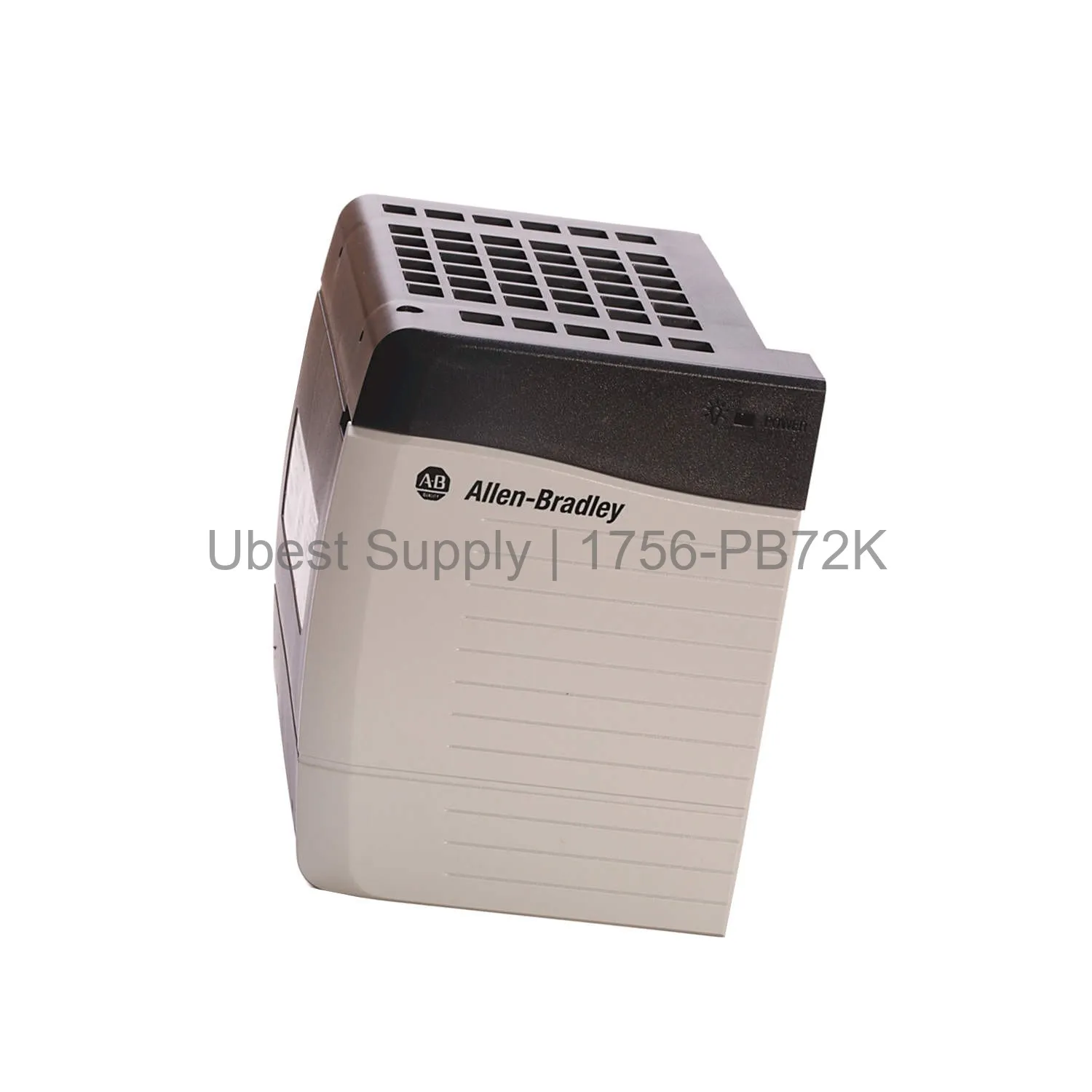

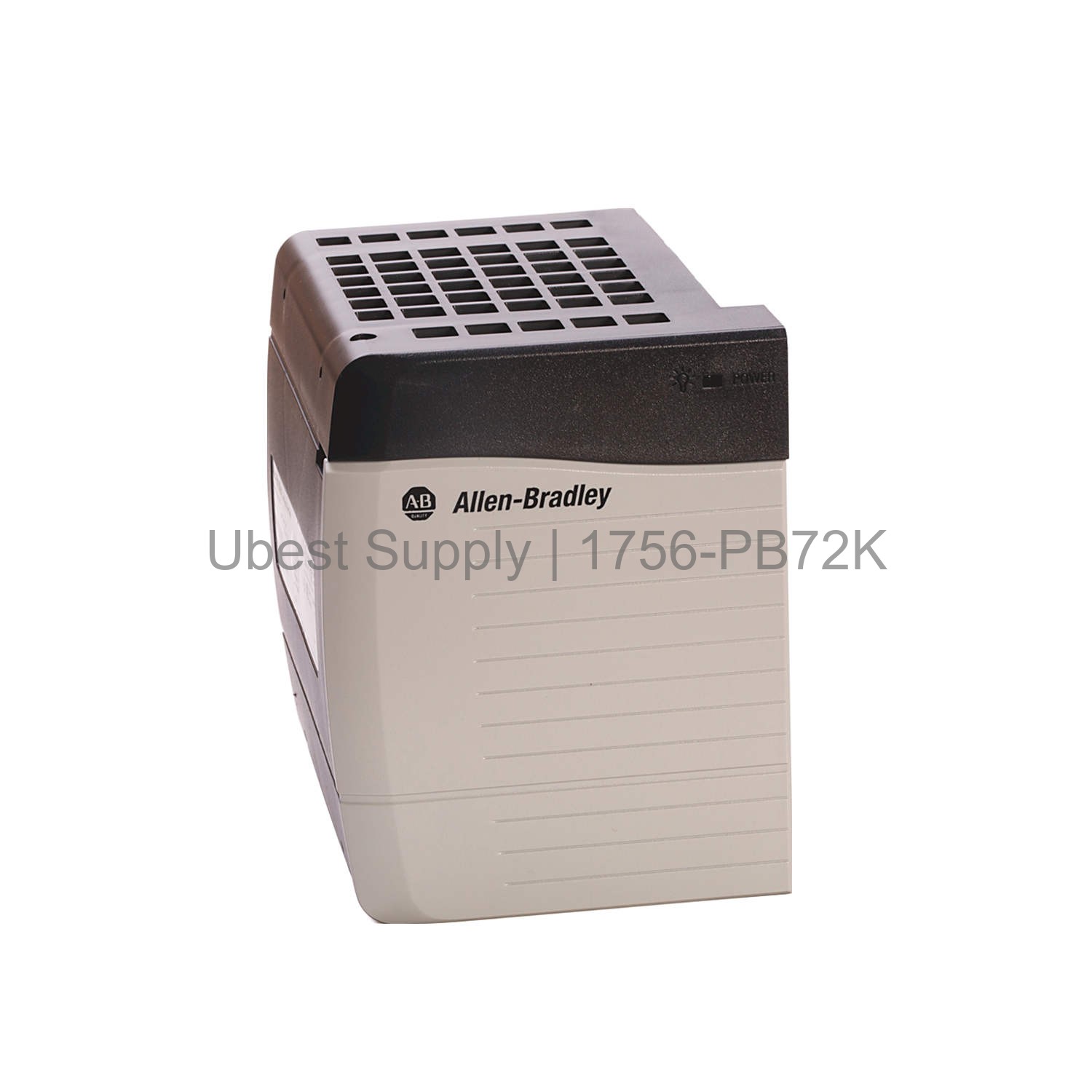

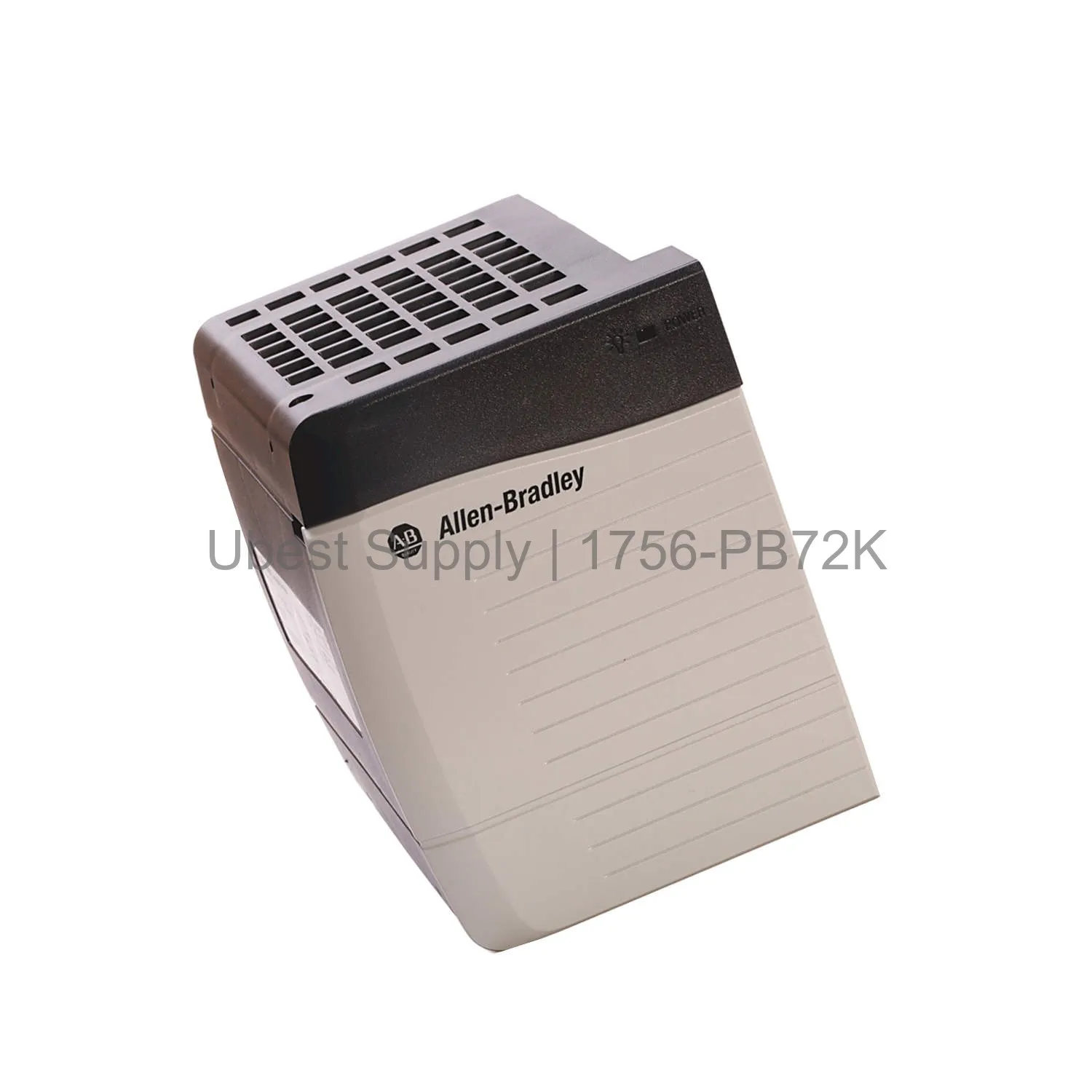

1756-PB72K ControlLogix DC Power Supply Module by Allen-Bradley

Product Overview

The Allen-Bradley 1756-PB72K is a ControlLogix DC Power Supply Module. It provides reliable power for your chassis. This module accepts 24 Volts DC input. It delivers 75 Watts of power at 60 Celsius. The module is designed for the left chassis location. It weighs 2.5 pounds. Its dimensions are 5.5 x 4.4 x 5.7 inches. This unit is part of Series A. It operates in temperatures from 32 to 140 Fahrenheit.

Application Scenarios

Use the 1756-PB72K in industrial automation systems. It powers ControlLogix controllers and I/O modules. It works in manufacturing plants and process control. It suits discrete and batch processing industries. It is ideal for harsh factory environments. The module supports 24V DC systems. It ensures stable power for critical operations. It is a key component for machine builders.

Technical Specifications

Input voltage is 24 Volts DC. Voltage range is 18-32 Volts DC. Input power is 95 Watts. Power output is 75 Watts at 60 Celsius. The chassis series is A. It mounts on the left side of the chassis. The module has no enclosure. Operating temperature is 0-60 Celsius. The weight is 1.1 kilograms. Dimensions are 140 x 112 x 145 mm.

Installation & Maintenance Guide

Install the 1756-PB72K in the left slot of the chassis. Ensure the input voltage is within 18-32 Volts DC. Use proper wiring for DC connections. Check for secure mounting before powering on. Keep the area clean and dry. Inspect connections regularly for tightness. Do not operate above 60 Celsius. Replace the module if it fails to power the system.

Packing List

One Allen-Bradley 1756-PB72K Power Supply Module. One installation guide. No additional accessories are included. The module is packaged in anti-static material. It is ready for immediate use. Shipping is via Fedex, UPS, or DHL.
