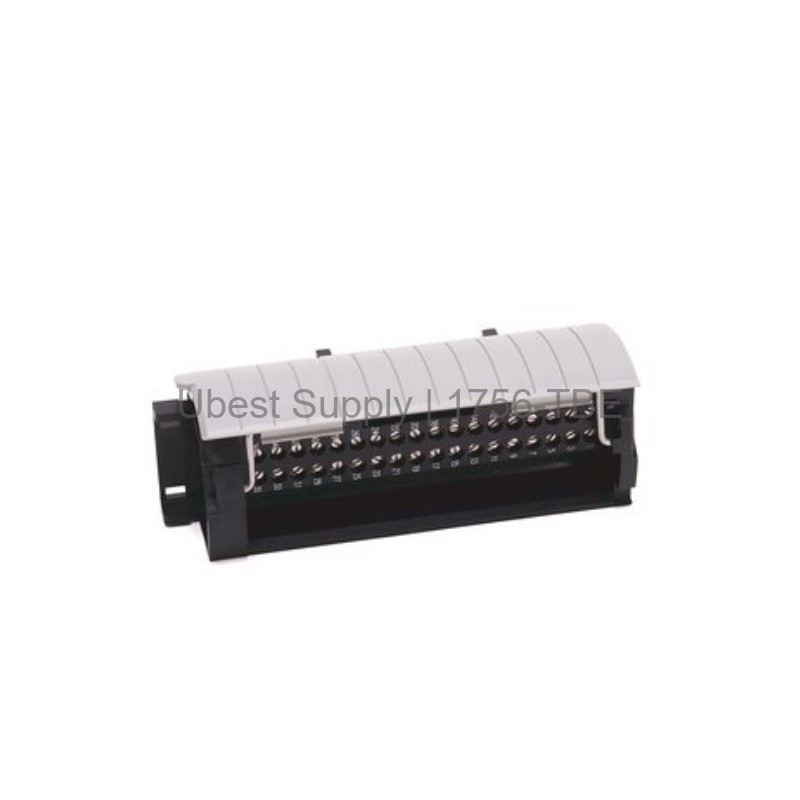

1756-TBE ControlLogix Terminal Block 36-Pin by Allen-Bradley

Product Overview

The Allen-Bradley 1756-TBE is a high-quality terminal block. It is part of the ControlLogix series. This 36-pin module connects to the backplane. It ensures reliable signal transfer for your system. The 1756-TBE supports 20 AWG wire. It offers a maximum power dissipation of 6.19 Watts. This unit weighs only 0.1 kilograms. Its compact size saves cabinet space.

Application Scenarios

Use the 1756-TBE in industrial control cabinets. It works well for discrete and process automation. This terminal block is ideal for wiring I/O modules. It suits manufacturing, oil and gas, and power industries. The module operates from 32 to 140 degrees Fahrenheit. It fits standard ControlLogix chassis. You can use it for new builds or upgrades.

Technical Specifications

This terminal block has 36 pins. It draws 1,200 milliamps at 5 Volts. It draws 2.5 milliamps at 24 Volts. The maximum power is 6.19 Watts. Dimensions are 5.51 x 4.41 x 5.71 inches. Operating temperature is 0 to 60 degrees Celsius. No enclosure is included. The connection type is backplane. Wire size is 20 AWG. It is made by Allen-Bradley under Rockwell Automation.

Installation & Maintenance Guide

Install the 1756-TBE into a ControlLogix chassis. Align the pins with the backplane connector. Push firmly until it clicks into place. Use a screwdriver to secure wires. Use only 20 AWG wire for best results. Keep the area clean and dry. Check connections during routine maintenance. Do not exceed 6.19 Watts of power. Follow standard safety procedures.

Packing List

Each package includes one 1756-TBE terminal block. It comes with a user manual. No additional hardware is included. We ship via FedEx, UPS, or DHL. All items are brand new and in original packaging. Contact us for bulk orders. We ensure fast and safe delivery to your location.
