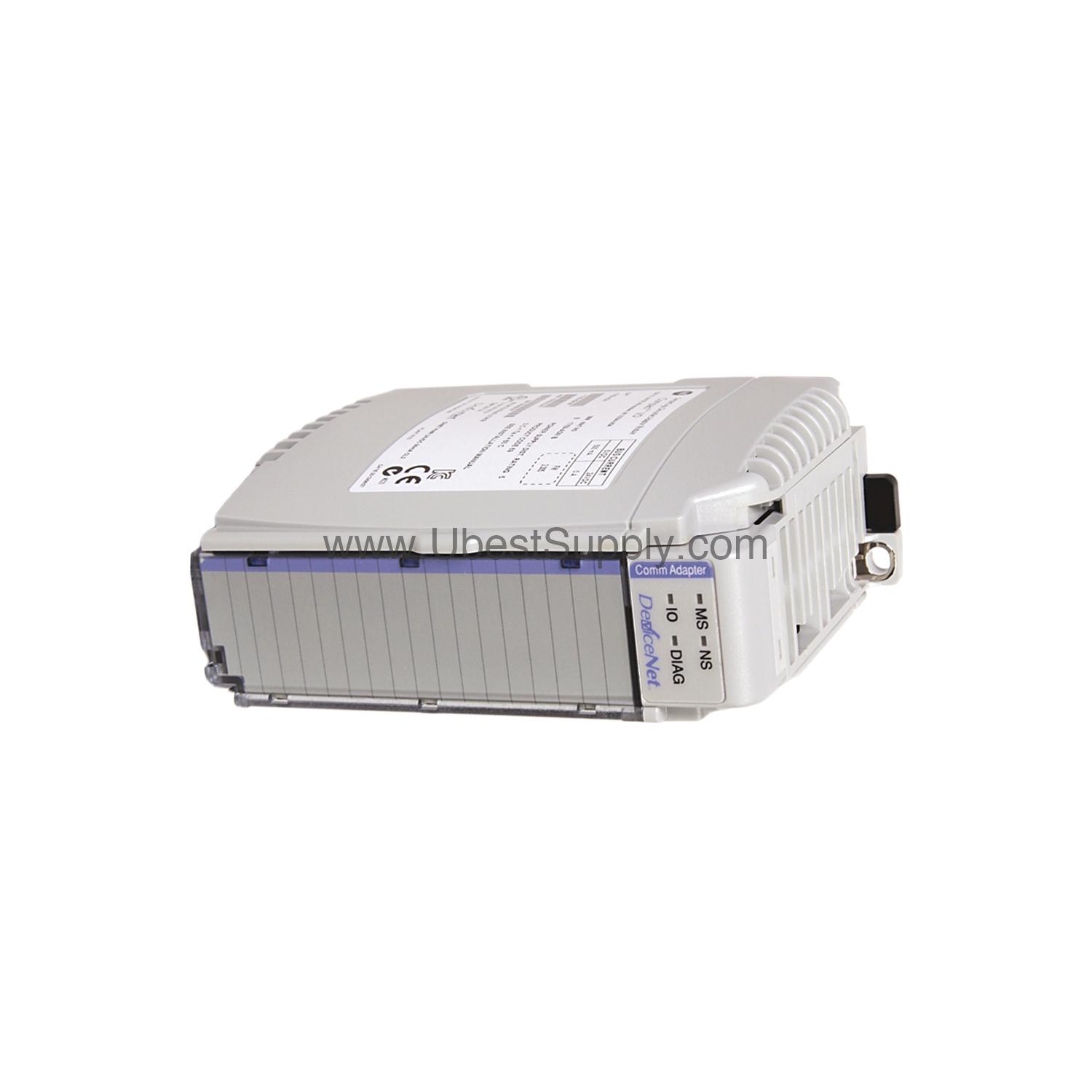

Product Overview: 1769-IF4I Isolated Analog Input Module

When your process demands accurate and isolated analog signal acquisition, the 1769-IF4I from Allen-Bradley provides a reliable solution. This CompactLogix analog input module features four individually isolated differential or single-ended channels, enabling you to connect field devices with different power sources without ground loop issues. By supporting both current and voltage signals, the module reduces the need for additional signal conditioners, lowering overall system cost.

Key Features & Technical Specs

• Input Channels: 4 individually isolated differential and single-ended inputs.
• Current Signal Ranges: 0–20 mA and 4–20 mA normal; full range 0–21 mA and 3.2–21 mA.
• Voltage Signal Ranges: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC normal; full range ±10.5V DC, –0.5–10.5V DC, –0.5–5.25V DC, 0.5–5.25V DC.
• Resolution: 16 bits unipolar, 15 bits plus sign bipolar for precise measurement.
• Converter Type: Sigma-Delta ADC ensures stable conversion.
• Power Supply Distance Rating: 8 modules from system power supply reduces power distribution costs.
• Channel Diagnostics: Over- or under-range bit reporting and process alarms minimize troubleshooting time.
• Replacement Terminal Block: 1769-RTBN18 simplifies field wiring changes.

A standout feature is the individual isolation per channel. This eliminates the need for external isolators, cutting hardware costs and simplifying panel layout. The 16-bit resolution delivers fine granularity, improving control accuracy and reducing waste in process applications.

Cost-Efficient Applications

In industries such as water treatment, chemical processing, and packaging, the 1769-IF4I interfaces directly with transmitters and sensors. For example, a 4–20 mA pressure transmitter can connect to one isolated channel while a ±10V flow meter connects to another, all without additional signal conditioning. This flexibility reduces installation complexity and component count, directly lowering project costs.

Installation Guide

Mount the module in a 1769 CompactLogix chassis or MicroLogix 1500 system. Use copper wire rated for 90°C, solid 22–14 AWG. For best noise immunity, use Belden 8761 shielded cable and keep wire runs short. The module occupies one slot and must be within eight modules of the system power supply to maintain reliable operation. The removable terminal block (1769-RTBN18) simplifies wiring and future maintenance.

Maintenance & Reliability

Regularly inspect the module for dust and debris in the enclosure. The diagnostic features—over-range, under-range, and open-circuit detection—help identify issues before they cause downtime. By catching faults early, you reduce unplanned maintenance costs and extend module life. The module is designed for clean, dry industrial environments with Over Voltage Category II circuits.

Compatibility & Integration

The 1769-IF4I integrates with CompactLogix 5370 controllers and MicroLogix 1500 systems via the backplane bus. It receives 5V and 24V DC power through the bus interface, eliminating separate power wiring. The module supports both differential and single-ended inputs, making it compatible with a wide range of analog sensors and transmitters.

Troubleshooting & Common Issues

If a channel reports an over-range or under-range error, verify the input signal is within the configured range. For open-circuit faults, check wiring continuity and terminal block seating. The module’s LED indicates fault status during power-up diagnostics and normal operation. Refer to the official Allen-Bradley documentation for detailed error codes.

FAQs about 1769-IF4I

Q: What is the resolution of the 1769-IF4I?

A: The module offers 16-bit resolution for unipolar inputs and 15 bits plus sign for bipolar inputs.

Q: Can the 1769-IF4I accept both current and voltage signals?

A: Yes, it accepts 0–20 mA, 4–20 mA current signals and ±10V, 0–10V, 0–5V, 1–5V voltage signals.

Q: How many channels are individually isolated?

A: All four input channels are individually isolated, allowing mixed signal types and different power sources.

Q: What is the power supply distance rating?

A: The module must be installed within eight modules of the system power supply.

Q: What replacement terminal block is available?

A: The 1769-RTBN18 terminal block is the recommended replacement.

Q: Is the 1769-IF4I compatible with MicroLogix 1500?

A: Yes, it is compatible with MicroLogix 1500 and CompactLogix controllers.

Product Support & Availability

The 1769-IF4I is available from Petro Auto Tech. Please verify current lifecycle status and availability before ordering. Our team can assist with compatibility questions and provide documentation.
