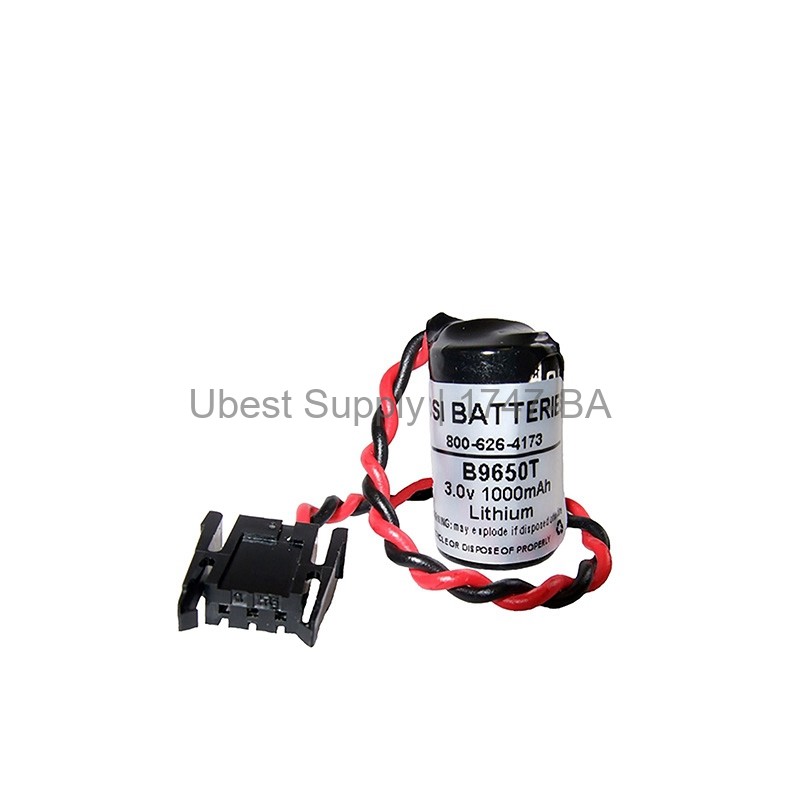

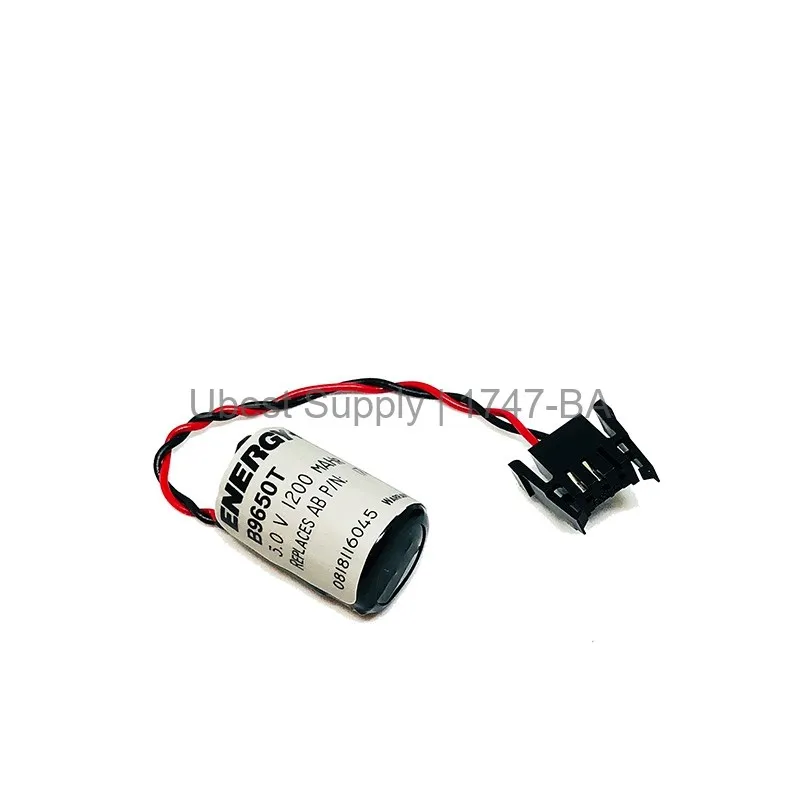

SLC 500 Lithium Battery | Allen-Bradley 1747-BA

Product Overview

The 1747-BA is a lithium battery for SLC 500 systems. It delivers 3 Volts of power. This battery is not rechargeable. It backs up the RAM memory. The battery has a low voltage alert LED. This ensures program retention during power loss. Users can replace the battery easily.

Application Scenarios

This battery works with SLC 5/02, 5/03, 5/04, and 5/05 processors. It also supports the 1747-L511 and 1747-L514. Backup time varies by processor. For the L511, backup lasts up to 5 years. For the L514, backup lasts about 2 years. The 1747-BA also powers other SLC 500 modules. It provides reliable memory retention in industrial environments.

Technical Specifications

Voltage: 3 Volts. Backplane current: 375 milliamps at 5 Volts DC. Operating temperature: 0 to 60 Celsius. Weight: 0.37 pounds (168 grams). Dimensions: 5.72 x 1.37 x 5.15 inches. Cable: Belden 9463. Connector: 6-Pin Phoenix. Battery type: Lithium. The battery contains 0.23 grams of lithium. Regulations limit shipments to 2 batteries per package in the US.

Installation & Maintenance Guide

Store the battery at 20-25°C with 40-60% humidity. Do not short-circuit or disassemble it. Avoid heating or burning the battery. Replace all batteries in a multi-cell system together. Keep the battery away from water or moisture. Lithium cells are Class 9 dangerous goods. Follow UN recommendations for transport. The processor battery LED alerts you when voltage is low.

Packing List

The package includes one 1747-BA lithium battery. No additional accessories are included. For shipping, we use FedEx, UPS, or DHL.
