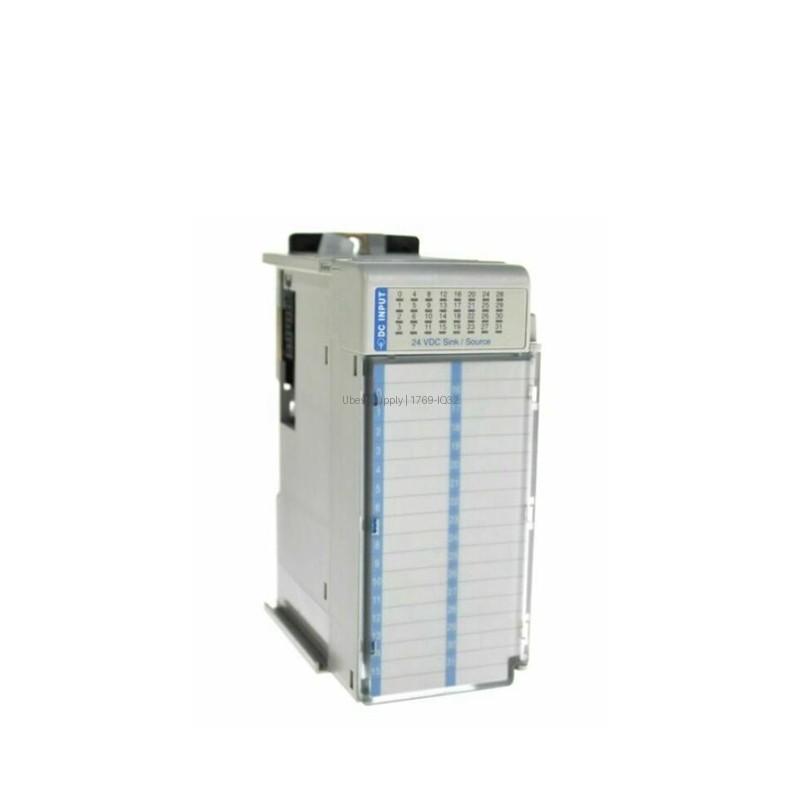

1769-IQ32 Allen-Bradley Compact I/O 32-Point Input Module

Product Overview

The 1769-IQ32 is a high-density discrete input module. It belongs to the Allen-Bradley Compact I/O family. This module features 32 inputs in 4 groups. Each group has 8 inputs for flexible wiring. It supports both sink and source wiring styles. The operating voltage is 24V DC. This module works with MicroLogix 1500 and CompactLogix controllers. It also works with 1769-ADN and 1769-AENTR adapters. The 1769-IQ32 is ideal for high-count digital sensing. It saves space in your control panel.

Application Scenarios

Use the 1769-IQ32 for machine control applications. It monitors limit switches and proximity sensors. It also reads push buttons and selector switches. The module fits packaging, material handling, and assembly lines. Its 32 inputs handle many devices at once. The 4-group isolation adds safety. Each group is isolated from the bus and other groups. This prevents ground loops and noise issues. Use it in factory automation and process control systems.

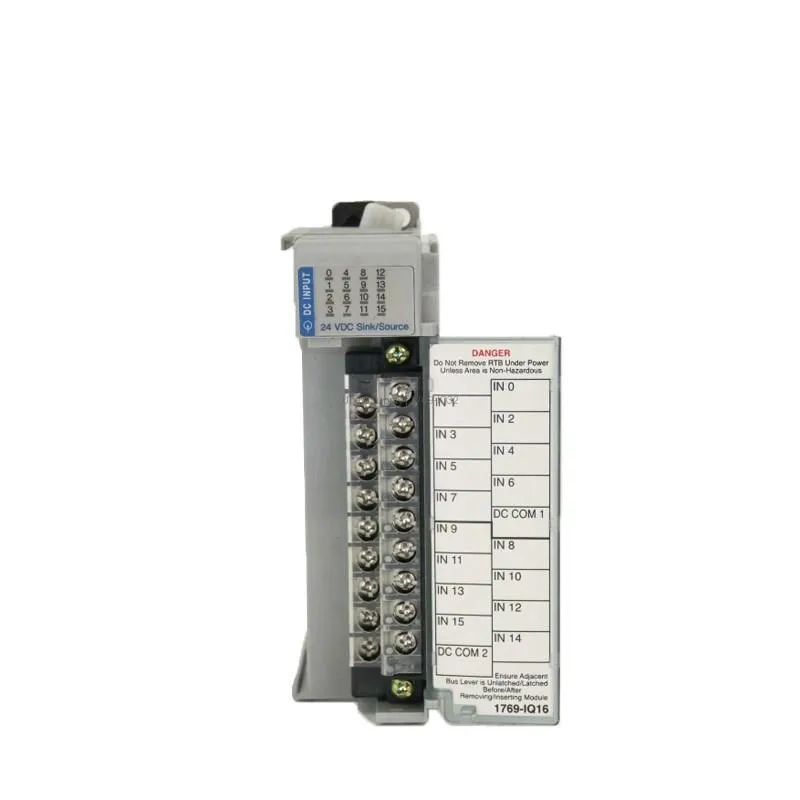

Technical Specifications

The module operates at 10 to 30V DC at 30°C. At 60°C, the range is 10 to 26.4V DC. The off-state voltage is 5V DC. The on-state voltage is 10V DC. Input delay on is 8 ms. Operating temperature is 0 to 60°C. Storage temperature is -40 to 85°C. Humidity range is 5 to 95% non-condensing. The module weighs 0.97 lb. Slot width is 1.5 inches. It uses copper wire of 22 to 14 AWG. Isolation voltage is 75V DC tested at 1697V DC for 1 second. The module is open-style and has c-UL and CE certifications.

Installation & Maintenance Guide

Mount the module on a DIN rail or panel. Use the 1769-RTBN18 replacement terminal block. Wire solid copper conductors from 22 to 14 AWG. Torque terminals to the correct specification. Ensure power supply distance rating is 8. Do not exceed 30G shock on a panel. For DIN rail, limit shock to 20G. Vibration tolerance is 5G from 10 to 500 Hz. Operating altitude is up to 2000 meters. Keep the module in a dry, non-condensing environment.

Packing List

Each order includes one 1769-IQ32 discrete input module. It also includes a user manual. The terminal block is not included. Order the 1769-RTBN18 separately. Shipping weight is 2 lbs. Shipping dimensions are 8 x 8 x 5 inches. We ship via FedEx, UPS, or DHL.
