177230-00-01-CN | Bently Nevada 0-12.7 mm/s Seismic Transmitter

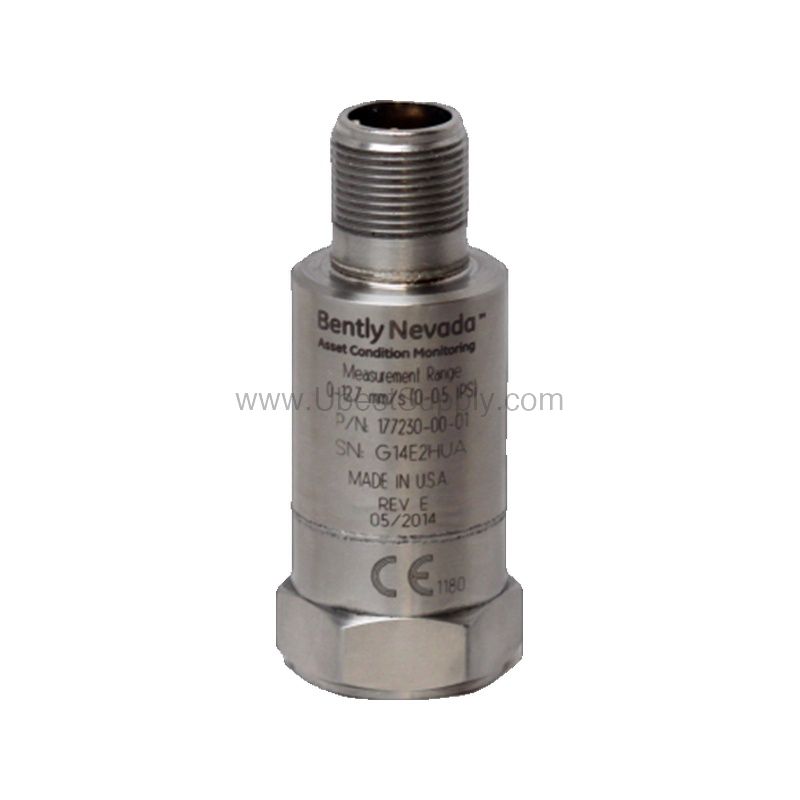

Introduction to the Bently Nevada 177230-00-01-CN Seismic Transmitter

In the evolution of industrial monitoring, the shift from manual vibration checks to continuous electronic surveillance has transformed how plants protect their rotating assets. The 177230-00-01-CN from Bently Nevada represents this modern approach, packaging a seismic sensor and signal conditioner into a single, rugged housing. This transmitter converts machinery vibration into a standard 4-20 mA current loop, enabling seamless integration with existing PLC, DCS, and SCADA systems.

Engineered for reliability, this device is built to operate in the harshest conditions, with a hermetically sealed 316L stainless steel case that withstands 100% relative humidity (non-submerged). Its compact design—25.4 mm diameter and 66.0 mm height—allows installation in tight spaces, while the 1/4-28 UNF mounting hole simplifies attachment to machinery.

Key Features and Technical Specifications

The 177230-00-01-CN is designed for precise vibration measurement, offering a measurement range of 0 to 12.7 mm/s (0 to 0.5 in/s) RMS. This range is ideal for detecting imbalance, misalignment, and bearing wear in rotating equipment. The frequency response of 10 Hz to 1 kHz (600 to 60 kcpm) captures the most common machine vibration frequencies, ensuring effective condition monitoring.

• Output Signal: 4-20 mA current loop, proportional to RMS vibration levels.
• Excitation Voltage: 12 to 30 Vdc, current limited to 40 mA.
• Settling Time: Less than 15 seconds within 2% of final value.
• Mounted Resonant Frequency: Greater than 12 kHz.
• Transverse Sensitivity: Less than 5% of sensitivity.
• Sensing Element: Ceramic / shear type.
• Operating Temperature: -40°C to +85°C (-40°F to +185°F).
• Electrical Isolation: Greater than 10^8 ohms; isolation breakdown voltage 600 Vrms.
• Shock Survivability: 9.810 m/s² (1.000 g peak) maximum drop test.
• Magnetic Field Sensitivity: Less than 20 μm/s/gauss (790 μin/s/gauss) peak.

These specifications ensure accurate and stable vibration data, even in electrically noisy environments. The 4-20 mA loop is inherently immune to voltage drops, making it suitable for long cable runs.

Applications and Use Cases

The 177230-00-01-CN is ideal for continuous vibration monitoring of pumps, fans, motors, and other rotating machinery. In a typical scenario, a plant engineer installs the transmitter on a critical pump bearing housing. The 4-20 mA signal feeds directly into a PLC analog input, allowing the control system to alarm or shut down the pump if vibration exceeds safe levels. This proactive approach prevents catastrophic failures and reduces unplanned downtime.

Furthermore, because the transmitter outputs a standard loop signal, it can be integrated into existing SCADA systems for remote monitoring. This capability is especially valuable in unattended or hazardous areas where manual data collection is impractical. With its rugged construction and wide temperature range, the device performs reliably in outdoor and process environments.

Installation and Setup

Mounting the 177230-00-01-CN is straightforward. The transmitter features a 1/4-28 UNF mounting hole, and mounting threads are available in M6 x 1, M8 x 1.25, or 1/4-28 UNF. Recommended mounting torque is 4 to 7 N-m (35.4 to 62.0 in-lbf). Ensure the mounting surface is clean and flat to achieve optimal frequency response.

Electrical connections are made via a 3-pin MIL-C-5015 connector (316L stainless steel). Pin A is the 4-20 mA positive loop, Pin B is the loop return, and Pin C provides an unbuffered dynamic acceleration signal referenced to Pin B. The transmitter is designed for use with PLC, DCS, and SCADA systems that have internal power supplies typically current-limited to 30-35 mA.

Maintenance and Reliability

Because the 177230-00-01-CN is hermetically sealed and has no moving parts, it requires minimal maintenance. However, periodic inspection is recommended to ensure the mounting remains secure and the connector is free from corrosion. The 316L stainless steel case provides excellent resistance to corrosive atmospheres, extending service life.

Regular verification of the output signal against a known vibration source can confirm accuracy. If the transmitter is exposed to extreme shock or temperature, a functional check is advisable. Always follow the manufacturer's guidelines for any maintenance procedures.

Compatibility and Integration

The 4-20 mA output makes the 177230-00-01-CN compatible with virtually any industrial control system that accepts analog inputs. This includes most PLCs, DCSs, and SCADA systems. No special interface cards are required. The dynamic signal on Pin C can be used for additional analysis if a compatible data collector is available.

For new installations, the transmitter can be wired directly to an analog input module. For retrofits, it can replace older velocity sensors that require separate signal conditioners, simplifying the wiring and reducing panel space.

FAQ about the 177230-00-01-CN

Q: What is the measurement range of the 177230-00-01-CN?

A: The measurement range is 0 to 12.7 mm/s (0 to 0.5 in/s) RMS, with an accuracy of ±10% at full scale.

Q: What power supply is required?

A: The transmitter requires a 12 to 30 Vdc excitation voltage, current limited to 40 mA. It is designed for use with PLC, DCS, or SCADA internal power supplies typically limited to 30-35 mA.

Q: What is the frequency response?

A: The frequency response is 10 Hz to 1 kHz (600 to 60 kcpm) ±10%, covering typical machine vibration frequencies.

Q: Is the transmitter suitable for outdoor use?

A: Yes, the operating temperature range is -40°C to +85°C, and the case is hermetically sealed 316L stainless steel, resistant to 100% relative humidity (non-submerged).

Q: What is the mounting thread size?

A: The mounting hole is 1/4-28 UNF, and mounting threads are available in M6 x 1, M8 x 1.25, or 1/4-28 UNF. Recommended mounting torque is 4 to 7 N-m.

Support and Availability

The Bently Nevada 177230-00-01-CN is available through Petro Auto Tech. As an industrial automation parts supplier, Petro Auto Tech ensures genuine products and prompt delivery. For assistance with selection or technical questions, contact Petro Auto Tech. Please verify current lifecycle status and availability before ordering.
