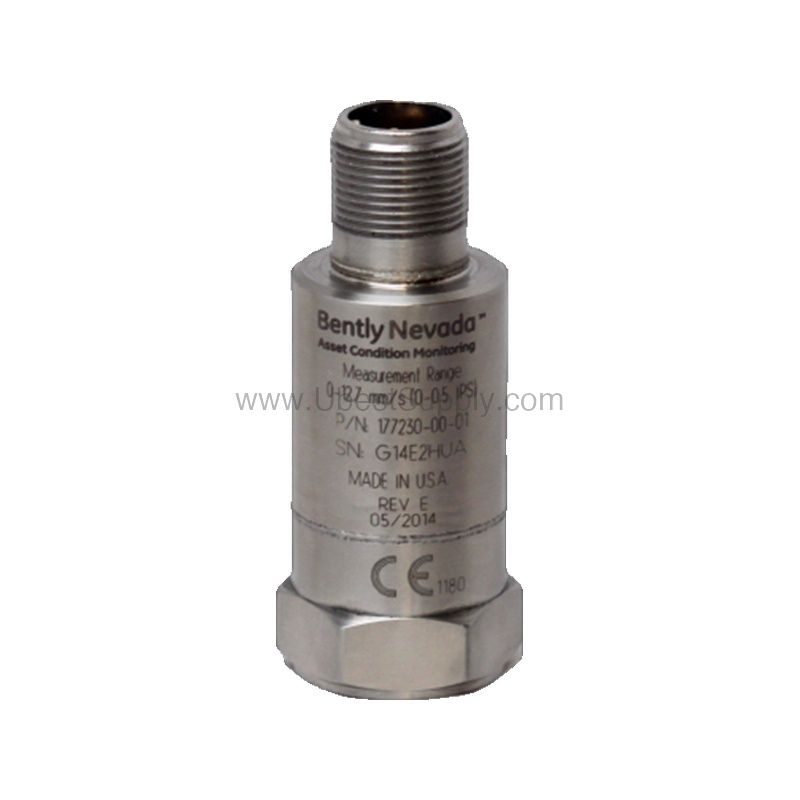

177230-00-01-CN | Bently Nevada 0-12.7 mm/s Seismic Transmitter

Introduction: The Evolution of Vibration Monitoring

For decades, industrial plants have relied on vibration monitoring to protect rotating machinery. Early systems used simple switches, but modern operations demand continuous, accurate data. The 177230-00-01-CN from Bently Nevada represents this evolution—a seismic transmitter that converts vibration into a standard 4-20 mA signal for seamless integration with PLCs, DCS, and SCADA systems.

Key Features and Technical Specifications

Engineered for reliability and precision, the 177230-00-01-CN offers a robust set of specifications:

• Measurement range: 0 to 12.7 mm/s (0 to 0.5 in/s) RMS
• Frequency response: 10 Hz to 1 kHz (600 to 60,000 cpm) ±10%
• Output: 4-20 mA current loop, proportional to RMS vibration
• Excitation voltage: 12 to 30 Vdc, current limited to 40 mA
• Settling time: less than 15 seconds within 2% of final value
• Mounted resonant frequency: greater than 12 kHz
• Transverse sensitivity: less than 5% of sensitivity
• Sensing element: ceramic / shear type
• Case material: 316L stainless steel
• Connector: 3-pin MIL-C-5015, 316L stainless steel
• Mounting hole: 1/4-28 UNF, with M6 x 1 SI and M8 x 1.25 SI options
• Operating temperature: -40°C to +85°C (-40°F to +185°F)
• Weight: 131 g (4.62 oz) typical

One distinctive spec is the mounted resonant frequency greater than 12 kHz. This ensures the transmitter remains accurate even in high-frequency environments, avoiding false readings from structural resonances.

Applications and Use Cases

The 177230-00-01-CN is ideal for continuous vibration monitoring on fans, pumps, motors, and other rotating equipment. Its 4-20 mA output integrates directly with existing control systems, enabling real-time trend analysis and alarm management. For example, in a paper mill, this transmitter can detect early bearing wear, allowing maintenance teams to schedule repairs before catastrophic failure occurs. Additionally, its 100% non-submerged relative humidity rating makes it suitable for humid environments like washdown areas.

Installation and Setup

Proper mounting is critical for accurate measurements. The transmitter features a 1/4-28 UNF mounting hole and optional M6 or M8 threads. Recommended mounting torque is 4 to 7 N-m (35.4 to 62.0 in-lbf). Ensure the mounting surface is flat and clean to achieve optimal frequency response. The 3-pin MIL-C-5015 connector simplifies wiring: Pin A is the 4-20 mA positive loop, Pin B is the loop return, and Pin C provides an unbuffered dynamic acceleration signal. Always refer to the Bently Nevada installation manual for detailed guidance.

Maintenance and Reliability

With a hermetically sealed sensor and 316L stainless steel case, the 177230-00-01-CN is built for long-term reliability. Periodic inspection should include checking the connector for corrosion and verifying the mounting torque. The transmitter's electrical isolation exceeds 10^8 ohms, and its isolation breakdown voltage is 600 Vrms with less than 1 mA leakage, ensuring safe operation in industrial environments. Regular calibration checks—typically annually—help maintain measurement accuracy.

Compatibility and Integration

This seismic transmitter is specifically designed for use with PLCs, DCS, and SCADA systems that have internal power supplies current-limited to 30-35 mA. The 4-20 mA loop output is universally accepted, making integration straightforward. The dynamic signal on Pin C can be used for additional analysis if your system supports it. For most users, the 4-20 mA signal provides all necessary vibration data.

Frequently Asked Questions

Q: What is the measurement range of the 177230-00-01-CN?

A: The measurement range is 0 to 12.7 mm/s (0 to 0.5 in/s) RMS, with a full-scale accuracy of ±10%.

Q: What frequency range does it cover?

A: It covers 10 Hz to 1 kHz (600 to 60,000 cpm) with ±10% accuracy.

Q: How is the transmitter powered?

A: It requires 12 to 30 Vdc excitation, current limited to 40 mA. The loop current is 4-20 mA.

Q: Can it be used in high-humidity environments?

A: Yes, the transmitter is rated for up to 100% relative humidity, non-submerged.

Q: What is the mounting torque recommendation?

A: The recommended mounting torque is 4 to 7 N-m (35.4 to 62.0 in-lbf).

Product Support and Availability

The 177230-00-01-CN is available from Petro Auto Tech. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. Our team can assist with technical questions and ensure you receive the right product for your application.
