Product Overview

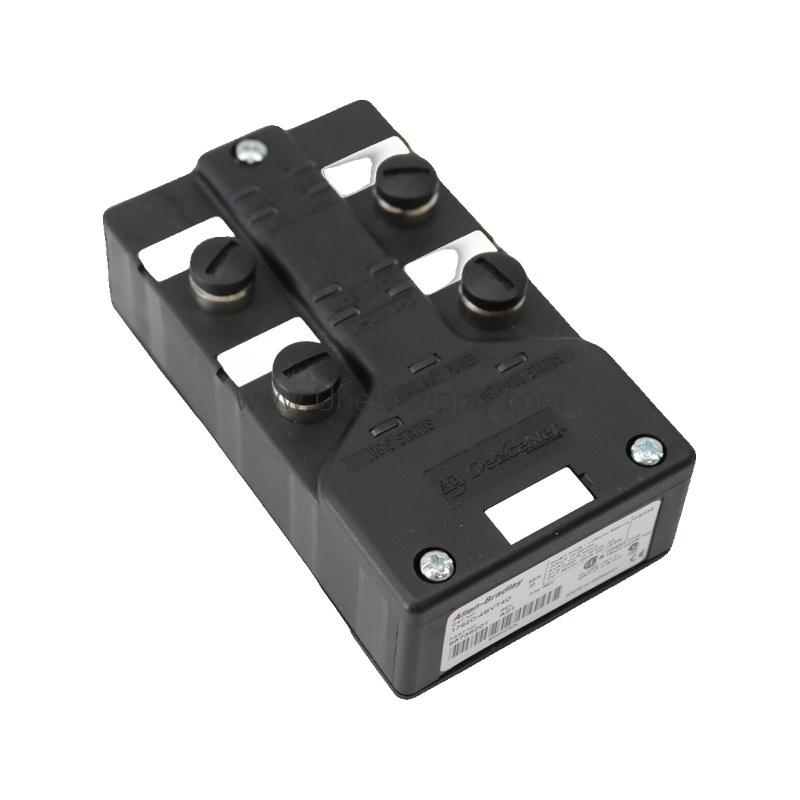

The 1792D-4BVT4D is a standalone I/O module from Allen-Bradley, part of the 1792D ArmorBlock MaXum product line. This sealed-housing module provides 4 inputs and 4 outputs, operates on 24 Volts DC, and communicates over the DeviceNet network. Its rugged design eliminates the need for an external enclosure, making it ideal for demanding industrial environments.

Technical Specifications Analysis

Key specifications from the manufacturer include a maximum data rate of 500 kbps at 330 feet, a maximum output current of 1 Amp per output, and a maximum input on-state current of 10 milliamps. The module weighs 0.69 lbs (0.31 kg) and uses a sealed housing for protection against dust and moisture. Inputs support both PNP sourcing and NPN sinking types, while outputs can source up to 1 Amp each.

Application Scenarios & Usage Methods

Use the 1792D-4BVT4D in material handling systems to control actuators and read sensor statuses over DeviceNet. In packaging lines, connect proximity sensors and solenoid valves directly to the module. For remote monitoring stations, mount the module near the machinery and use a Y splitter cable to access inputs and outputs. The sealed housing allows placement in washdown areas without extra protection.

Installation Guide & Packing List

To install, assign the node address, mount the module to the cable base, connect the cord sets, and establish DeviceNet communication. The package includes one 1792D-4BVT4D module and installation instructions. Cables and cord sets must be ordered separately.

Purchasing Advice

When selecting this module, verify that your system uses 24 Volts DC and DeviceNet communication. The 1792D-4BVT4D suits applications needing 4 inputs and 4 outputs in a compact, standalone form. Petro Auto Tech offers genuine Allen-Bradley modules with fast processing and reliable support.

Repair & Maintenance Tips

Regularly inspect the sealed housing for cracks or damage. Clean the module with a dry cloth; avoid solvents. Store in a dry, dust-free environment. Check DeviceNet connections for corrosion or loose wiring. Replace the module if diagnostic features indicate internal faults.

Frequently Asked Questions (FAQs)

Q: What is the maximum data rate of the 1792D-4BVT4D?

A: The maximum data rate is 500 kbps at 330 feet, as specified by Allen-Bradley.

Q: Does this module require an external enclosure?

A: No, the sealed housing allows standalone use without an enclosure.

Q: How many inputs and outputs does the 1792D-4BVT4D have?

A: It has 4 inputs and 4 outputs.

Q: What voltage does the module operate on?

A: It operates on 24 Volts DC.

Q: What communication protocol does the 1792D-4BVT4D use?

A: It communicates over the DeviceNet network.
