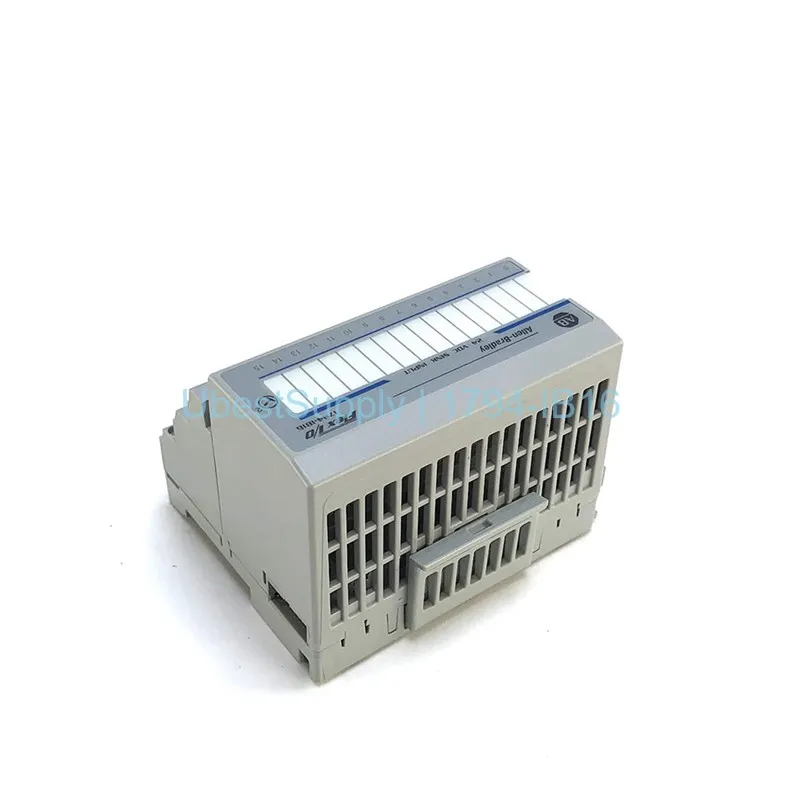

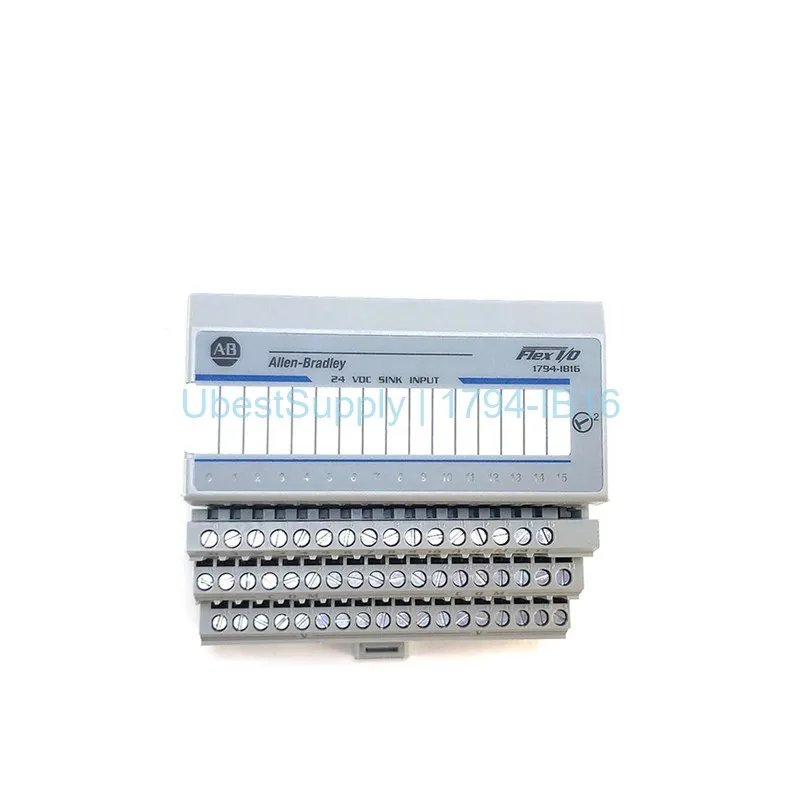

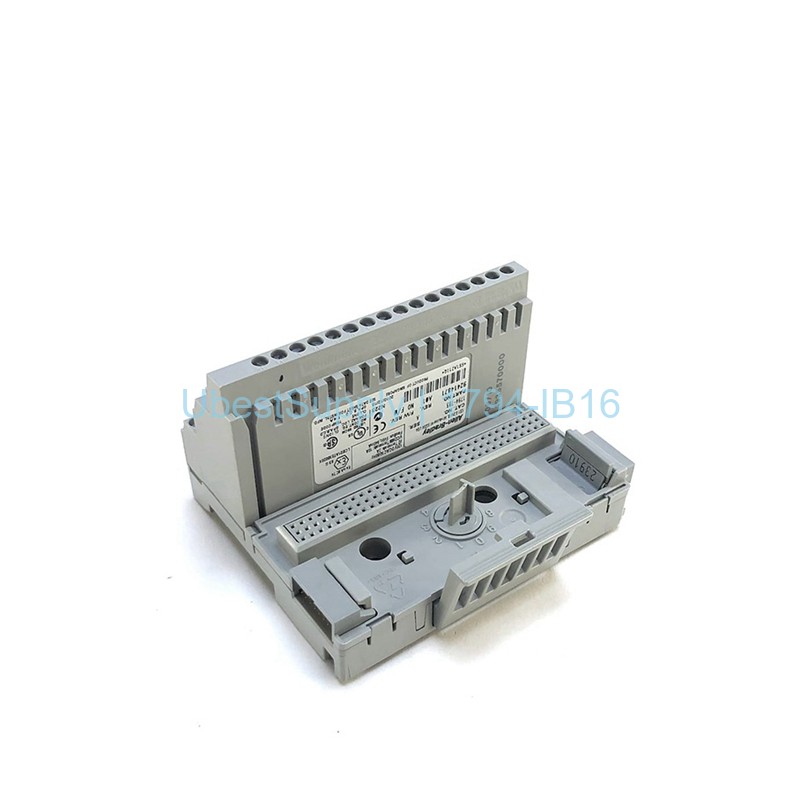

1794-IB16 Allen-Bradley 16-Channel DC Input Module

Product Overview

The 1794-IB16 is a Flex I/O discrete input module from Allen-Bradley. It features sixteen 24VDC sinking input channels. This module works with terminal bases like 1794-TB3, 1794-TB3S, and others. It uses 1794 Flex I/O adapters for distributed I/O. Distributed architecture reduces cable runs and costs. The 1794-IB16 mounts on a DIN rail or panel. It has 16 yellow LEDs for status.

Application Scenarios

Use the 1794-IB16 in factory automation. It suits machine control and process lines. Place it near sensors or switches. This saves wiring and simplifies maintenance. Compatible with ControlNet, DeviceNet, and EtherNet/IP networks. It works with 1794-ADN, 1794-ASB, and 1794-AENT adapters.

Technical Specifications

Inputs: 16 current sinking. On-state voltage: 10 to 31.2 VDC. Nominal voltage: 24 VDC. On-state current: 2.0 mA min, 12.0 mA max. Off-state voltage max: 5 VDC. Off-state current max: 1.5 mA. Input impedance: 4.6 kΩ. Flexbus current: 30 mA at 5 VDC. Power dissipation: 6.1 W at 31.2 VDC. Operating temperature: 0 to 55 °C. Storage temperature: -40 to 85 °C. Vibration: 5 g at 10-500 Hz. Shock: 30 g.

Installation & Maintenance Guide

Mount the 1794-IB16 on a DIN rail. Use a compatible terminal base. Wire size depends on the base. Connect a communication adapter. Check LEDs for channel status. Keep the module clean and dry. Operating humidity is 5-95% noncondensing.

Packing List

The package includes one 1794-IB16 module. It also includes a quick start guide. Terminal bases and adapters are sold separately.
