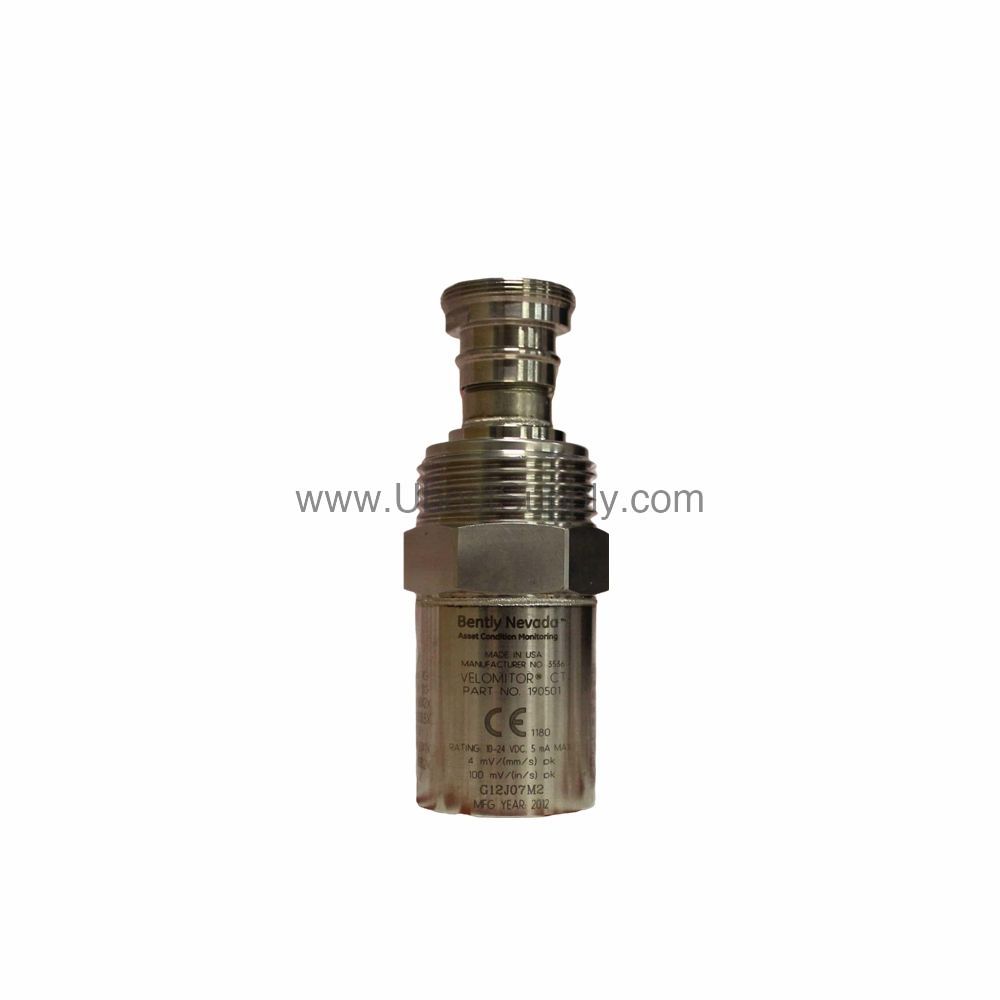

190501-04-00-04 | Bently Nevada 3.94 mV/mm/s Velomitor CT Transducer

Introduction to the 190501-04-00-04

When your rotating machinery demands precise vibration measurement, the 190501-04-00-04 from Bently Nevada stands ready. This Velomitor CT velocity transducer is engineered for industrial environments where accuracy and durability are non-negotiable. With a sensitivity of 3.94 mV/mm/s (±5%), it provides consistent output for condition monitoring applications.

Manufactured in the U.S.A., this transducer is part of the trusted Velomitor CT series. It is designed to convert mechanical velocity into an electrical signal, enabling early detection of bearing wear, unbalance, and misalignment. The 190501-04-00-04 is a robust choice for plants seeking to minimize downtime and extend equipment life.

Key Features and Performance Metrics

The 190501-04-00-04 offers a frequency response of 3.0 Hz to 900 Hz (180 to 54,000 cpm) within ±1.0 dB, and extends to 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) within ±3.0 dB. This wide range captures both low-speed and high-speed machinery vibrations effectively.

• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%.
• Frequency Response: 3.0 Hz to 900 Hz ±1.0 dB; 1.5 Hz to 1.0 kHz ±3.0 dB.
• Temperature Sensitivity: -8% to +5% typical over operating range.
• Transverse Response: Less than 5% of axial sensitivity.
• Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk).
• Mounted Resonant Frequency: 9 kHz minimum (stud mounted).
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B.
• Dynamic Output Impedance: <400 Ω typical.
• Broadband Noise: 0.229 mm/s (0.009 in/s) pk.
• Base Strain Sensitivity: 0.43 mm/s/μstrain (0.017 in/s/μstrain).

One standout spec is the base strain sensitivity of 0.43 mm/s/μstrain. This means the transducer minimizes false readings caused by mechanical strain on the mounting surface, ensuring that the output reflects true vibration rather than structural flexing.

Applications and Use Cases

In petrochemical plants, power generation facilities, and rotating equipment trains, the 190501-04-00-04 excels at monitoring pumps, fans, compressors, and turbines. Its intrinsic safety approvals (Ex ia IIC T4, AEx ia IIC T4) make it suitable for hazardous areas classified as Class I, Division 1, Groups A, B, C, D, as well as Class II and III. Consequently, you can deploy it in explosive atmospheres with confidence. Moreover, its wide operating temperature range of -40°C to +85°C (-40°F to +185°F) ensures reliable performance in extreme environments.

Installation and Mounting

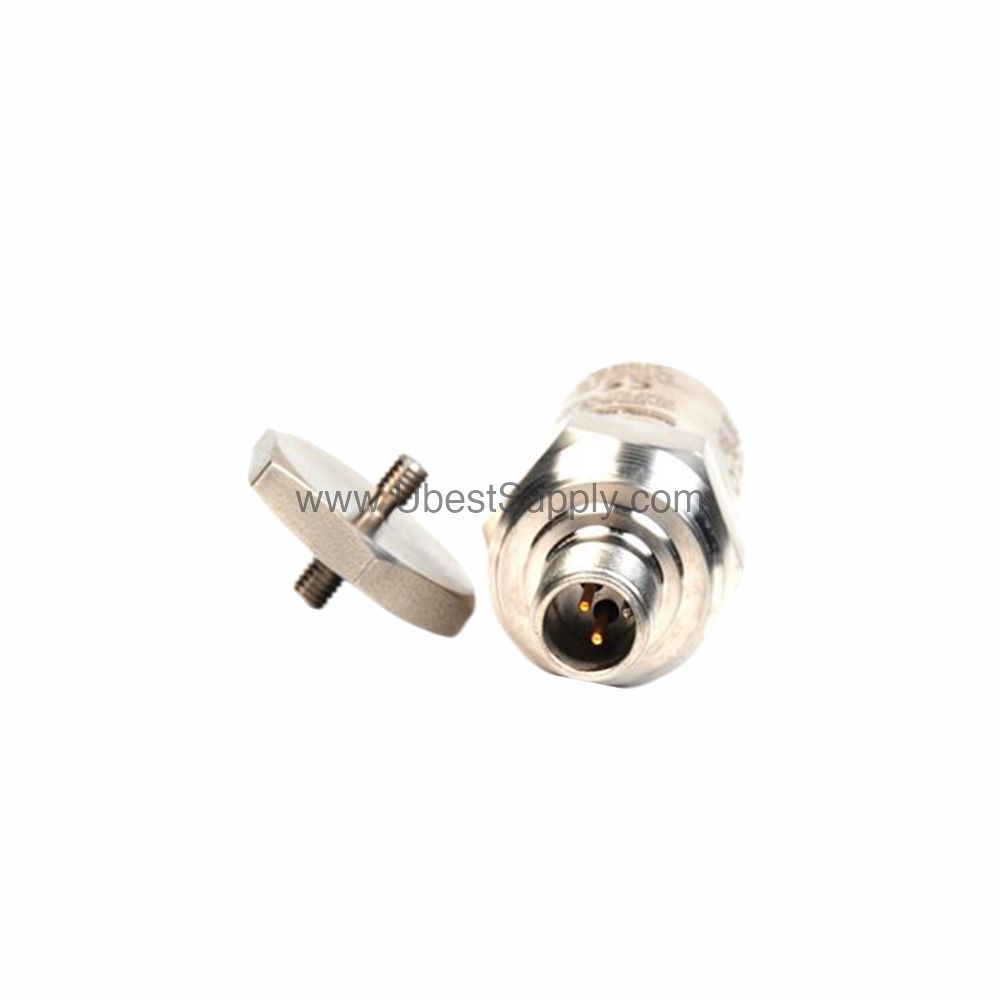

Mounting the 190501-04-00-04 is straightforward. The unit comes with a stud M6x1 mounting option, including a 3/8-in 24 adapter. For optimal results, follow the recommended mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). The transducer can be mounted in any orientation, offering flexibility in tight spaces. The MIL-C-5015 connection interface simplifies wiring, and the internal electronics are isolated from the case, reducing ground loop issues.

When installing, ensure the mounting surface is clean and flat to avoid introducing strain. The maximum cable length is 305 metres (1,000 ft.) using part number 02173006, with no signal degradation. This allows remote monitoring without compromising signal quality.

Maintenance and Reliability

Routine inspection of the transducer and its cable is essential to maintain accuracy. Check for physical damage, loose connections, and signs of corrosion. The 316L stainless steel case provides excellent resistance to harsh chemicals and moisture, but periodic cleaning with a soft cloth is recommended. Since the device is intrinsically safe, any maintenance must follow the manufacturer's safety manual and applicable regulations.

By choosing the 190501-04-00-04, you reduce the risk of unexpected failures. Its robust design and high shock limit (5000 g pk) ensure it withstands severe mechanical shocks, contributing to long service life and reduced replacement costs.

Compatibility and Integration

The 190501-04-00-04 is designed to work with Bently Nevada monitoring systems, but it can also interface with third-party data acquisition systems that accept standard velocity transducer inputs. The output bias voltage of 10.1 Vdc and dynamic impedance of <400 Ω make it compatible with most vibration monitors. For hazardous area installations, the agency approvals (CSA/NRTL/C, ATEX/IECEx/CSA) ensure compliance with international standards.

Troubleshooting and Common Issues

If you encounter erratic readings, first verify the cable integrity and connections. A damaged cable can introduce noise or signal loss. Also, check that the mounting torque is within specification; over-torquing can strain the transducer and affect sensitivity. If the output bias voltage deviates from 10.1 Vdc ± 1.0 Vdc, the internal electronics may be faulty, and the unit should be replaced.

Another common issue is ground loops. Since the internal electronics are isolated from the case, ensure that the mounting surface is not part of a ground loop. Use proper grounding practices as per your system design.

Frequently Asked Questions

Q: What is the frequency response of the 190501-04-00-04?

A: The frequency response is 3.0 Hz to 900 Hz (180 to 54,000 cpm) within ±1.0 dB, and extends to 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) within ±3.0 dB.

Q: Can the 190501-04-00-04 be used in hazardous areas?

A: Yes, it has agency approvals for CSA/NRTL/C (Class I, Division 1) and ATEX/IECEx/CSA (Class I, Zone 0/1) with intrinsic safety ratings Ex ia IIC T4 and AEx ia IIC T4.

Q: What is the maximum cable length for this transducer?

A: The maximum cable length is 305 metres (1,000 ft.) using part number 02173006, with no signal degradation.

Q: What is the operating temperature range?

A: The operating temperature range is -40°C to +85°C (-40°F to +185°F).

Product Support and Availability

The 190501-04-00-04 is available through Petro Auto Tech. We maintain a ready inventory to support your maintenance and upgrade projects. Contact our team for pricing and lead times.
