190501-19-00-CN | Bently Nevada 3.94 mV/mm/s Velomitor CT Velocity Transducer

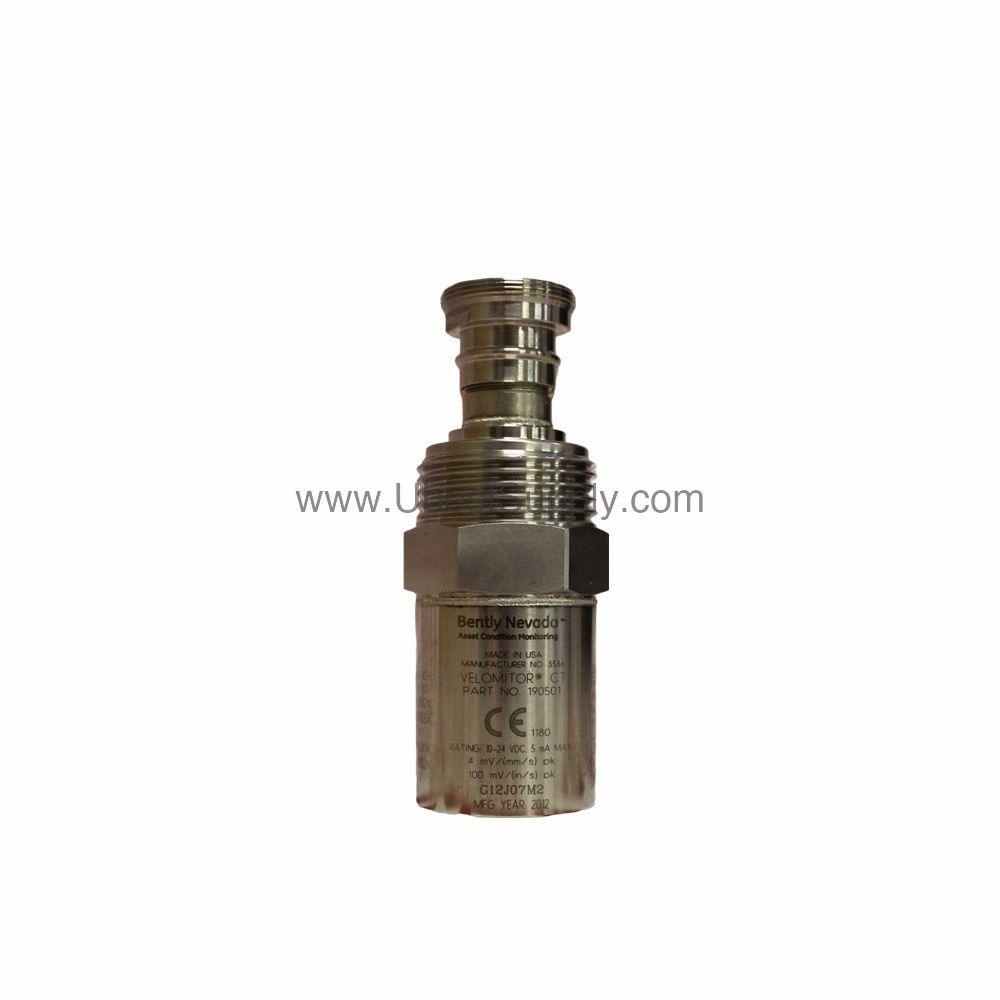

Introduction to the 190501-19-00-CN Bently Nevada Velomitor CT Velocity Transducer

When machinery vibration threatens uptime, the 190501-19-00-CN from Bently Nevada provides reliable velocity sensing. This Velomitor CT Velocity Transducer is engineered for harsh environments, offering a sensitivity of 3.94 mV/mm/s (±5%) and a frequency response from 3.0 Hz to 900 Hz. Its 316L stainless steel case ensures durability in demanding industrial settings.

Key Features and Technical Specifications of the 190501-19-00-CN

• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5% for accurate vibration measurement.
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB.
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B.
• Operating Temperature: -40°C to +85°C (-40°F to +185°F).
• Case Material: 316L stainless steel for corrosion resistance.
• Weight: <297 g (10.5 oz), typical.
• Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf).
• Maximum Cable Length: 305 metres (1,000 ft) with part number 02173006 cable.

Applications and Use Cases for the Velomitor CT Transducer

In rotating machinery monitoring, the 190501-19-00-CN excels at detecting early signs of imbalance or misalignment. It is ideal for pumps, fans, compressors, and turbines where reliable velocity output is critical. Moreover, its wide operating temperature range makes it suitable for outdoor or extreme environment installations.

Installation and Mounting Guide

Mount the transducer on a 33 mm diameter surface using the provided adapter (3/8-in 24 to 1/4-in 18 NPT). Apply a mounting torque of 4.5 N-m ± 0.6 N-m to ensure proper coupling. The transducer can be oriented at any angle, and the MIL-C-5015 connection interface simplifies wiring. Pin A goes positive with respect to Pin B when velocity is from base to top.

Maintenance and Reliability Tips

Regularly inspect the transducer for physical damage or corrosion, especially in condensing humidity environments. The internal electronics are isolated from the case, reducing ground loop issues. For long-term reliability, verify that the cable length does not exceed 305 metres to maintain signal integrity.

Troubleshooting Common Issues

If output bias voltage deviates from 10.1 Vdc ± 1.0 Vdc, check the cable connections and ensure proper grounding. Transverse response should be less than 5% of axial sensitivity; higher values may indicate misalignment. For amplitude linearity issues, confirm the vibration level is within ±2% to 63.5 mm/s pk.

FAQs about the 190501-19-00-CN

Q: What is the sensitivity of the 190501-19-00-CN?

A: The sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%.

Q: What is the operating temperature range?

A: The operating temperature range is -40°C to +85°C (-40°F to +185°F).

Q: What is the maximum cable length?

A: The maximum cable length is 305 metres (1,000 ft) using cable part number 02173006.

Q: Is the transducer intrinsically safe?

A: Yes, the 190501-19-00-CN with agency approval option CN includes intrinsic safety ratings per the data.

Q: What is the mounting torque specification?

A: The mounting torque is 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf).

Product Support and Availability

The 190501-19-00-CN is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this transducer comes with full manufacturer support. Contact Petro Auto Tech for lifecycle status and ordering details.
