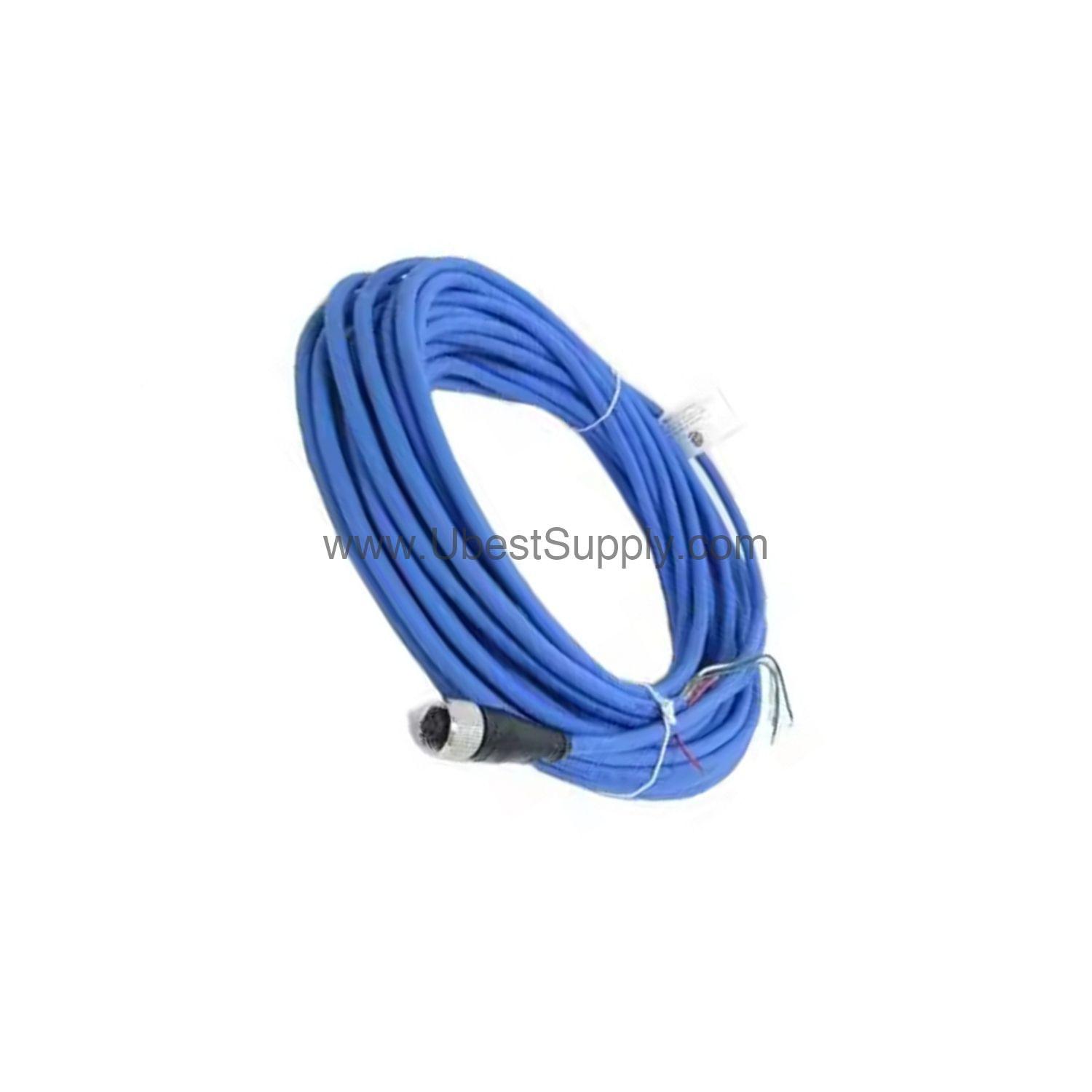

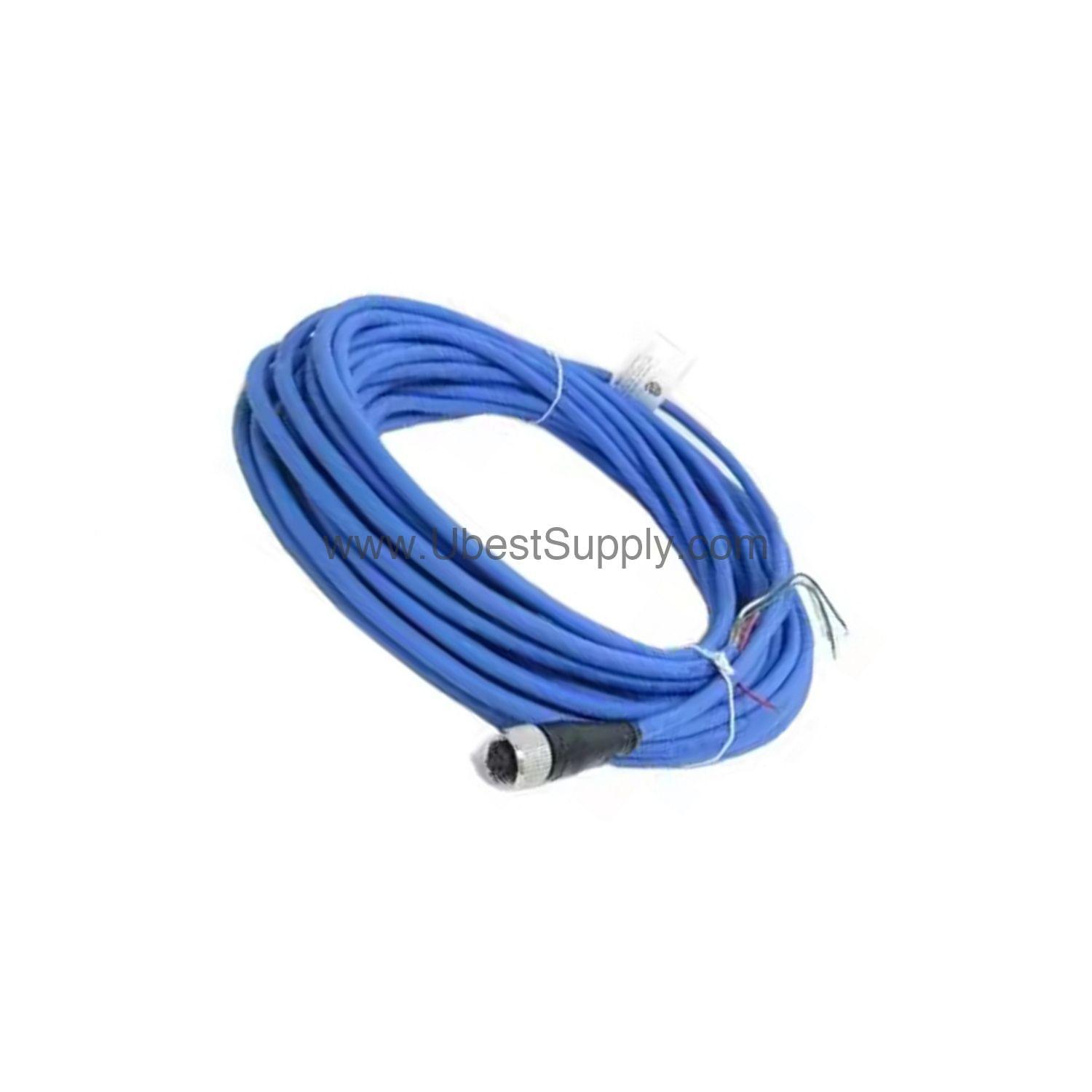

200152-25-CN | Bently Nevada 25m Accelerometer Interface Cable

What Is the 200152-25-CN?

When cable failures cause signal loss in critical vibration monitoring, the 200152-25-CN provides a robust solution. This Bently Nevada accelerometer interface cable delivers a 25-meter connection with a connector on the accelerometer end only, ensuring secure data transmission in demanding industrial environments.

Key Features & Technical Specs

• Cable length: 25 meters (model code -25).
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage minimum), PVC outer jacket.
• Connector seal: IP67 seal to transducers and mating hardware; connectors are molded to the cable.
• Minimum bend radius: 73.7 mm (2.9 in).
• Operating temperature range: -20 ºC to +100 ºC (-4 ºF to +212 ºF).
• Coupling nut: Nickel-plated, country-specific (-CN).
• Moisture protection: DC4 electrical insulating compound in connectors for added thermal shock resistance.

Installation & Setup

For best performance, avoid flexing the cable below -20 ºC (-4 ºF) to prevent damage. Ensure the connector mates firmly to achieve the IP67 seal. Use the minimum bend radius of 73.7 mm as a guide during routing to prevent kinking.

Maintenance & Reliability

Regularly inspect the cable jacket for cuts or abrasion, especially near connection points. Verify the IP67 seal integrity after any maintenance. The PVC outer jacket and nickel-plated coupling nuts resist corrosion in typical industrial environments, extending service life.

Compatibility & Integration

The 200152-25-CN is designed for Bently Nevada accelerometers with a compatible connector. It works with standard monitoring systems that accept 4-conductor shielded cables. For specific transducer compatibility, consult the Bently Nevada documentation.

FAQ about 200152-25-CN

Q: What is the cable length of the 200152-25-CN?

A: The 200152-25-CN has a 25-meter cable length, as indicated by the -25 suffix.

Q: What is the operating temperature range for this cable?

A: The operating temperature range is -20 ºC to +100 ºC (-4 ºF to +212 ºF). Flexing below -20 ºC may damage the cable.

Q: Does the 200152-25-CN have a connector on both ends?

A: No, it has a connector on the accelerometer end only. The other end is unterminated for field wiring.

Q: What is the minimum bend radius of the 200152-25-CN?

A: The minimum bend radius is 73.7 mm (2.9 in).

Q: Is the 200152-25-CN suitable for outdoor use?

A: The cable provides an IP67 seal at the connector, but the PVC jacket is designed for general industrial environments. Verify with Bently Nevada for outdoor exposure.

Product Support & Availability

The 200152-25-CN is available from Petro Auto Tech. In stock and ready to ship. Contact Petro Auto Tech for current lifecycle status and ordering details.
