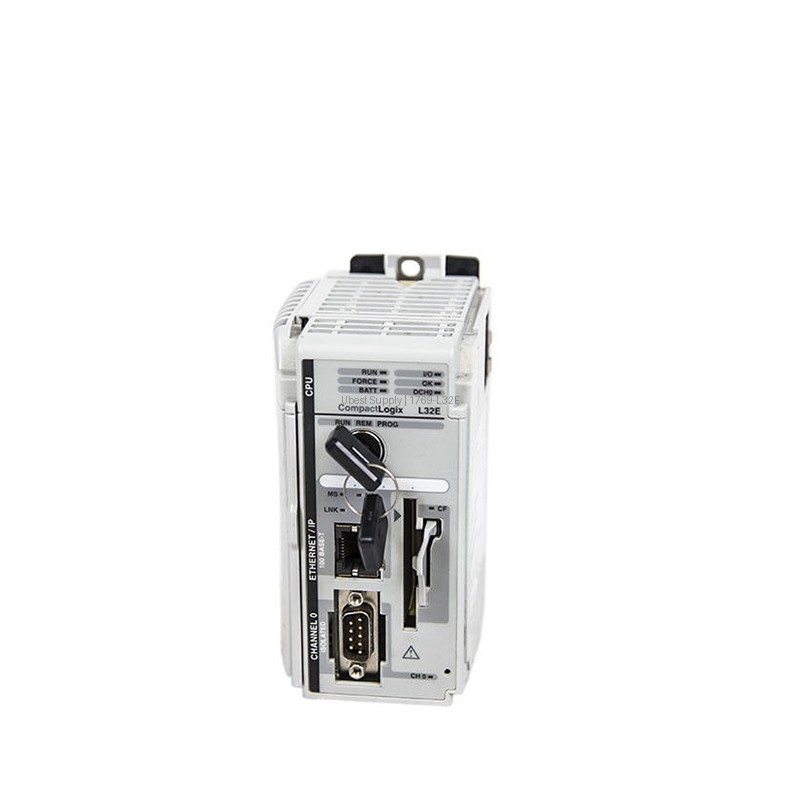

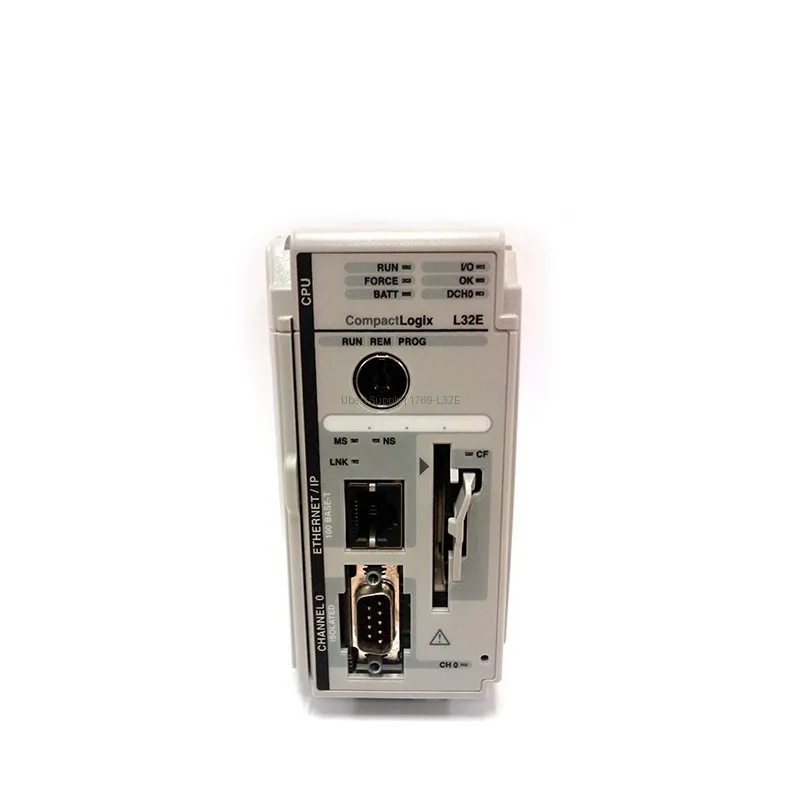

PLC Controller Allen-Bradley 1769-L32E CompactLogix Processor

Product Overview

The Allen-Bradley 1769-L32E is a CompactLogix programmable automation controller. It acts as a processor module for industrial control systems. This unit uses Ethernet/IP for fast communication. It has 750 KB of memory for your programs. The 1769-L32E supports up to 16 local I/O modules. You can use it in three I/O banks. It works with Relay Ladder, Structured Text, Function Block, and SFC languages. This controller is built for reliable automation tasks.

Application Scenarios

This controller works well in many factory settings. Use it for machine control and process automation. It fits in material handling systems. The 1769-L32E handles packaging lines and assembly stations. It also works for batch processing. You can use it in water treatment plants. It is good for any application needing a mid-range PAC. The Ethernet/IP port connects to other devices easily.

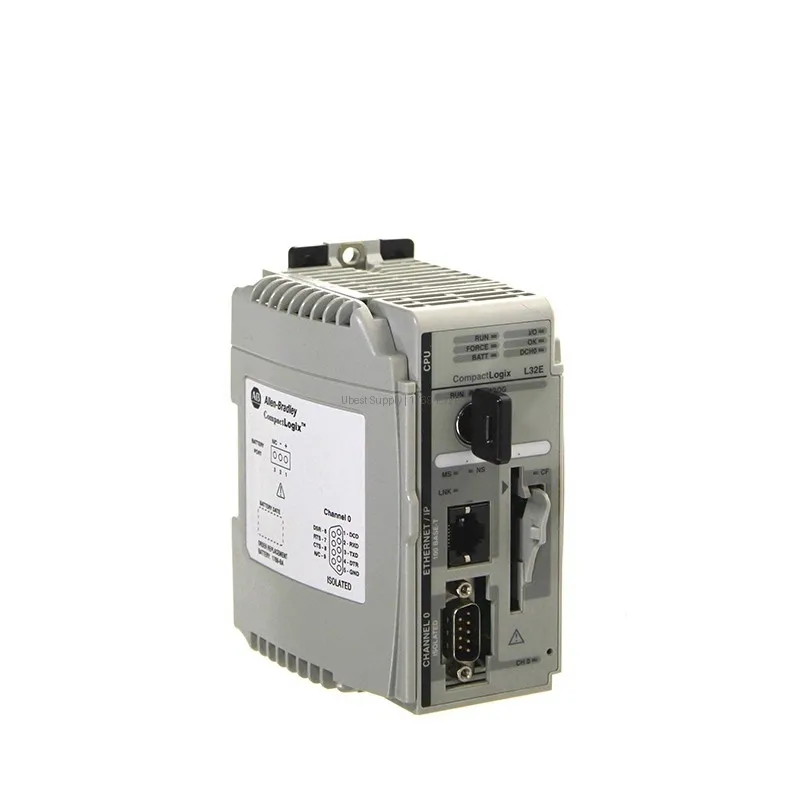

Technical Specifications

The 1769-L32E draws 850 mA at 5 Volts DC. It also draws 90 mA at 24 Volts DC. Heat dissipation reaches 6.5 Watts. It operates from 0 to 60 degrees Celsius. Storage temperature ranges from -40 to 85 degrees Celsius. Non-condensing humidity stays between 0 and 95%. It has one RS232 port and one Ethernet port. Supported protocols include DH485, DF1, ASCII, and EtherNet. The controller supports up to 100 Ethernet connections. It can run up to 6 tasks. Vibration rating is 5G during operation. Shock rating is 30G for DIN and panel mounts.

Installation & Maintenance Guide

Mount the 1769-L32E on a DIN rail or panel. Use copper wire rated for 90 degrees Celsius. Solid wire size ranges from 22 to 14 AWG. Stranded wire size ranges from 22 to 16 AWG. Torque force should be 1.1 to 1.8 N-m. Use a 1769-BA battery for memory retention. Use a 1747-CP3 or 1756-CP3 cable for programming. The controller uses a 1784-CF64 or 1784-CF128 CompactFlash card for non-volatile memory. Ensure proper ventilation for cooling.

Packing List

The package includes one Allen-Bradley 1769-L32E processor module. It does not include cables or batteries. Shipping weight is 2 pounds. Shipping dimensions are 8 x 8 x 5 inches. We ship via FedEx, UPS, or DHL.
