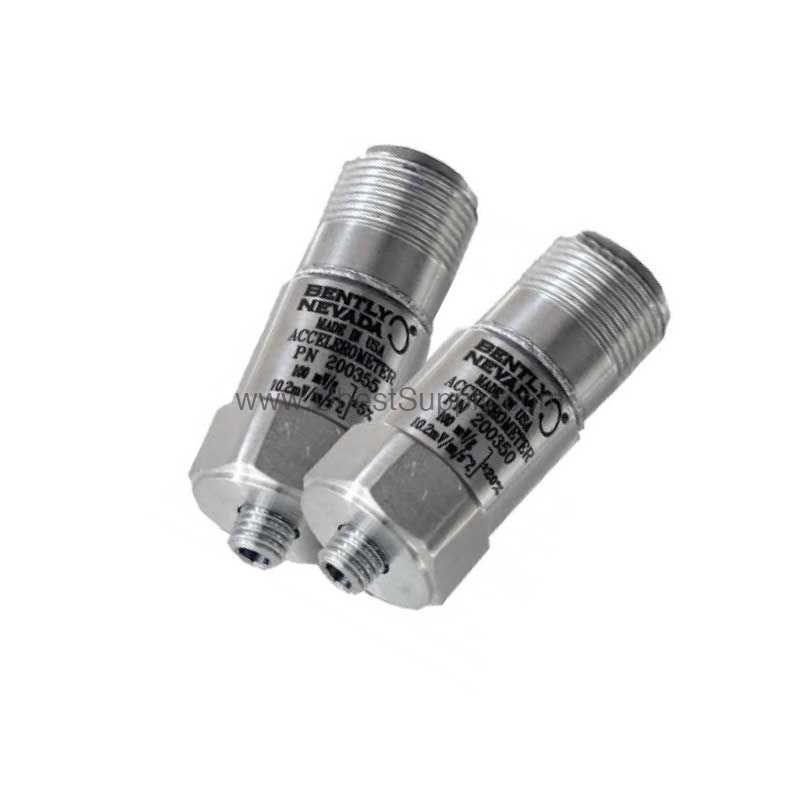

200355-09-00-00 | Bently Nevada 100 mV/g Accelerometer

What Makes the Bently Nevada 200355-09-00-00 a Reliable Choice for Vibration Monitoring?

When unplanned downtime threatens production targets, the 200355-09-00-00 from Bently Nevada provides accurate vibration data to protect rotating machinery. This accelerometer is designed for continuous condition monitoring in demanding applications, offering a measurement range of ±50 g and a broad frequency response from 30 to 600,000 cpm (0.5–10,000 Hz). Its robust construction and IP68 rating ensure reliable operation even in condensing humidity and harsh environments.

Key Features and Technical Specifications of the 200355-09-00-00

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Frequency Range: 30–600,000 cpm (0.5–10,000 Hz) ±3 dB
• Measurement Range: ±50 g
• Transverse Sensitivity: ≤7%
• Amplitude Linearity: ±1%
• Mounted Resonant Frequency: 1,500 kcpm (25 kHz)
• Broadband Electrical Noise (1–10 kHz): 350 μg (3,434 μm/s²)
• Output Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current Excitation: 2 to 20 mA
• Settling Time (within 1% of bias): 2.0 seconds
• Output Impedance: <150 ohms
• Discharge Time Constant: ≥0.3 seconds
• Electrical Isolation (Case): >108 ohms
• Operating Temperature Range: -65°F to +250°F (-54°C to +121°C)
• Shock Survivability: 5,000 g pk
• Relative Humidity: 100% condensing, non-submerged
• Enclosure Rating: IP68
• Mounting Thread: 1/4-28 Female
• Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N-m)
• Sensing Element: Ceramic, shear geometry
• Housing Material: Stainless steel, welded hermetic seal
• Electrical Connector: 2-Pin Mil-C-5015, top exit
• Weight: 0.051 kg

The unique combination of ceramic shear sensing and welded hermetic sealing gives the 200355-09-00-00 excellent long-term stability and resistance to environmental contaminants. Its low broadband electrical noise of 350 μg ensures clear signals even in electrically noisy industrial settings.

Real-World Applications for the 200355-09-00-00

Industries rely on the 200355-09-00-00 for continuous vibration monitoring of pumps, fans, compressors, motors, and turbines. Its wide frequency range captures both slow-speed and high-speed machinery faults, while the IP68 rating allows installation in washdown areas or outdoor locations. The accelerometer's ±50 g measurement range suits most rotating equipment without risk of saturation during normal operation.

Installation and Setup Guidance

Mount the 200355-09-00-00 using the 1/4-28 female thread with a torque of 2 to 5 ft-lb (2.7 to 6.8 N-m). Ensure the mounting surface is clean and flat for optimal frequency response. Connect the 2-pin Mil-C-5015 connector to a suitable data acquisition system that provides 18–28 VDC excitation and 2–20 mA constant current. Allow at least 2.0 seconds settling time after power-up before taking measurements.

Routine Maintenance and Reliability

Periodically inspect the cable and connector for damage, especially in high-vibration or corrosive environments. Verify the output bias voltage remains between 8 and 12 VDC to confirm the sensor is functioning correctly. The welded hermetic stainless steel construction minimizes maintenance needs, but regular calibration checks every 12–24 months help maintain measurement accuracy.

Compatibility and Integration

The 200355-09-00-00 is a standard IEPE-type accelerometer compatible with most industrial vibration monitoring systems that supply constant current excitation. Its 100 mV/g sensitivity is a common industry standard, making it easy to integrate into existing Bently Nevada or third-party monitoring networks.

Frequently Asked Questions about the 200355-09-00-00

Q: What is the sensitivity of the 200355-09-00-00?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

Q: What is the operating temperature range?

A: It operates from -65°F to +250°F (-54°C to +121°C).

Q: Is the 200355-09-00-00 suitable for outdoor use?

A: Yes, its IP68 enclosure rating allows use in condensing humidity and non-submerged outdoor environments.

Q: What type of connector does it use?

A: It uses a 2-Pin Mil-C-5015 connector located at the top of the sensor.

Q: What is the weight of this accelerometer?

A: The 200355-09-00-00 weighs 0.051 kg.

Product Support and Availability

The Bently Nevada 200355-09-00-00 is available from Petro Auto Tech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and expedited shipping options.
