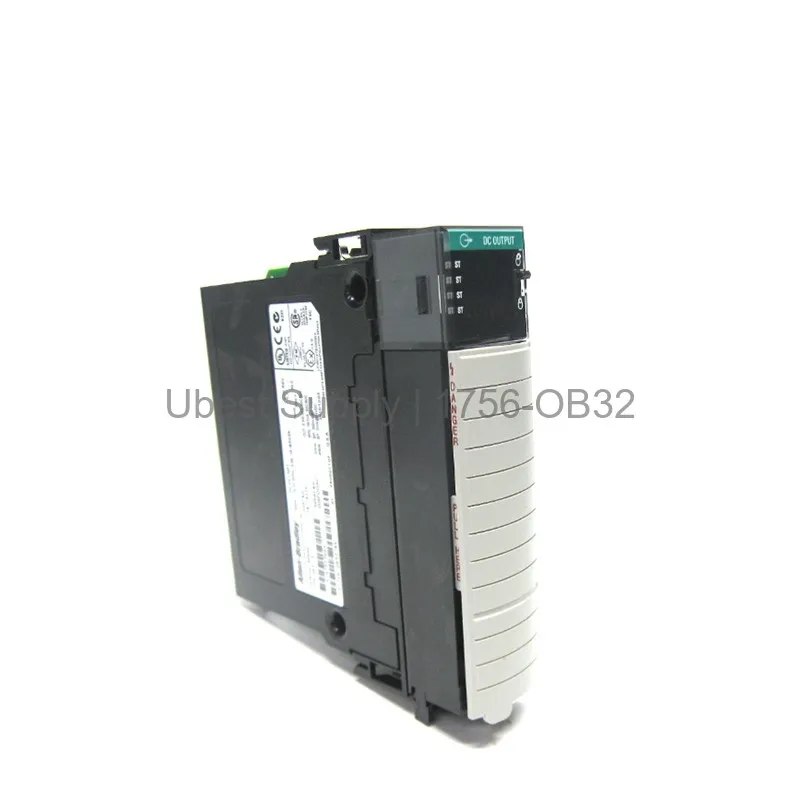

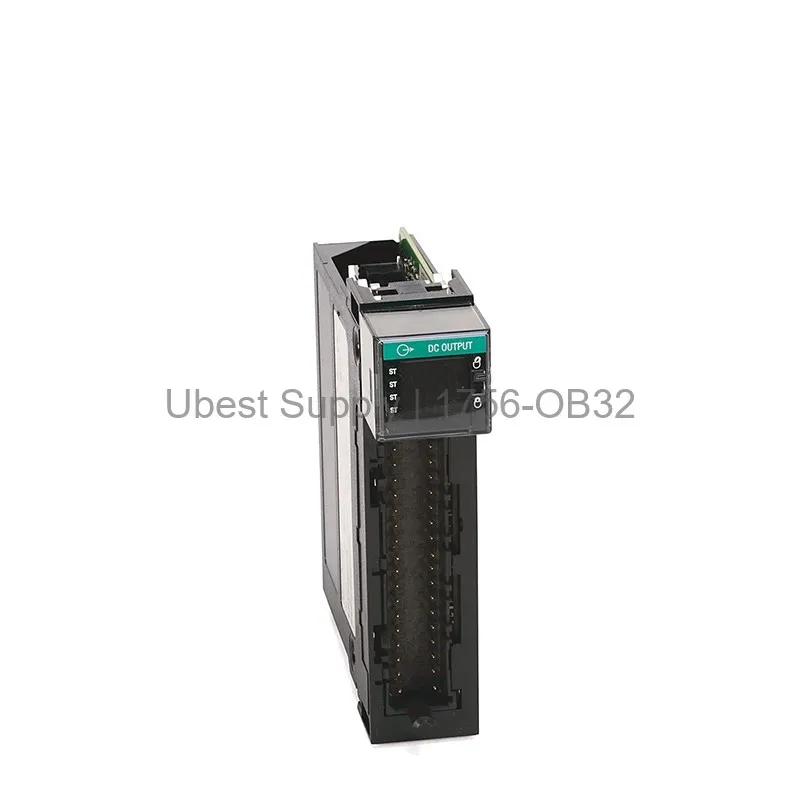

1756-OB32 Allen-Bradley ControlLogix DC Output Module 32 Points

Product Overview

The 1756-OB32 is a discrete output module from Allen-Bradley. It belongs to the ControlLogix family. This module provides 32 output points. It operates at 12/24V DC source voltage. The operating voltage range is 10 to 31.2V DC. It uses a 36-pin removable terminal block. Compatible RTBs are 1756-TBCH or 1756-TBS6H. The module mounts in a local or remote chassis. It supports scheduled output data and listen-only modes. You can configure fault and program mode states per point. Options include Hold Last State, On, or Off.

Application Scenarios

This module drives various output devices. It is ideal for pilot lamps and relays. It also works with contactors and solenoids. Use it for buzzers, sirens, and horns. It suits panel annunciators and actuators. The high-density design saves space. It works in systems with many outputs. It fits in limited chassis slots. It is compatible with all ControlLogix processors.

Technical Specifications

Voltage category: 12/24V DC source. Operating voltage: 10 to 31.2V DC. Current draw at 5.1V: 300 mA. Current draw at 24V: 2 mA. Backplane power: 1.58W. Off-state leakage: 0.5 mA per point. On-state voltage drop: 200 mV at 0.5A. Surge current: 1A for 10 ms. Minimum load current: 3 mA per point. Max current per point: 0.5A at 50°C, 0.35A at 60°C. Max current per module: 16A at 50°C, 10A at 60°C. Isolation voltage: 250V continuous. Output delay off to on: 60 µs nominal, 1 ms max. Output delay on to off: 200 µs nominal, 1 ms max. Operating temperature: 0 to 60°C. Non-operating temperature: -40 to 85°C.

Installation & Maintenance Guide

Install and ground the chassis first. Then mount the power supply. Insert the module into a slot. Use the correct RTB for wiring. The 1756-TBCH uses cage clamps. The 1756-TBS6H uses spring clamps. Connect field wiring to the RTB. Attach the RTB to the module. Use a 5x20mm 800 mA fuse. Recommended fuses are Littelfuse SP001.1003 or Schurter 216.800. Check LED indicators for status. Replace the RTB during module swaps. This avoids rewiring and saves time.

Packing List

1 x 1756-OB32 ControlLogix Output Module. Removable terminal block is not included. Order 1756-TBCH or 1756-TBS6H separately. Documentation is available online.
