200355-10-00-00 | Bently Nevada 100 mV/g Accelerometer

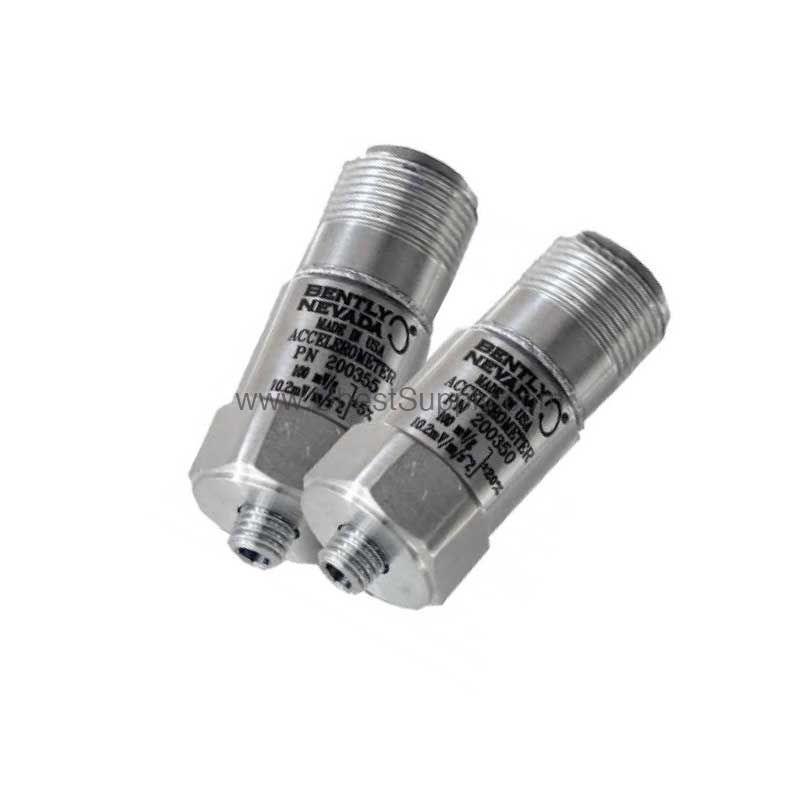

Introduction to the Bently Nevada 200355-10-00-00 Accelerometer

When reliable vibration monitoring is critical, the 200355-10-00-00 from Bently Nevada provides accurate data for predictive maintenance. This 200350 series accelerometer offers a sensitivity of 100 mV/g ±20%, making it suitable for industrial machinery health assessment.

Key Features & Technical Specifications

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Frequency Range: 30-600,000 cpm (0.5-10,000 Hz)
• Measurement Range: ±50 g
• Output Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current Excitation: 2 to 20 mA
• Operating Temperature: -65°F to +250°F (-54°C to +121°C)
• Enclosure Rating: IP68
• Weight: 0.051 kg

The ceramic shear sensing element ensures stable performance across the full temperature range. With a mounted resonant frequency of 1500 kcpm (25 kHz), this accelerometer captures high-frequency vibration data effectively.

Applications & Use Cases

Engineers commonly deploy the 200355-10-00-00 on rotating equipment such as pumps, motors, compressors, and turbines. Its ±50 g measurement range suits both normal operation and transient events. The IP68 rating allows installation in wet or dusty environments without performance degradation.

Installation & Setup

Mount the accelerometer using the 1/4-28 female thread and apply a mounting torque of 2 to 5 ft-lb (2.7 to 6.8 N-m). The adhesive stud mount option (code 10) simplifies installation on curved or uneven surfaces. Connect via the 2-pin Mil-C-5015 connector located on the top of the unit.

Maintenance & Reliability

Regular inspection of the cable and connector integrity helps maintain signal quality. The welded hermetic sealing and stainless steel housing provide long-term durability in harsh industrial environments. Verify output bias voltage periodically to ensure the accelerometer remains within the 8 to 12 VDC range.

Common Questions About the 200355-10-00-00

Q: What is the sensitivity of this accelerometer?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

Q: What is the operating temperature range?

A: It operates from -65°F to +250°F (-54°C to +121°C).

Q: What is the enclosure rating?

A: The enclosure rating is IP68, allowing continuous submersion in water.

Q: What type of electrical connector does it use?

A: It uses a 2-pin Mil-C-5015 connector located on the top.

Q: What is the weight of the 200355-10-00-00?

A: The weight is 0.051 kg.

Product Support & Availability

The 200355-10-00-00 is available from Petro Auto Tech. Contact our team to confirm stock levels and lead times for your order.
