2094-BC01-MP5-S | Allen-Bradley Kinetix 6000 IAM 400V - Petro Auto Tech

Product Overview

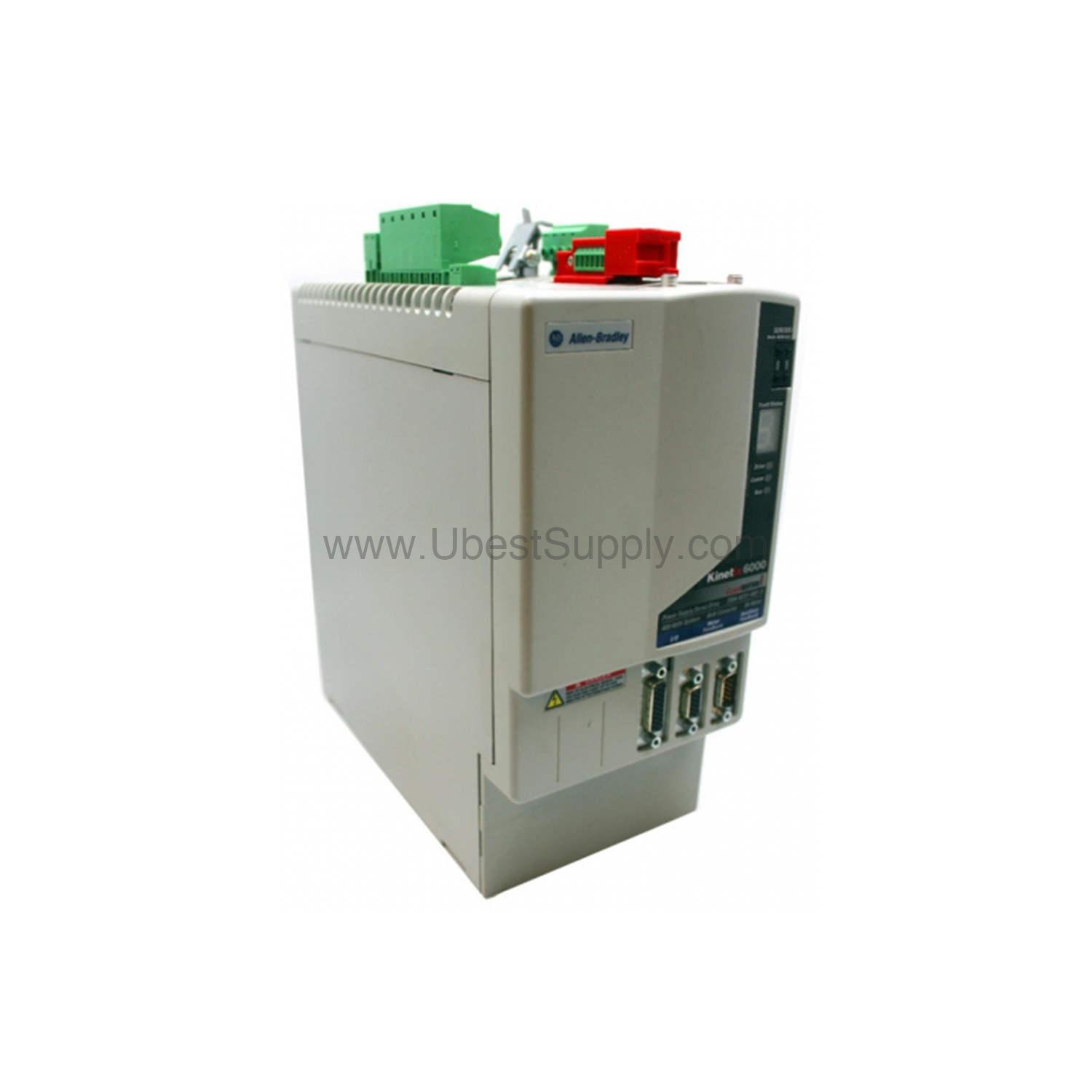

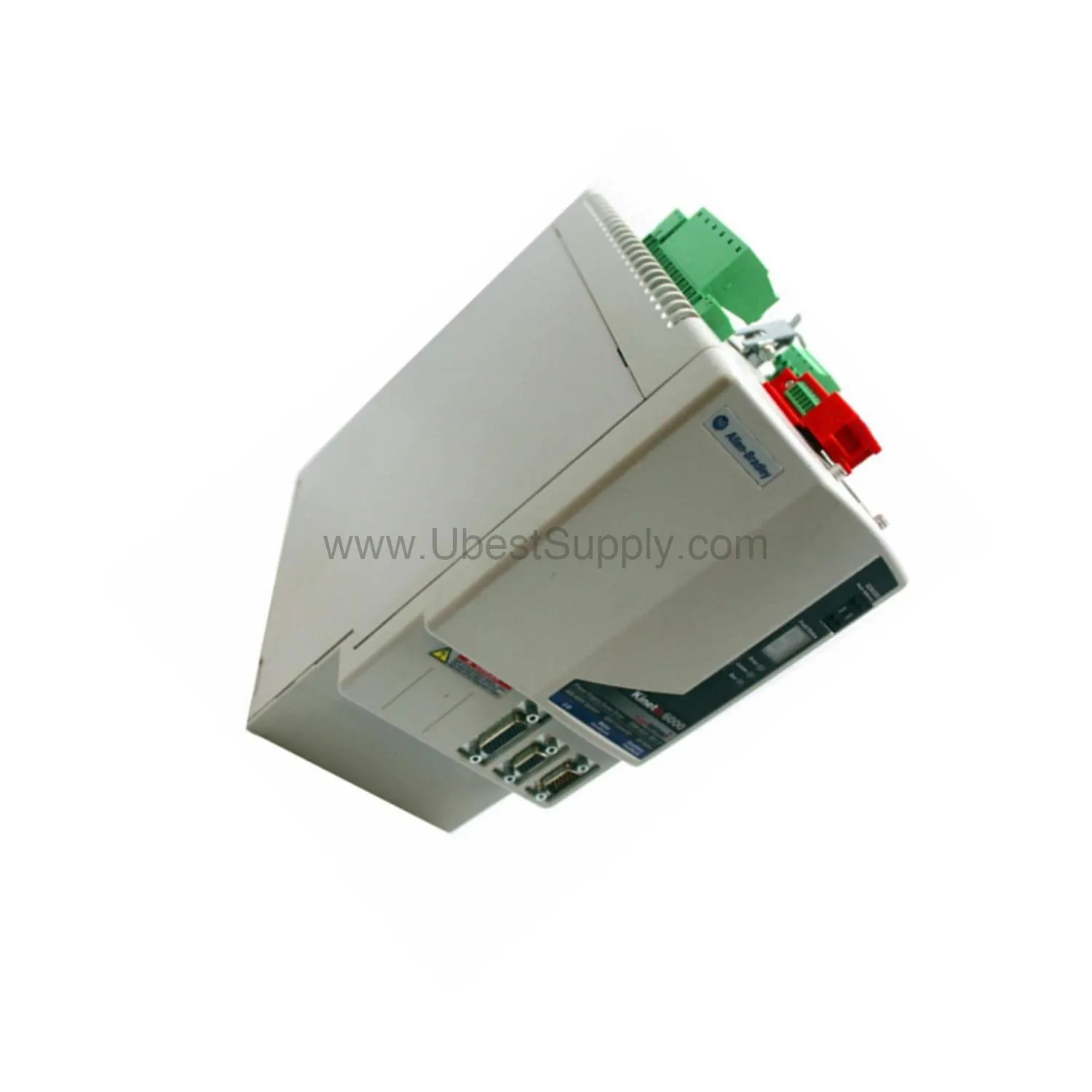

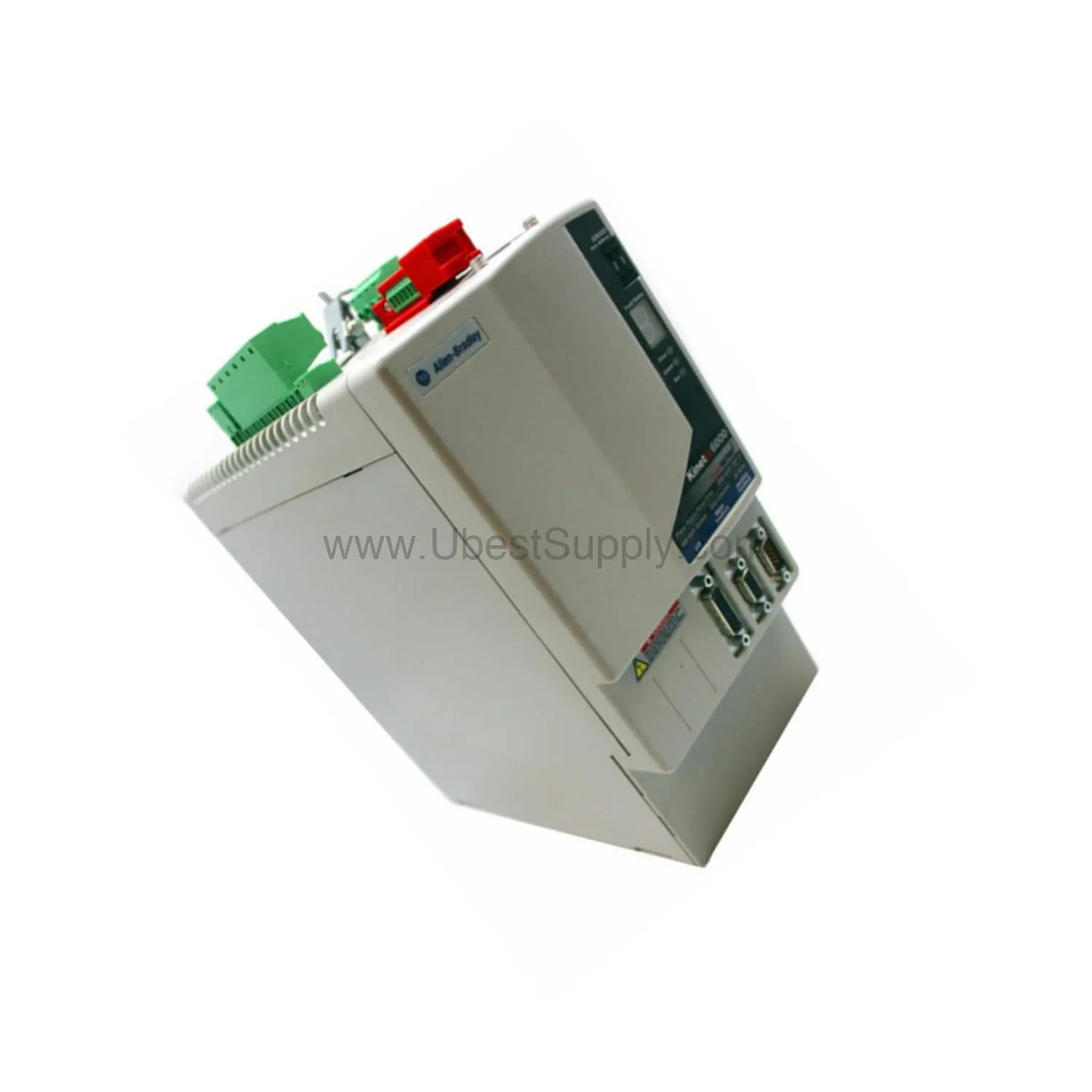

The 2094-BC01-MP5-S is an Allen-Bradley Kinetix 6000 Integrated Axis Module (IAM) from the 400 Volt class. This module delivers precise motion control for multi-axis servo systems. It integrates a Safe Torque Off (STO) function for enhanced safety. The 2094-BC01-MP5-S mounts on a Kinetix 6000 Power Rail and works with ControlLogix PACs via SERCOS.

Technical Specifications Analysis

The 2094-BC01-MP5-S operates on a 324-528Vrms, 3-Phase AC input (nominal 360/480 VAC) at 47-63 Hz. It draws a nominal RMS AC input current of 10.0 Amperes and a maximum inrush current of 11.0 Amperes. For common-bus follower applications, the DC input voltage range is 458-747 VDC with a DC input current of 9.0 Amperes. The module delivers a continuous output power to bus of 6 kW and a continuous output current to bus of 9.0 Amperes. Peak power output reaches 12 kW. The internal shunt handles 50 Watts continuous and 5.6 Kilowatts peak, with a 115 Ohm resistor. Efficiency is 97%. The module weighs 11.0 lbs (4.98 kg). Bus overvoltage protection triggers at 425V DC, and bus undervoltage at 275V DC. Installation requires 50.8 mm (2.0 in.) clearance and a minimum enclosure depth of 198 mm (7.8 in.).

Application Scenarios & Usage Methods

This IAM excels in high-speed packaging lines, where it controls multiple servo axes for precise cutting, filling, and sealing. Use the 2094-BC01-MP5-S with Kinetix MP series motors and a ControlLogix controller to synchronize motion profiles. In material handling systems, the module manages conveyor diverters and robotic pick-and-place cells. The integrated STO function allows safe manual intervention without removing power. For best results, configure dynamic drive parameters via the SERCOS interface to adapt to changing load conditions.

Installation Guide & Packing List

Mount the 2094-BC01-MP5-S on a Kinetix 6000 Power Rail inside an enclosure with at least 198 mm depth. Maintain 50.8 mm clearance around the module for airflow. Connect a 3-Phase AC supply within 324-528Vrms, 47-63 Hz. For common-bus setups, wire the DC input between 458-747 VDC. The package includes the Integrated Axis Module, mounting hardware, and a quick-start guide. No additional cables or connectors are provided.

Purchasing Advice

Verify your system voltage matches the 324-528Vrms, 3-Phase AC input range. For existing common-bus installations, confirm the DC bus voltage falls within 458-747 VDC. Choose the 2094-BC01-MP5-S for applications requiring up to 6 kW continuous power with STO safety. Petro Auto Tech stocks genuine Allen-Bradley modules with fast shipping. Contact our team for volume pricing or compatibility checks.

Repair & Maintenance Tips

Inspect the module quarterly for dust buildup on heatsinks and fans. Clean with dry compressed air at low pressure. Check all power connections for tightness and signs of corrosion. Monitor the internal shunt resistor (115 Ohms) for overheating during peak loads. Store the 2094-BC01-MP5-S in a dry, static-free environment when not in use. Do not operate the module if bus overvoltage (425V DC) or undervoltage (275V DC) alarms persist.

Frequently Asked Questions (FAQs)

Q: What is the continuous output power of the 2094-BC01-MP5-S?

A: The module delivers a continuous output power to bus of 6 kW.

Q: What AC input voltage does this IAM require?

A: It requires 324-528Vrms, 3-Phase AC input, with a nominal voltage of 360/480 VAC.

Q: Does the 2094-BC01-MP5-S support Safe Torque Off?

A: Yes, it comes with integrated Safe Torque Off (STO) functionality.

Q: Can this module be used as a common-bus follower?

A: Yes, it accepts a DC input voltage of 458-747 VDC and a DC input current of 9.0 Amperes.

Q: What is the efficiency of this module?

A: The 2094-BC01-MP5-S operates at 97% efficiency.
