1792D-CB18JP | Allen-Bradley Interface Base - Petro Auto Tech

Product Overview

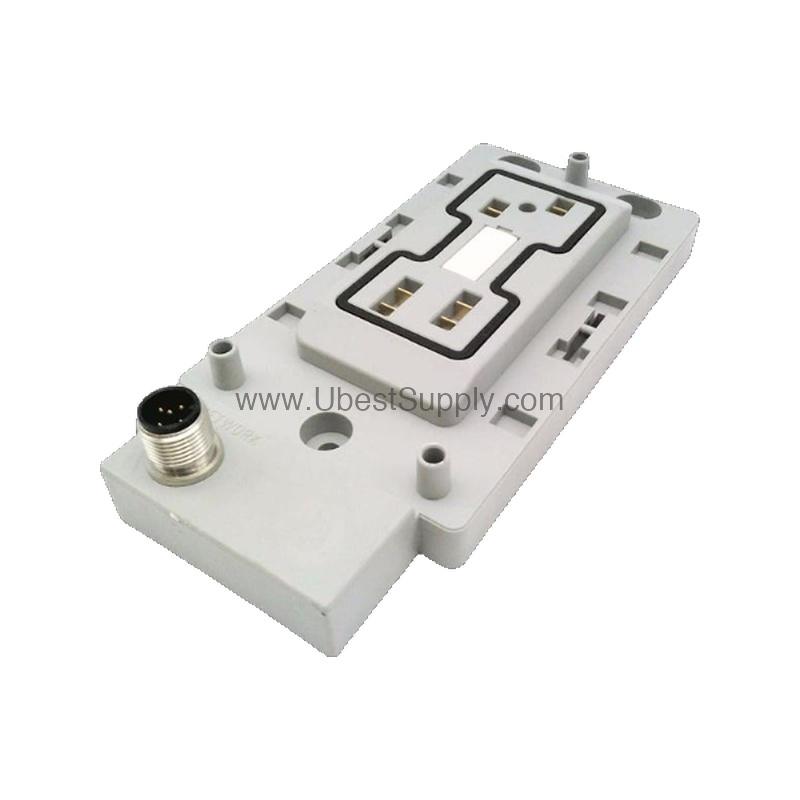

The 1792D-CB18JP is a robust interface base from Allen-Bradley, designed for the 1792D ArmorBlock MaXum I/O series. This unit provides reliable DeviceNet network connectivity in demanding industrial settings. Its sealed housing and IP67 ingress protection make it ideal for harsh environments where dust and moisture are present.

Technical Specifications Analysis

The 1792D-CB18JP operates on a DeviceNet protocol and supports baud rates of 125, 250, and 500 kbps. It requires an operating voltage of 11-25V DC and handles a current capacity of approximately 8 A max. The interface base uses a round media trunk connection and M12 connectors, with a pass-through port configuration. Auxiliary power is jumpered from the network power, simplifying wiring. The module mounts via a captive screw mechanism and adheres to standard module load limits.

Application Scenarios & Usage Methods

This interface base excels in automated assembly lines and material handling systems. For example, in a packaging facility, it connects sensors and actuators to a DeviceNet network, enabling real-time control and monitoring. Installers can daisy-chain multiple units using the pass-through ports to reduce cabling. In a water treatment plant, the IP67 rating allows deployment in washdown zones. Users should verify the network power supply meets the 11-25V DC range and that total current draw stays below 8 A.

Installation Guide & Packing List

Mount the 1792D-CB18JP securely using the captive screw mechanism onto a flat panel. Connect the DeviceNet trunk cable using round media and M12 connectors. Ensure auxiliary power is properly jumpered from the network power source. The package typically includes the interface base unit and mounting hardware. Always follow local electrical codes and manufacturer guidelines for safe installation.

Purchasing Advice

When selecting this interface base, confirm your network protocol is DeviceNet and that your operating voltage matches the 11-25V DC range. The IP67 rating ensures durability in wet or dusty environments. Petro Auto Tech offers this genuine Allen-Bradley part with reliable service and fast shipping. Check compatibility with your existing ArmorBlock MaXum I/O modules before ordering.

Repair & Maintenance Tips

Inspect the sealed housing and M12 connectors regularly for damage or contamination. Clean with a dry cloth; avoid solvents that may degrade the seal. Verify that the captive screw remains tight to maintain IP67 protection. Store the unit in a dry, clean area when not in use. Periodically test the network connection and baud rate settings to ensure stable operation.

Frequently Asked Questions (FAQs)

Q: What is the operating voltage range for the 1792D-CB18JP?

A: The operating voltage is 11-25V DC.

Q: What baud rates does this interface base support?

A: It supports baud rates of 125, 250, and 500 kbps.

Q: Is the 1792D-CB18JP suitable for outdoor use?

A: Yes, its IP67 ingress protection makes it suitable for harsh environments, including outdoor or washdown areas.

Q: How do I connect auxiliary power?

A: Auxiliary power is jumpered from the network power, so no separate power supply is needed.

Q: What is the maximum current capacity?

A: The current capacity is approximately 8 A max.
