Input Module Allen-Bradley 1762-IA8 120V AC 8 Points

Product Overview

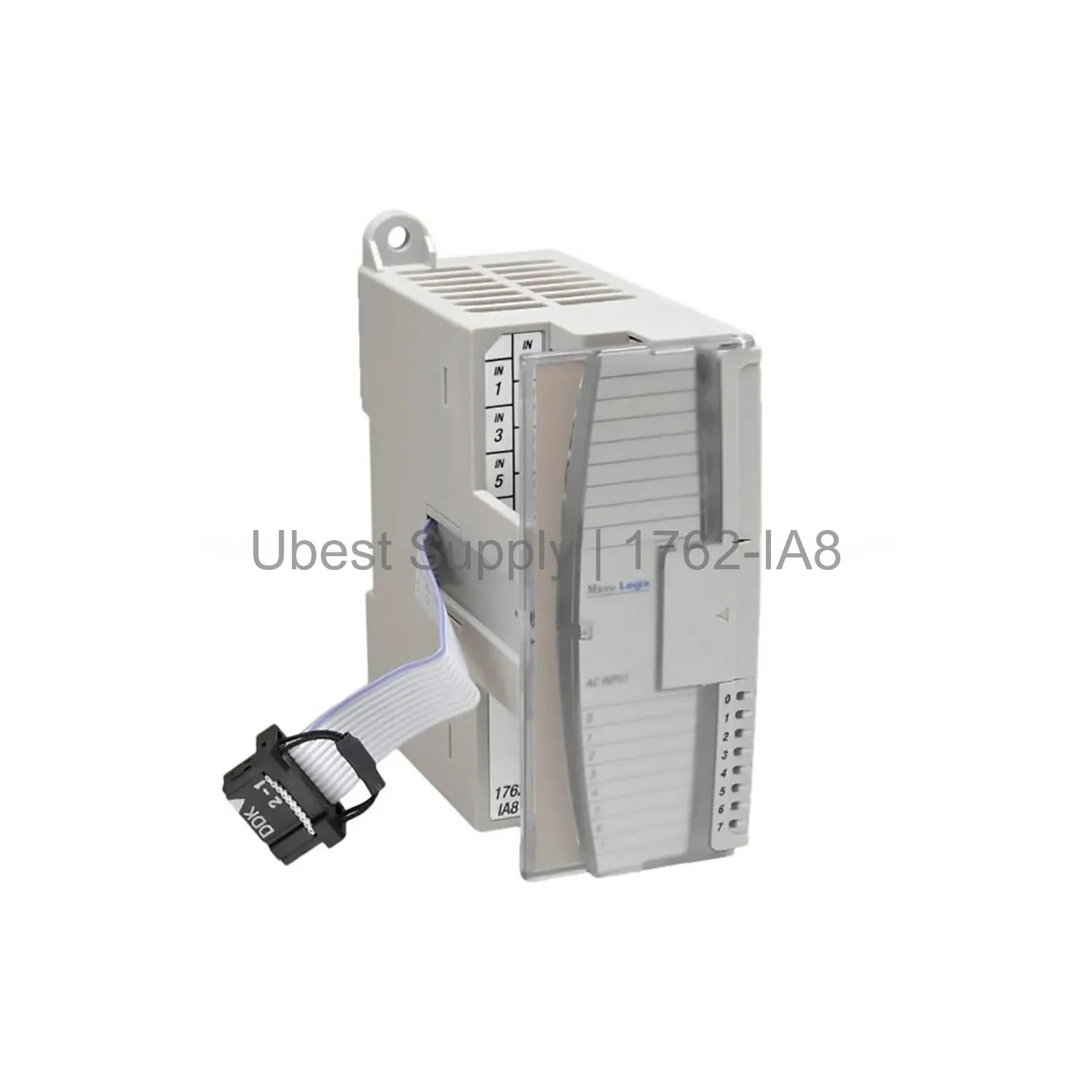

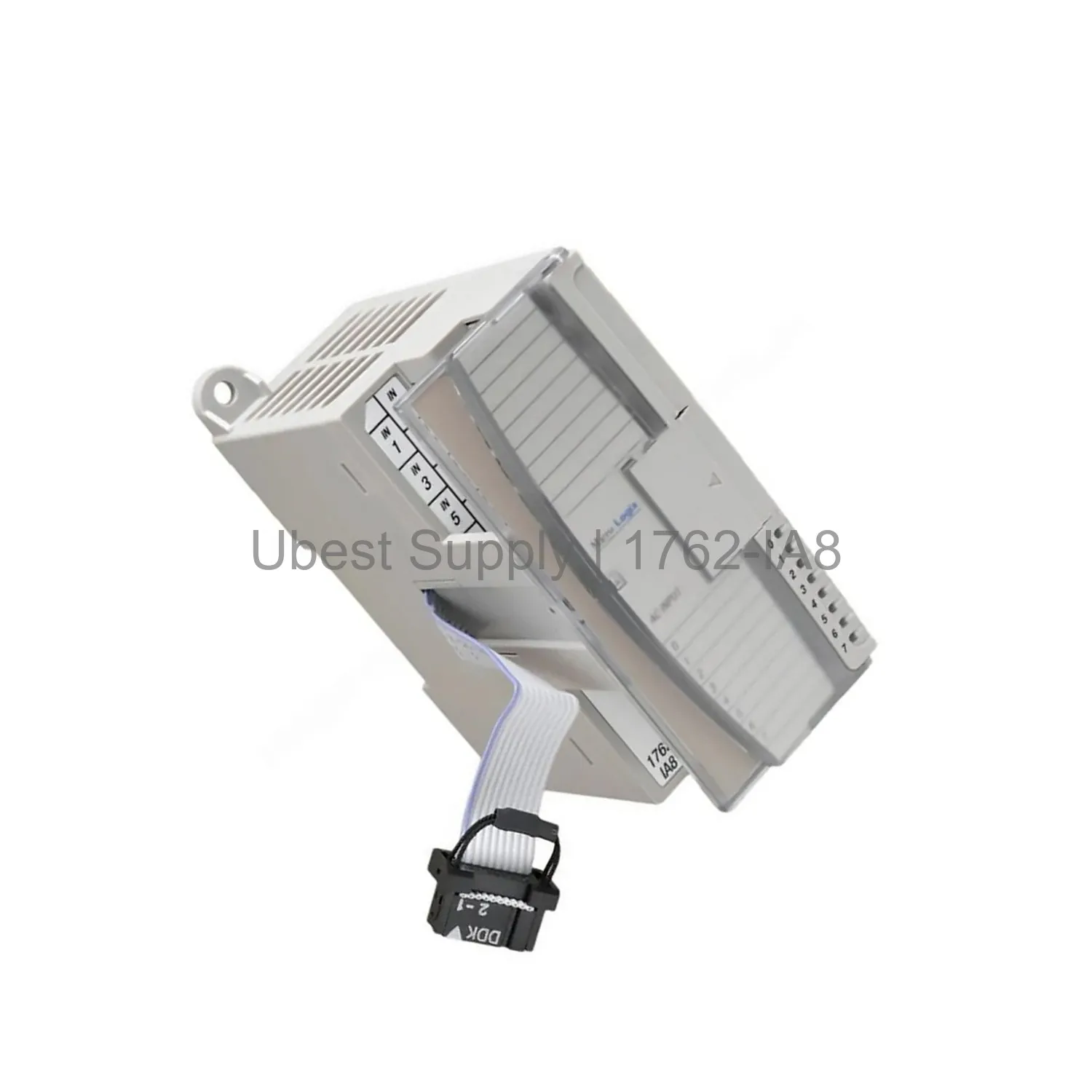

The Allen-Bradley 1762-IA8 is an 8-point AC input module. It works with the MicroLogix 1200 controller. This module accepts 100 to 120 Volts AC. It provides reliable digital input sensing. The 1762-IA8 uses a compact, rackless design. Users can mount it on a DIN rail or panel. This module expands I/O capacity easily. It saves space and reduces inventory costs.

Application Scenarios

Use the 1762-IA8 in factory automation. It fits conveyor systems, packaging machines, and material handling. It works well in dry, clean environments. The module handles Over Voltage Category II circuits. It suits discrete input applications. Examples include limit switches and push buttons. It also works with proximity sensors and photoeyes.

Technical Specifications

Input power is 120 Volts AC. Voltage range is 79 to 132 Volts AC. Frequency range is 47 to 63 Hertz. The module has 8 inputs in one group. It uses internally connected commons. Maximum On/Off signal delay is 20 milliseconds. Inrush current is 250 mA maximum. Bus current draw is 50 mA at 5 Volts DC. Power dissipation is 0.25 Watts. Dimensions are 3.5 x 3.4 x 1.5 inches. Weight is 0.46 pounds.

Installation & Maintenance Guide

Mount the 1762-IA8 on a DIN rail or panel. Use two screws for panel mounting. Install it six modules away from the host power supply. Use circuits that do not exceed Over Voltage Category II. The module supports horizontal mounting. Keep the area clean and dry. No special tools are required. You can replace the module quickly without wiring changes.

Packing List

Each package includes one 1762-IA8 input module. It comes with mounting hardware. The module is protected in anti-static packaging. No additional cables are included. The package is ready for shipment via FedEx, UPS, or DHL.
