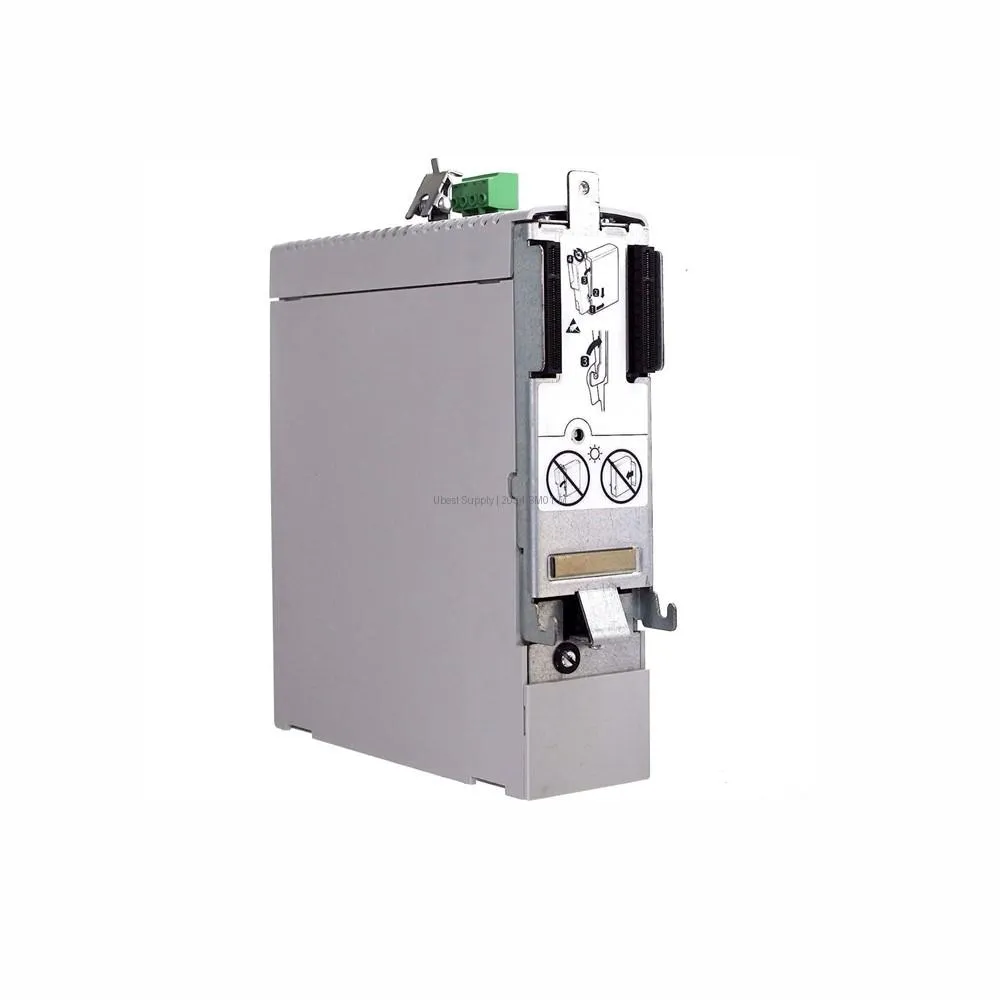

2094-BM01-M Integrated Axis Module Allen-Bradley 400V

Product Overview

The Allen-Bradley 2094-BM01-M is a robust Integrated Axis Module. It operates on a 460V AC supply. This unit delivers 3.9 kW of continuous power. It achieves a high efficiency rating of 98%. The module supports a continuous output current of 6.1 A. It provides a peak current of 8.6 A. This makes it ideal for demanding motion control tasks. The module features a velocity loop bandwidth of 500Hz. Its current loop frequency reaches 1300Hz. The PWM frequency is set at 4 kHz. This ensures smooth and precise motor control.

Application Scenarios

This axis module is perfect for industrial automation. Use it in packaging machinery and material handling. It works well in assembly line equipment. The module handles high-performance servo drives. It is suitable for printing and converting machines. The unit also fits robotic applications. Its compact size saves cabinet space. The high peak current supports rapid acceleration. This reduces cycle times in production.

Technical Specifications

The 2094-BM01-M has a nominal drive voltage of 360-480 Volts. Its continuous power output is 3.9 kW. Power dissipation ranges from 57 to 126 Watts. The internal shunt handles 50W continuous power. Peak shunt power reaches 5.6 kW. The unit weighs 7.0 lbs (3.18 kg). Its dimensions are 2.76 x 11.9 x 13.2 inches. The operating temperature range is 32-122 F (0-50 C). The short-circuit current rating is 200,000 A. Internal shunt resistance is 115 Ohms. The shunt turns on at 805VDC. It turns off at 765VDC. Capacitance is 150 µF with 19 Joules energy absorption.

Installation & Maintenance Guide

Mount the module on a flat, vertical surface. Ensure proper airflow for cooling. Use a suitable heat sink if needed. Connect the 3-phase power securely. Follow the manual for wiring diagrams. Check all connections before powering on. Keep the area free of dust and debris. Perform regular visual inspections. Monitor the operating temperature. Replace the unit if the fan fails. Always disconnect power before servicing.

Packing List

1 x Allen-Bradley 2094-BM01-M Integrated Axis Module. 1 x User Manual. 1 x Mounting Hardware Kit. 1 x Connector Kit. Product is carefully packed in an anti-static bag. Shipping is via Fedex, UPS, or DHL.
