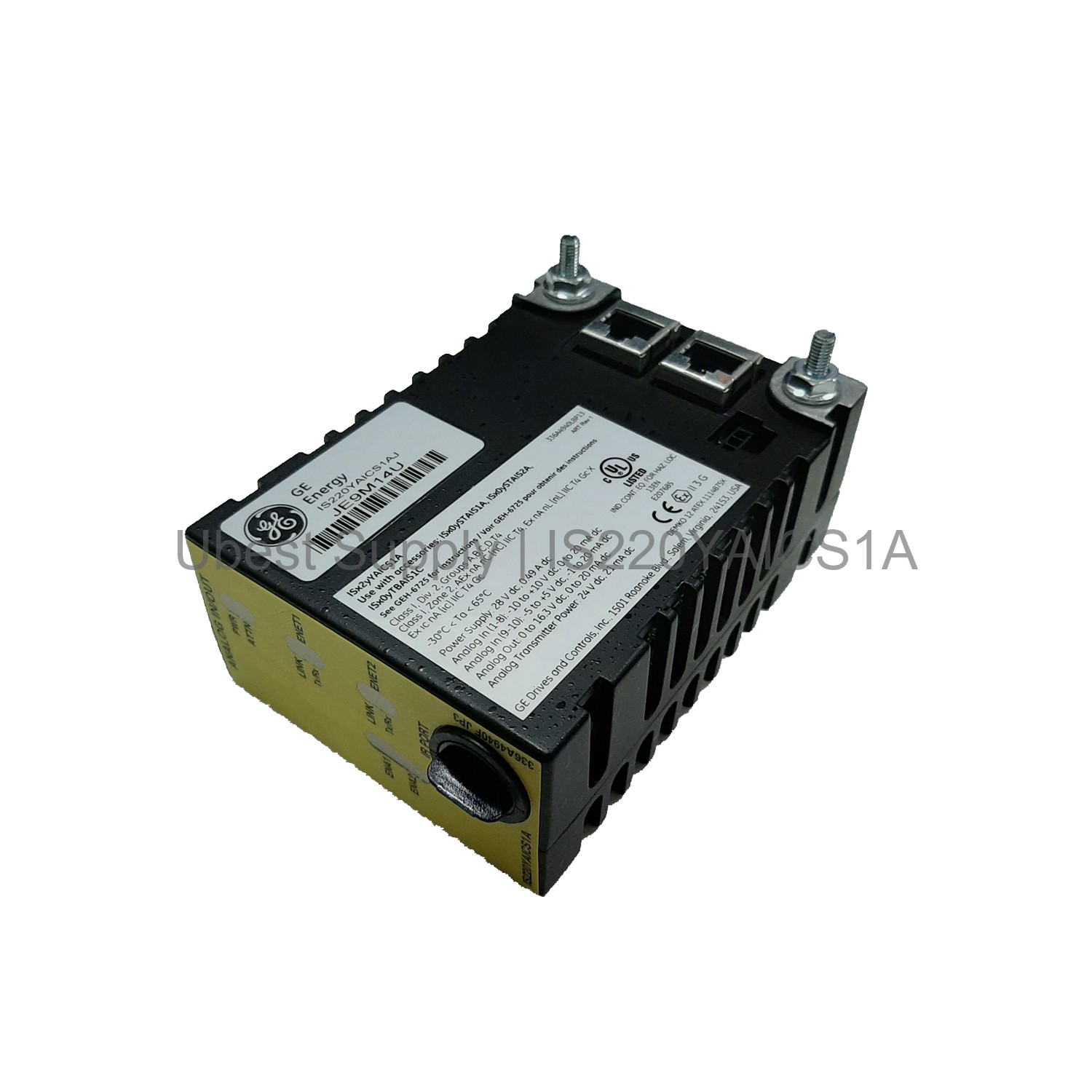

GE IS220YAICS1A Mark VIeS Safety Analog I/O Pack SIL 3

Product Overview

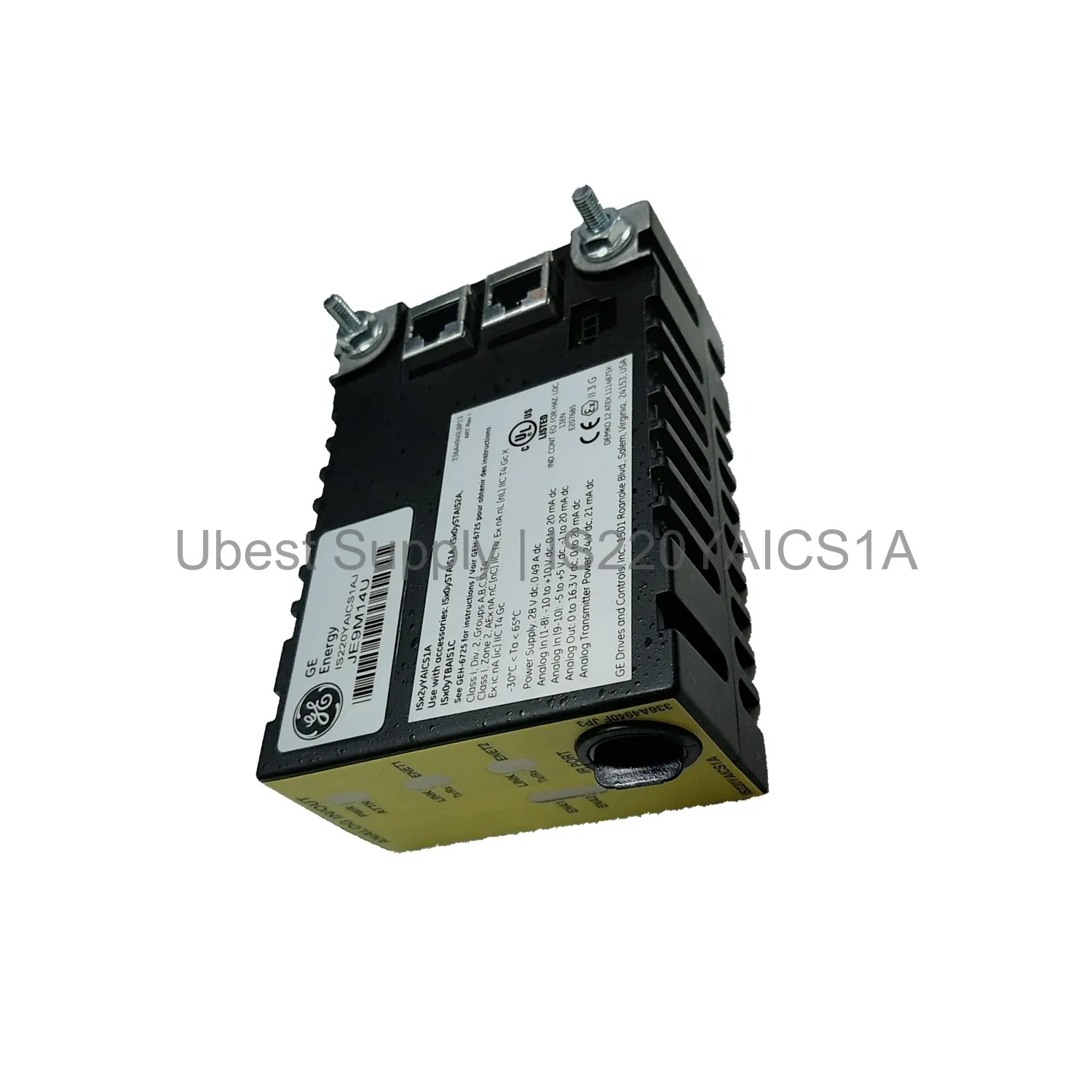

The GE IS220YAICS1A is a Mark VIeS Safety Analog I/O pack. It is designed for gas detection and SIL-rated safety systems. This module uses a BPPB base for secure mounting. It supports 10 analog input channels. The first 8 inputs handle -10 to +10 V dc. The last 2 inputs handle -5 to +5 V dc. All channels support up to 20 mA dc. The pack operates from -30 to +65 °C. It is built for harsh industrial environments.

Application Scenarios

This I/O pack works best in safety-critical gas detection systems. It is ideal for turbine control and emergency shutdown systems. It also fits into distributed control systems (DCS). The module suits oil and gas platforms. It works well in chemical processing plants. The SIL 3 rating makes it reliable for high-risk areas. It connects directly to field sensors and transmitters.

Technical Specifications

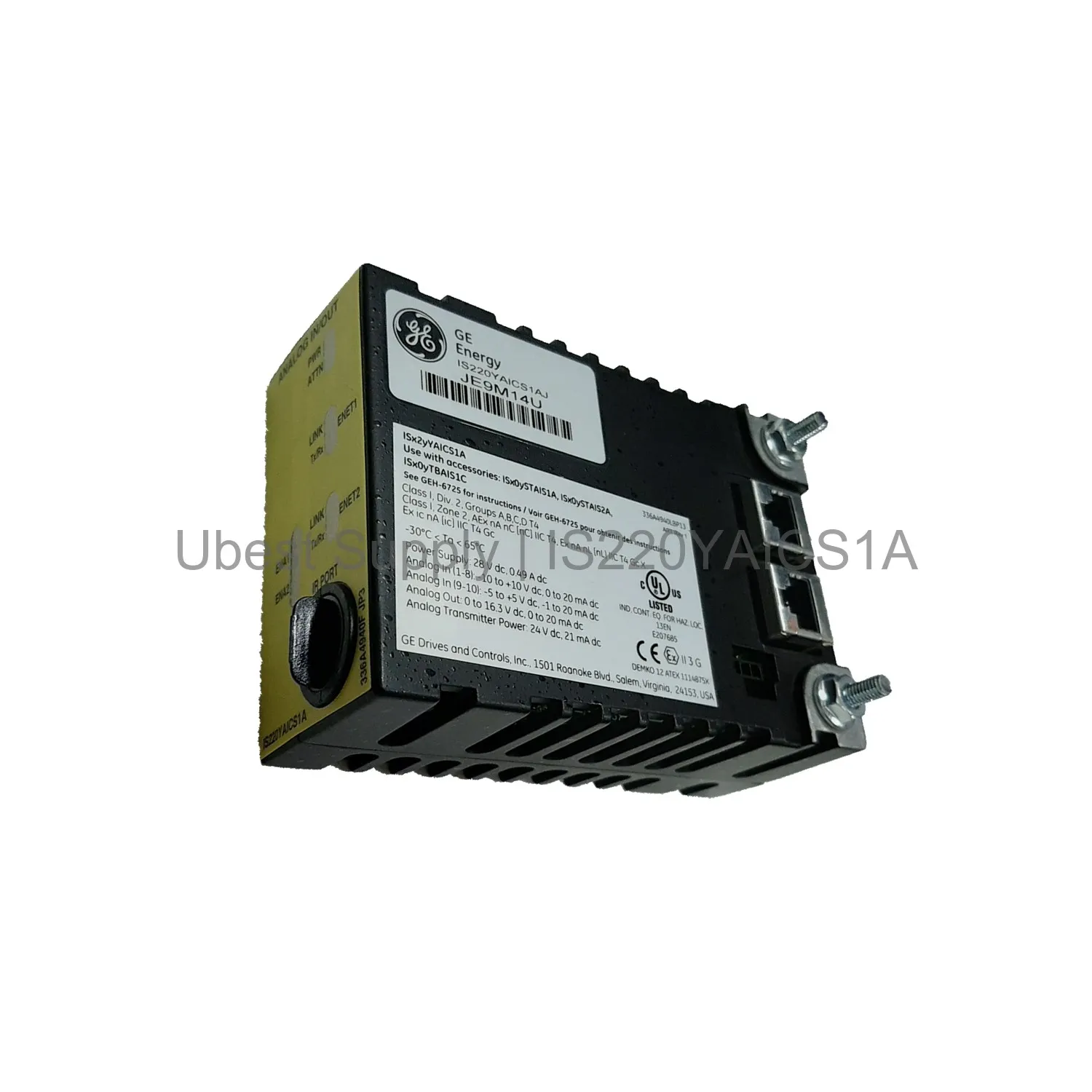

Ambient temperature range: -30 to +65 °C (-22 to +149 °F). Analog inputs 1-8 have a voltage range of -10 to +10 V dc. Analog inputs 9-10 have a voltage range of -5 to +5 V dc. All inputs support a max current of 20 mA dc. The module is part of the Mark VIeS series. It uses a Safety Analog I/O pack design. The form factor is a single-slot module. It requires a BPPB backplane for operation.

Installation & Maintenance Guide

Mount the module onto a BPPB base firmly. Ensure the ambient temperature stays within -30 to +65 °C. Use shielded cables for analog inputs. Avoid running signal wires near high-power lines. Check the voltage polarity before connecting. Clean the module with a dry cloth only. Do not use solvents or water. Inspect connections every 6 months. Replace the module if any damage appears.

Packing List

1x GE IS220YAICS1A Mark VIeS Safety Analog I/O pack. 1x installation manual. 1x anti-static bag. 1x connector set. No additional accessories included. Shipping is done via Fedex, UPS, or DHL.
