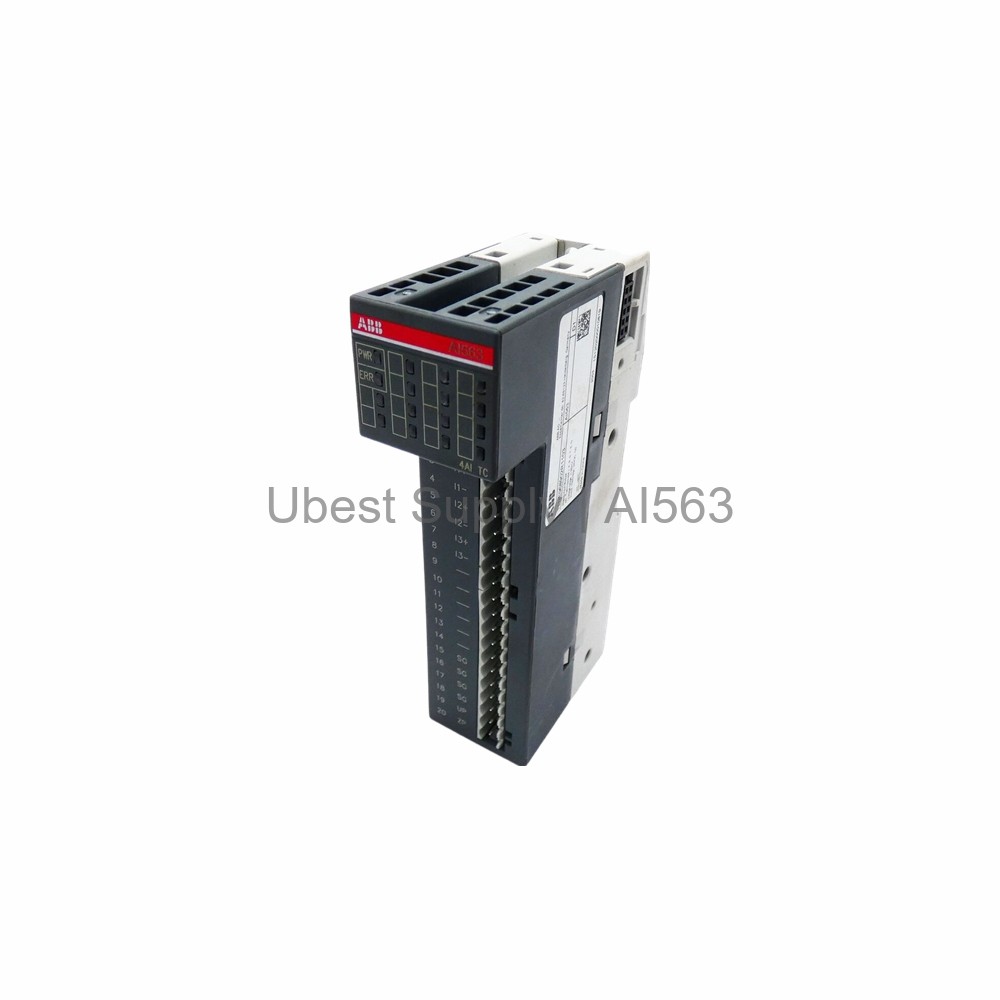

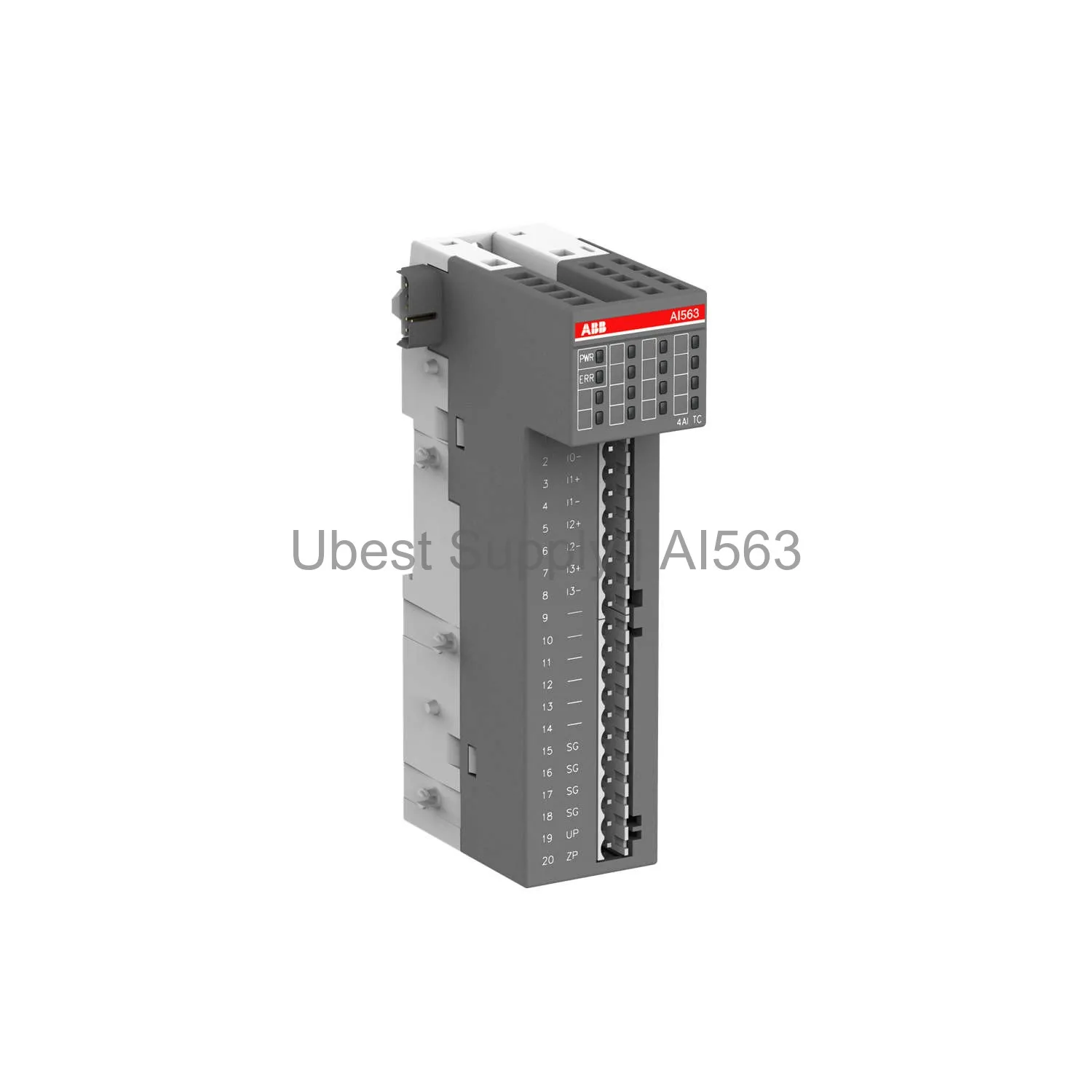

ABB AI563 Analog Input Module 4-Channel Thermocouple

Product Overview

The ABB AI563 is a high-precision analog input module. It features 4 configurable thermocouple channels. This module delivers 16-bit voltage resolution. It provides temperature readings with 0.1 °C accuracy. The AI563 ensures reliable data acquisition in industrial settings. Its design supports floating thermocouple inputs. Galvanic isolation protects against electrical noise. This module is ideal for demanding automation tasks.

Application Scenarios

Use the AI563 in temperature monitoring systems. It works well in process control environments. This module suits chemical and petrochemical plants. It is also ideal for power generation facilities. Use it in manufacturing quality control lines. The module fits into ABB PLC systems. It is perfect for retrofitting older control panels. Its robust design handles harsh industrial conditions.

Technical Specifications

The module has 4 configurable thermocouple inputs. It offers a resolution of 0.1 °C for temperature. Voltage resolution is 16 bits including sign. The process supply voltage is 24 V DC. Current consumption is 0.10 A. Inrush current is 0.07 A²s. Maximum ripple is 5 percent. It has protection against reversed voltage. Galvanic isolation exists between channels and the rest. There is 1 isolated group for 4 channels. Surge voltage is 35 V DC for 0.5 s. Maximum power dissipation is 2.6 W. Weight is about 120 g. Module update time is under 1.6 s. Common mode rejection is greater than 120 dB. Cold junction error is plus or minus 1.5 °C. Analog to digital conversion time is 400 ms per channel. Overvoltage protection works up to 30 V DC.

Installation & Maintenance Guide

Mount the module on a top hat rail. Use a 35 mm rail with 7.5 mm or 15 mm depth. You can also mount it with M4 screws. Fastening torque is 1.2 Nm. Ensure natural convection cooling is not blocked. Keep cable ducts and parts away from the module. Connect signals I0+ to I3+ to terminals 1, 3, 5, and 7. Connect signals I0- to I3- to terminals 2, 4, 6, and 8. Leave unused inputs open. Configure them as unused in the software. Use wire loop resistance under 100 ohms. The mounting position can be horizontal or vertical.

Packing List

You will receive one ABB AI563 analog input module. The package includes a product manual. No additional accessories are included. Shipping is available via Fedex, UPS, or DHL.
