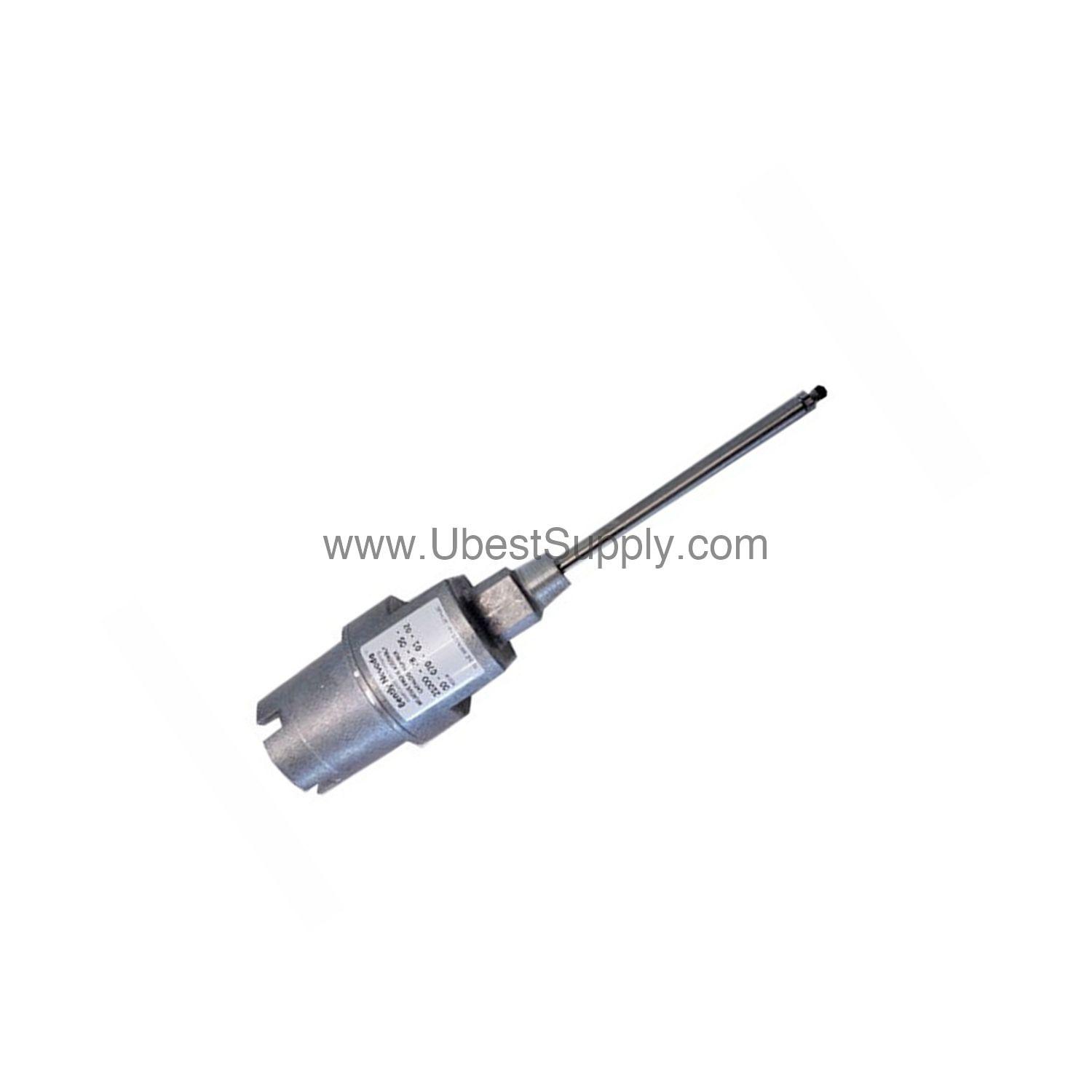

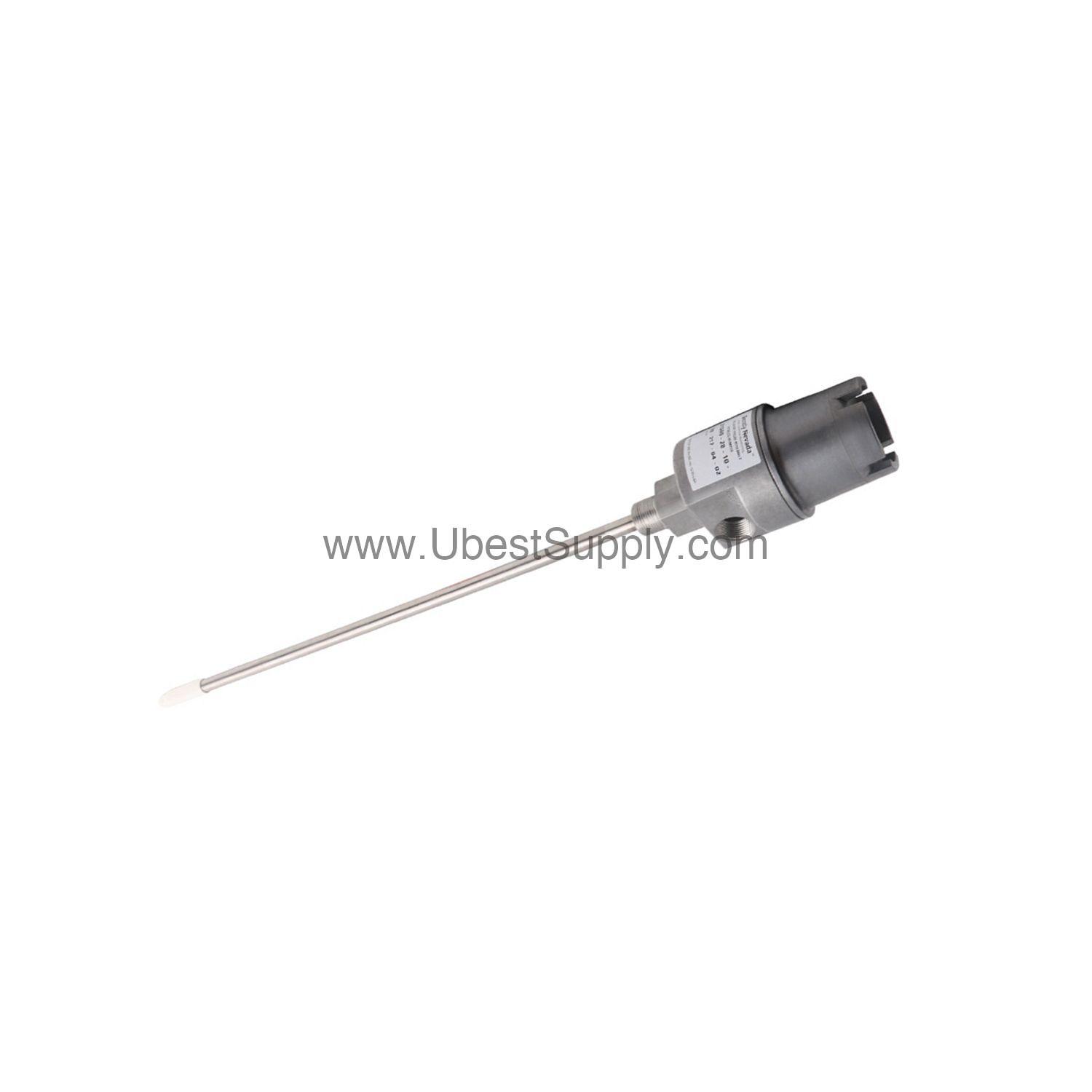

21000-16-05-00-135-03-02 | Bently Nevada 0.5 m Probe Housing Assembly

Introduction to the Bently Nevada 21000-16-05-00-135-03-02

When machinery vibration threatens uptime, the 21000-16-05-00-135-03-02 from Bently Nevada provides a robust solution. This proximity probe housing assembly is designed for harsh industrial environments. It combines an aluminum body with a 304 stainless steel sleeve for durability. The assembly includes a 3300 XL 8 mm probe with a 0.5 m cable. Engineers trust this model for reliable shaft displacement measurement.

Key Features and Technical Specifications

• Probe option: 3300 XL 8 mm probe with connector.
• Probe cable length: 0.5 m (20 in).
• Probe penetration: 13.5 in (34.3 mm).
• Material: Aluminum body with 304 stainless steel sleeve.
• Weight: 1.1 kg (2.4 lb) typical, without fittings.
• Mounting thread: 3/4-14 NPT.
• Fittings include one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for multiple cable sizes.

The 21000-16-05-00-135-03-02 is rated explosion proof for hazardous areas. It carries CSA approvals and is certified as a CSA Type 4 enclosure. This assembly fully complies with API 670 Standard for externally mounted proximity probe housings.

Applications and Use Cases

Maintenance engineers rely on the 21000-16-05-00-135-03-02 for critical rotating machinery. It monitors shaft vibration in compressors, turbines, and pumps. The explosion-proof rating makes it ideal for oil and gas facilities. Its CSA Type 4 enclosure withstands washdown environments. This model also supports intrinsically safe applications when paired with approved probes.

Installation and Setup

Mount the housing using the 3/4-14 NPT thread option. Ensure the probe sleeve penetrates exactly 13.5 in for correct gap setting. Use the provided cable seal grip with the appropriate grommet for your cable diameter. Tighten the dome cover securely to maintain the explosion-proof seal. Always follow the manufacturer's manual for wiring and grounding.

Maintenance and Reliability

Inspect the O-rings and thread seal periodically for wear. Check the probe cable for damage at the connector. The stainless steel sleeve resists corrosion in moist environments. Regular inspection per the manufacturer's safety manual ensures long service life. This assembly reduces unplanned downtime by providing consistent vibration data.

Compatibility and Integration

The 21000-16-05-00-135-03-02 works with Bently Nevada monitoring systems. It accepts standard proximity probes for shaft vibration and position measurement. The 3/4-14 NPT fitting connects to common conduit systems. Use the included reducer for 1/2-14 NPT conduit. This housing integrates easily into existing API 670-compliant installations.

Frequently Asked Questions

Q: What is the probe cable length for the 21000-16-05-00-135-03-02?

A: The probe cable length is 0.5 m (20 in).

Q: What material is the housing made of?

A: The housing has an aluminum body with a 304 stainless steel sleeve.

Q: Is the 21000-16-05-00-135-03-02 approved for hazardous areas?

A: Yes, it is CSA approved as explosion proof for hazardous areas and certified as a CSA Type 4 enclosure.

Q: What is the probe penetration dimension?

A: The probe penetration is 13.5 in (34.3 mm).

Q: What fittings are included with this assembly?

A: It includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for cable sizes from 1/8 to 3/8 inches.

Product Support and Availability

The 21000-16-05-00-135-03-02 is in stock and ready to ship from Petro Auto Tech. Each unit is new, original, and factory-packed with a 12-month warranty. Contact Petro Auto Tech for lifecycle status and ordering details.
