21000-34-05-00-030-03-02 | Bently Nevada 0.5m Cable Proximity Probe Housing

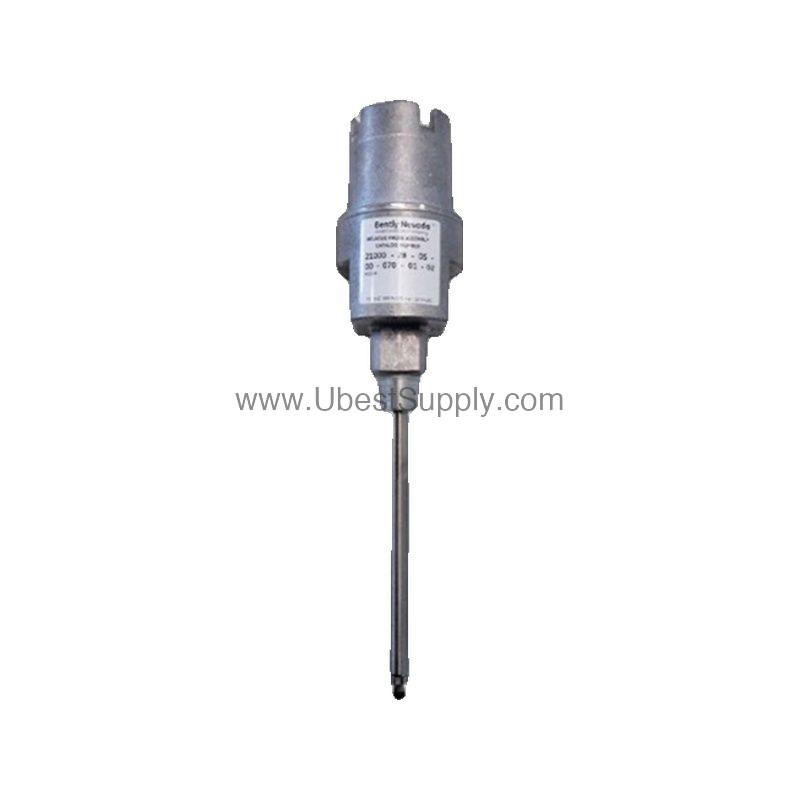

What Is the 21000-34-05-00-030-03-02?

When machinery vibration threatens uptime, the 21000-34-05-00-030-03-02 from Bently Nevada provides a robust solution. This proximity probe housing assembly is part of the 21000 series. It is designed for externally mounted probes in hazardous areas. The assembly includes a 3300 XL 8 mm probe with connector protector. It also features a 0.5 m (20 in) probe cable and a 3.0 in probe penetration. The housing has an aluminum body with a 304 stainless steel sleeve. It weighs 1.1 kg (2.4 lb) typical without fittings. This unit is new and in original factory packing.

Key Features & Technical Specs

• Probe Option: 3300 XL 8 mm probe with connector protector.
• Probe Cable Length: 0.5 m (20 in).
• Probe Penetration: 3.0 in.
• Mounting Thread: 3/4-14 NPT.
• Fittings: One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and cable seal grip with grommets for cables 1/8 to 3/8 inches.
• Material: Aluminum body with 304 stainless steel sleeve.
• Maximum (C) + (D) Dimension: 13.5 in (34.3 cm).
• Weight: 1.1 kg (2.4 lb) typical without fittings.

A distinctive spec is the 3.0 in probe penetration. This allows deep insertion into bearing housings for accurate vibration readings. It ensures reliable data even in tight installations.

Industry Applications

Engineers use the 21000-34-05-00-030-03-02 in rotating machinery monitoring. It works well in pumps, compressors, and turbines. The housing is certified as CSA Type 4 enclosure. It is also fully compliant with API 670 Standard for externally mounted proximity probe housings. This makes it suitable for hazardous areas where explosion-proof ratings are required.

Installation Guide

Mount the assembly using the 3/4-14 NPT thread. Ensure the probe cable length of 0.5 m is sufficient for the routing path. Use the provided fittings for conduit connections. The standoff adapter option is not used here, so direct mounting is possible. Always follow the manufacturer's manual for proper torque and sealing.

Routine Care

Inspect the housing periodically for signs of wear or corrosion. The aluminum body and stainless steel sleeve resist harsh environments. Check the O-rings and thread seal during maintenance. Replace any damaged fittings to maintain the explosion-proof rating. Regular inspection per manufacturer's safety manual ensures long service life.

Compatible Systems

This housing works with Bently Nevada monitoring systems that accept 8 mm proximity probes. It is designed for use with the 3300 XL probe series. The assembly supports selectable hazardous area approvals. It is compatible with CSA-approved intrinsically safe applications.

Common Questions

Q: What is the probe cable length for the 21000-34-05-00-030-03-02?

A: The probe cable length is 0.5 m (20 in).

Q: What is the mounting thread option for this model?

A: The mounting thread option is 3/4-14 NPT.

Q: What materials are used in the housing?

A: The housing has an aluminum body with a 304 stainless steel sleeve.

Q: What is the maximum (C) + (D) dimension?

A: The maximum (C) + (D) dimension is 13.5 in (34.3 cm).

Q: Is this housing approved for hazardous areas?

A: Yes, it is rated explosion proof and certified as CSA Type 4 enclosure.

Product Support & Availability

The 21000-34-05-00-030-03-02 is in stock and ready to ship. Petro Auto Tech offers this new original unit with factory warranty. Contact Petro Auto Tech for availability and ordering details.
