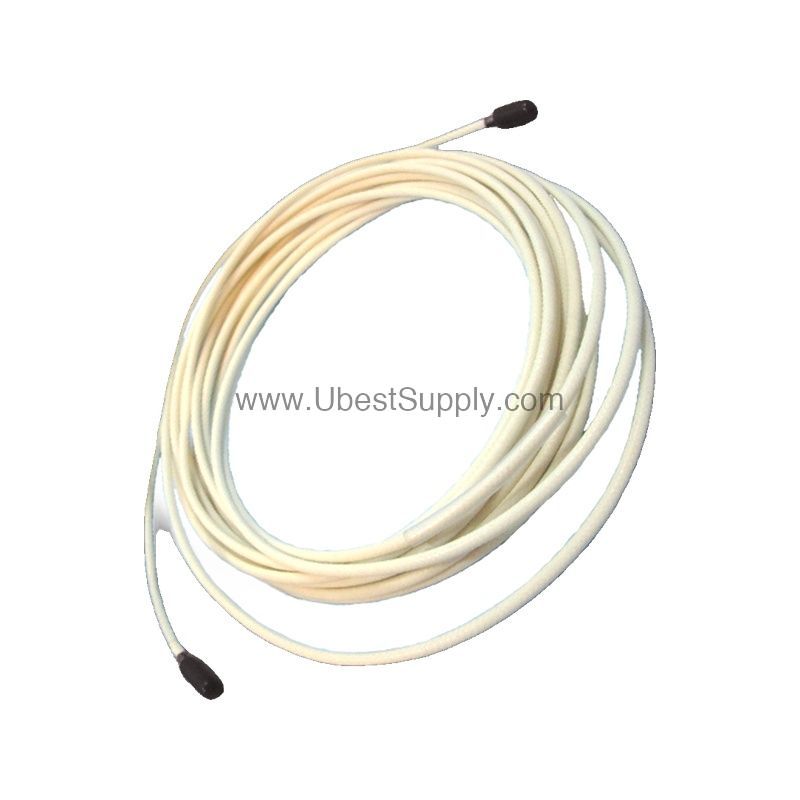

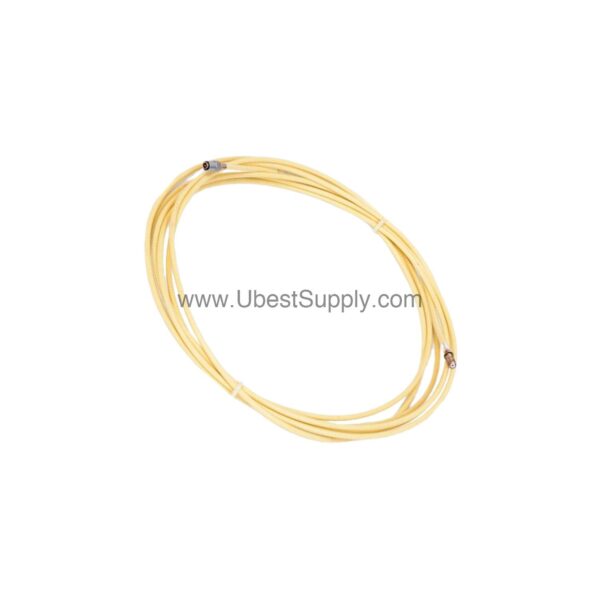

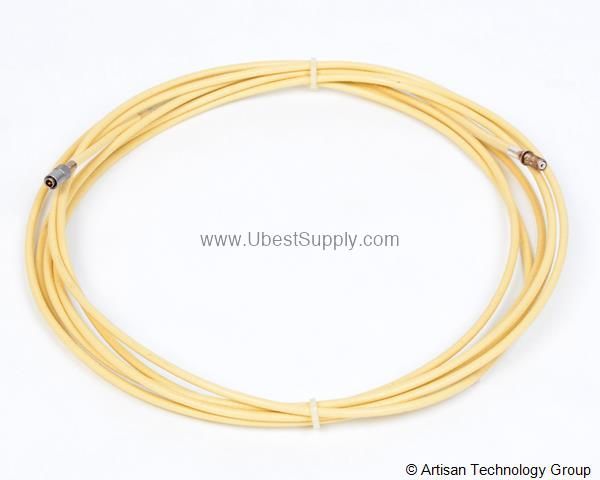

21747-075-00 | Bently Nevada 4m Extension Cable

Introduction to the 21747-075-00

When your machinery monitoring system demands precise vibration and position readings, the 21747-075-00 from Bently Nevada delivers the reliable connection you need. This extension cable is engineered to link a probe with an integral lead to a Proximitor, forming a complete system length of either five or nine metres from probe tip to Proximitor. Designed for industrial environments, it ensures consistent signal integrity, reducing the risk of data loss or noise interference.

As part of the Bently Nevada 21747 series, this cable is built to exacting standards and is fully interchangeable with other components of the same length and part number. Whether you are upgrading an existing system or installing new monitoring points, the 21747-075-00 provides a dependable foundation for accurate measurements.

Key Features and Technical Specifications

• Model: 21747 - Extension Cable
• Cable Length: 4 metres (157 inches)
• Armor Option: Without armor
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
• Calibrated Range: 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from probe face
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% if calibrated as a system; within ±9.5% including interchangeability errors
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system; within 2.3 mils (0.06 mm) including interchangeability errors
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz (600,000 cpm)
• Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm)
• Operating Temperature (Proximitor): -60°F to +212°F (-51°C to +100°C)
• Operating Temperature (Probe and Extension Cable): -30°F to +350°F (-34°C to +177°C)
• Relative Humidity: Up to 95%, noncondensing

One distinctive aspect of this cable is its ability to operate across a wide temperature range, making it suitable for demanding industrial settings. The robust design helps minimize downtime, which directly contributes to lower maintenance costs and improved operational efficiency.

Applications and Use Cases

The 21747-075-00 is commonly used in turbomachinery, pumps, compressors, and other rotating equipment where precise shaft vibration and position monitoring are critical. For example, in a petrochemical plant, this cable can connect a proximity probe to a Proximitor, enabling early detection of bearing wear or misalignment. Consequently, maintenance teams can schedule repairs proactively, avoiding costly unplanned shutdowns. Moreover, its compatibility with standard Bently Nevada systems simplifies integration into existing monitoring architectures.

Installation and Setup

Installing the 21747-075-00 is straightforward, but proper handling is essential. Ensure the cable is routed away from high-heat sources and sharp edges to prevent physical damage. When connecting the cable, verify that the probe and Proximitor are of matching lengths and part numbers to maintain system accuracy. For best results, follow the manufacturer's guidelines for torque and connector alignment. If you need assistance, Petro Auto Tech can provide additional guidance.

Maintenance and Reliability

Regular inspection of the cable and its connections is recommended to ensure long-term reliability. Check for signs of wear, corrosion, or loose fittings, especially in harsh environments. Because the cable is designed for high humidity (up to 95% noncondensing), it can withstand many industrial conditions, but periodic checks help prevent unexpected failures. By investing in routine maintenance, you extend the service life of the cable and reduce the total cost of ownership.

Compatibility and Integration

The 21747-075-00 is designed to work seamlessly with Bently Nevada probes and Proximitors that share the same part number and length. Probes and cables of the same length are completely interchangeable, which simplifies inventory management and replacement procedures. This interchangeability also means you can mix components from different batches without compromising performance, offering flexibility in system design and maintenance.

Troubleshooting and Common Issues

If you encounter signal fluctuations or erratic readings, first check the cable connections for looseness or damage. Verify that the probe tip is within the calibrated range (approximately 10 mils to 80 mils from the target). Also, confirm that the power supply meets the required -17.5 Vdc to -26 Vdc range. In many cases, issues arise from improper installation or environmental factors, so a thorough inspection often resolves the problem. For persistent issues, consult the official Bently Nevada documentation or contact Petro Auto Tech for expert advice.

Frequently Asked Questions

Q: What is the length of the 21747-075-00 cable?

A: The cable length is 4 metres (157 inches).

Q: Does the 21747-075-00 come with armor?

A: No, this model is the '00' armor option, meaning it is without armor.

Q: What power supply is required for the connected system?

A: The system requires -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: What is the operating temperature range for the extension cable?

A: The cable operates from -30°F to +350°F (-34°C to +177°C).

Q: Can I use this cable with any Bently Nevada probe?

A: It is designed for use with probes and Proximitors of the same length and part number, ensuring interchangeability.

Product Support and Availability

The 21747-075-00 is available from Petro Auto Tech, a trusted industrial automation parts supplier. We offer new and original factory-packed units with a 12-month warranty. For current stock and ordering information, please contact our sales team. We are ready to assist you with your machinery monitoring needs.
