2300/20_KIT-006-00 | Bently Nevada 1.03 kg Condition Monitoring Kit

Introduction to the 2300/20_KIT-006-00

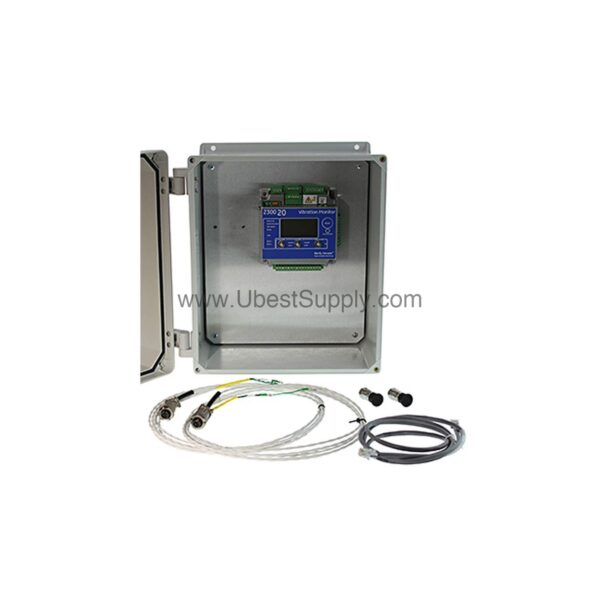

When machinery health is critical, the 2300/20_KIT-006-00 from Bently Nevada provides a complete condition monitoring solution. This kit includes a 2300/20 monitor, two Velomitor sensors (330500), and two 12 ft. (3.6 m) cables (9571). It also comes with a 6 ft. (1.8 m) shielded Ethernet cable. The kit is designed for industrial applications where reliable vibration data is essential.

Key Features and Technical Specifications

• Power Input: 18~36 Vdc, max 7.5 W.
• Channel Types: Configurable for ICP accelerometers, velocity, radial vibration, and thrust channels.
• Bandpass Filter: 0.2 Hz to 20 kHz for accelerometer, velocity, and radial vibration channels.
• Scale Factor Range: 5 to 1000 mV/g for accelerometers; 5 to 1000 mV/in/s for velocity; 5 to 1000 mV/mil for radial vibration and thrust.
• Full Scale Range: 2 to 80 g peak (accelerometer), 0 to 50 in/s peak (velocity), 0 to 160 mil peak-peak (radial vibration).
• Accuracy: ±1% of full scale range.
• 4-20 mA Outputs: Two outputs with internal current loop power supply; load resistance 0 to 600 Ω; resolution 0.3662 µA; accuracy 1% over operating temperature; update rate 100 ms.
• Relay Outputs: Two dry-contact relays, single pole double throw, epoxy sealed; maximum switched contact voltage 250 Vac / 250 Vdc; maximum breaking current 6 A @250 Vac / 6 A @24 Vdc; maximum switched power 1500 VA AC / 150 Watts DC.
• Communications: Ethernet 10Base-T and 100Base-TX, conforms to IEEE802.3; RJ-45 connector; cable length up to 100 meters (328 ft.).
• Environmental Limits: Operating temperature -30°C to +65°C (-22°F to +149°F); storage temperature -40°C to +85°C (-40°F to +185°F); humidity up to 95% non-condensing; vibration limitation 3 g.
• Physical: Dimensions 127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.); weight 1.03 kg (2.26 lbs); panel mount or DIN rail (adapter included).

Applications and Use Cases

The 2300/20_KIT-006-00 is ideal for rotating machinery monitoring in industries such as oil and gas, power generation, and manufacturing. It supports accelerometers, velocity sensors, and proximity transducers, making it versatile for various vibration measurements. The configurable bandpass filters allow adaptation to different machine frequencies. Consequently, this kit helps detect early signs of bearing wear, unbalance, and misalignment. Therefore, it enables predictive maintenance strategies that reduce unplanned downtime.

Installation and Setup

Mounting is flexible with panel mount or DIN rail options, and the adapter is included. The kit includes a 6 ft. (1.8 m) shielded Ethernet cable for network connection. For sensor connections, two 12 ft. (3.6 m) cables (9571) are provided. Ensure the power supply meets the 18~36 Vdc input range and does not exceed 7.5 W. Follow the manufacturer's manual for proper wiring and configuration.

Maintenance and Reliability

Routine inspection of the monitor and sensors is recommended to ensure accurate readings. The real-time clock battery life is rated at 38 years powered and 12 years un-powered at 50°C, indicating long-term reliability. The monitor can store at least 5 alarm data captures during network disruptions, which helps maintain data integrity. Periodically verify that the Ethernet connection is secure and that the sensors are properly attached.

Compatibility and Integration

The 2300/20_KIT-006-00 communicates via Ethernet (10Base-T and 100Base-TX) and is compatible with Bently Nevada System 1 software (requires Evolution 21.1 or newer and Firmware release 3.2 or newer for the 2300). It supports Bently transducers or 2/3 wire custom transducers for accelerometers, Velomitors, and Proximitors. The monitor provides three contact input capabilities and a button input for resetting latched alarms.

Troubleshooting and Common Issues

If the OK LED is not lit, check the power supply voltage and connections. For Ethernet communication issues, verify the cable length is within 100 meters and that the RJ-45 connector is secure. If the 4-20 mA outputs are not functioning, ensure no external powered loop is used, as the outputs have internal current loop power supply. For relay issues, confirm the relay circuit specifications match your application's voltage and current requirements.

FAQ

Q: What is the power input range for the 2300/20_KIT-006-00?

A: The power input is 18~36 Vdc, with a maximum power consumption of 7.5 W.

Q: What types of sensors are supported?

A: The kit supports ICP accelerometers, Velomitors, and Proximitors, with configurable scale factors and bandpass filters.

Q: How many 4-20 mA outputs are available?

A: There are two 4-20 mA outputs with internal current loop power supply, load resistance 0 to 600 Ω, and update rate 100 ms.

Q: What is the maximum Ethernet cable length?

A: The maximum cable length is 100 meters (328 ft.) for 10Base-T/100Base-TX Ethernet.

Q: Can the monitor store data during network disruptions?

A: Yes, the 2300 can store up to at least 5 alarm data captures during network disruptions, requiring System 1 Evolution 21.1 or newer and Firmware release 3.2 or newer.

Product Support and Availability

The 2300/20_KIT-006-00 is available from Petro Auto Tech. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. For technical support, consult the official Bently Nevada documentation.
