32000-16-05-08-130-03-02 | Bently Nevada 0.5m Cable 80mm Standoff Housing

Introduction to the Bently Nevada 32000-16-05-08-130-03-02

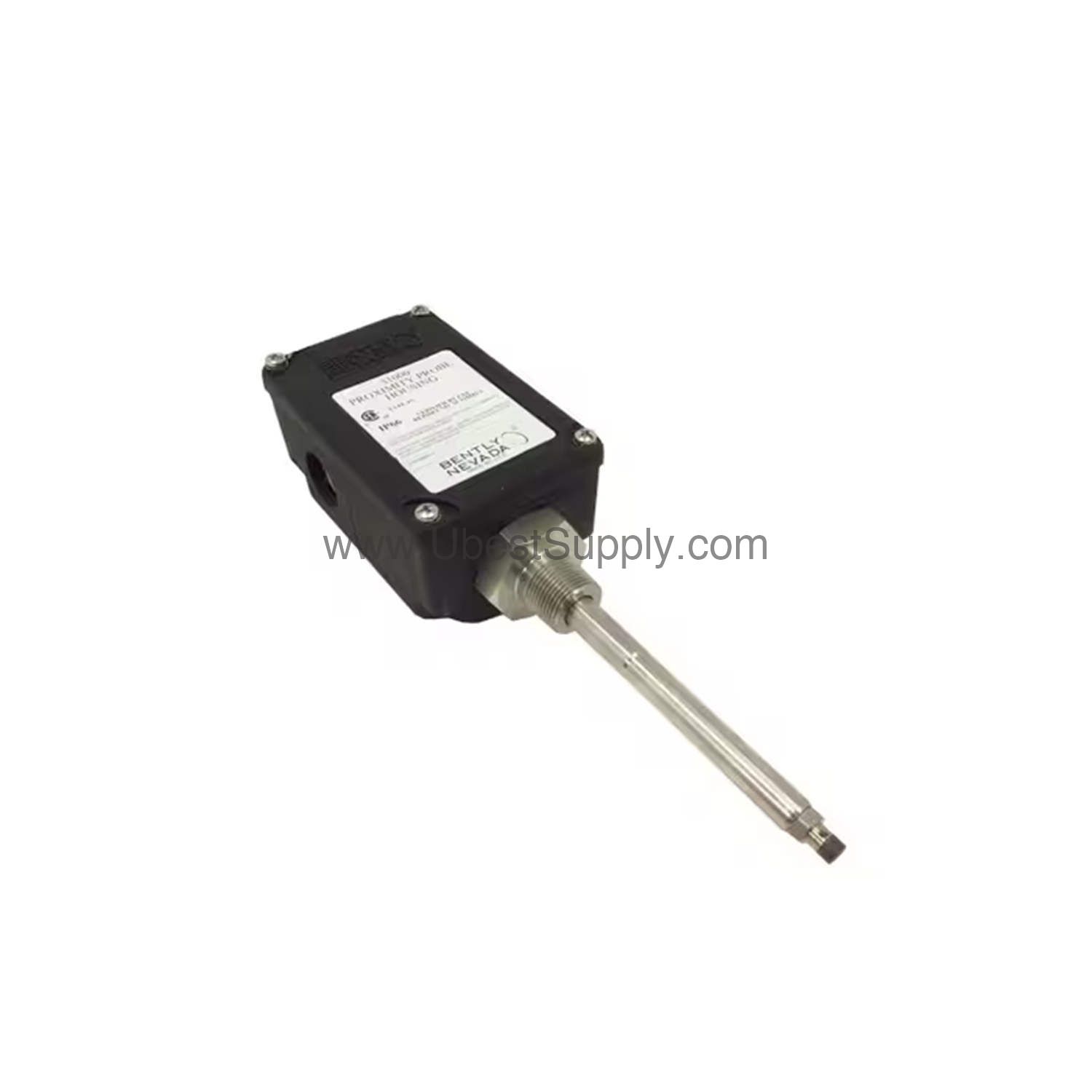

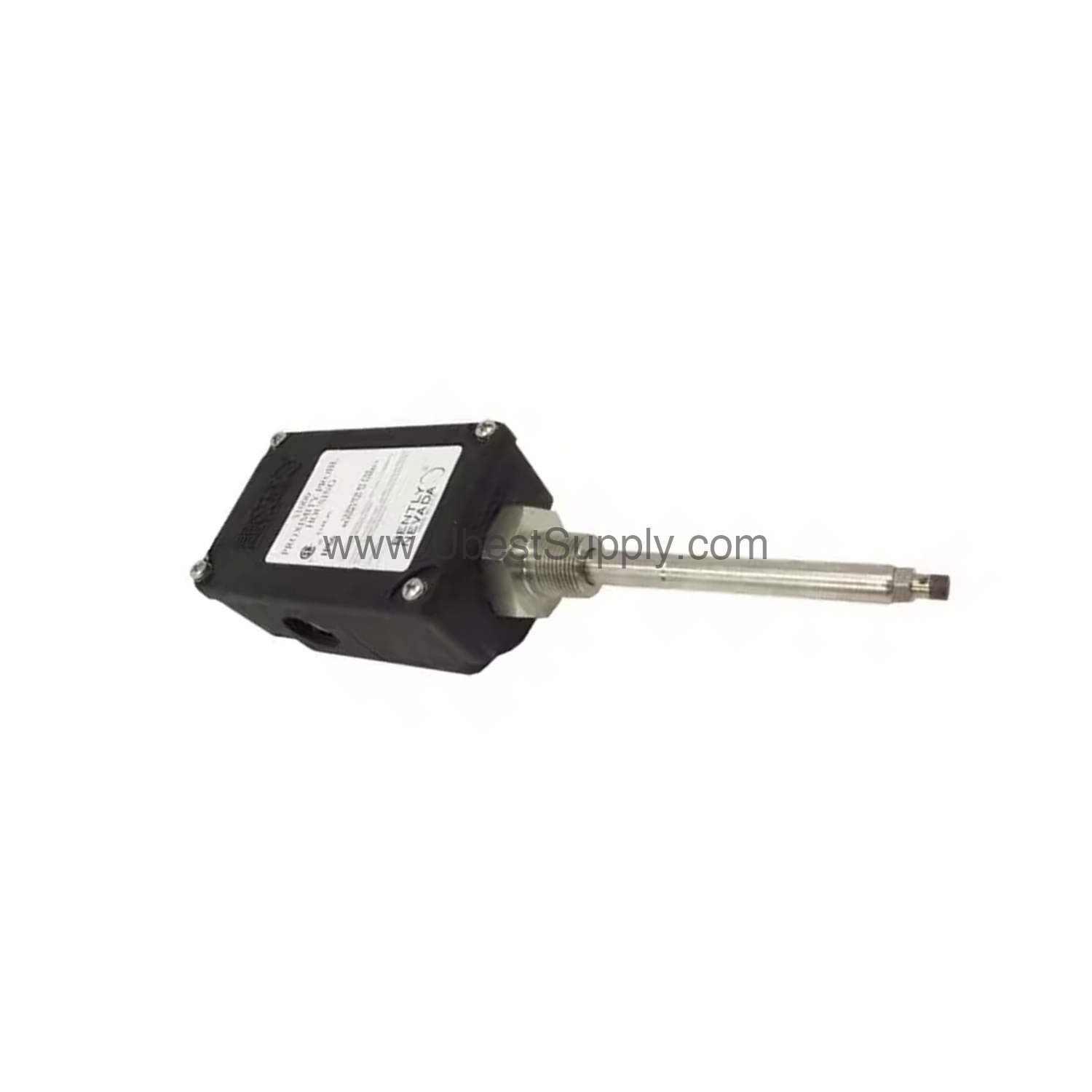

When you need a robust housing for your proximity probe system, the 32000-16-05-08-130-03-02 from Bently Nevada delivers dependable performance. This metric probe housing is designed to protect the 3300 XL 8 mm probe in demanding industrial environments. With a 0.5 metre cable and an 80mm standoff adapter, it offers precise installation flexibility. The housing is built to withstand harsh conditions, ensuring long-term reliability for your machinery monitoring needs.

Key Features and Technical Specifications

The 32000-16-05-08-130-03-02 is engineered with materials that provide exceptional durability and safety. Here are the core specifications:

• Probe Option: 3300 XL 8 mm probe with connector
• Probe Cable Length: 0.5 metre
• Standoff Adapter: 80mm
• Probe Penetration: 130mm
• Fittings: Two plugs, M20 fitting, and one cable seal grip with grommet for armored probe cable
• Mounting Thread: 3/4-14 NPT (required with standoff adapter)
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel (sleeve and retaining chain)
• Outer Sleeve and Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene®
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg

One standout feature is the housing's impact strength. Certified by BASEEFA to withstand two separate 4 Joule impacts at -39°C and 115°C, and verified by CSA for a 7 Joule impact at ambient temperature, this housing offers excellent protection in rugged settings.

Applications and Use Cases

This housing is ideal for rotating machinery monitoring in industries such as oil and gas, power generation, and manufacturing. For example, in a compressor station, the 32000-16-05-08-130-03-02 can be mounted to monitor shaft vibration, helping to prevent unplanned downtime. Its robust construction ensures accurate readings even in high-vibration environments. Additionally, the IP66 rating and Type 4X certification make it suitable for outdoor or washdown applications.

Installation and Setup

Proper installation is crucial for optimal performance. The 3/4-14 NPT mounting thread provides a secure fit, and the standoff adapter ensures correct probe positioning. When installing, verify that the probe penetration depth matches the 130mm specification to achieve accurate measurements. Use the included fittings—two plugs and an M20 fitting—to seal the housing properly. The cable seal grip with grommet is designed for armored probe cables, ensuring a tight seal against moisture and contaminants.

Maintenance and Reliability

Regular inspection of the housing and its components helps maintain reliability. Check the O-ring and cable seal periodically for wear, and ensure all fittings remain tight. The stainless steel sleeve and screws resist corrosion, but in harsh environments, a visual check every few months is recommended. Following these simple steps can extend the service life of your monitoring system and reduce replacement costs.

Compatibility and Integration

The 32000-16-05-08-130-03-02 is designed to work with Bently Nevada's 3300 XL 8 mm probe. It integrates seamlessly with Bently Nevada monitoring systems, providing reliable data for condition monitoring. For integration with other systems, consult the official documentation or contact Petro Auto Tech for guidance.

Frequently Asked Questions

Q: What is the temperature range for the 32000-16-05-08-130-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is required when using the standoff adapter.

Q: What probe does this housing support?

A: It supports the 3300 XL 8 mm probe with a connector.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg.

Product Support and Availability

The 32000-16-05-08-130-03-02 is available through Petro Auto Tech. Contact our team to confirm stock and lead times. We are here to help you find the right parts for your industrial automation needs.
