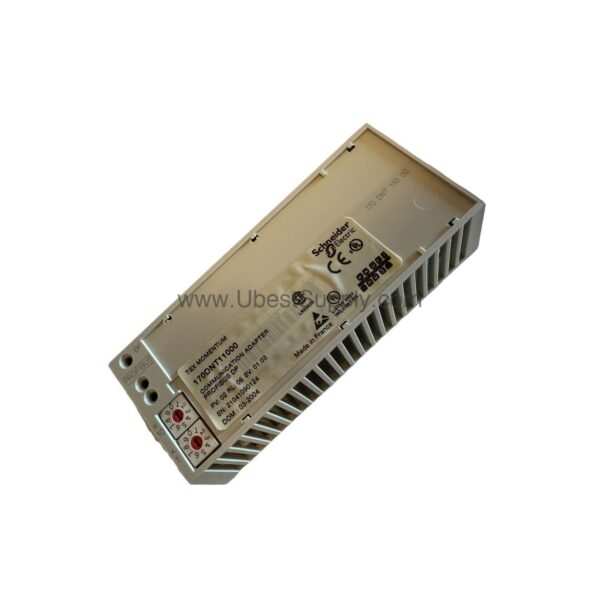

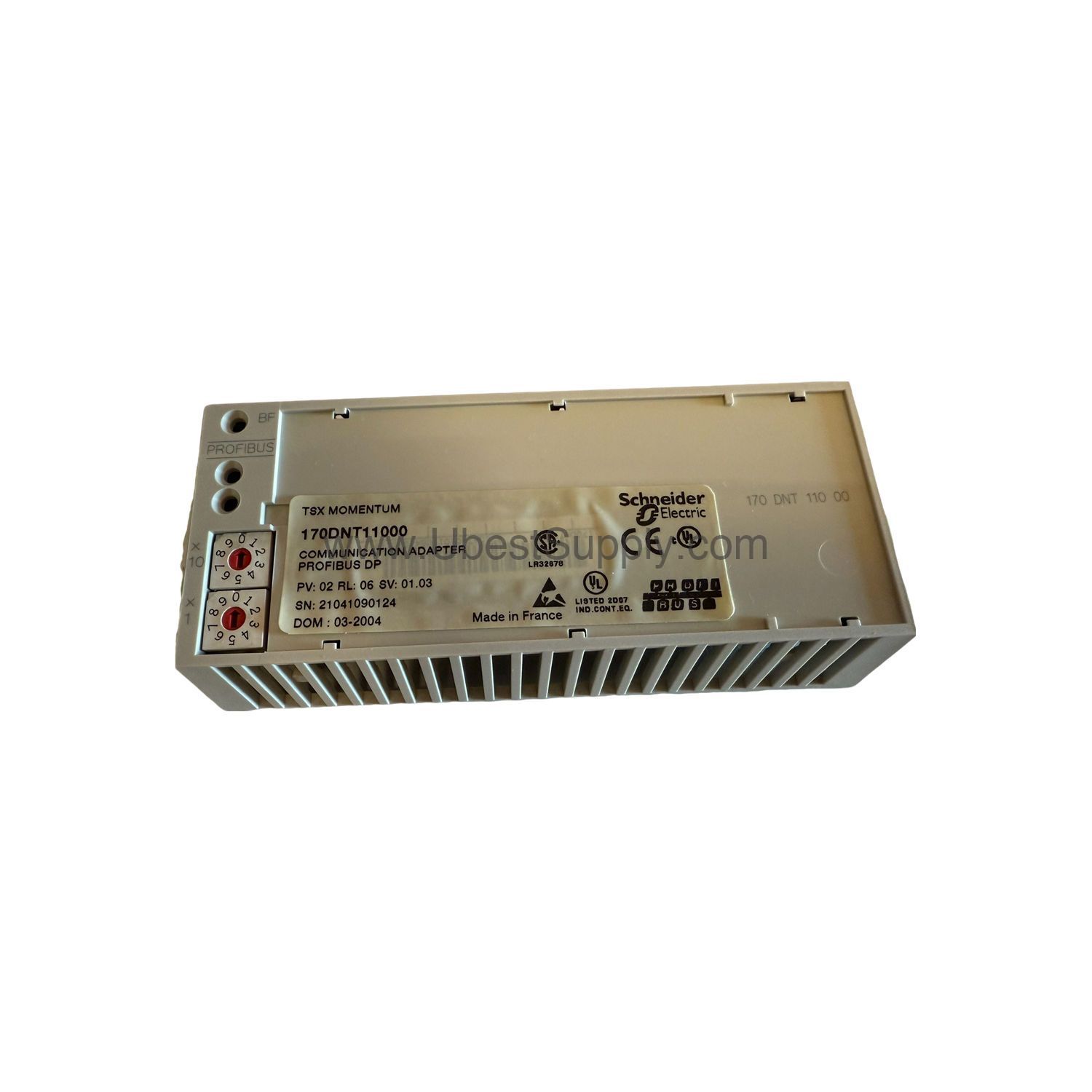

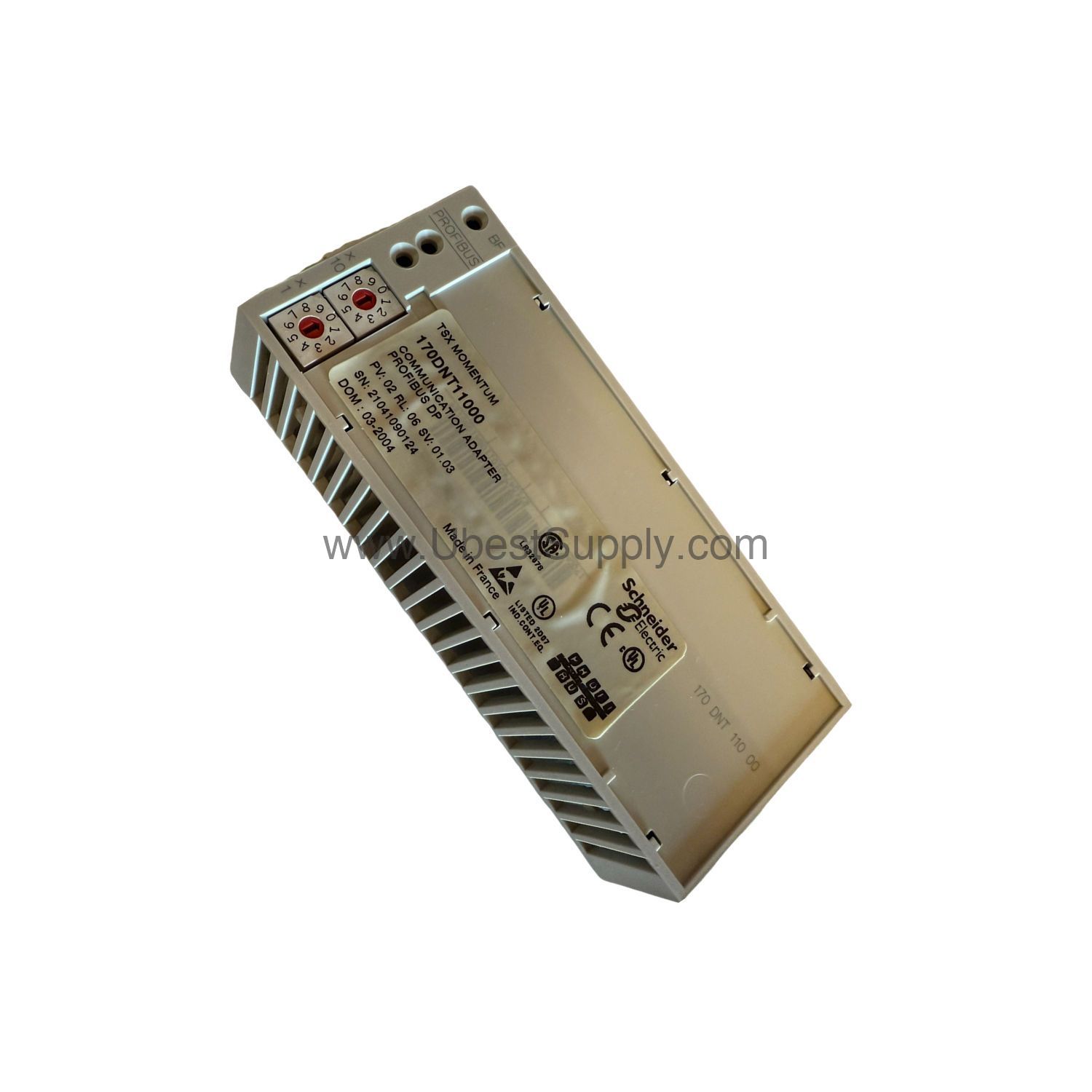

170DNT11000 | Schneider Profibus DP Adaptor, 12 Mbit/s

Introduction to the 170DNT11000 Profibus DP Adaptor

When your production line depends on steady data flow, the 170DNT11000 from Schneider Electric delivers the connectivity you need. This communication adaptor belongs to the Modicon Momentum series, engineered for Profibus DP networks. It handles transmission rates from 9.6 to 12 Mbit/s over twisted pair cabling, supporting both multidrop and ring topologies. For maintenance engineers, this means a dependable link between controllers and field devices, reducing unexpected downtime.

Key Features and Technical Specifications

• Communication protocol: Profibus DP for seamless integration.
• Transmission rate: 9.6 to 12 Mbit/s, adaptable to network demands.
• Supports up to 126 devices, ideal for extensive installations.
• Maximum cable length of 1200 meters provides layout flexibility.
• Switch-selectable addressing simplifies setup and changes.
• CRC-16 control parameter ensures data integrity during transmission.
• Single 9-pin SUB-D connector for straightforward wiring.
• IP20 protection rating guards against solid objects.
• Operating temperature range: 0°C to 60°C, storage: -40°C to 85°C.
• Relative humidity up to 95% without condensation.

One standout specification is the support for up to 126 devices. This capability allows you to expand your network without adding extra adaptors, saving both cost and cabinet space. Additionally, the switch-selectable addressing means you can configure the device without specialized software, reducing commissioning time.

Applications and Use Cases

In manufacturing plants, the 170DNT11000 excels at linking PLCs to remote I/O stations, drives, and sensors. Its high device count makes it suitable for large assembly lines where many field devices must communicate reliably. For example, a bottling plant could use this adaptor to connect over a hundred proximity sensors and actuators, ensuring synchronized operation. Moreover, the 1200-meter cable length supports distributed layouts across long production halls, minimizing the need for additional infrastructure.

Installation and Setup Guidance

When installing the 170DNT11000, ensure the twisted pair cable is properly terminated to meet Profibus DP standards. Use the 9-pin SUB-D connector for a secure physical connection. Set the device address using the switch-selectable mechanism before powering up the network. Verify that the transmission rate matches your network configuration to avoid communication errors. For optimal performance, keep the adaptor within the specified operating temperature range and away from moisture sources, given its IP20 rating.

Maintenance and Reliability Tips

Routine inspection of the 170DNT11000 helps maintain network stability. Check the SUB-D connector for tightness and signs of corrosion periodically. Ensure the surrounding environment stays within the 0°C to 60°C operating range to prevent overheating. Since the unit is rated IP20, protect it from dust and water ingress by installing it in a suitable enclosure. Following these simple steps extends the service life of the adaptor and reduces the likelihood of communication failures.

Compatibility and Integration

The 170DNT11000 is designed for Profibus DP networks, a widely adopted fieldbus standard. It integrates seamlessly with Schneider Electric PLCs and other Profibus DP masters. The switch-selectable addressing allows quick integration into existing systems without complex configuration tools. Whether you are upgrading an older network or building a new one, this adaptor offers a straightforward path to reliable data exchange.

Troubleshooting Common Issues

If communication errors occur, first verify the transmission rate matches the network settings. Check the cable length; exceeding 1200 meters can cause signal degradation. Inspect the SUB-D connector for loose pins or damaged shielding. Confirm that the device address is unique and correctly set via the switches. Also, ensure the ambient temperature stays within 0°C to 60°C, as extreme conditions can affect performance.

Frequently Asked Questions

Q: What is the maximum number of devices the 170DNT11000 can support?

A: The 170DNT11000 supports up to 126 devices on a Profibus DP network.

Q: What is the maximum cable length for the 170DNT11000?

A: The maximum cable length is 1200 meters, depending on the transmission rate.

Q: How is the device address configured on the 170DNT11000?

A: The address is set via switch-selectable controls on the device.

Q: What is the operating temperature range for the 170DNT11000?

A: The operating temperature range is 0°C to 60°C.

Product Support and Availability

The 170DNT11000 is available from Petro Auto Tech, your trusted industrial automation parts supplier. We keep this model in stock and ready to ship, ensuring minimal lead time for your maintenance needs. Contact our team for pricing and delivery options.
