31000-16-10-15-040-03-02 | Bently Nevada 1.0m 8mm Probe Housing

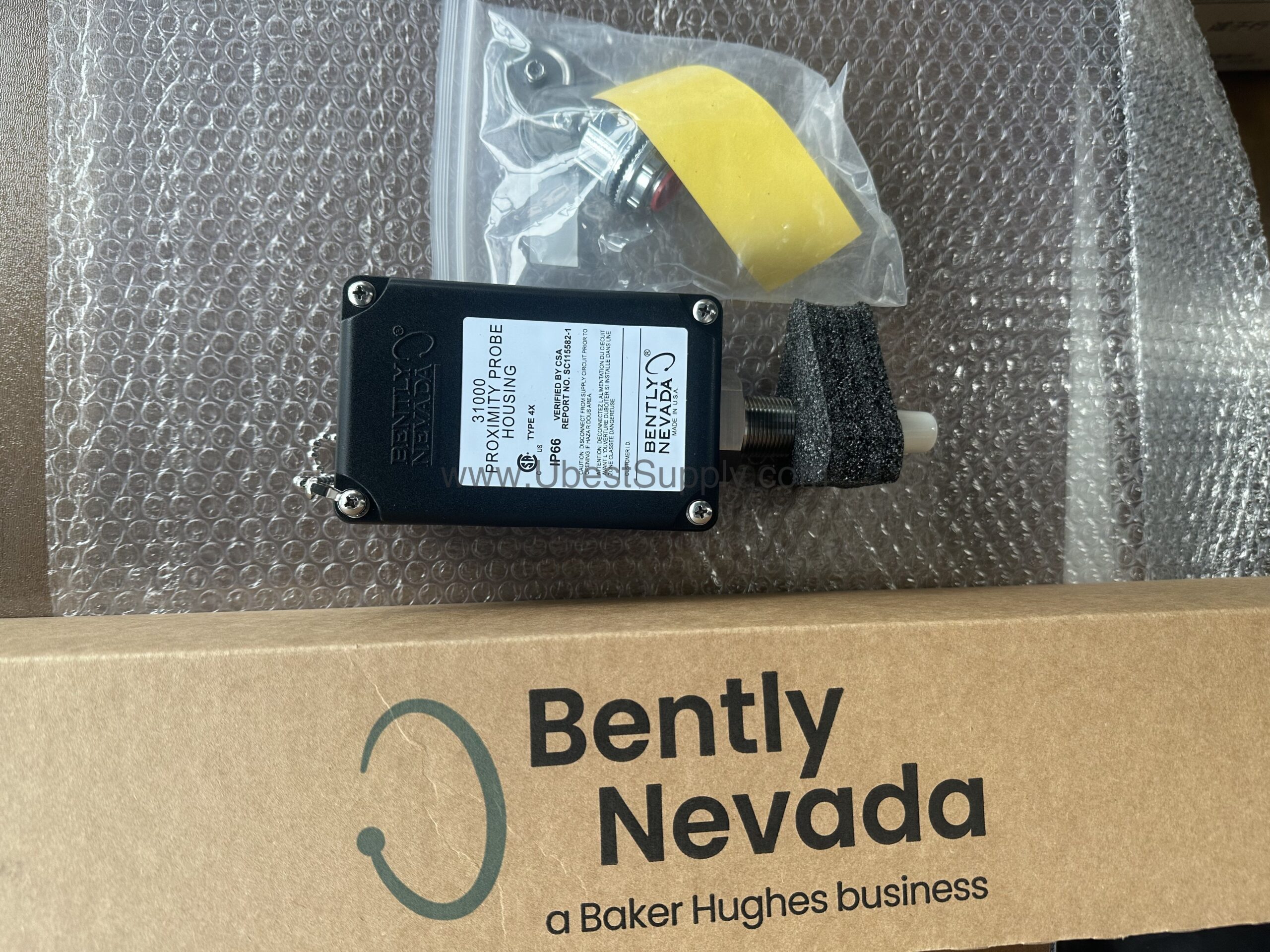

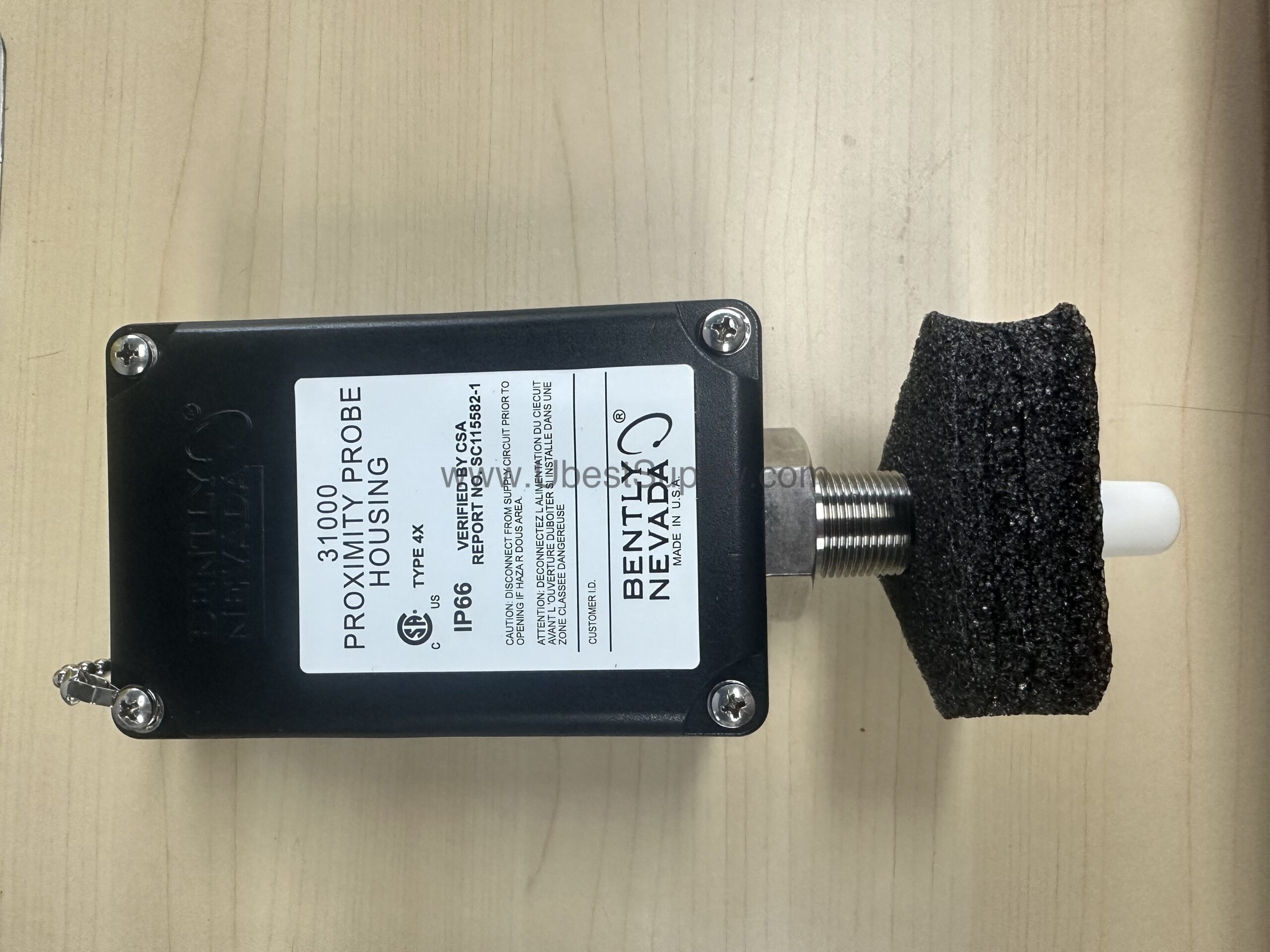

Introduction to the 31000-16-10-15-040-03-02

When you need a reliable housing for your proximity probe in demanding industrial environments, the 31000-16-10-15-040-03-02 from Bently Nevada delivers robust performance. This 31000 series housing is designed to protect the 3300 XL 8 mm probe, ensuring accurate vibration and position monitoring. With a 1.0 m (39 in) probe cable length and a 4.0 in probe penetration, it suits many rotating machinery applications.

Built for harsh conditions, this housing meets Type 4X and IP66 ratings, verified by CSA and SC115582-1 (e) 106. It also complies with CENELEC EN50014 for electrostatic dissipation in hazardous areas. The glass-reinforced PPS thermoplastic with conductive fibers provides strength and conductivity, while stainless steel sleeves and screws resist corrosion.

Key Features and Technical Specifications

• Probe Option: 3300 XL 8 mm probe with connector.
• Probe Cable Length: 1.0 m (39 in).
• Standoff Adapter: Minimum length 1.5 in (38 mm).
• Probe Penetration: 4.0 in (040 option).
• Mounting Thread: 3/4-14 NPT (required with standoff adapter).
• Temperature Rating: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg (2.6 lb).
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel (sleeve and retaining chain).
• Outer Sleeve and Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene®.

One standout feature is the housing's impact strength: it withstands 4 Joule impacts at -39°C and 115°C, and 7 Joule at room temperature. This resilience ensures long-term durability in vibrating machinery, reducing maintenance frequency.

Applications and Use Cases

This housing is ideal for monitoring shaft vibration and position in turbines, compressors, pumps, and motors. For example, in a steam turbine train, the 31000-16-10-15-040-03-02 provides stable mounting for the 8 mm probe, ensuring accurate readings despite high temperatures and vibration. Furthermore, its IP66 rating makes it suitable for outdoor or washdown environments, where moisture and dust are concerns.

Additionally, the CENELEC EN50014 rating for electrostatic dissipation allows use in hazardous areas with plastic materials, expanding its applicability in chemical or petrochemical plants.

Installation and Setup

When installing the 31000-16-10-15-040-03-02, ensure the mounting thread (3/4-14 NPT) is properly engaged. The standoff adapter option (15) requires this thread, so verify compatibility before assembly. Use the recommended retaining nut torque of 29.4 N·m (260 in·lb) to secure the housing firmly.

For cable routing, the fittings option includes two plugs and one 3/4-14 NPT fitting, plus a reducer to 1/2-14 NPT. The cable seal grip accommodates various cable diameters, from 1/8 to 3/8 inches, ensuring a tight seal. Always follow Bently Nevada's installation guidelines to maintain the IP66 rating.

Maintenance and Reliability

Regular inspection of the housing and O-ring is essential to preserve its protective rating. Check for cracks or wear on the PPS housing, especially after impacts. The stainless steel components resist corrosion, but periodic cleaning may be needed in dirty environments.

Because the housing is designed for high impact resistance, it minimizes the risk of probe damage, reducing downtime and replacement costs. This reliability translates to lower total cost of ownership over the equipment's life.

Compatibility and Integration

The 31000-16-10-15-040-03-02 is part of the Bently Nevada 31000 series, designed to work with 3300 XL 8 mm proximity probes. It integrates seamlessly with Bently Nevada monitoring systems, such as 3500 racks, providing consistent signal quality. The 1.0 m cable length is adequate for many installations, but verify your specific routing needs.

Troubleshooting and Common Issues

If you experience signal loss, check the cable connections and the seal grip for proper tightening. A loose fitting can allow moisture ingress, compromising the IP66 rating. Also, ensure the probe penetration is correct (4.0 in) to maintain the gap between probe tip and target.

Should the housing show signs of impact damage, replace it promptly to avoid exposing the probe to environmental hazards. Always consult the Bently Nevada manual for detailed diagnostics.

FAQs about the 31000-16-10-15-040-03-02

Q: What is the temperature rating of this housing?

A: The operating temperature range is -51°C to +105°C (-60°F to +221°F), suitable for extreme conditions.

Q: Does it come with a cable seal grip?

A: Yes, the fittings option includes a cable seal grip with grommets for cable sizes from 1/8 to 3/8 inches.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is required when using the standoff adapter option.

Q: Is this housing suitable for hazardous areas?

A: Yes, it meets CENELEC EN50014 for electrostatic dissipation of plastic materials in hazardous areas.

Product Support and Availability

The 31000-16-10-15-040-03-02 is available through Petro Auto Tech. Contact our team to confirm stock and lead times. We are ready to assist with your industrial automation needs.
