32000-16-05-04-135-03-02 | Bently Nevada 8mm 0.5m Cable Housing

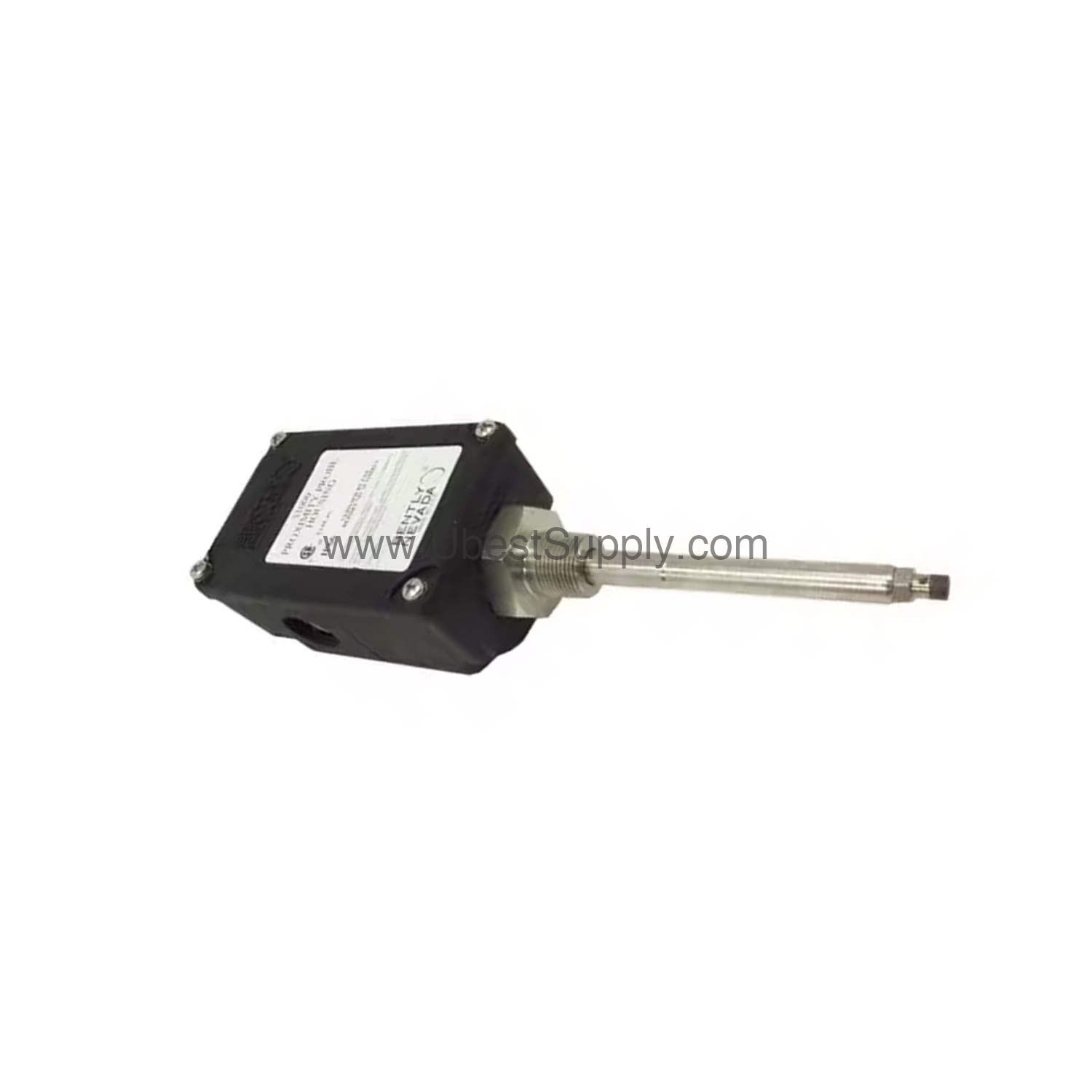

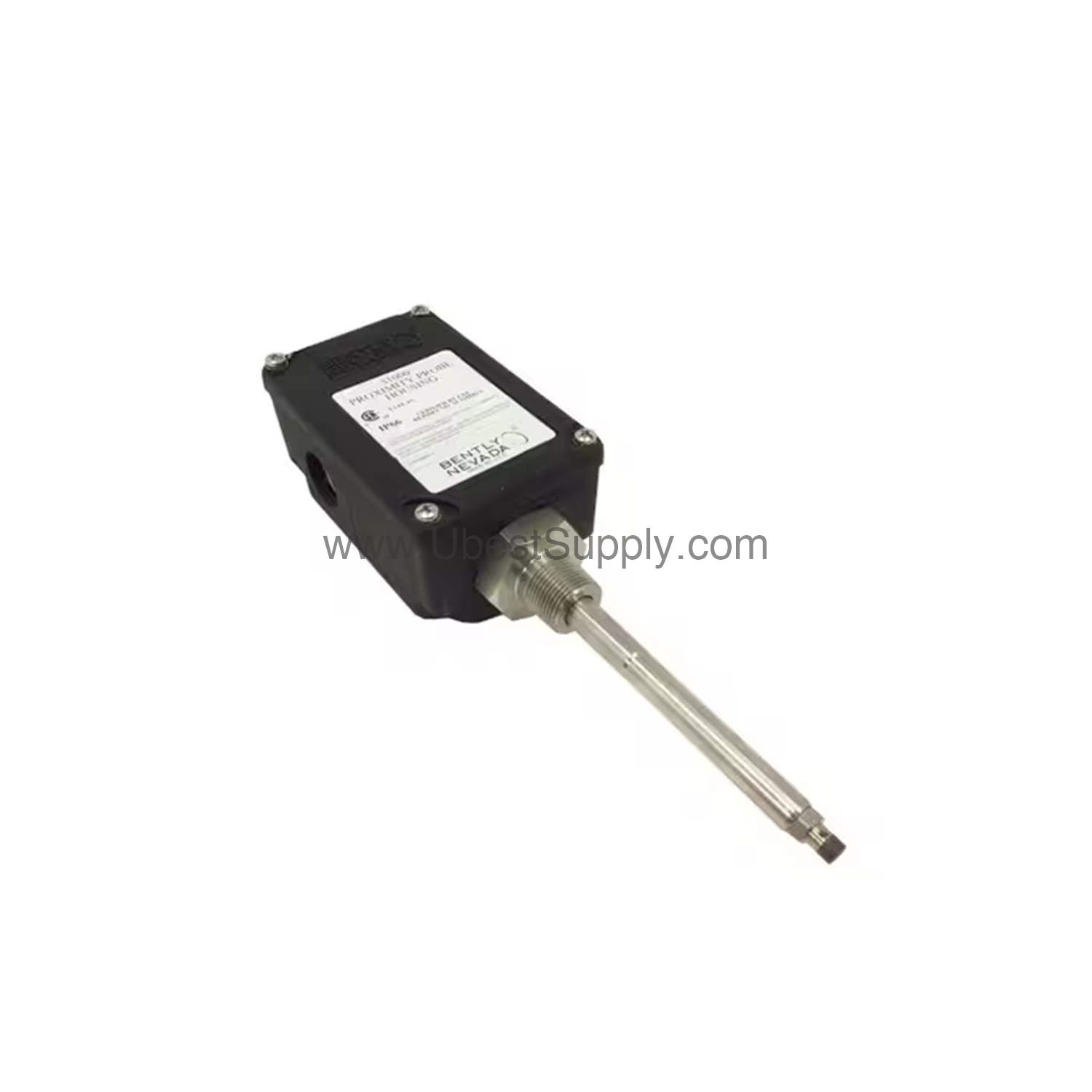

Introduction to the Bently Nevada 32000-16-05-04-135-03-02

When machinery reliability depends on precise vibration monitoring, the 32000-16-05-04-135-03-02 from Bently Nevada delivers a robust housing solution. This metric proximity probe housing is engineered to protect the sensing element in demanding industrial environments. With a 3300 XL 8 mm probe option and a 0.5 m (20 in) cable length, it supports accurate measurements while maintaining structural integrity.

Part of the trusted Bently Nevada 32000 series, this housing is designed for straightforward integration into existing monitoring systems. Its glass-reinforced PPS thermoplastic body with conductive fibers ensures durability and static dissipation, making it suitable for hazardous areas. The housing meets Type 4X and IP66 protection ratings, verified by CSA and CENELEC standards, offering confidence in harsh conditions.

Key Features and Technical Specifications

• Probe Option: 3300 XL 8 mm probe with connector (option 16).
• Cable Length: 0.5 m (20 in) probe cable (option 05).
• Standoff Adapter: 40 mm standoff adapter (option 04).
• Probe Penetration: 135 mm penetration depth (option 135).
• Fittings: Two plugs and one M20 fitting, plus a cable seal grip for armored cable (option 03).
• Mounting Thread: 3/4-14 NPT, required with the standoff adapter (option 02).
• Temperature Range: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

One standout feature is the housing impact strength, certified by BASEEFA to withstand two separate 4 Joule impacts at extreme temperatures, and CSA-verified for 7 Joule impact at room temperature. This ruggedness minimizes downtime from accidental damage, supporting continuous operation.

Applications and Use Cases

This housing is ideal for vibration monitoring on rotating machinery such as turbines, compressors, and pumps. Its robust construction and IP66 rating make it suitable for outdoor or washdown environments. The 8 mm probe option is commonly used in bearing vibration monitoring, where precise gap measurements are critical. Additionally, the 135 mm penetration allows installation in deep bearing housings, ensuring the probe reaches the target shaft area effectively.

Because the housing is built to withstand harsh conditions, it reduces the risk of sensor failure, thereby improving overall plant reliability. This makes it a valuable component in predictive maintenance programs.

Installation and Setup

Proper installation is essential for accurate readings. The 3/4-14 NPT mounting thread provides a secure fit, and the standoff adapter (40 mm) positions the probe correctly. When installing, ensure the probe cable is routed without sharp bends and that the cable seal grip is tightened to maintain the IP66 seal. The M20 fitting allows for conduit connection, protecting the cable from mechanical damage.

Always follow the manufacturer's guidelines for torque and gap settings. For detailed wiring and configuration, refer to the Bently Nevada documentation or contact Petro Auto Tech for technical support.

Maintenance and Reliability

Routine inspection of the housing and cable is recommended to ensure long-term performance. Check for any signs of physical damage, especially after impacts or in high-vibration areas. The stainless steel sleeve and retaining chain (AISI 304) resist corrosion, while the outer sleeve and screws (AISI 303) provide additional durability. The Neoprene O-ring maintains a proper seal, so inspect it periodically for wear.

Given the housing's impact resistance and temperature rating, it is designed for extended service life. Regular maintenance helps avoid unexpected failures, contributing to lower total cost of ownership.

Compatibility and Integration

The 32000-16-05-04-135-03-02 is part of the Bently Nevada 3300 XL system, ensuring compatibility with 3300 XL 8 mm proximity probes. This housing works with standard Bently Nevada monitoring equipment, such as vibration monitors and transducers. For integration details, consult the system manual or contact Petro Auto Tech to confirm compatibility with your existing setup.

Troubleshooting and Common Issues

If readings become erratic, first check the cable connection and the seal grip. A loose fitting can allow moisture ingress, affecting performance. Verify that the probe tip is clean and the gap is set correctly. If the housing is damaged, replace it promptly to avoid exposing the probe to environmental hazards.

For persistent issues, consult the Bently Nevada troubleshooting guide or seek assistance from Petro Auto Tech's technical team.

FAQ about 32000-16-05-04-135-03-02

Q: What is the temperature rating of the 32000-16-05-04-135-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), suitable for extreme environments.

Q: What probe is included with this housing?

A: It is designed for a 3300 XL 8 mm probe with connector (option 16).

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is required when using the standoff adapter.

Q: What protection ratings does the housing have?

A: It has Type 4X (CSA certified) and IP66 ratings, plus CENELEC EN50014 for electrostatic dissipation in hazardous areas.

Q: Can I use this housing with armored probe cables?

A: Yes, the fittings option includes a cable seal grip with grommets for armored probe cables.

Product Support and Availability

The 32000-16-05-04-135-03-02 is available through Petro Auto Tech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and provide documentation.
