32000-16-05-08-070-03-02 | Bently Nevada 8mm Probe Housing

Introduction to the 32000-16-05-08-070-03-02

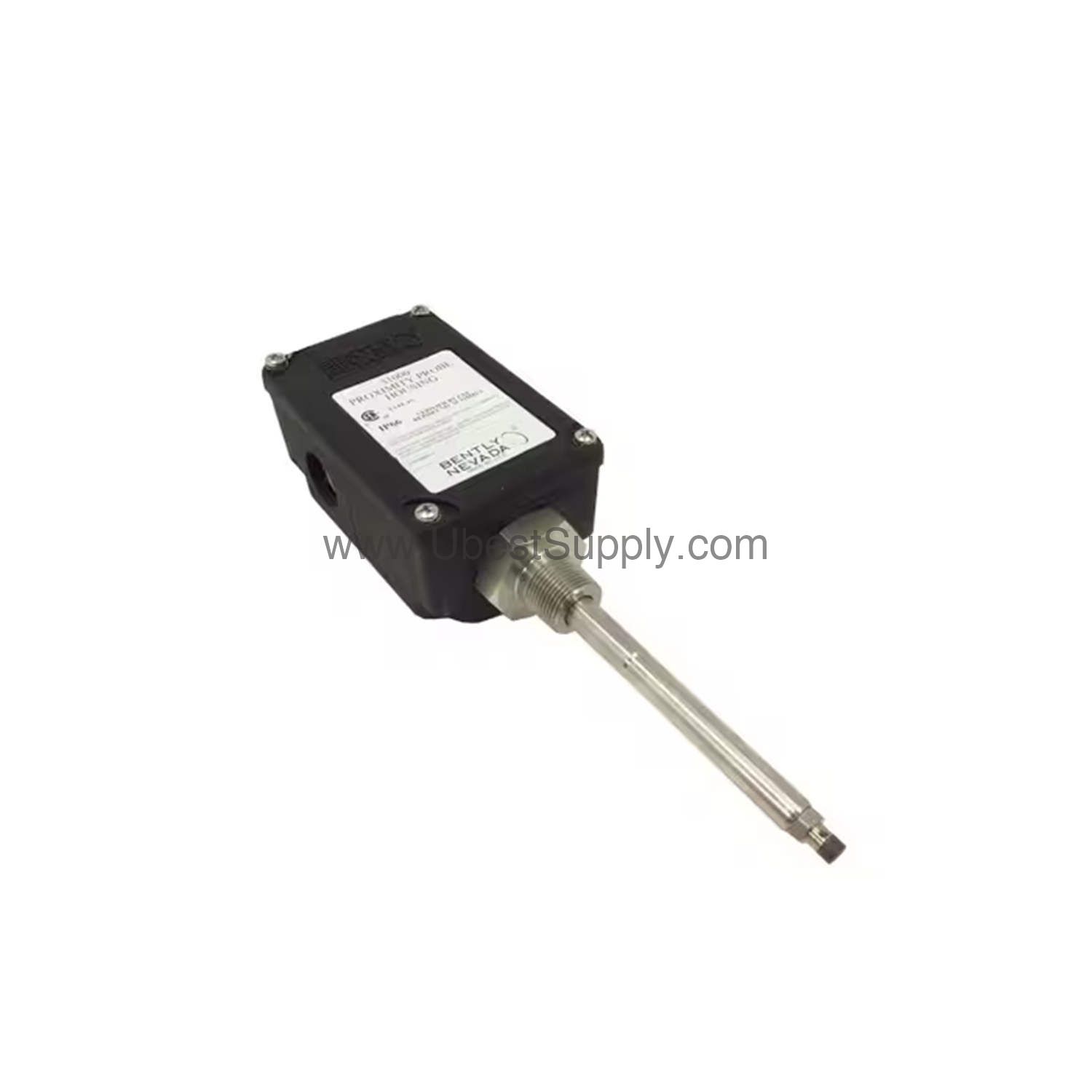

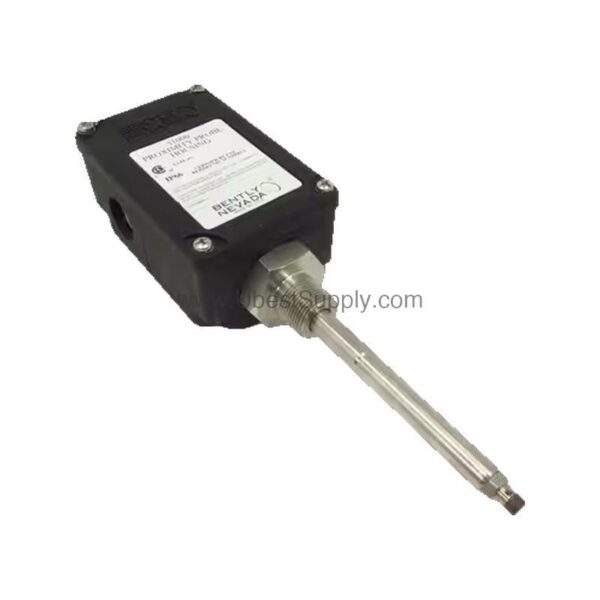

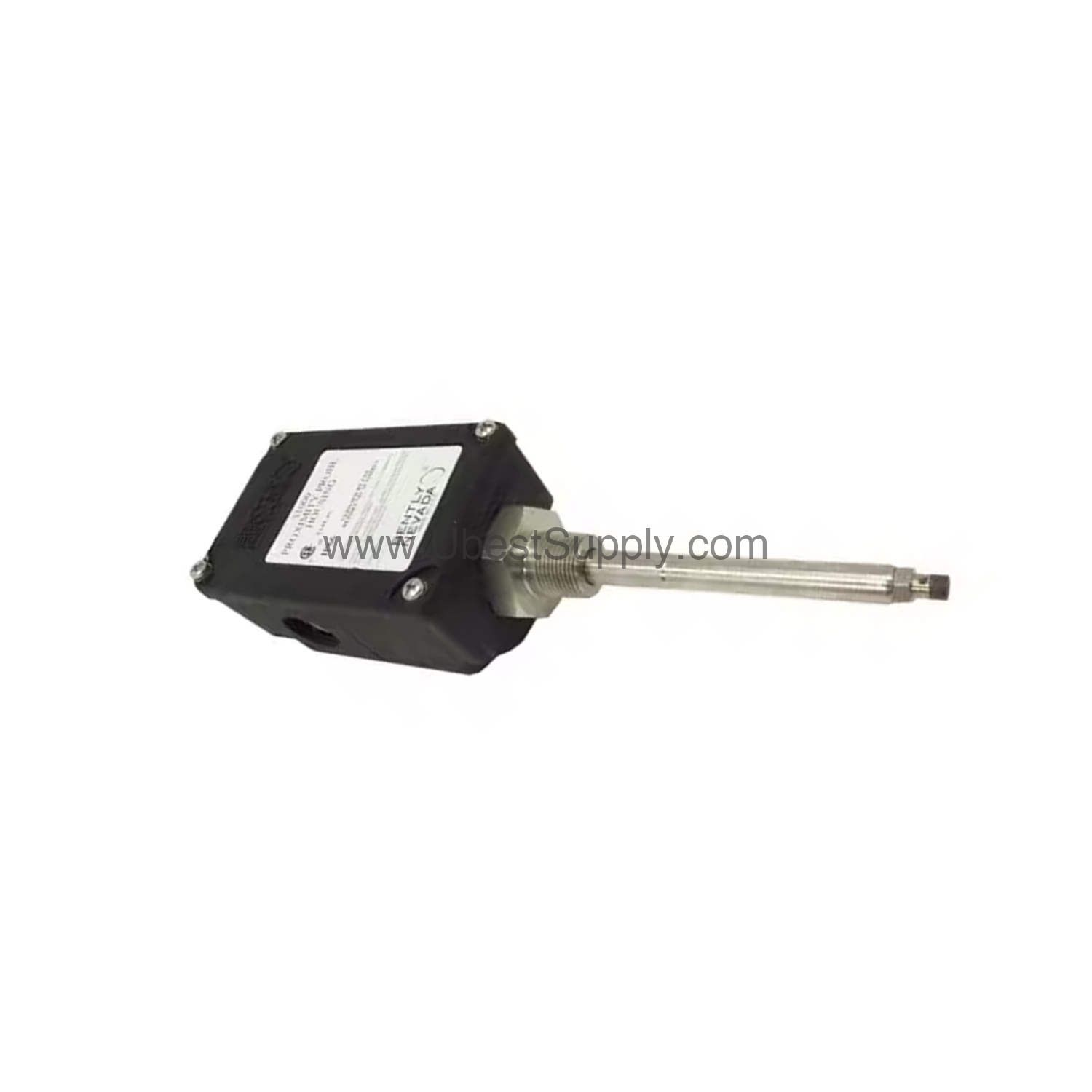

In the evolution of industrial monitoring, reliable vibration sensing has become critical for rotating machinery. The 32000-16-05-08-070-03-02 from Bently Nevada is a 31000 series proximity probe housing designed to protect and position a 3300 XL 8 mm probe. This housing ensures accurate measurements in demanding environments.

Manufactured in the USA, this housing is built for durability and precision. It is part of the trusted Bently Nevada product line, known for quality in condition monitoring.

Key Features and Technical Specifications

The 32000-16-05-08-070-03-02 offers a range of features that make it suitable for industrial applications:

• Probe option: 3300 XL 8 mm probe with connector
• Probe cable length: 0.5 m (20 in)
• Standoff adapter: 00 mm
• Probe penetration: 80 mm
• Mounting thread: 3/4-14 NPT
• Housing material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve material: AISI 304 stainless steel; outer sleeve and screws: AISI 303 stainless steel
• O-ring material: Neoprene®
• Temperature rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb)

One distinctive feature is the housing's impact strength. It is certified by BASEEFA to withstand two separate 4 Joule impacts at extreme temperatures, and CSA verified 7 Joule impact at room temperature. This ensures the housing can endure physical shocks without compromising the probe.

Protection and Environmental Ratings

The housing is rated Type 4X by CSA and IP66, verified by SC115582-1 (e) 106. It also meets CENELEC standard EN50014 for electrostatic dissipation of plastic material in hazardous areas. These ratings mean the housing is protected against dust, water, and static discharge, making it suitable for harsh industrial settings.

Applications and Use Cases

This proximity probe housing is ideal for vibration monitoring on pumps, motors, compressors, and turbines. In such applications, the housing maintains the probe's position and protects it from environmental contaminants. Consequently, it helps reduce unplanned downtime by providing reliable data for predictive maintenance.

Installation and Setup

When installing the 32000-16-05-08-070-03-02, ensure the mounting thread (3/4-14 NPT) is properly engaged. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). Verify the probe cable length (0.5 m) is sufficient for your routing. Also, confirm the standoff adapter (00 mm) and probe penetration (80 mm) match your measurement requirements.

Maintenance and Reliability

Regular inspection of the housing is recommended to ensure the O-ring remains intact and the stainless steel components are free from corrosion. The robust materials and high impact strength contribute to a long service life, reducing replacement frequency. This reliability translates to lower maintenance costs over time.

Troubleshooting Common Issues

If you encounter erratic readings, check the probe cable connection and the housing's grounding. Ensure the mounting thread is tight and the housing is not damaged. For persistent issues, consult the official Bently Nevada documentation or contact Petro Auto Tech for guidance.

Frequently Asked Questions

Q: What is the temperature rating of the 32000-16-05-08-070-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F).

Q: What probe does this housing support?

A: It supports a 3300 XL 8 mm probe with connector.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT.

Q: Is the housing suitable for hazardous areas?

A: Yes, it meets CENELEC EN50014 for electrostatic dissipation in hazardous areas.

Product Support and Availability

The 32000-16-05-08-070-03-02 is available through Petro Auto Tech. Contact us for current availability and lifecycle status. We are ready to assist with your industrial automation needs.
