GE IS200WETAH1A Mark VIe Wind Energy Board for Sale

Product Overview

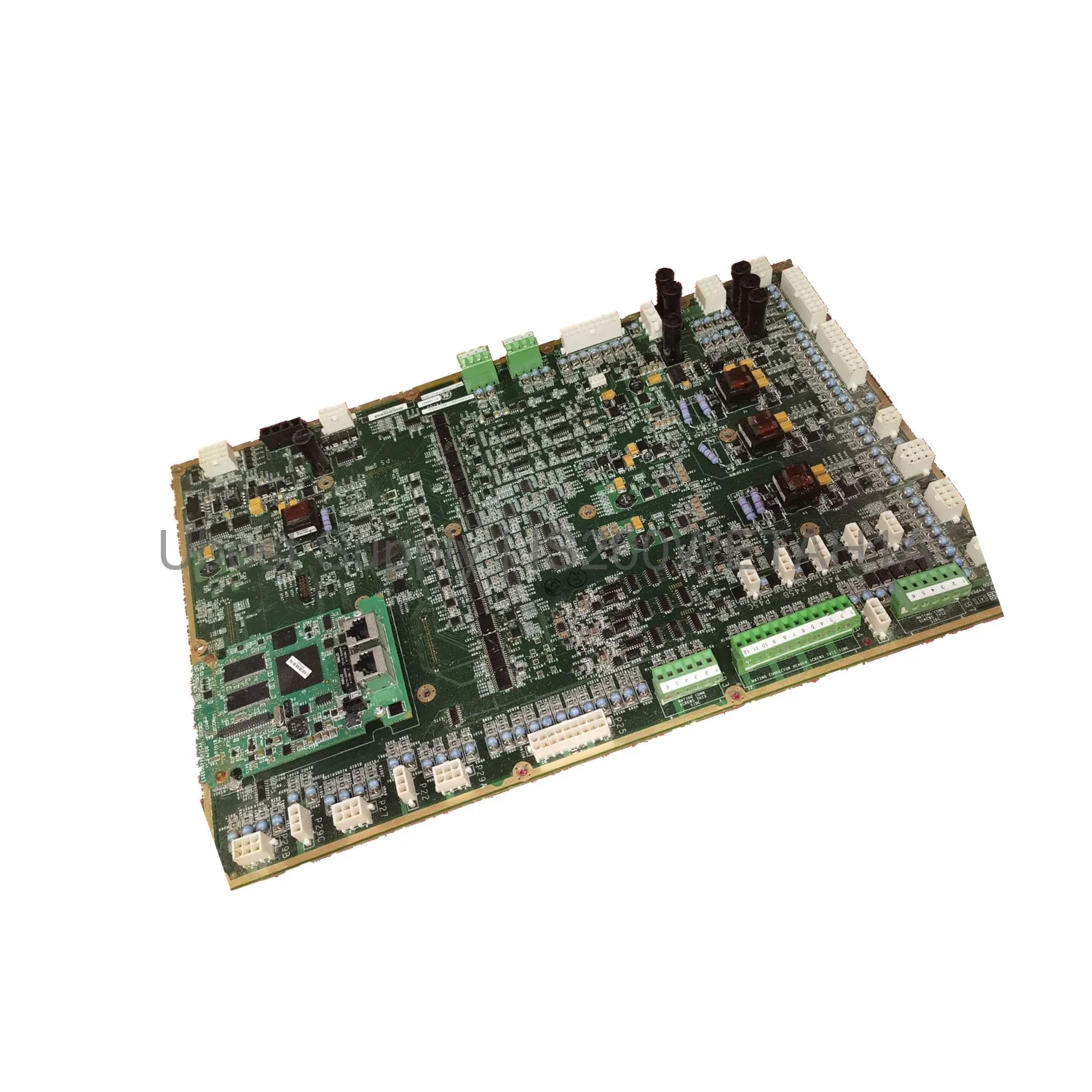

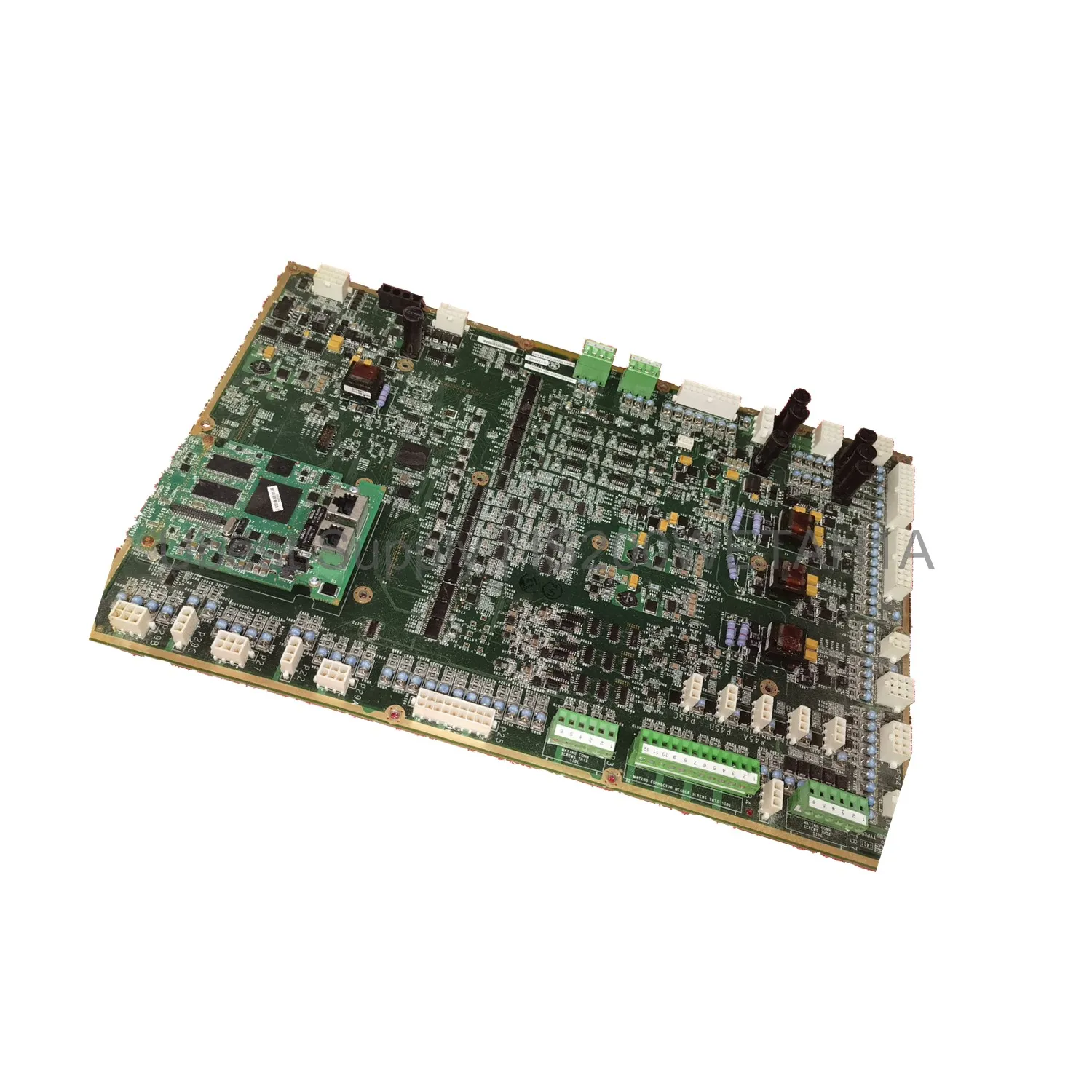

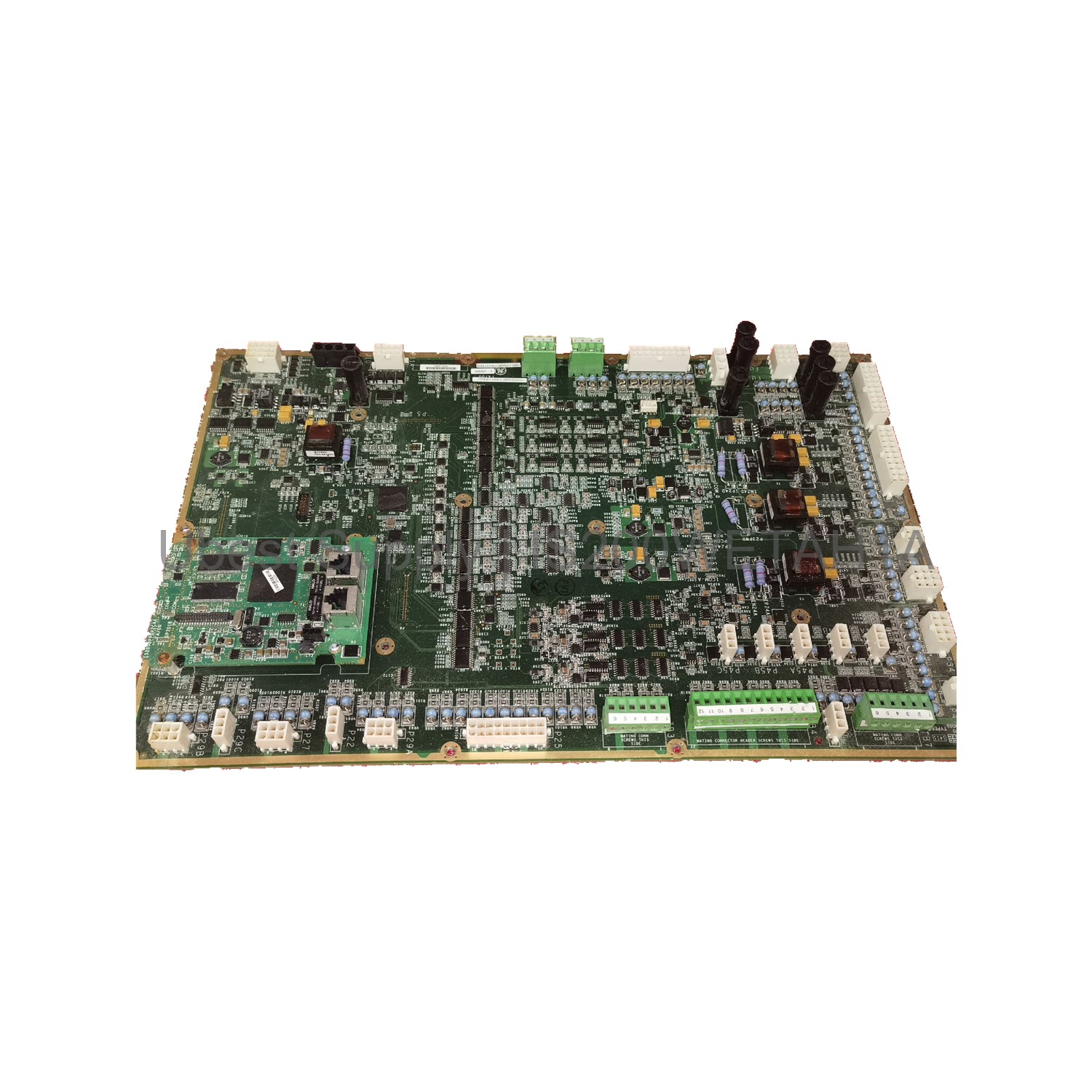

The GE IS200WETAH1A is a circuit board for the Mark VIe system. It is used in wind energy applications. This board has hundreds of components mounted to its surface. It includes an exposed copper strip with multiple factory drilled holes. The board has one auxiliary board labeled IS210BPPBH2C. It uses seven fuses and four transformers for power management. IS200WETAH1A holds over a hundred voltage regulators placed in long lines. These lines run parallel to three of the four board edges. The board also features twenty-five TP test points for diagnostics. It contains six terminal strips for wiring connections.

Application Scenarios

This board works in wind turbine control systems. It operates inside GE Mark VIe cabinets. The system manages turbine speed and pitch. It also handles power output and safety functions. The board is ideal for industrial wind farms. It supports both onshore and offshore turbines. Engineers use it for reliable energy production. IS200WETAH1A is a key part of the control loop.

Technical Specifications

The board includes coil inductors, capacitors, and resistors. It has relay components and integrated circuits. It uses diodes and jumper switches for configuration. The board has over forty-five plugs and connectors. These include a vertical male pin connector. It also has plug connectors from two-position to twenty-position. The P4 and P5 connectors use conductive dots or traces. The board measures a standard size for Mark VIe racks.

Installation & Maintenance Guide

Install the board in a dry, clean cabinet. Use anti-static precautions during handling. Align the board with the backplane slot. Push firmly until the connectors seat. Secure the board with mounting screws. Check all terminal strips for tight connections. Use the TP test points to verify voltages. Replace fuses only with the same rating. Clean the board with compressed air only. Do not touch the copper strip or components.

Packing List

One GE IS200WETAH1A circuit board. One anti-static bag for protection. One cardboard box with foam inserts. No manual or software is included. Shipping is via Fedex, UPS, or DHL.
