32000-28-05-05-030-03-02 | Bently Nevada 8mm Probe Housing

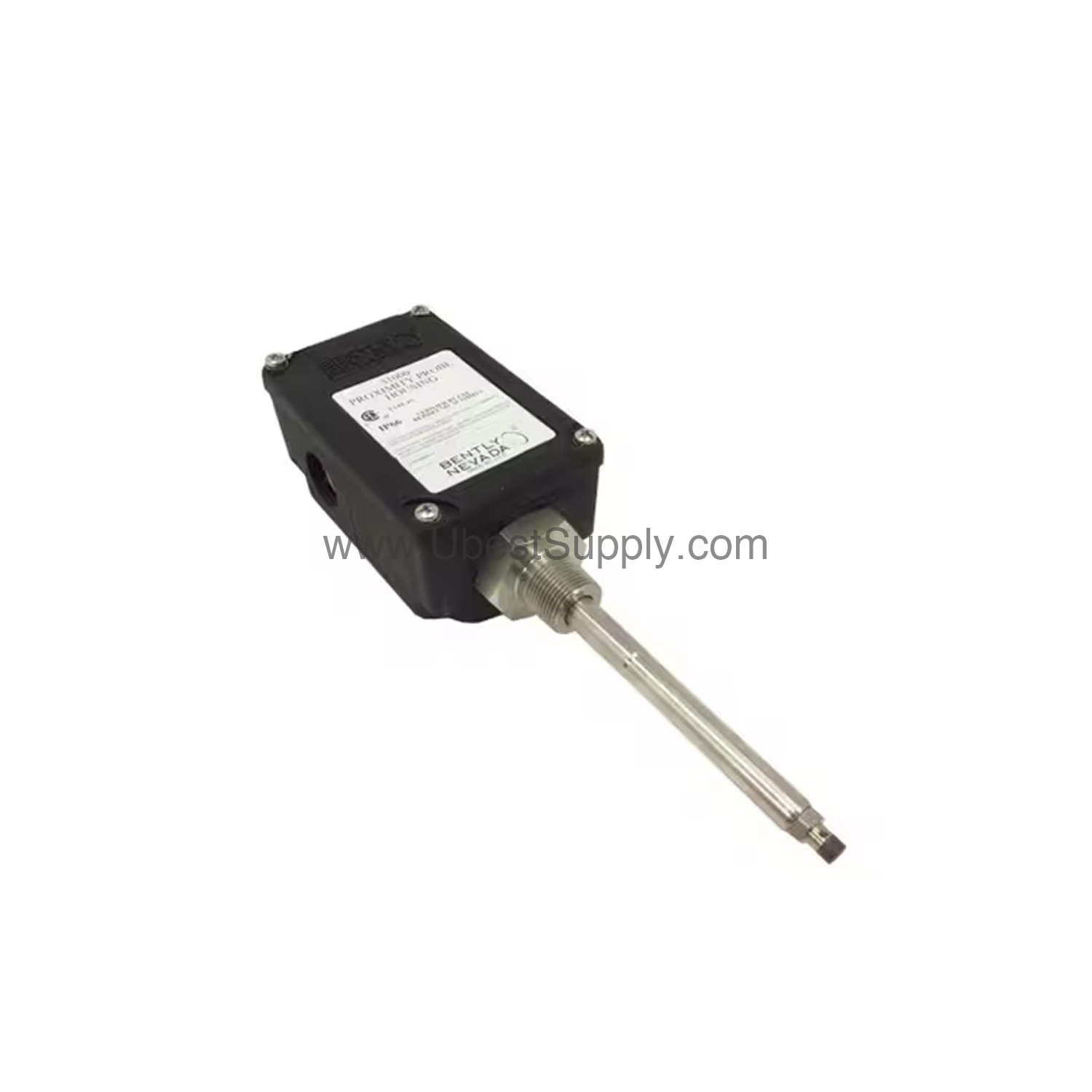

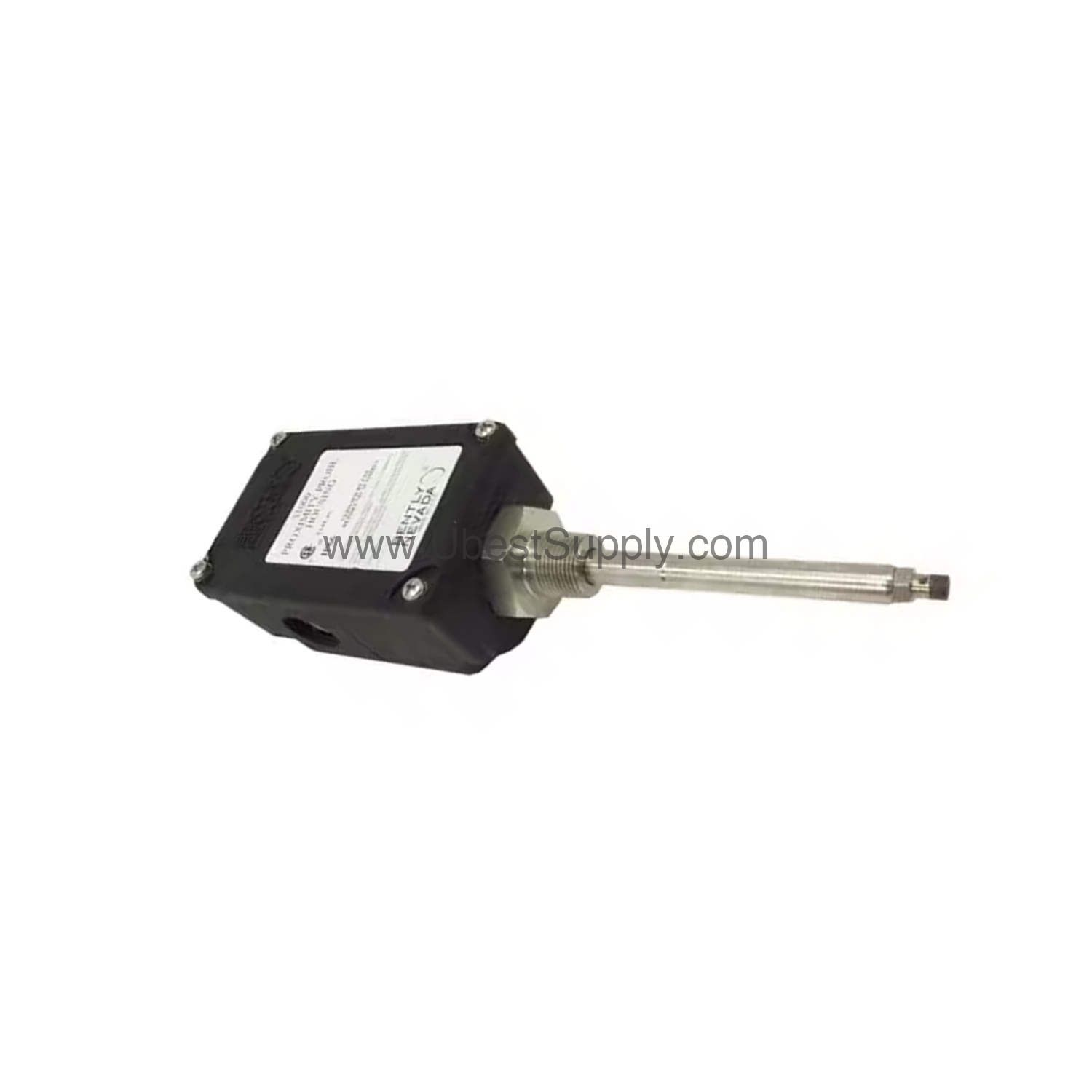

Introduction to the Bently Nevada 32000-28-05-05-030-03-02

When a rotating machine begins to vibrate unexpectedly, the consequences can be costly. The 32000-28-05-05-030-03-02 from Bently Nevada provides a dependable housing for the 3300 XL 8 mm probe, enabling precise vibration measurement. This housing is designed to protect the probe in harsh conditions, ensuring consistent performance. It is a key component for condition monitoring in industrial plants.

Key Features and Technical Specifications

The 32000-28-05-05-030-03-02 is built with durable materials and precise engineering. Here are the main specifications:

• Probe Option: 3300 XL 8 mm probe with multiple approvals.
• Probe Cable Length: 0.5 metre.
• Standoff Adapter: 50 mm.
• Probe Penetration: 30 mm.
• Fittings: Two plugs, M20 fitting, and one cable seal grip with grommet for armored probe cable.
• Mounting Thread: 3/4-14 NPT.
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel.
• Outer Sleeve and Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene®.
• Temperature Rating: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

One distinctive feature is the housing's impact strength. It is certified by BASEEFA to withstand two separate 4 Joule impacts at extreme temperatures, and CSA verified a 7 Joule impact at room temperature. This makes it exceptionally resilient in tough environments.

Applications and Use Cases

This housing is ideal for use in rotating machinery such as turbines, compressors, and pumps. It is suitable for applications where reliable vibration monitoring is critical. For example, in a petrochemical plant, the housing protects the probe from process conditions, ensuring accurate data. Additionally, its robust construction supports long-term operation in outdoor or washdown areas. The Type 4X and IP66 ratings confirm its suitability for demanding industrial settings.

Installation and Setup

Proper installation is essential for accurate measurements. The 3/4-14 NPT mounting thread allows for secure attachment. The standoff adapter option of 50 mm positions the probe correctly. The fittings include two plugs and an M20 fitting, plus a cable seal grip for armored cable. Follow the manufacturer's manual for precise torque and gap settings. It is important to verify the probe penetration depth of 30 mm during setup.

Maintenance and Reliability

Regular inspection of the housing and probe is recommended to ensure continued performance. Check the O-ring and seals periodically for wear. The stainless steel components resist corrosion, reducing maintenance needs. Because the housing is designed for harsh environments, it helps minimize downtime. Consequently, this contributes to lower lifecycle costs.

Compatibility and Integration

The 32000-28-05-05-030-03-02 is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. It integrates with standard monitoring systems that accept these probes. The housing's mounting thread and fittings are compatible with common industrial installations. For specific system compatibility, consult the official documentation.

Common Questions

What is the temperature range of this housing?

The housing operates from -51°C to +105°C (-60°F to +221°F).

What probe does this housing accommodate?

It accommodates the 3300 XL 8 mm probe with multiple approvals.

What is the mounting thread size?

The mounting thread is 3/4-14 NPT.

Is the housing suitable for outdoor use?

Yes, it has Type 4X and IP66 ratings, making it suitable for outdoor and washdown environments.

Product Support and Availability

Please verify current lifecycle status and availability with Petro Auto Tech before ordering. Petro Auto Tech is your trusted source for industrial automation parts.
