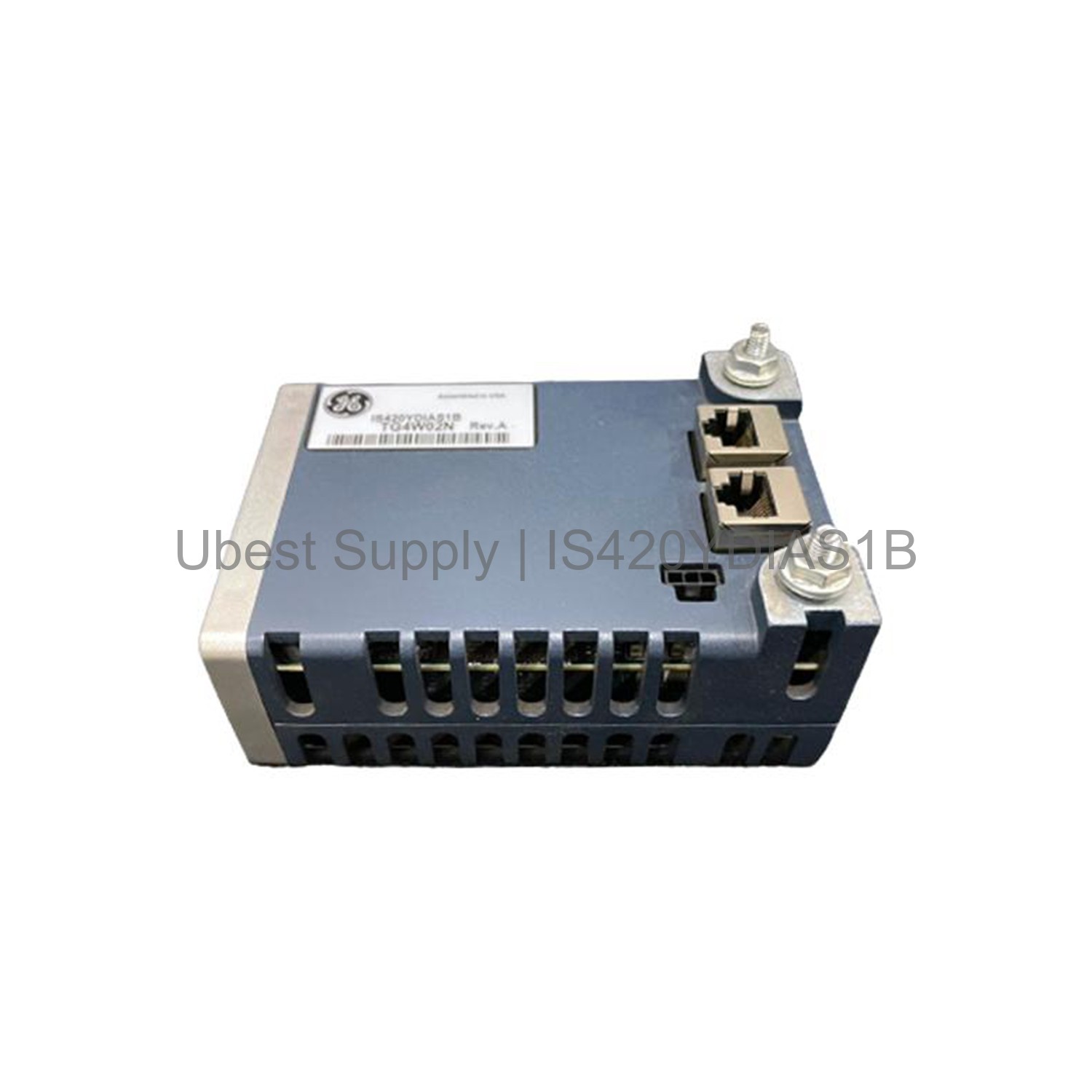

GE IS420YDIAS1B Discrete Contact I/O Module Mark VIeS

Product Overview

The GE IS420YDIAS1B is a discrete contact I/O module. It belongs to the Mark VIeS series. This module offers 24 relay channels. It provides reliable performance for industrial control. The unit uses surface mount technology. It ensures high density and reliability. The input isolation is 1500 V. This protects sensitive equipment from surges. The module works with a 125 V dc input filter. This setup rejects ac voltage noise. It is built for tough environments. The operating temperature range is wide. It runs from -40 to 70 degrees Celsius. This makes it suitable for harsh locations. The module is compact and easy to install. Its size is 8.26 by 4.19 by 12.1 cm. It is made in the United States. The manual number is GEH-6855I.

Application Scenarios

This module is perfect for turbine control. It works well in power generation plants. It can manage discrete field devices. Use it for valve and motor control. It handles contact sensing tasks. The module is ideal for safety systems. It fits into Mark VIeS racks. It is common in oil and gas facilities. It also works in chemical processing. The high isolation protects against faults. This makes it reliable for critical loops. You can use it in remote terminal units. It is a good choice for factory automation. The module supports high-speed switching. It reduces downtime in production lines.

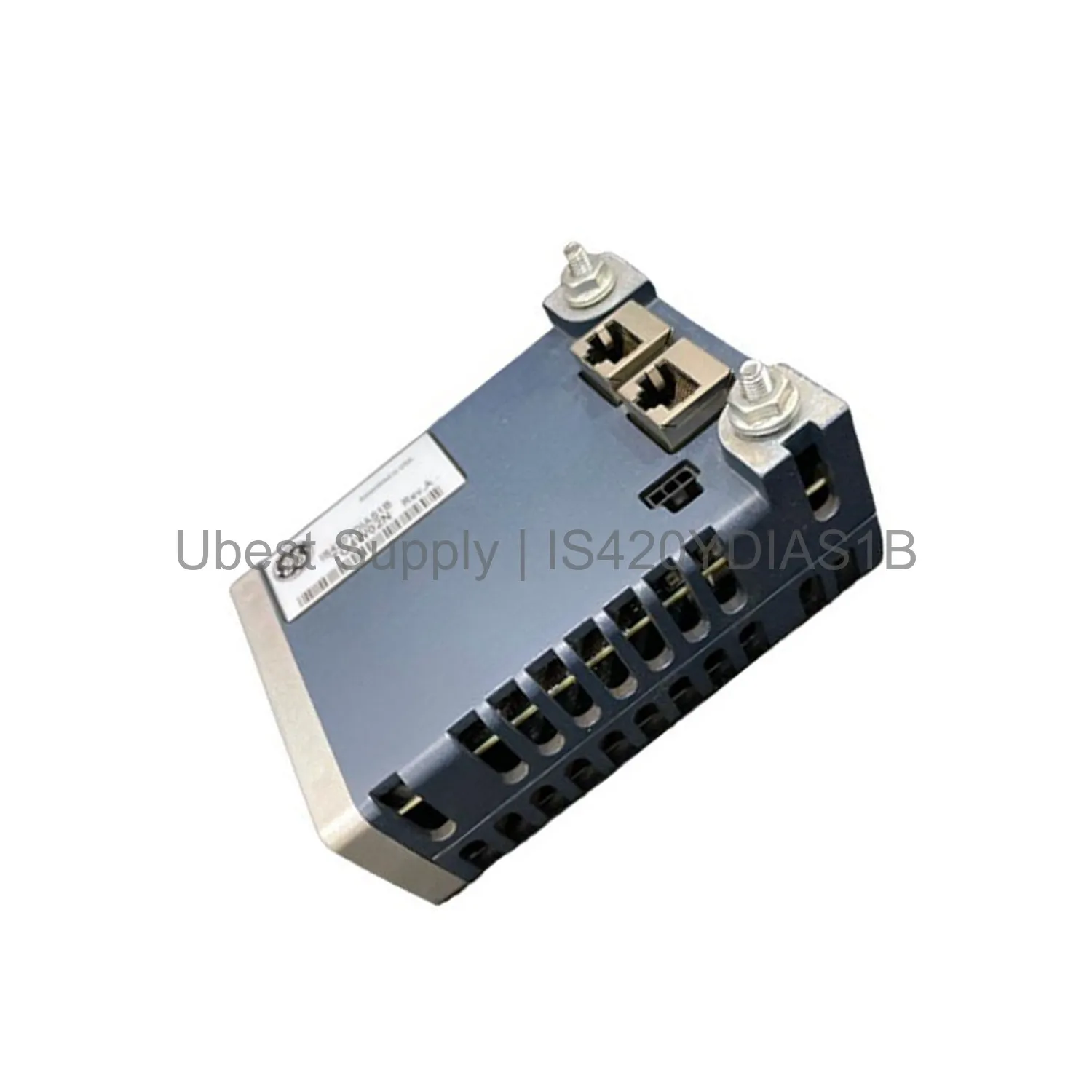

Technical Specifications

The module has 24 discrete contact channels. Each channel offers input isolation of 1500 V. The input filter rejects ac voltage at 125 V dc. It uses surface mount technology for assembly. The operating temperature range is -40 to 70 degrees C. The module size is 8.26 high x 4.19 wide x 12.1 cm. It is designed for reliability in harsh conditions. The product origin is the United States. The manual is GEH-6855I. The repair time is 3 to 5 days. It is currently in stock and available for shipping.

Installation & Maintenance Guide

First, power down the system before installation. Mount the module securely in the rack. Connect the field wiring to the terminal block. Ensure all connections are tight. Use a torque screwdriver for precision. Check the input voltage rating before power up. Verify the 125 V dc filter setting. Follow the manual GEH-6855I for details. Keep the module clean and dry. Inspect connections regularly for wear. Replace the module if it shows damage. Store spare units in a static-safe bag. Always handle the board by its edges. This prevents damage to components.

Packing List

The package includes one GE IS420YDIAS1B module. It comes with a quick start guide. The manual GEH-6855I is included. No additional cables are provided. Use standard industrial wiring. The module is packed in an anti-static bag. It is shipped in a sturdy cardboard box. The package is labeled with the model number. This ensures easy identification upon delivery.
