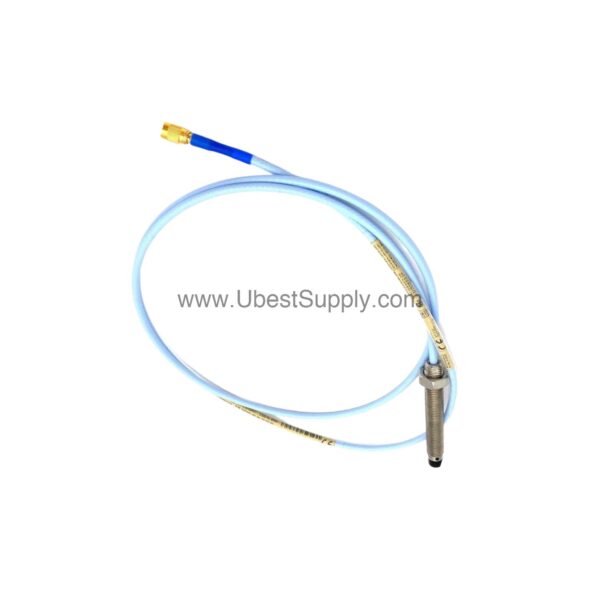

330101-00-12-10-01-00 | Bently Nevada 8 mm Probe 1.0m

Introduction: The Evolution of Machine Protection

For decades, industrial facilities have relied on precise vibration monitoring to safeguard rotating machinery. Early systems were bulky and fragile, but modern probes like the 330101-00-12-10-01-00 from Bently Nevada represent a significant leap forward. This 3300 XL 8 mm probe combines robust construction with proven eddy-current technology, offering engineers a dependable solution for critical asset protection.

As machines become more complex, the demand for accurate, repeatable measurements grows. The 330101-00-12-10-01-00 meets that demand with a design that prioritizes durability and signal integrity, ensuring you get the data you need to prevent costly downtime.

Key Features & Technical Specifications

The 330101-00-12-10-01-00 is engineered for performance. Here are the core specifications you can rely on:

• Product Type: 3300 XL 8 mm Probe with 3/8-24 UNF thread, without armor.
• Total Length: 1.0 meter (3.3 feet), providing flexibility for installation.
• Unthreaded Length: 0.0 inches, ensuring a precise fit.
• Overall Case Length: 1.2 inches, compact for tight spaces.
• Connector: Miniature coaxial ClickLoc connector with connector protector, standard cable.
• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance and durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST) for corrosion resistance.
• Operating Temperature: -52°C to +177°C (-62°F to +350°F) for standard probe.
• Linear Range: 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from target.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1-meter system.

One standout feature is the patented TipLoc molding method, which creates a robust bond between the probe tip and body. This directly reduces the risk of tip separation, a common failure point in older probe designs.

Real-World Applications

The 330101-00-12-10-01-00 is ideal for monitoring radial vibration in turbomachinery, pumps, compressors, and electric motors. Its 8 mm diameter provides a thicker encapsulation of the probe coil, making it more resistant to physical abuse. Consequently, it is well-suited for harsh environments where mechanical shock or vibration could damage lesser probes.

Moreover, the probe’s stainless steel case and PPS tip withstand exposure to oils, chemicals, and moisture, ensuring long-term reliability in demanding industrial settings. Whether you are protecting a critical compressor or a large fan, this probe delivers consistent, accurate data.

Installation & Setup

Proper installation is key to achieving accurate measurements. The 330101-00-12-10-01-00 uses a 3/8-24 UNF thread, which allows for secure mounting. Before installation, verify the recommended gap setting for radial vibration is -9 Vdc (approximately 1.27 mm or 50 mils). This ensures the probe operates within its linear range.

When routing the cable, avoid sharp bends and ensure it is not subjected to excessive tension. The cable features a CableLoc design that provides 330 N (75 lbf) pull strength, but it is still best practice to secure the cable properly. Additionally, field wiring should use a 3-conductor shielded triad cable with tinned conductors, and the maximum length between the Proximitor Sensor and monitor is 305 meters (1,000 feet).

Maintenance & Reliability

Routine inspection of the probe and its cable is essential to maintain performance. Periodically check for any signs of physical damage, such as cracks in the PPS tip or fraying of the cable. Also, verify that the connector is clean and securely fastened.

The probe is designed to seal differential pressure between the tip and case, using a Viton® O-ring. However, probes are not pressure tested before shipment. If your application involves high pressure, contact Bently Nevada’s custom design department for testing options. Regular maintenance, combined with the probe’s rugged construction, ensures a long service life and minimizes unplanned downtime.

Troubleshooting & Common Issues

If you encounter erratic readings, first check the gap voltage. The recommended gap setting is -9 Vdc, and deviations may indicate incorrect positioning. Also, inspect the cable for damage, as a break in the shield can introduce noise.

Another common issue is contamination on the probe tip. Although the PPS material is resistant, buildup can affect the measurement. Clean the tip gently with a soft cloth, avoiding any solvents that could damage the material. If problems persist, consult the full Bently Nevada documentation or contact Petro Auto Tech for technical support.

FAQ about 330101-00-12-10-01-00

Q: What is the linear range of the 330101-00-12-10-01-00?

A: The linear range is 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target.

Q: What is the recommended gap setting for radial vibration?

A: The recommended gap setting is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).

Q: What is the operating temperature range of this probe?

A: The standard probe operates from -52°C to +177°C (-62°F to +350°F).

Q: What type of connector does this probe use?

A: It uses a miniature coaxial ClickLoc connector with a connector protector.

Product Support & Availability

The 330101-00-12-10-01-00 is available through Petro Auto Tech. We stock genuine Bently Nevada parts to ensure fast delivery and reliable performance. Contact our team for current availability and lead times.
