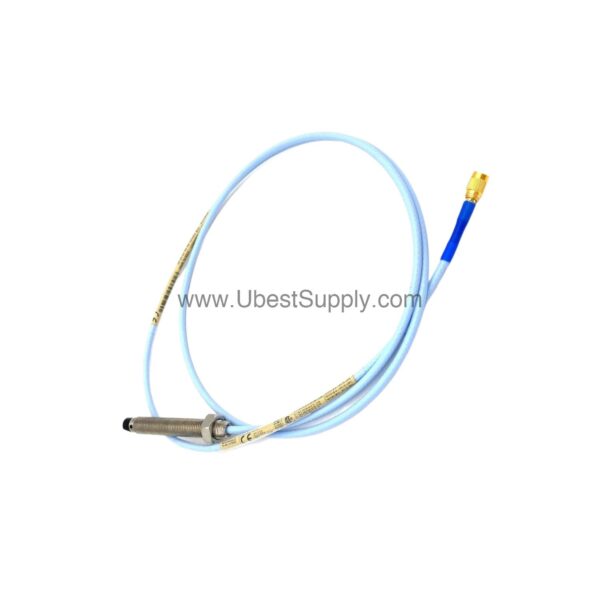

330101-00-12-10-01-05 | Bently Nevada 3300 XL 8 mm Probe

Introduction to the Bently Nevada 330101-00-12-10-01-05

When machinery vibration threatens uptime, the 330101-00-12-10-01-05 delivers precise, dependable measurement. This Bently Nevada 3300 XL 8 mm probe is engineered for industrial rotating equipment, offering a robust design that withstands harsh environments. With a 1.0 meter total length and a miniature coaxial ClickLoc connector, this probe integrates seamlessly into existing monitoring systems.

Key Features and Technical Specifications

• Probe Type: 3300 XL 8 mm probe with 3/8-24 UNF thread, without armor.
• Total Length: 1.0 meter (3.3 feet) standard cable.
• Connector: Miniature coaxial ClickLoc with connector protector.
• Approvals: CSA, ATEX, IECEx certified for hazardous areas.
• Linear Range: 2 mm (80 mils) with a recommended gap setting of -9 Vdc for radial vibration.
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5% for standard 5 or 1 meter systems.
• Probe Tip Material: Polyphenylene sulfide (PPS) for ruggedness.
• Probe Case Material: AISI 303 or 304 stainless steel.

These specifications translate into accurate vibration data, helping you detect issues early and avoid costly downtime.

Applications and Use Cases

The 330101-00-12-10-01-05 is ideal for monitoring radial vibration in turbines, compressors, pumps, and motors. In petrochemical plants, its ATEX and IECEx approvals ensure safe operation in explosive atmospheres. By providing real-time vibration data, this probe enables predictive maintenance, reducing unplanned outages and extending equipment life.

Installation and Setup

Proper installation is critical for accurate readings. Mount the probe with the 3/8-24 UNF thread into a suitable mounting hole, ensuring the tip is positioned within the linear range. Use the recommended field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a shielded triad cable, keeping the maximum length between the Proximitor sensor and monitor at 305 meters (1,000 feet). Follow the manufacturer's guidelines for gap setting to achieve optimal performance.

Maintenance and Reliability

The rugged PPS tip and stainless steel case provide excellent resistance to physical abuse and environmental stress. The patented TipLoc and CableLoc designs enhance durability, with a pull strength of 330 N (75 lbf). Regularly inspect the probe and cable for signs of wear or damage, especially in high-vibration applications. This proactive approach minimizes replacement costs and maximizes uptime.

Compatibility and Integration

This probe is part of the Bently Nevada 3300 XL family, designed to work with 3300 XL Proximitor sensors and monitoring systems. The miniature coaxial ClickLoc connector ensures a secure, reliable connection. For extended temperature ranges, the probe can operate from -52°C to +218°C for the tip, making it suitable for demanding processes.

Cost-Efficiency and ROI

Investing in the 330101-00-12-10-01-05 reduces long-term costs by preventing catastrophic failures. Early detection of vibration anomalies allows for planned maintenance, avoiding expensive emergency repairs. The probe's robust construction also lowers replacement frequency, delivering a strong return on investment over its service life.

FAQ

Q: What is the linear range of this probe?

A: The linear range is 2 mm (80 mils), starting at approximately 0.25 mm from the target.

Q: What approvals does this model have?

A: It has CSA, ATEX, and IECEx approvals for use in hazardous locations.

Q: What is the recommended gap setting for radial vibration?

A: The recommended gap setting is -9 Vdc, approximately 1.27 mm (50 mils).

Q: What is the maximum field wiring length?

A: The maximum length between the Proximitor sensor and monitor is 305 meters (1,000 feet).

Product Support and Availability

The Bently Nevada 330101-00-12-10-01-05 is available through Petro Auto Tech. Contact our team for current pricing and lead times. We are ready to assist with your vibration monitoring needs.
