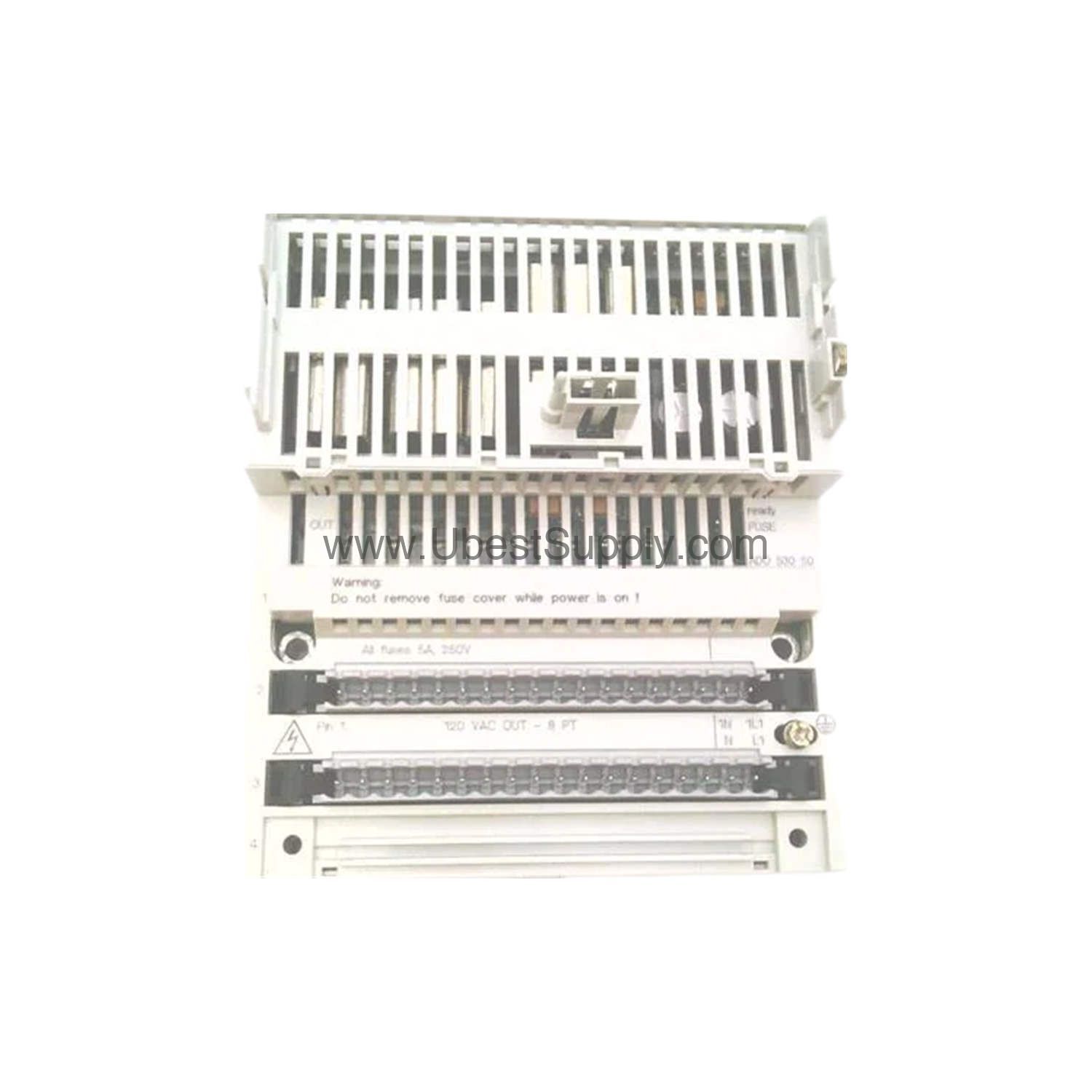

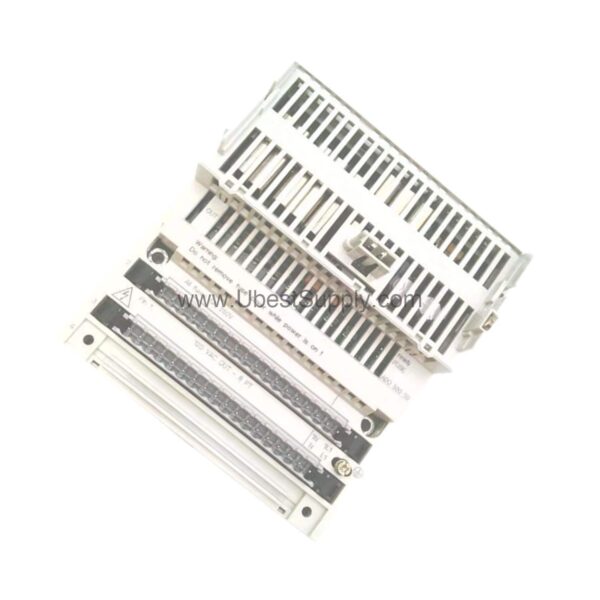

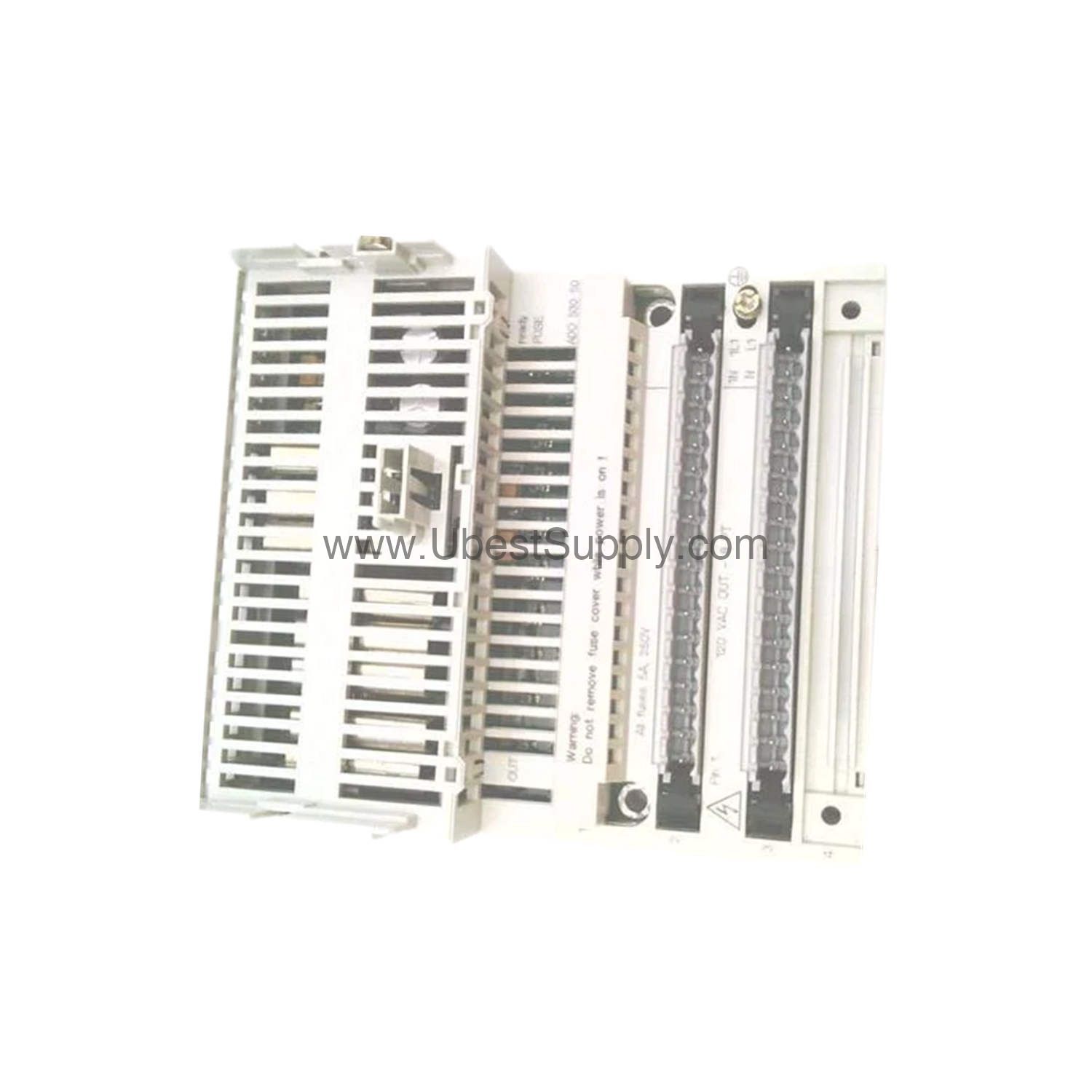

170ADO53050 | Schneider 8-Channel 120V AC Triac Output Module

Introduction to the Schneider 170ADO53050

When your automation system demands dependable switching of AC loads, the 170ADO53050 from Schneider Electric provides a robust solution. This discrete output module is part of the Modicon Momentum series, engineered for industrial environments where consistent performance is non-negotiable.

With 8 individual outputs rated at 120 V AC, this module uses Triac technology to handle a current of 2 A per channel. The total current capacity reaches 16 A, making it suitable for controlling multiple devices simultaneously.

As a maintenance engineer, you need components that minimize downtime. The 170ADO53050 is built with protection features that safeguard both the module and your connected equipment, reducing the risk of unexpected failures.

Key Features and Technical Specifications

The 170ADO53050 offers a range of technical specifications that ensure reliable operation in demanding applications. Here are the core parameters:

• Outputs: 8 discrete outputs
• Voltage Rating: 120 V AC
• Output Type: Triac
• Current per Channel: 2 A
• Total Current Rating: 16 A
• Short-Circuit Protection: Internal fuse, 5 A slow-blow per group
• Surge Current: 10 A for 2 cycles, 15 A for 1 cycle, 5 A for 3 cycles
• Minimum Output Current: 5 mA
• Maximum Leakage Current: 1.9 mA
• Maximum Voltage Drop: <1.5 V at 2 A
• Response Time: 0.5 line cycle from state 0 to state 1 or state 1 to state 0
• Channel Isolation: 1780 V AC for 1 minute
• Power Dissipation: 6 W typical, 7.5 W maximum

One distinctive spec is the channel isolation of 1780 V AC, which provides excellent electrical safety between channels. This is crucial when switching loads that may have different ground potentials, preventing cross-channel interference and protecting sensitive control logic.

Applications and Use Cases

The 170ADO53050 excels in applications where AC loads need to be switched reliably. Common use cases include controlling solenoid valves, motor starters, and indicator lamps in industrial machinery. Because it handles 120 V AC directly, it reduces the need for external relay interfaces, simplifying your control panel.

For example, in a packaging line, this module can manage multiple AC-powered actuators, ensuring precise timing and sequencing. Its fast response time of 0.5 line cycles allows for quick state changes, which is essential for high-speed operations.

Additionally, the module's surge current ratings make it resilient to inrush currents from inductive loads, reducing the likelihood of nuisance trips.

Installation and Setup

Installing the 170ADO53050 is straightforward, but proper handling is key. Before mounting, verify that the module is compatible with your Momentum base. Ensure that the power is disconnected during installation to avoid electrical hazards.

When wiring, follow the terminal assignments as per the Schneider documentation. Use appropriate wire gauges for 2 A per channel, and ensure that the total current does not exceed 16 A. The internal fuse provides short-circuit protection, but you should still use external fusing if required by your safety standards.

After installation, perform a continuity check on each output to confirm correct wiring. Power up the system and test each channel individually to verify proper operation.

Maintenance and Reliability

Routine maintenance of the 170ADO53050 is minimal, but periodic inspection is recommended. Check for loose connections, signs of overheating, or any physical damage. The module's power dissipation is relatively low, but ensure adequate ventilation in the enclosure to maintain optimal operating temperatures.

Because the module uses Triac outputs, there are no moving parts, which enhances long-term reliability. However, verify that the internal fuse is intact if you experience a short-circuit event. Always replace fuses with the correct rating (5 A slow-blow per group) to maintain protection.

By following a simple inspection schedule, you can extend the life of the module and avoid unexpected downtime.

Compatibility and Integration

The 170ADO53050 is designed for the Modicon Momentum automation platform. It integrates seamlessly with Momentum processors and I/O bases, allowing you to expand your system's output capacity without complex configuration.

This module is ideal for upgrading existing Momentum systems or for new installations where reliable AC output switching is required. Its compact form factor fits standard Momentum mounting arrangements.

For specific compatibility details, refer to the Schneider Electric documentation or contact Petro Auto Tech for expert guidance.

Troubleshooting Common Issues

If an output fails to energize, first check the corresponding fuse. A blown fuse indicates a short circuit or overload on that group. Replace the fuse only after clearing the fault.

If the module does not respond to commands, verify that the communication link with the processor is active. Check the module's status LEDs (if present) to diagnose communication errors.

For persistent issues, consult the Schneider Electric troubleshooting guide or reach out to Petro Auto Tech for technical support.

FAQ about the 170ADO53050

Q: What is the maximum current per channel for the 170ADO53050?

A: The module supports up to 2 A per channel, with a total current rating of 16 A across all 8 outputs.

Q: Does the 170ADO53050 provide short-circuit protection?

A: Yes, it includes an internal fuse rated at 5 A slow-blow per group, offering protection against short circuits.

Q: What is the response time of the 170ADO53050?

A: The response time is 0.5 line cycle for both state 0 to state 1 and state 1 to state 0 transitions.

Q: Can the 170ADO53050 handle surge currents?

A: Yes, it can handle surge currents of 10 A for 2 cycles, 15 A for 1 cycle, and 5 A for 3 cycles.

Q: What is the channel isolation rating?

A: The module provides channel isolation of 1780 V AC for 1 minute, ensuring electrical safety between channels.
