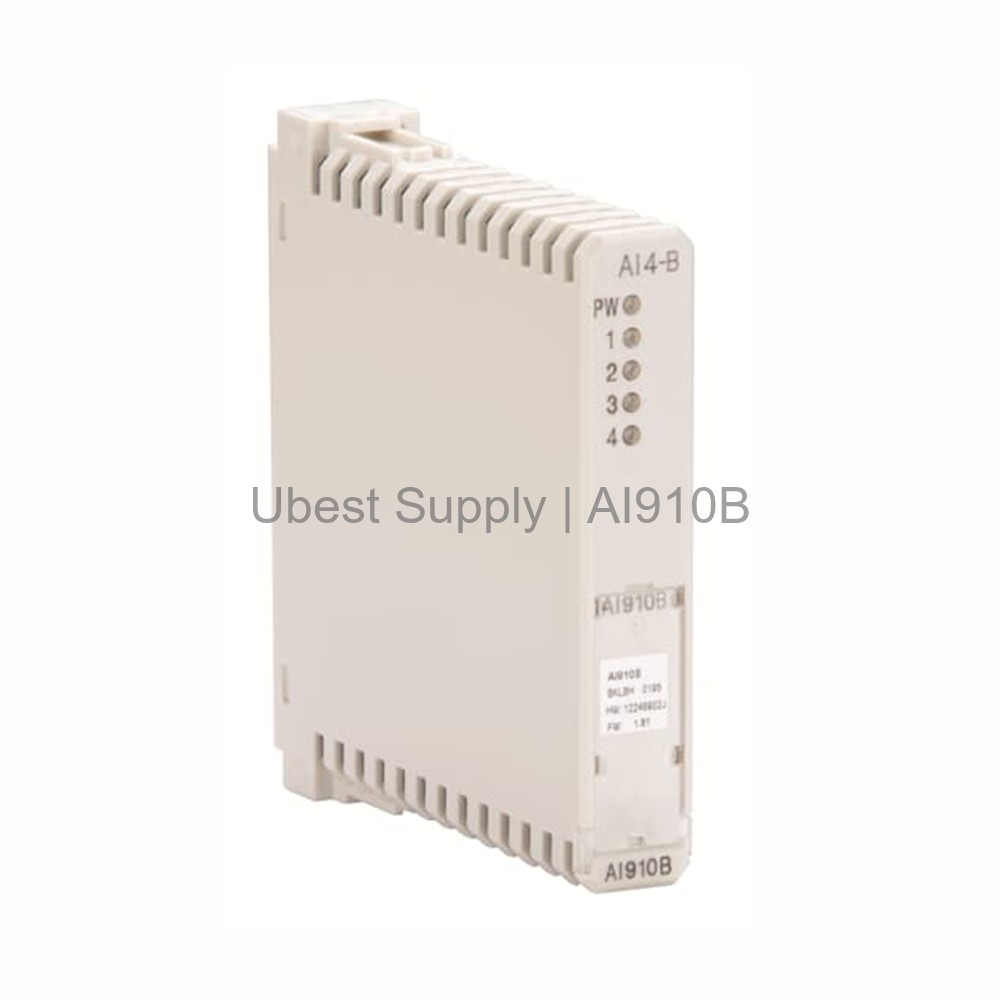

ABB AI910B 4-Channel Analog Input Module S900 Series

Product Overview

The ABB AI910B is a high-quality analog input module. It belongs to the S900 series. This module has 4 channels. Each channel accepts a 4 to 20 mA signal. The module is intrinsically safe. It works in harsh environments.

The product number is 3KDE175512L9100. This module is ideal for process automation. It offers reliable and accurate signal conversion. The compact design saves cabinet space.

Application Scenarios

Use the ABB AI910B in hazardous areas. It is certified for ATEX Zone 2. It also resists corrosive atmospheres per ISA-S71.04 G3. Common uses include chemical plants and oil refineries. It works well in offshore platforms.

The module suits applications needing intrinsic safety. It is a good fit for remote I/O systems. Use it with the S900 mechanical platform. It handles high humidity up to 93%.

Technical Specifications

The module has 4 input channels. It supports 4 to 20 mA signals. It does not support HART. It does not support SOE. There is no redundancy. The ambient temperature range is -20 to 60 degrees Celsius.

The module meets RoHS and WEEE directives. It weighs only 0.13 kg. Its dimensions are 20 x 104 x 104 mm. The module is CE marked. It is compliant with EN 50581:2012.

Installation & Maintenance Guide

Mount the module on a DIN rail. Ensure proper grounding. Use shielded cables for signal wiring. Check the ambient temperature before operation. Do not exceed the max rated values.

Regularly inspect the module for damage. Keep the area free of dust. Replace the module only when powered off. Follow all local safety regulations. Use only approved tools.

Packing List

1 x ABB AI910B Analog Input Module
1 x Product Documentation
1 x Compliance Certificate
