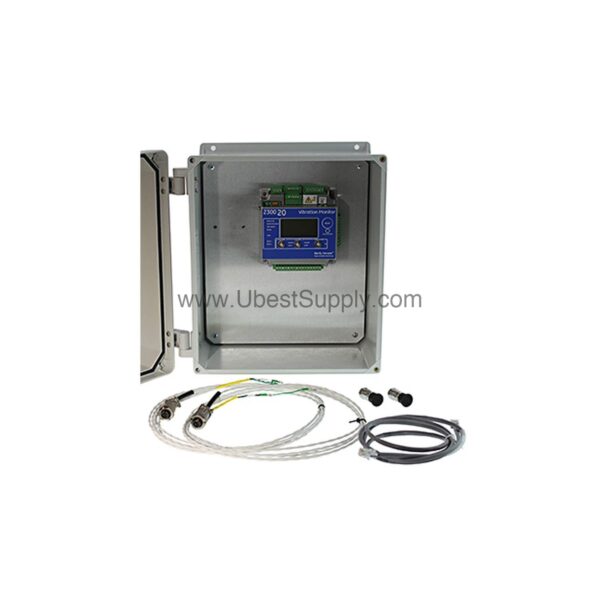

2300/25-02 | Bently Nevada Monitor with SPA Outputs

Introduction to the Bently Nevada 2300/25-02

In the evolving landscape of industrial automation, the need for precise and reliable machinery monitoring has never been greater. The Bently Nevada 2300/25-02 monitor with SPA outputs addresses this demand with advanced features and robust construction. Designed for continuous operation in demanding environments, this monitor provides accurate measurements of vibration, speed, and process variables, helping to prevent costly downtime.

As part of the Bently Nevada 2300 series, the 2300/25-02 offers a compact, panel-mount or DIN-rail design that integrates seamlessly into existing systems. Its ability to handle multiple input types, including accelerometers, velocity sensors, and proximity transducers, makes it a versatile choice for a wide range of rotating machinery.

Key Features and Technical Specifications

The 2300/25-02 monitor is engineered for precision and flexibility. Here are its core specifications:

• Input Power: 18–36 Vdc, maximum 7.5 W
• Channel Types: Configurable for accelerometers, velocity, radial vibration, thrust, and process variables
• Bandpass Filter: 0.2 Hz to 20 kHz
• Scale Factor Range: 5 to 1000 mV/g (accelerometer), 5 to 1000 mV/in/s (velocity), 5 to 1000 mV/mil (radial vibration)
• Full Scale Range: 2 to 80 g peak (accelerometer), 0 to 50 in/s peak (velocity), 0 to 160 mil peak-peak (radial vibration)
• Accuracy: ±1% of full scale range
• Independent 24-bit ADCs on each input channel
• SPA Outputs: High AC 8 Vpp, Low AC 1.6 Vpp, DC GAP 0 to -20 Vdc
• Relay Outputs: Two dry-contact relays, SPDT, epoxy sealed
• Ethernet: 10Base-T/100Base-TX, RJ-45, cable length up to 100 m
• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing
• Dimensions: 127 mm x 127 mm x 76.2 mm (5 in x 5 in x 3 in)
• Weight: 1.03 kg (2.26 lbs)

One standout feature is the independent 24-bit ADCs, which ensure high-resolution measurement on each channel, reducing cross-channel interference and improving data accuracy.

Applications and Use Cases

The 2300/25-02 is ideal for monitoring critical rotating equipment such as turbines, compressors, pumps, and motors. Its configurable inputs allow it to adapt to various sensor types, making it suitable for both machinery protection and predictive maintenance programs. For example, in a steam turbine application, the monitor can track radial vibration and thrust position, providing early warning of potential issues. Additionally, the SPA outputs enable seamless integration with existing protection systems, enhancing overall plant safety.

Installation and Setup

Mounting the 2300/25-02 is straightforward, with options for panel mounting or DIN rail installation (adapter included). The monitor comes with a manual and configuration software, simplifying setup. For optimal performance, ensure proper grounding and follow the manufacturer's wiring guidelines. The Ethernet port allows for remote configuration and data retrieval, making initial commissioning efficient.

Maintenance and Reliability

Regular inspection of the monitor and its connections is recommended to ensure long-term reliability. The unit's robust design, with an epoxy-sealed relay and wide operating temperature range, minimizes maintenance needs. The real-time clock battery has a powered life of 38 years at 50°C, reducing the need for battery replacements. By monitoring machinery health continuously, the 2300/25-02 helps avoid unexpected failures, saving on repair costs and downtime.

Compatibility and Integration

The 2300/25-02 supports Ethernet communication (10Base-T/100Base-TX) and can interface with Bently Nevada's System 1 software for advanced diagnostics. It also supports multiple transducer types, including accelerometers, velocity sensors, and proximity probes, making it compatible with a wide range of existing installations. The monitor can store up to five alarm data captures during network disruptions, ensuring data integrity.

Troubleshooting and Common Issues

Common issues with monitors include sensor wiring faults, configuration errors, and network communication problems. The 2300/25-02 offers diagnostic LEDs for OK, protection fault, user inhibit, bypass, relay status, and TX/RX, aiding in quick troubleshooting. If a channel alarm occurs, the alert and danger LEDs provide immediate visual indication. For persistent issues, consult the official Bently Nevada documentation or contact Petro Auto Tech for technical support.

FAQ about the 2300/25-02

What is the power input range for the 2300/25-02?

The monitor accepts a DC input of 18 to 36 Vdc, with a maximum power consumption of 7.5 W.

Can the 2300/25-02 connect to existing Ethernet networks?

Yes, it supports 10Base-T and 100Base-TX Ethernet, conforming to IEEE 802.3, with a maximum cable length of 100 meters.

What types of sensors are compatible with the 2300/25-02?

It supports ICP accelerometers, velocity sensors, proximity transducers, and process variable inputs, with configurable scale factors.

How accurate are the SPA outputs?

The SPA outputs have an accuracy of ±1% of full-scale for AC signals at 100 Hz, and ±0.5 V for DC gap measurements.

Product Support and Availability

The Bently Nevada 2300/25-02 is available through Petro Auto Tech, a trusted industrial automation parts supplier. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. Our team is ready to assist with any questions about the product's specifications or integration.
